Compressor Bracket

REMOVAL
1. Remove the A/C compressor.

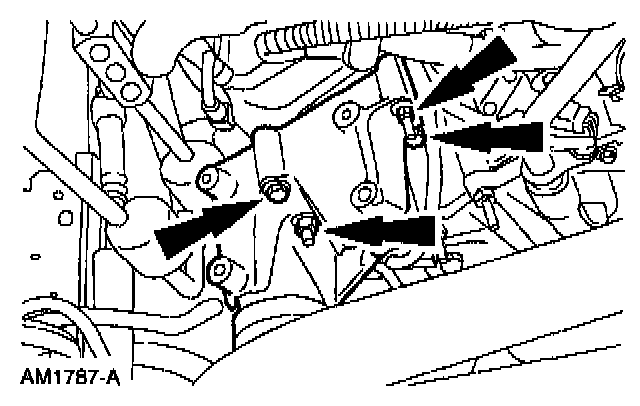

2. Remove the 3 bolts and 1 nut.
3. Remove the A/C compressor mounting bracket.

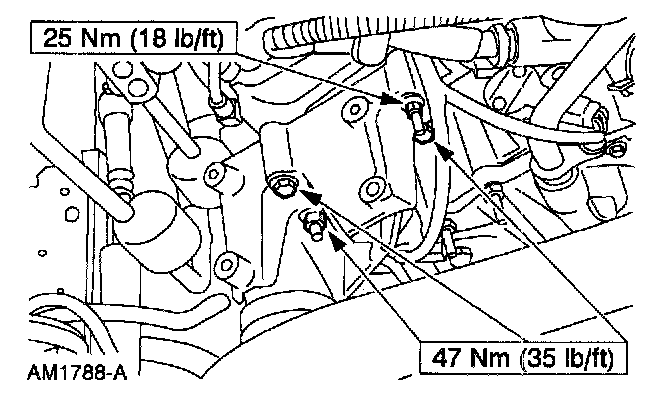

INSTALLATION







1. To install, reverse the removal procedure.
