B: Transmission Fluid/Oil Temperature (TFT/TOT) Sensor
B: Transmission Fluid/Oil Temperature (TFT/TOT) Sensor
B1:
B1 - B3:
B3 - B4:

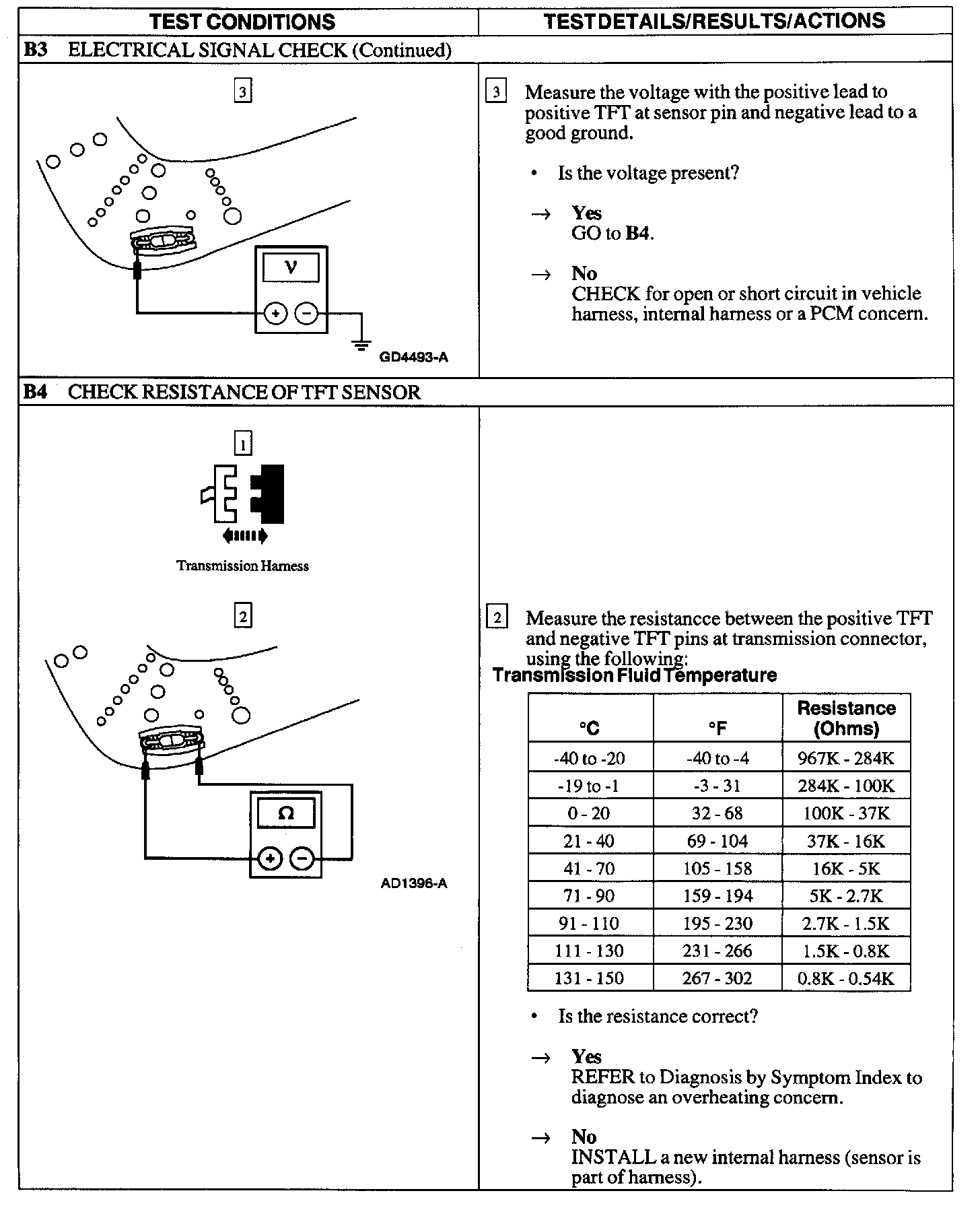

Pinpoint Test B: TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR
