B1601: Unprogrammed Encoded Ignition Key (Keycode Format Ok)

B1601-1 - B1601-2:

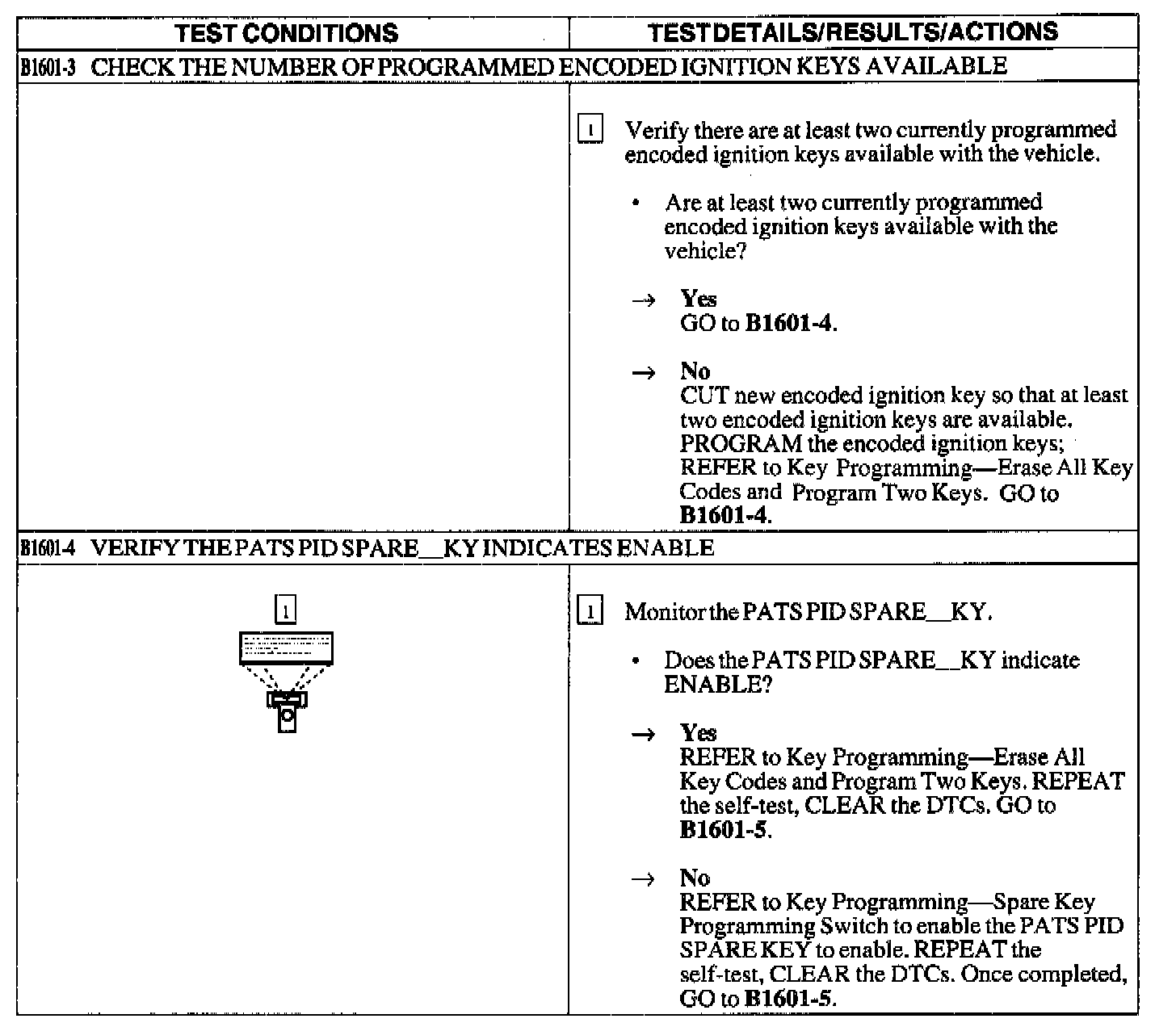

B1601-3 - B1601-4:






B1601-5 - B1601-6:
