Components
Components

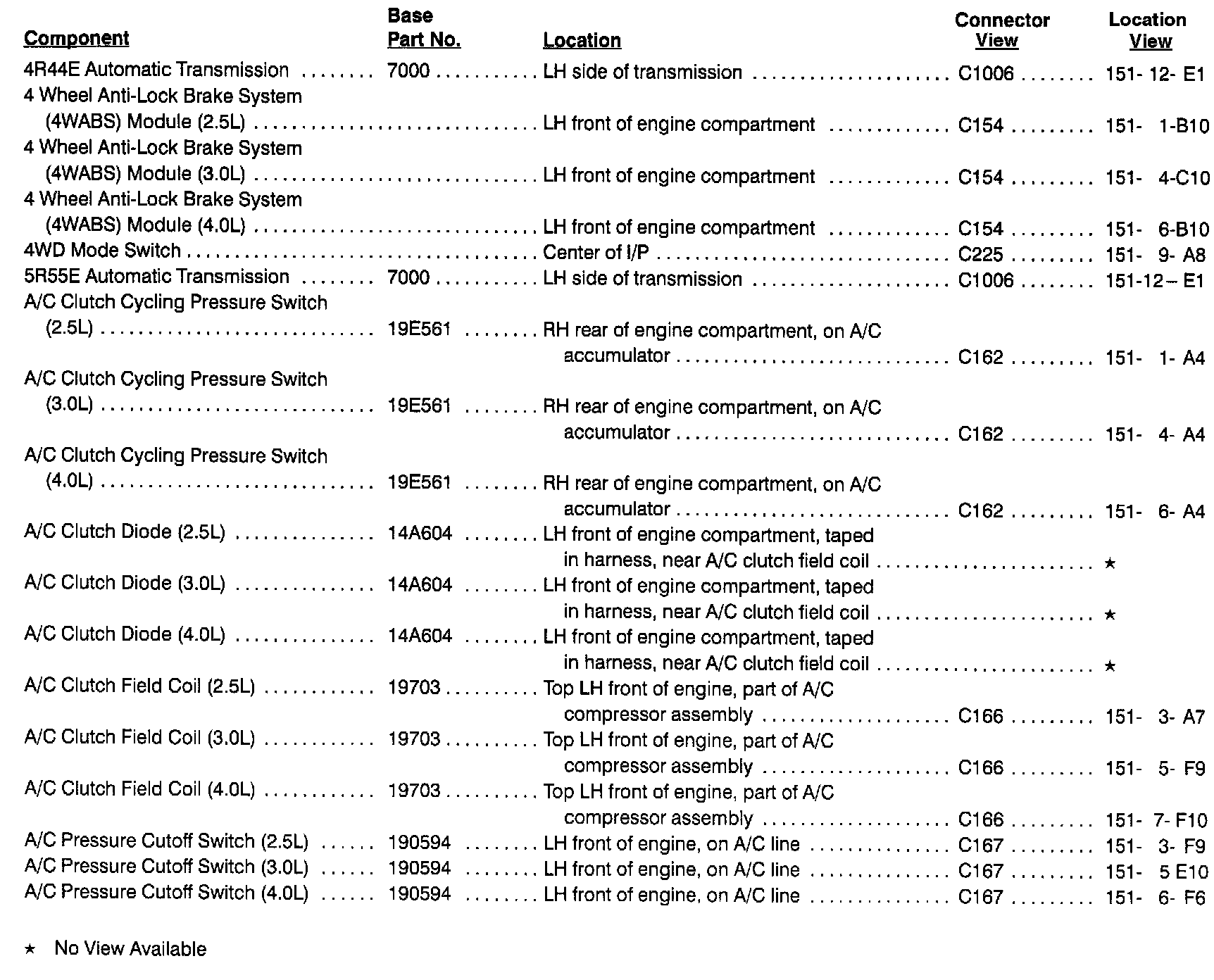

4R-A/C:

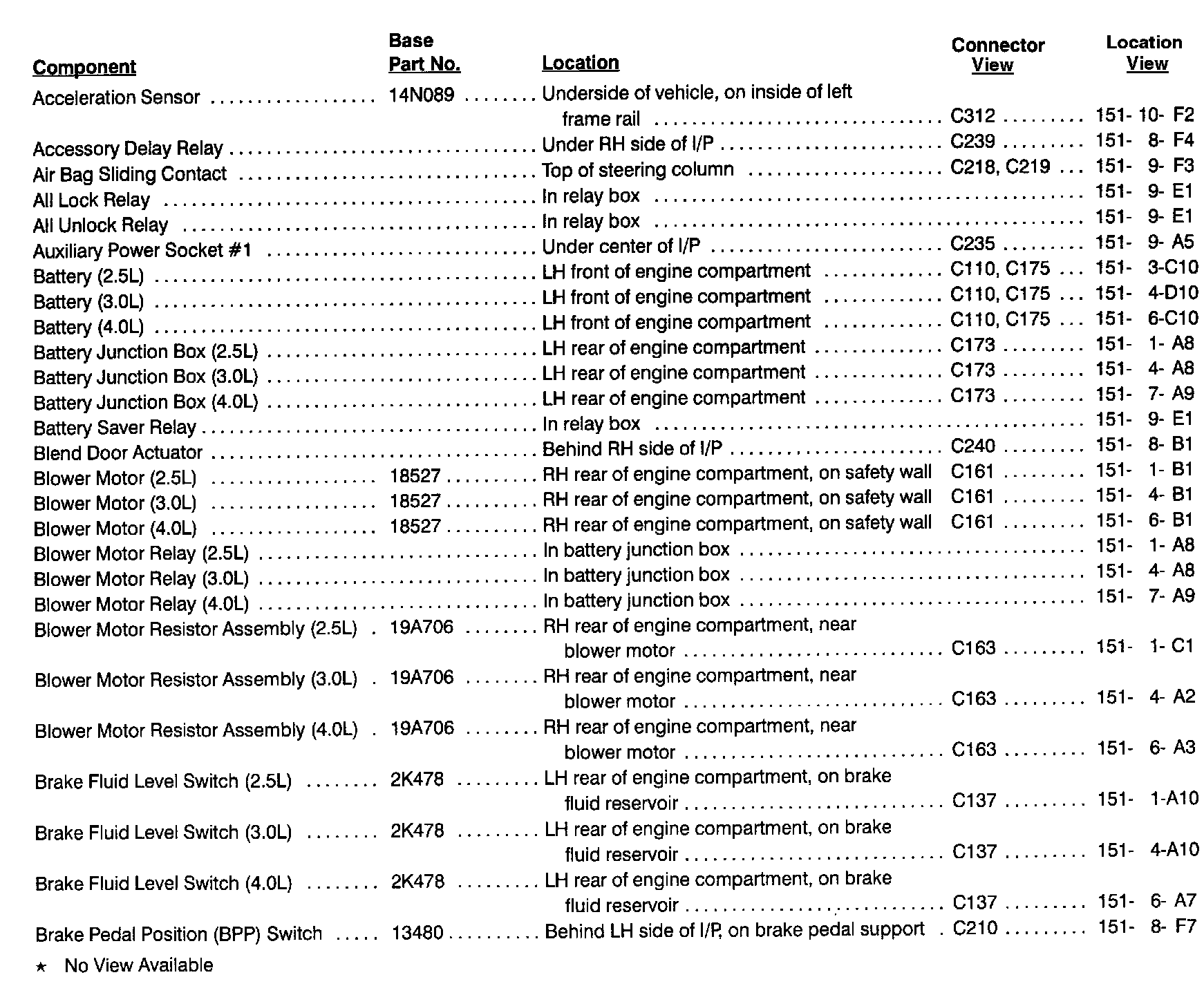

Acc-Br:
Br-Di:

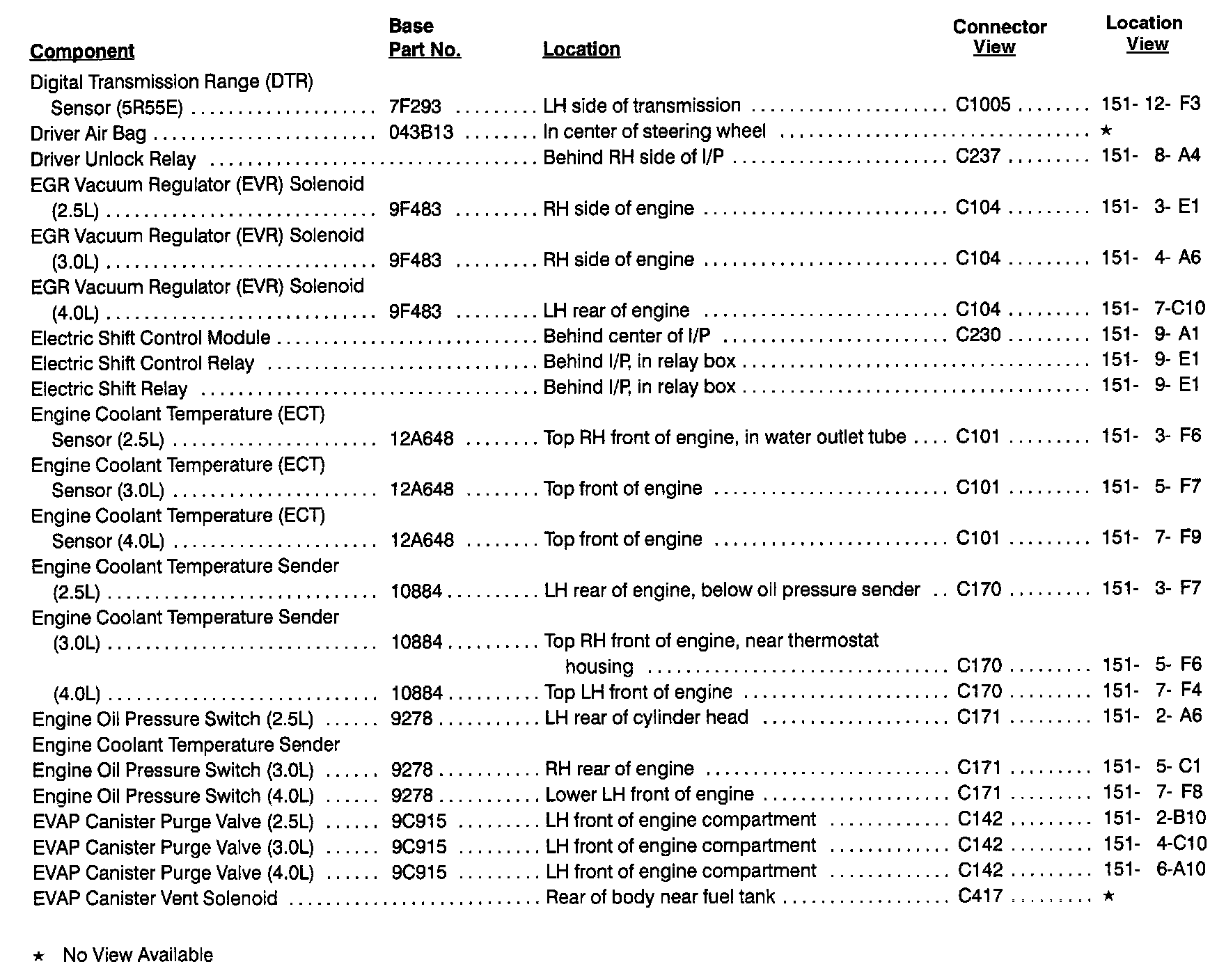

Di-EVAP:
Ex-Fu:
Ge-Id:

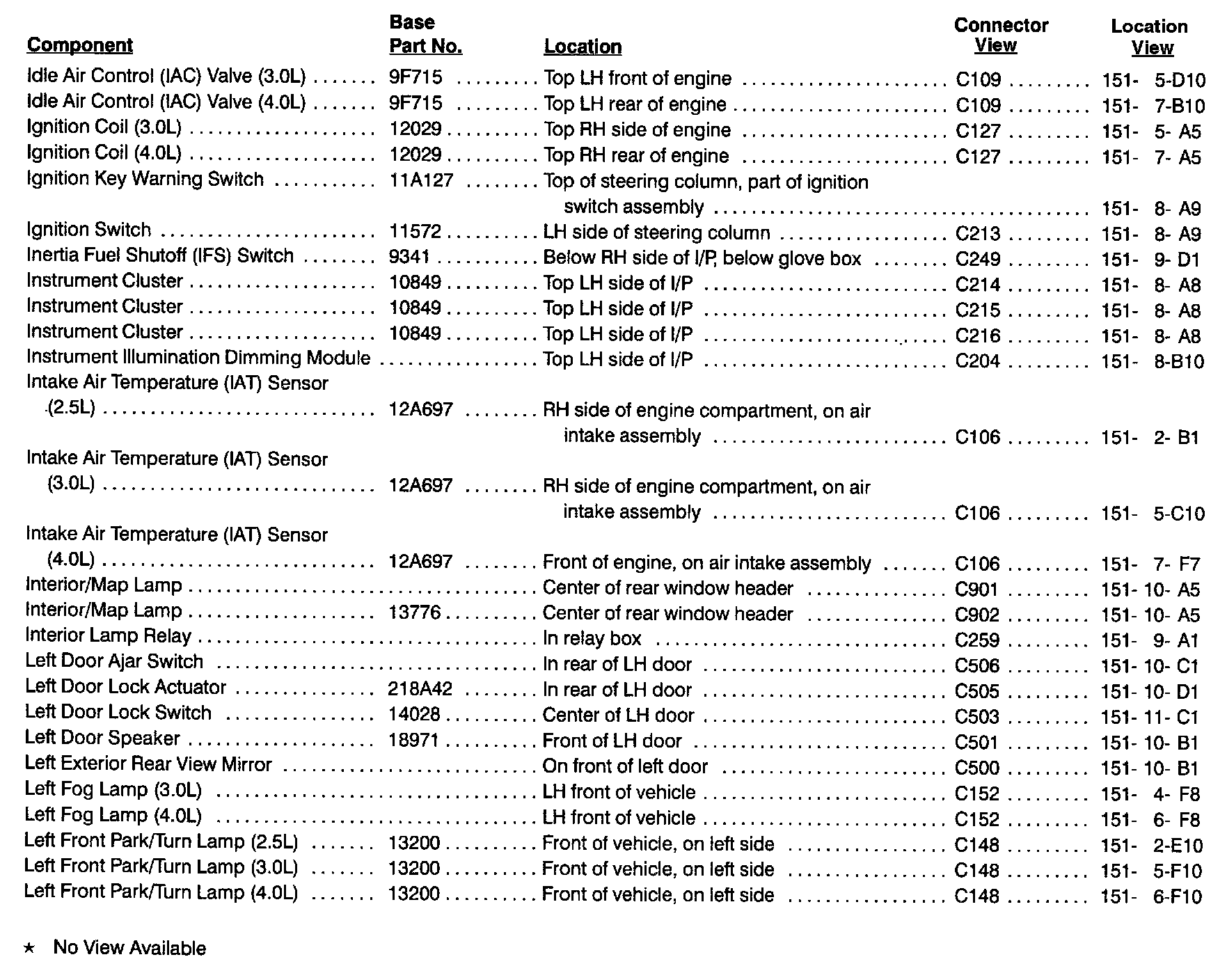

Id-Le:

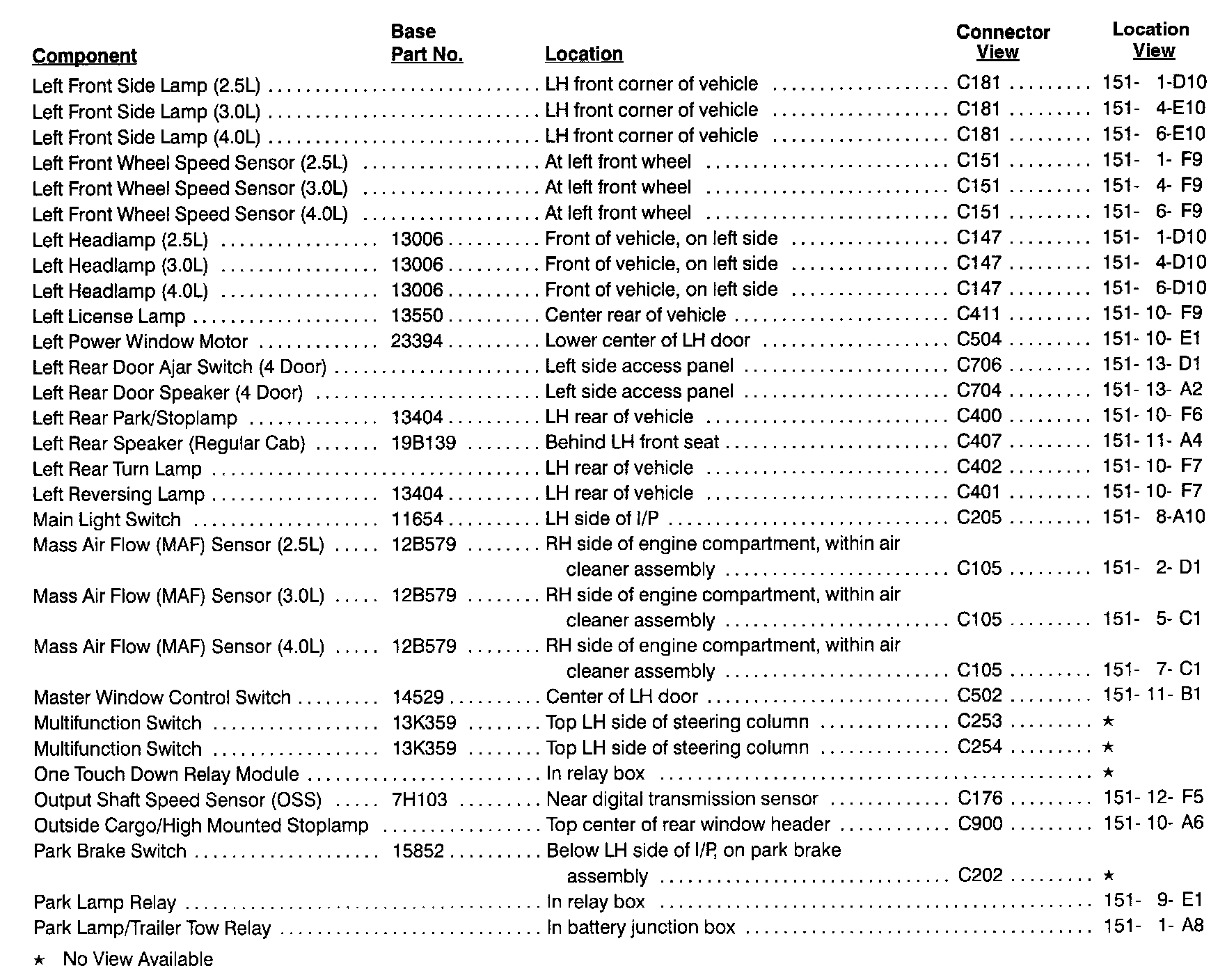

Le-Pa:

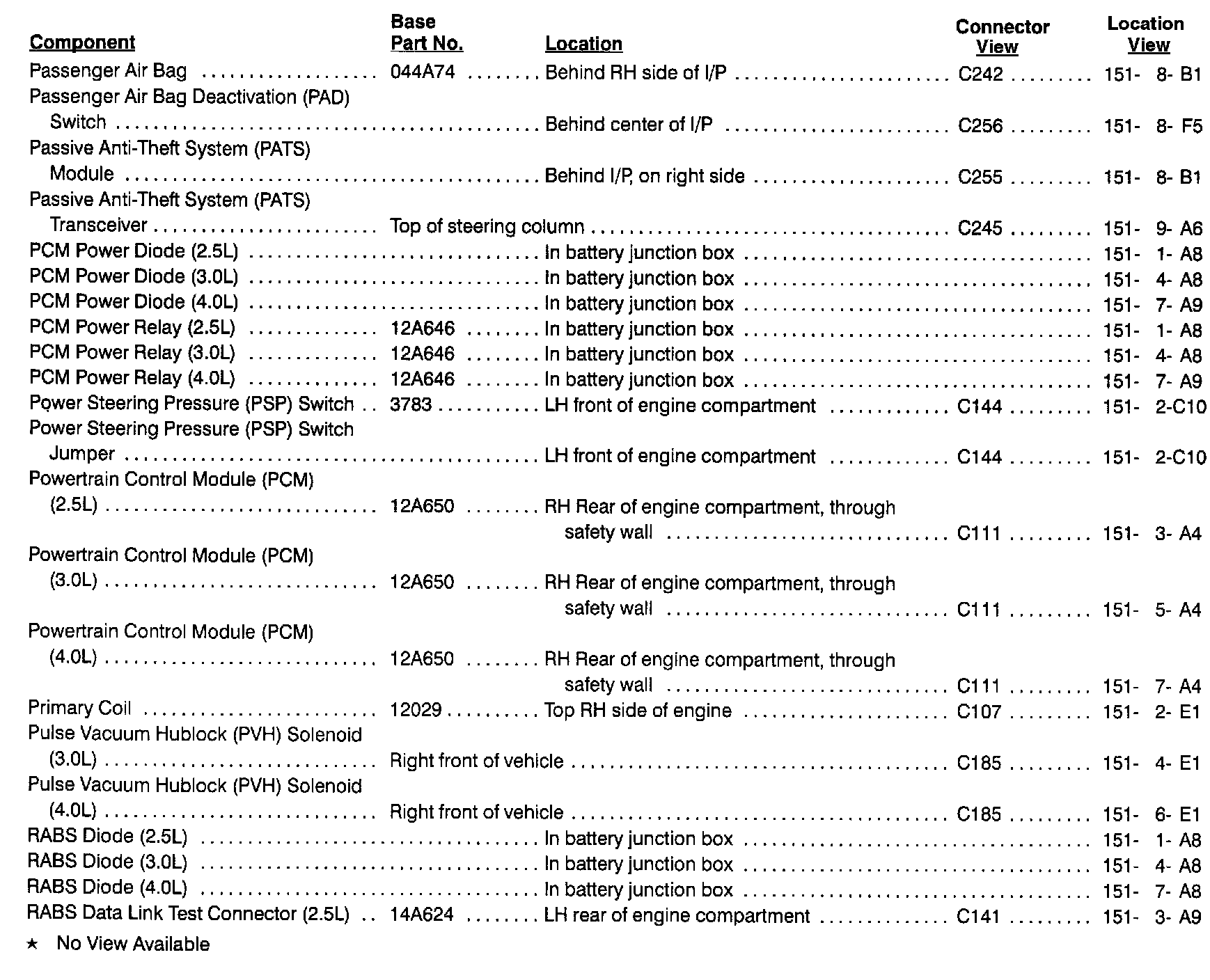

Pa-RABS:

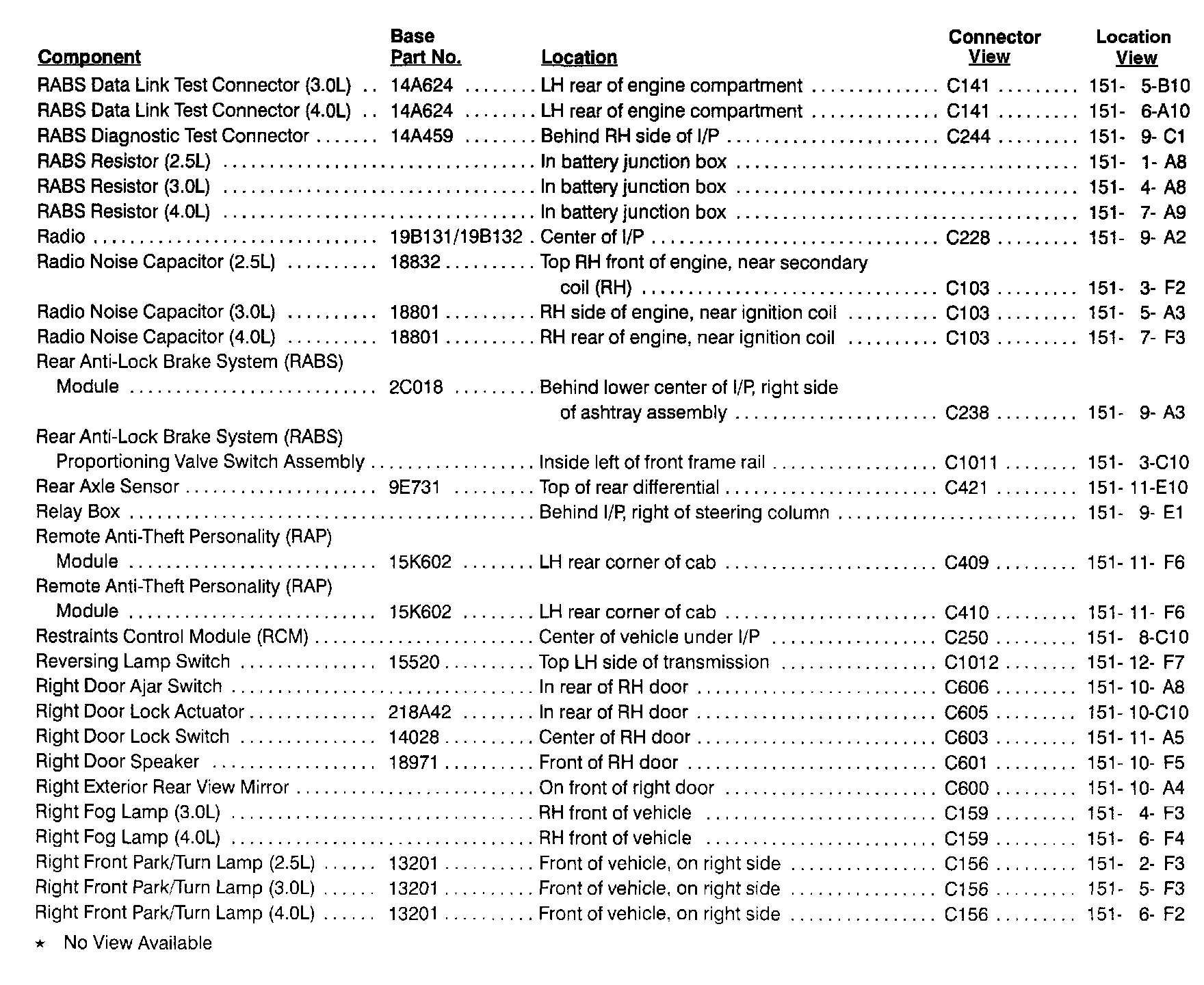

RABS-Ri:

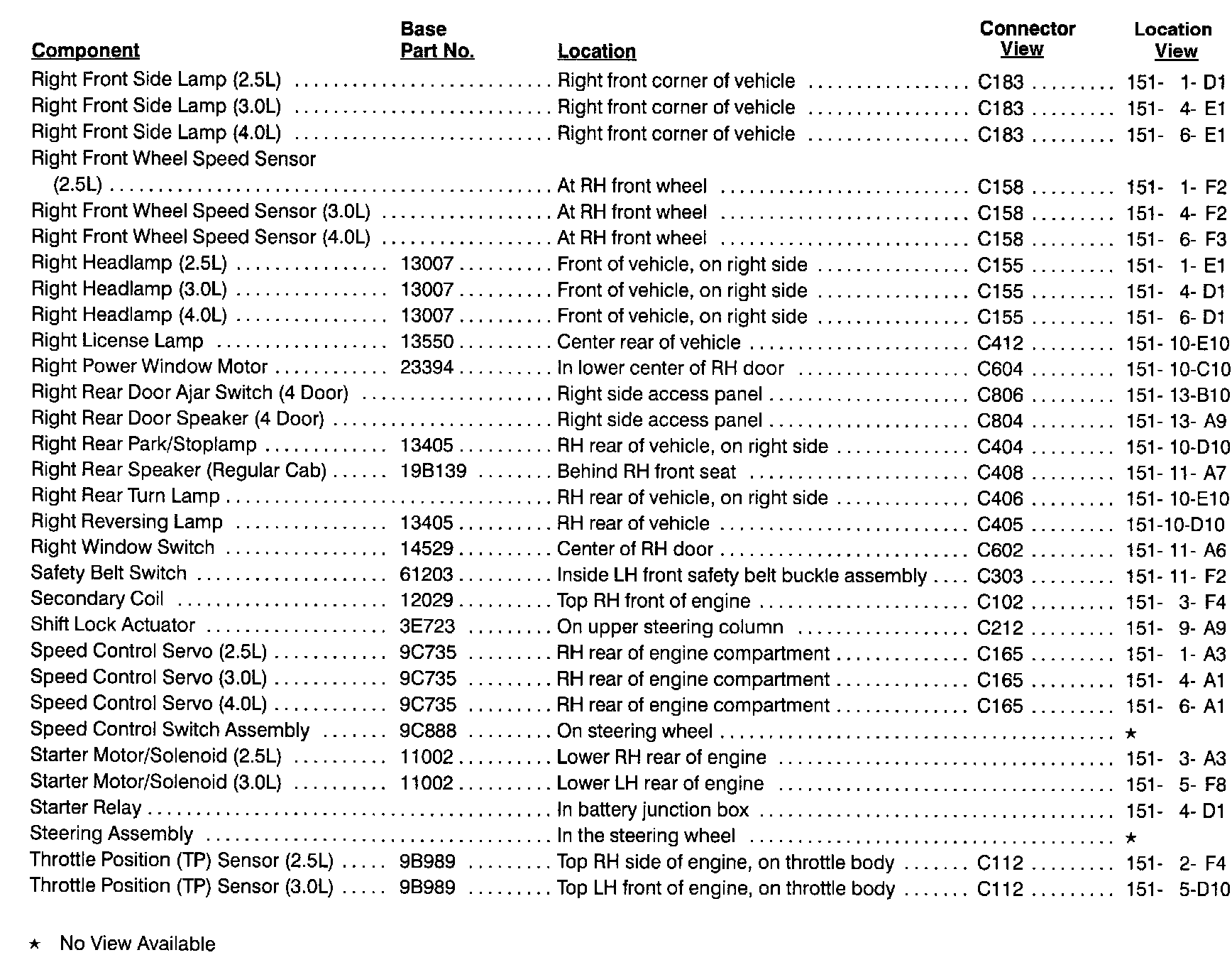

Ri-Th:

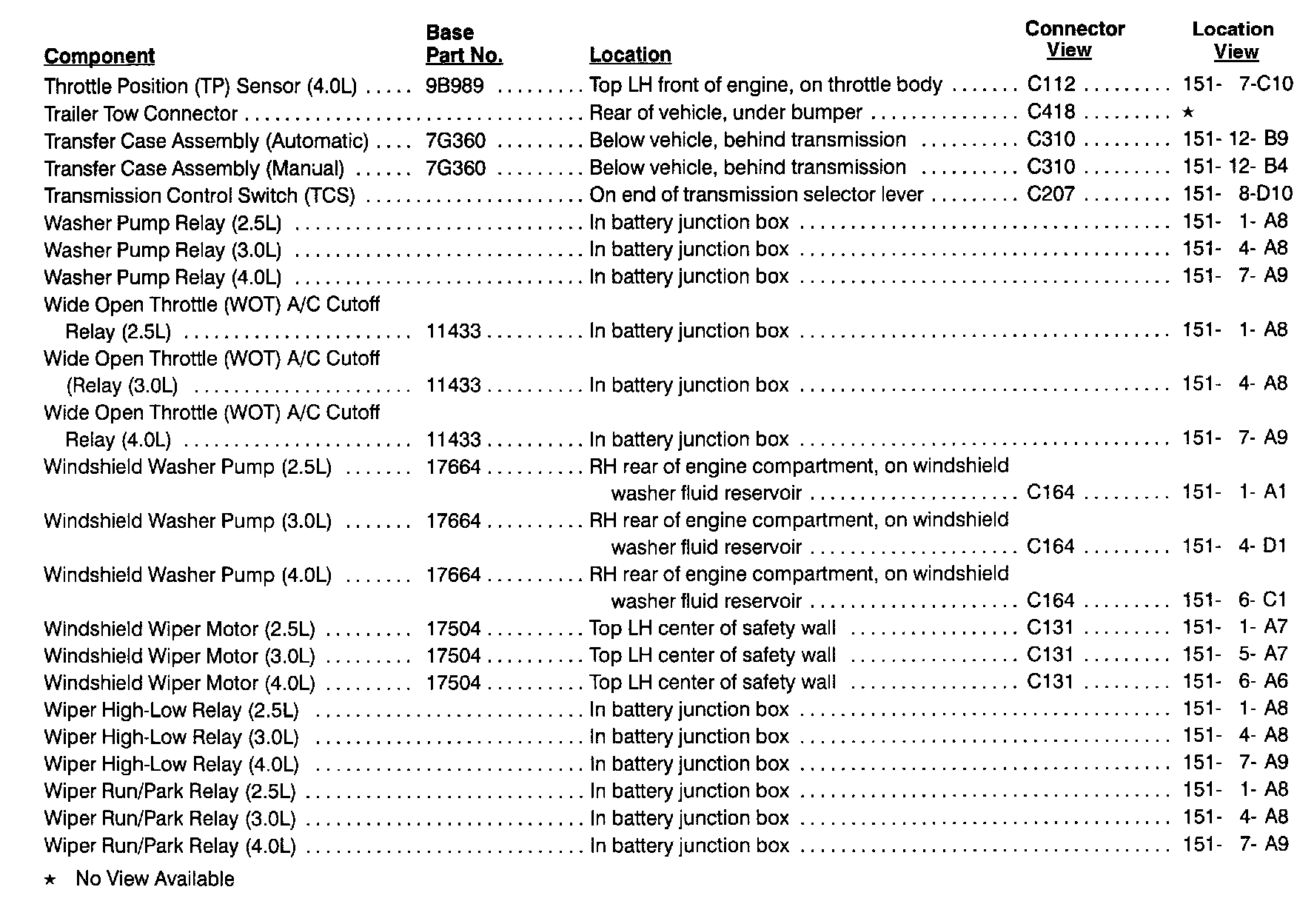

Th-Wi:
