Remote Keyless Entry System

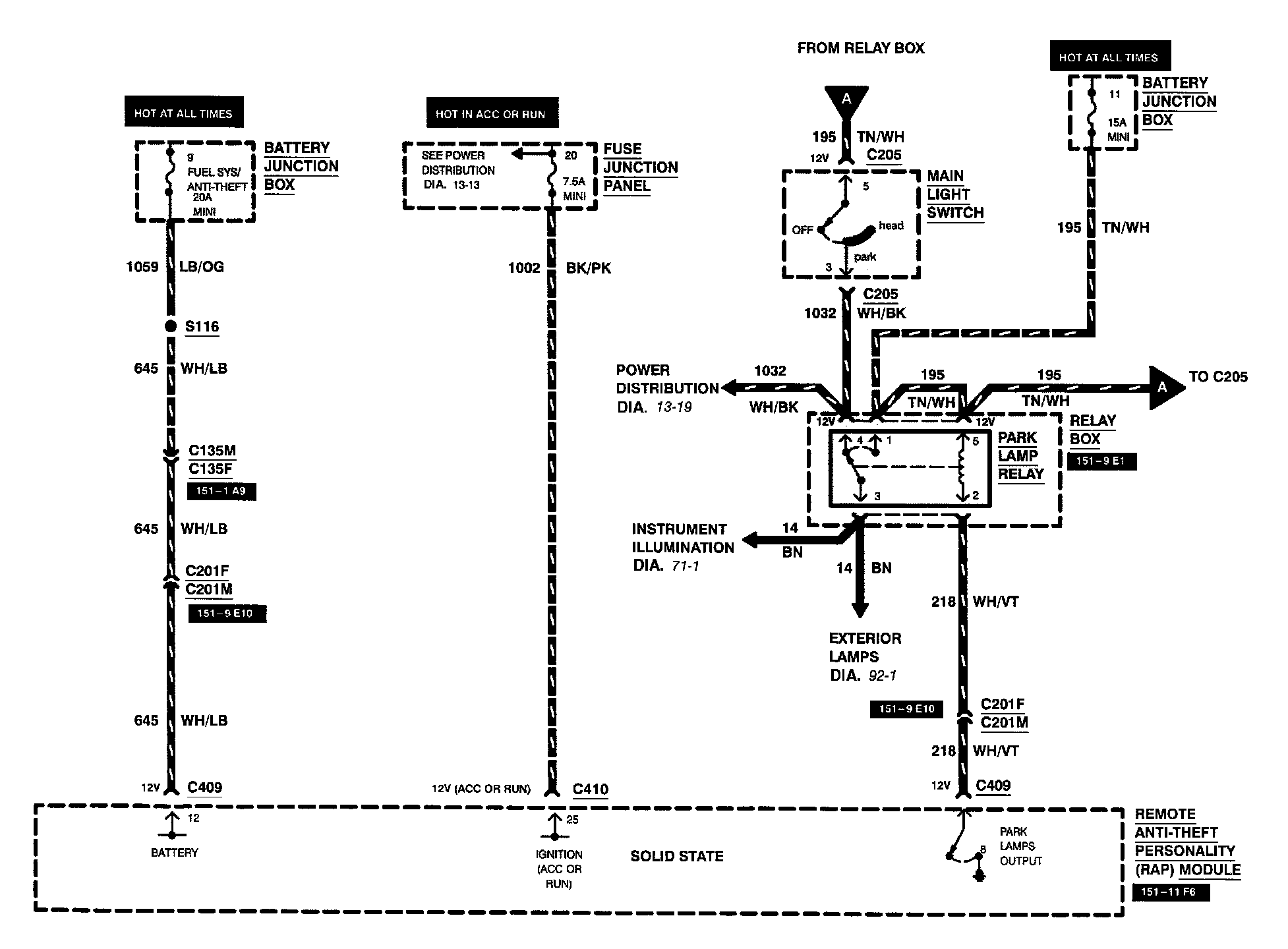

Diagram 117-1:

Battery Junction Box
Fuse 9
Fuse 11
Fuse 20
Fuse Junction Panel
Main Light Switch
Park Lamp Relay
Remote Anti-Theft Personality Module
Relay Box

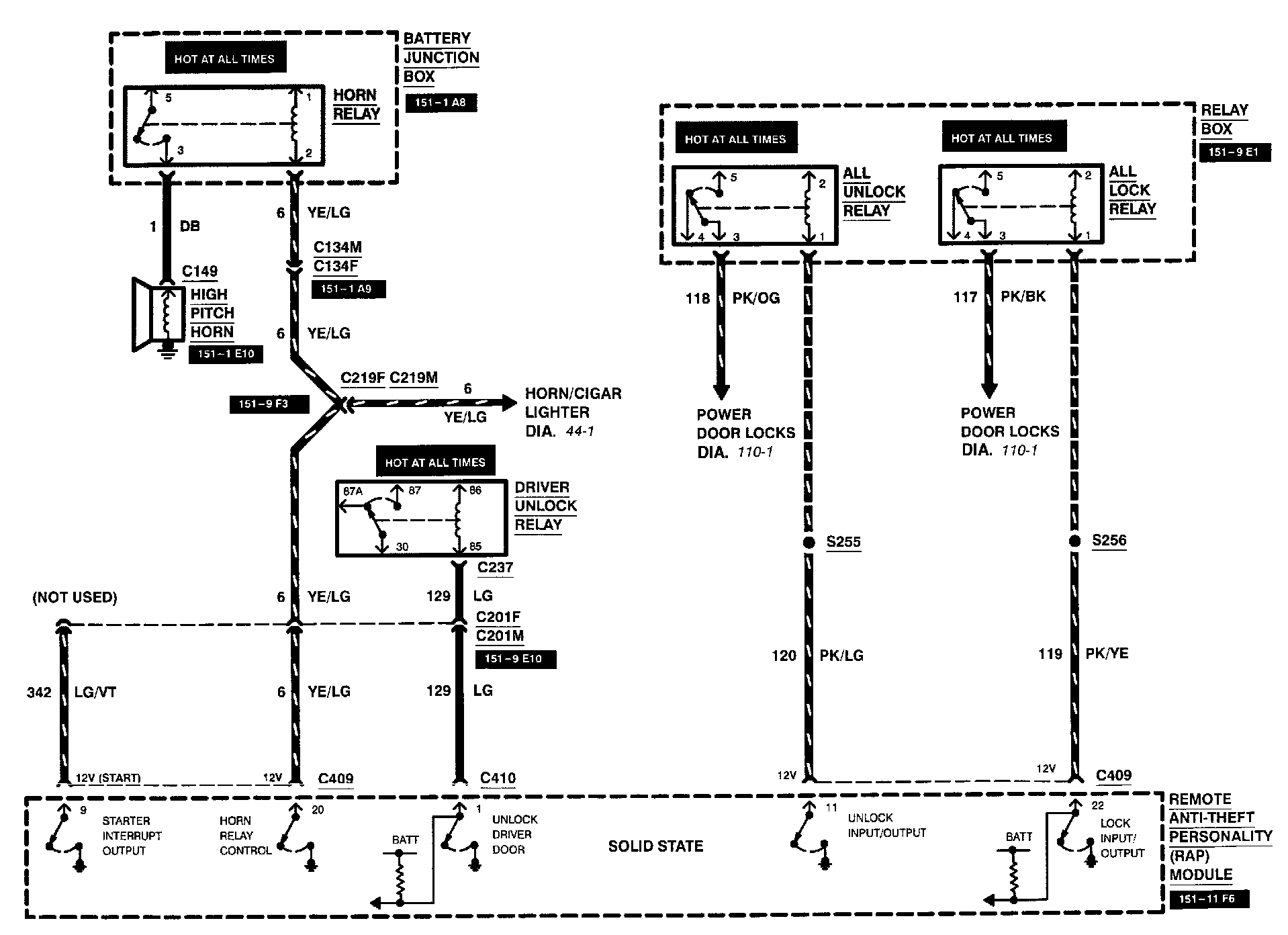

Diagram 117-2:

All Lock Relay
All Unlock Relay
Battery Junction Box
Driver Unlock Relay
High Pitch Horn
Horn Relay
Remote Anti-Theft Personality Module
Relay Box

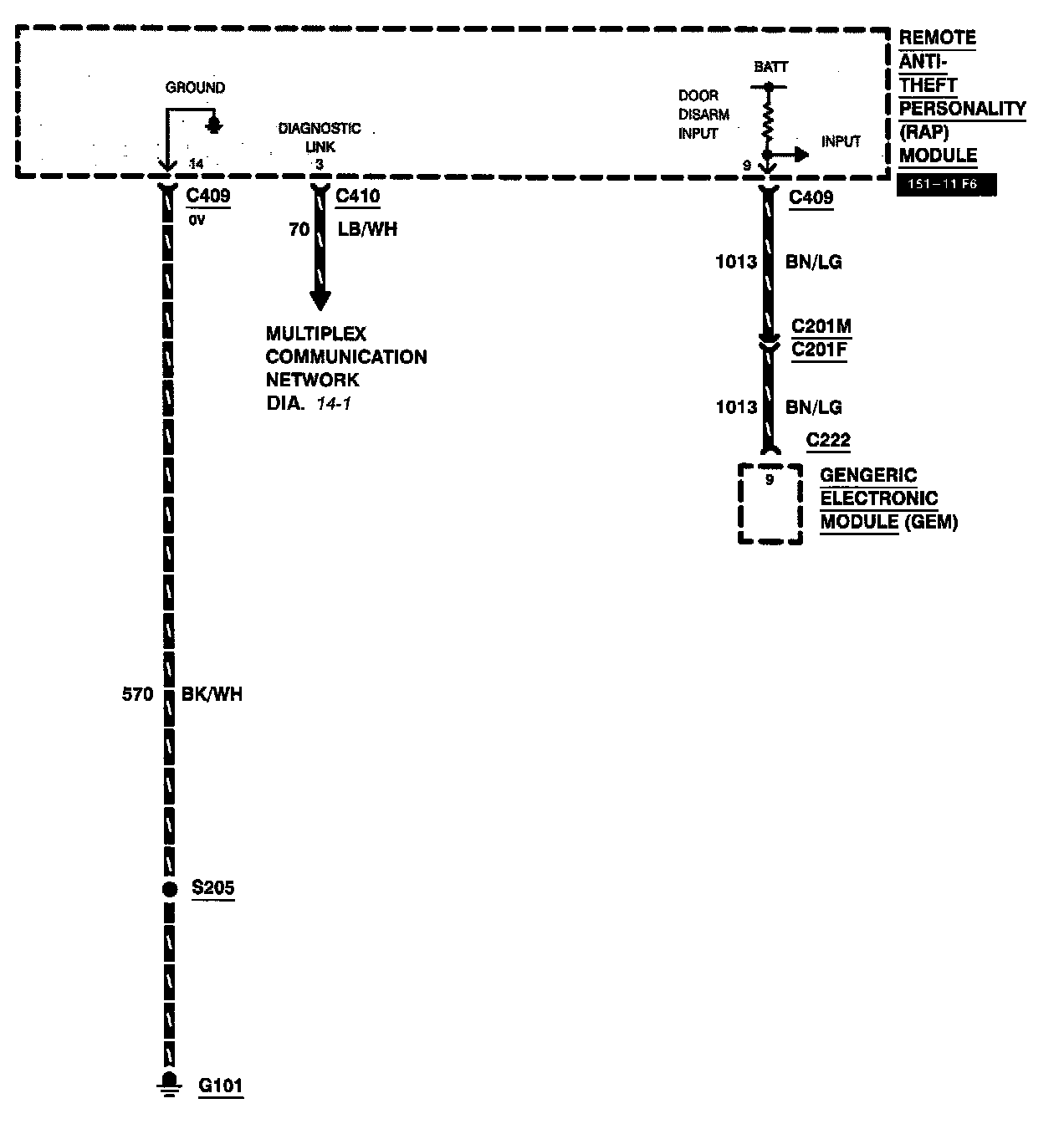

Diagram 117-3:

Generic Electronic Module
Remote Anti-Theft Personality Module
