Connector Locations

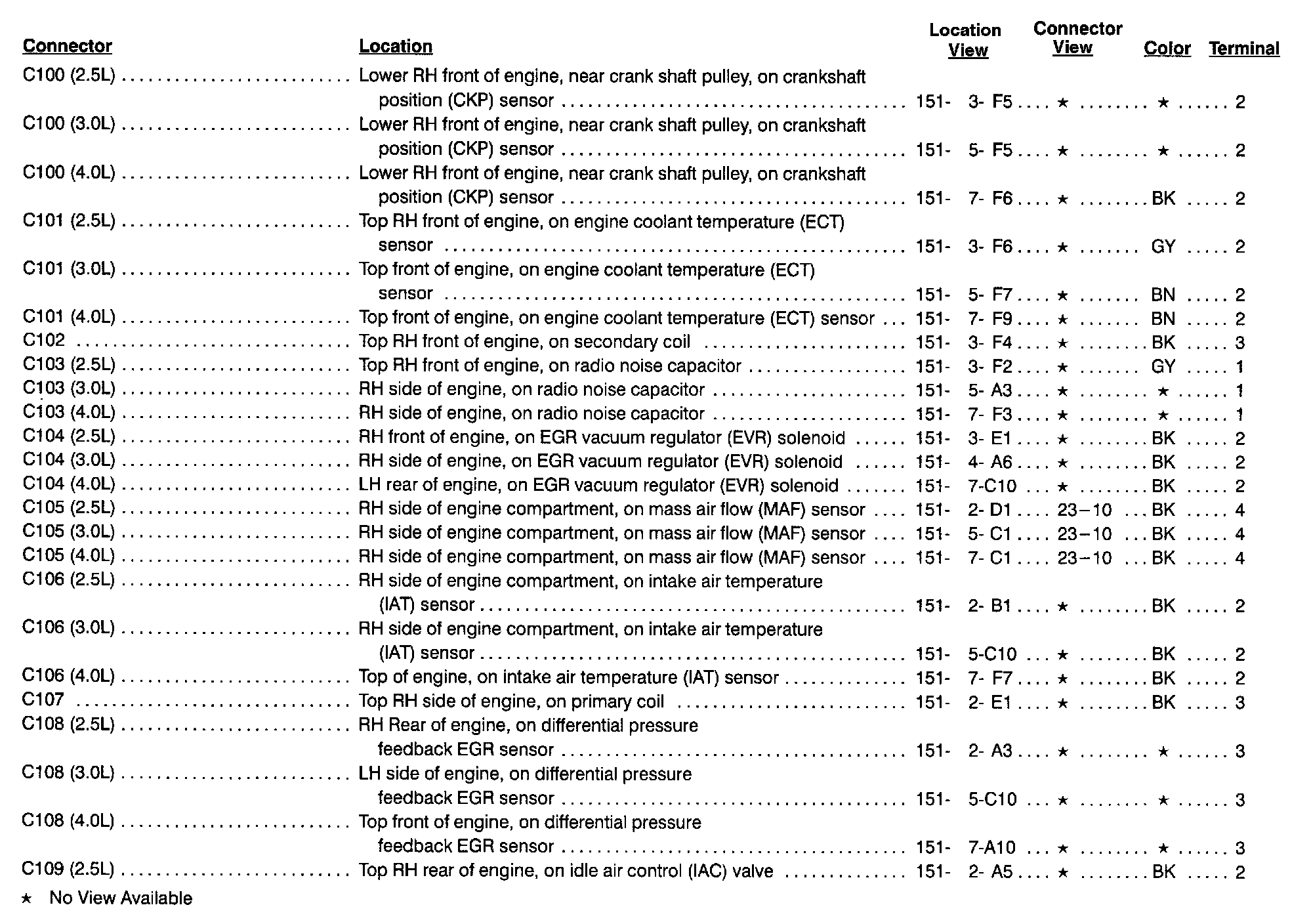

C100-C109:

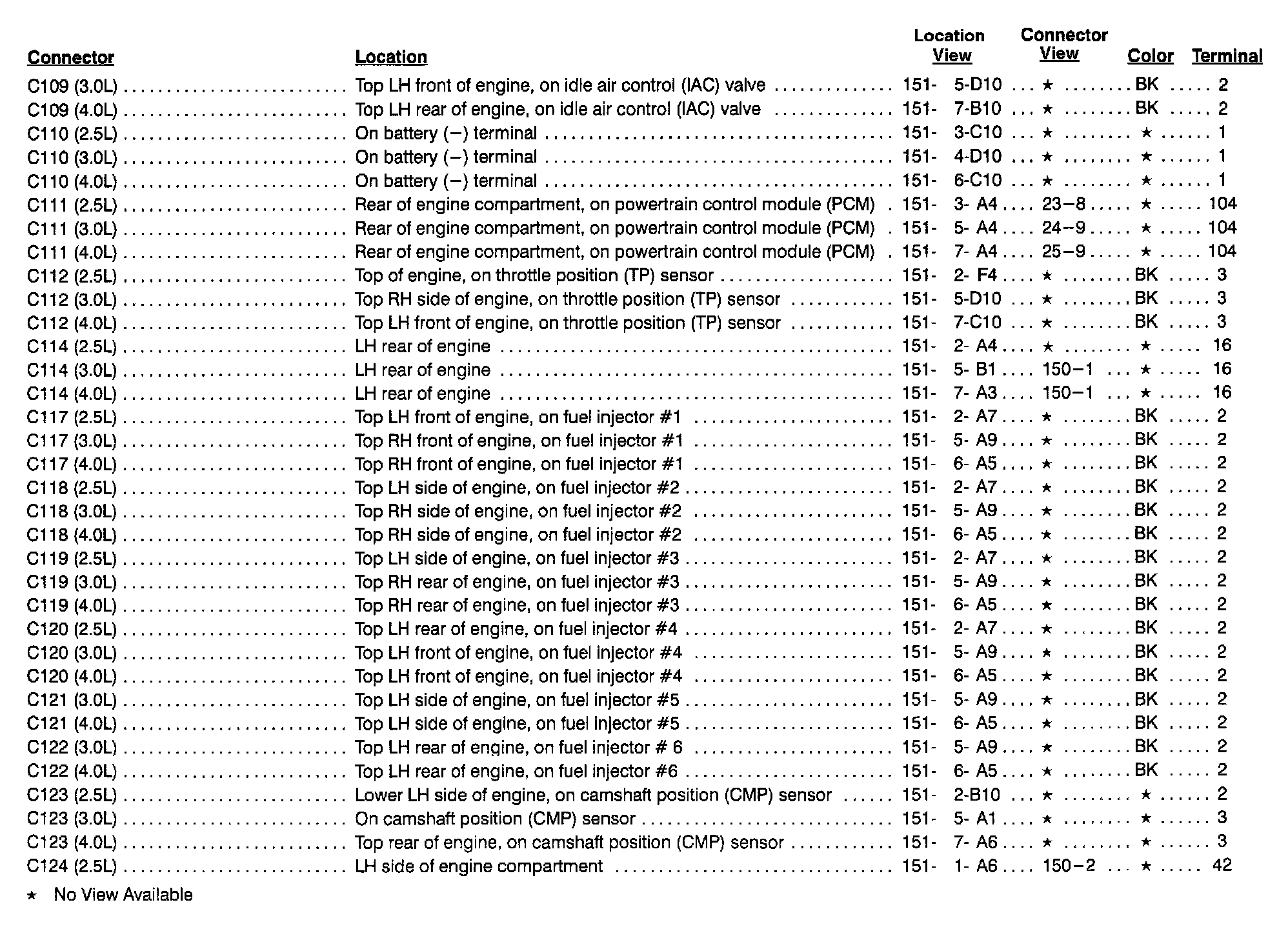

C109-C124:

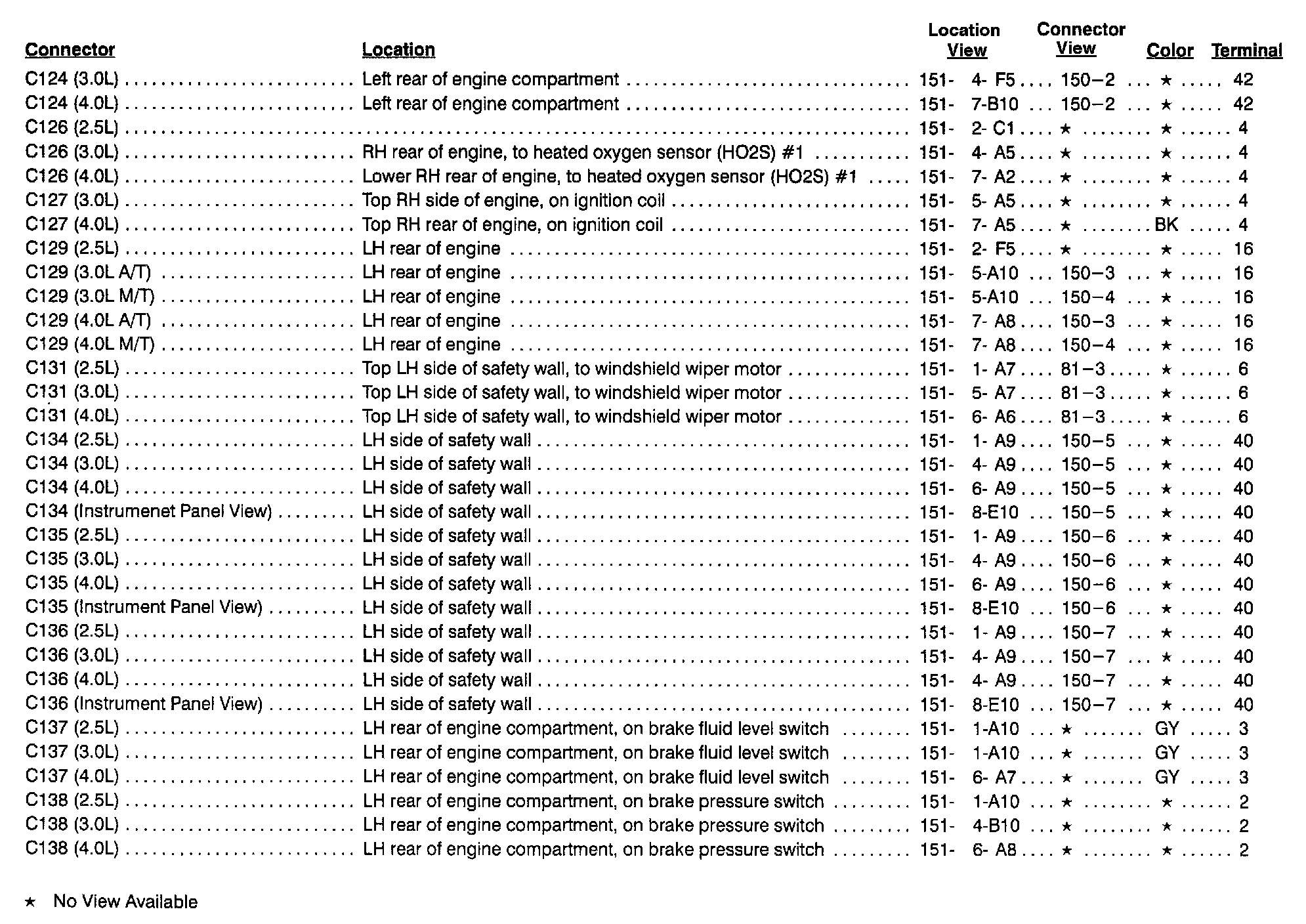

C124-C138:

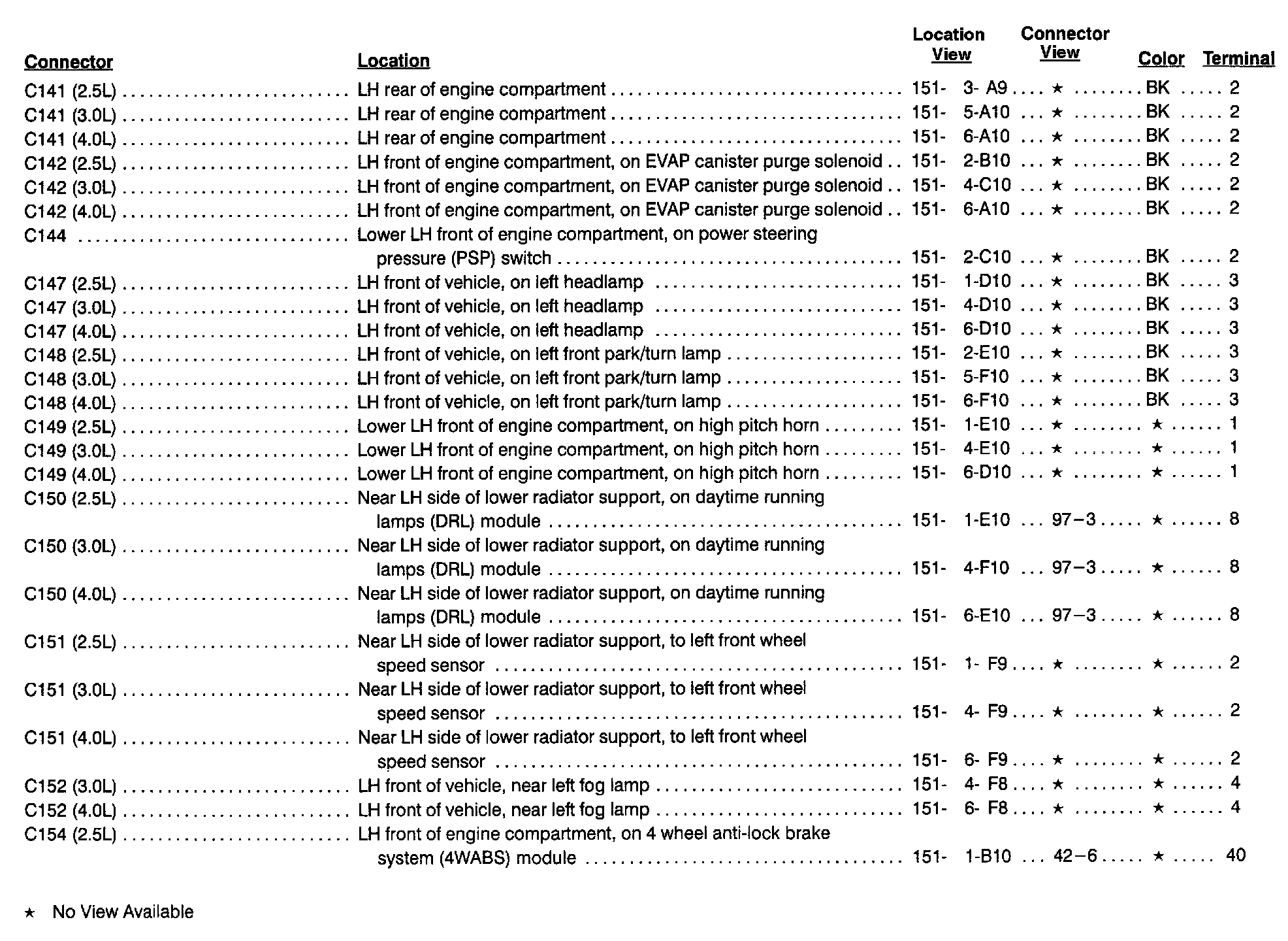

C141-C154:

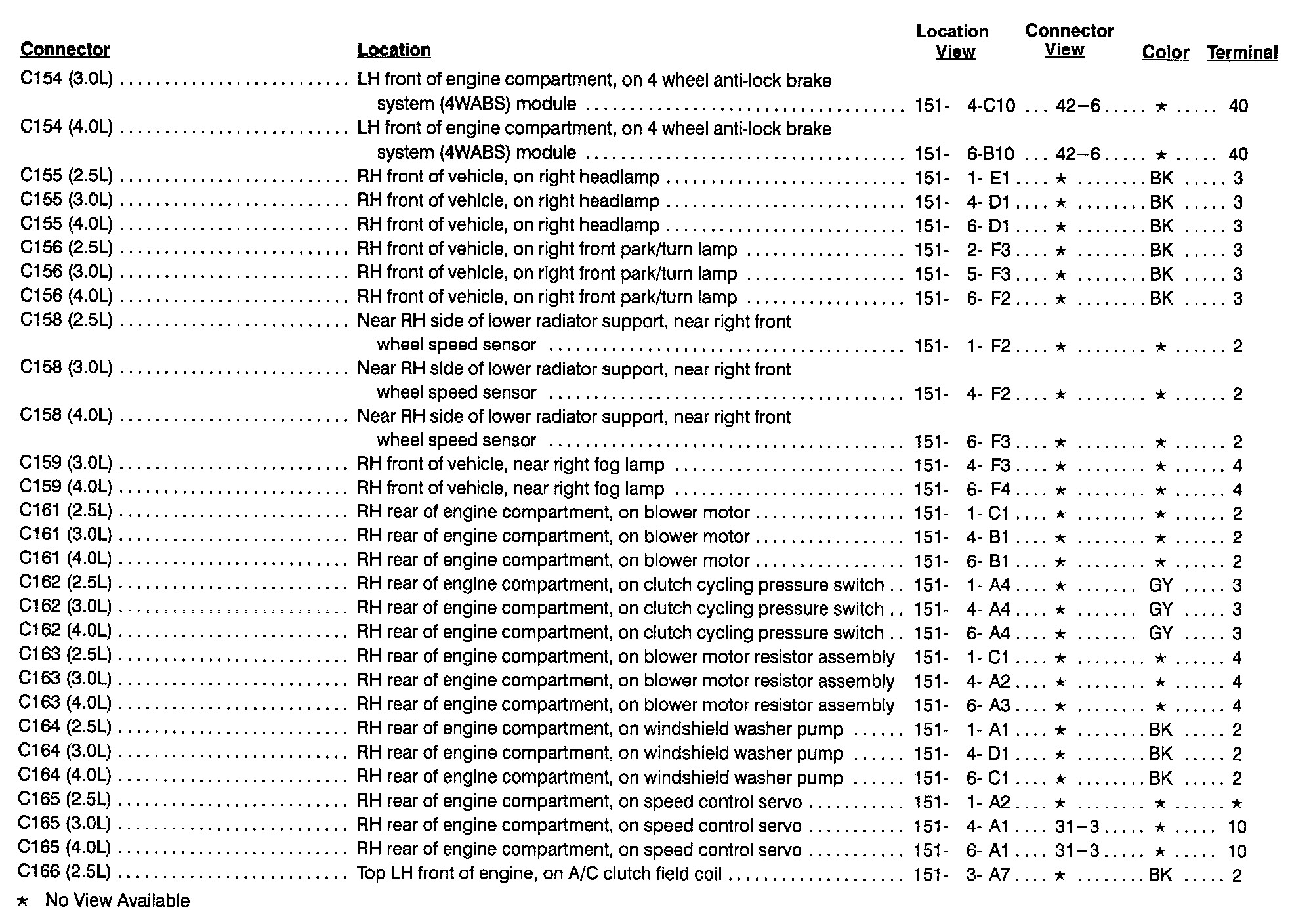

C154-C166:

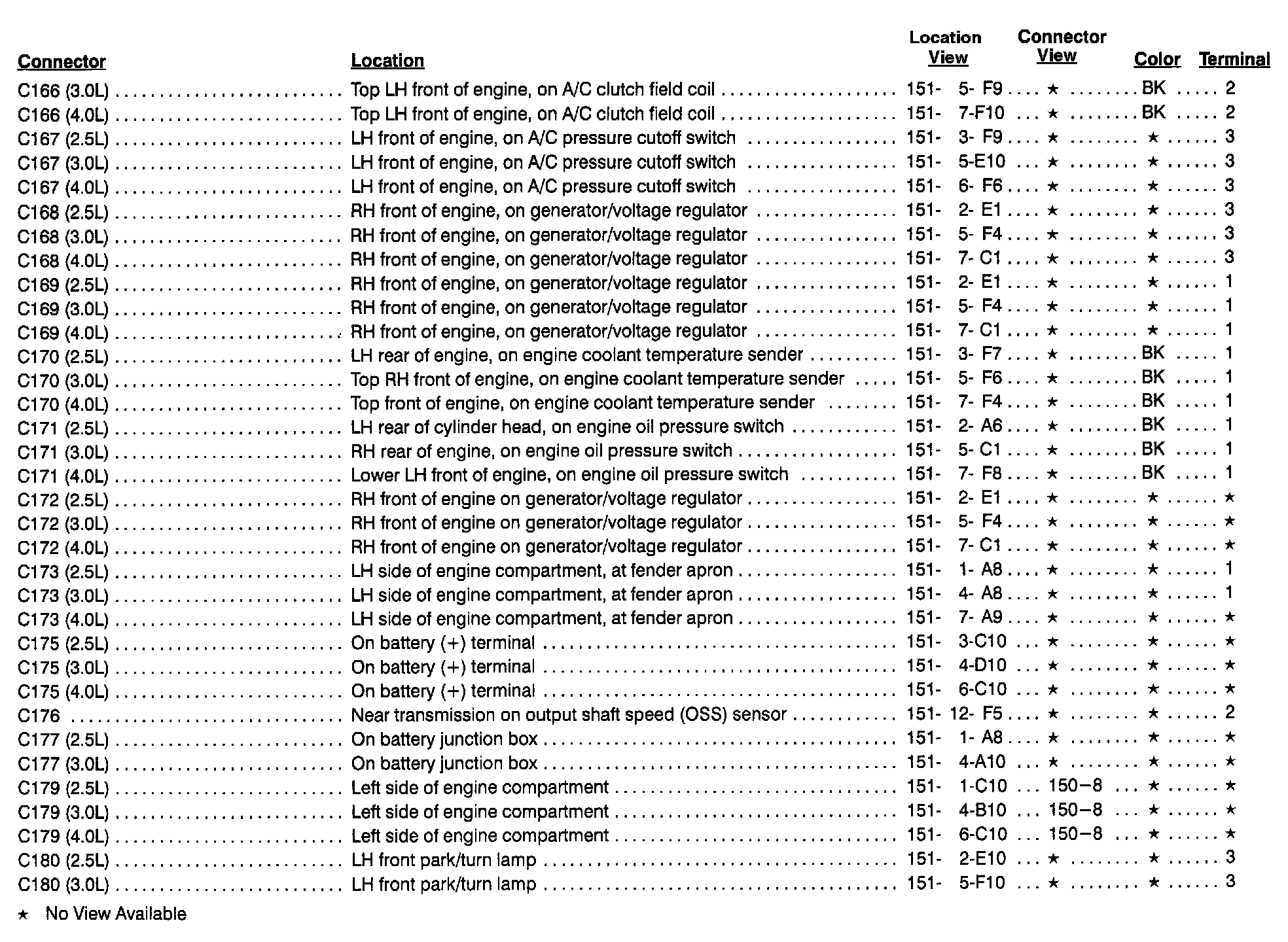

C166-C180:

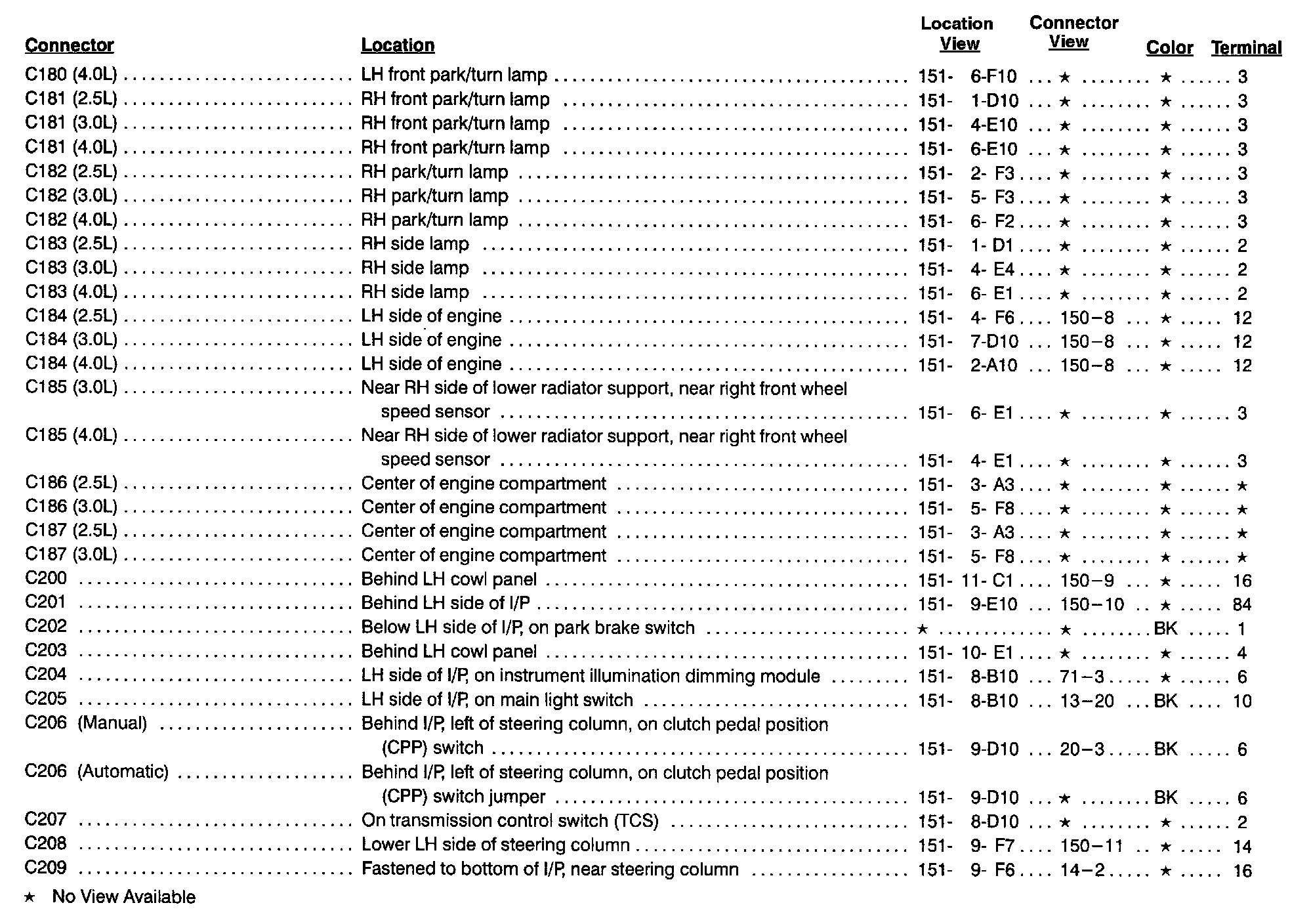

C180-C209:






C210-C249:

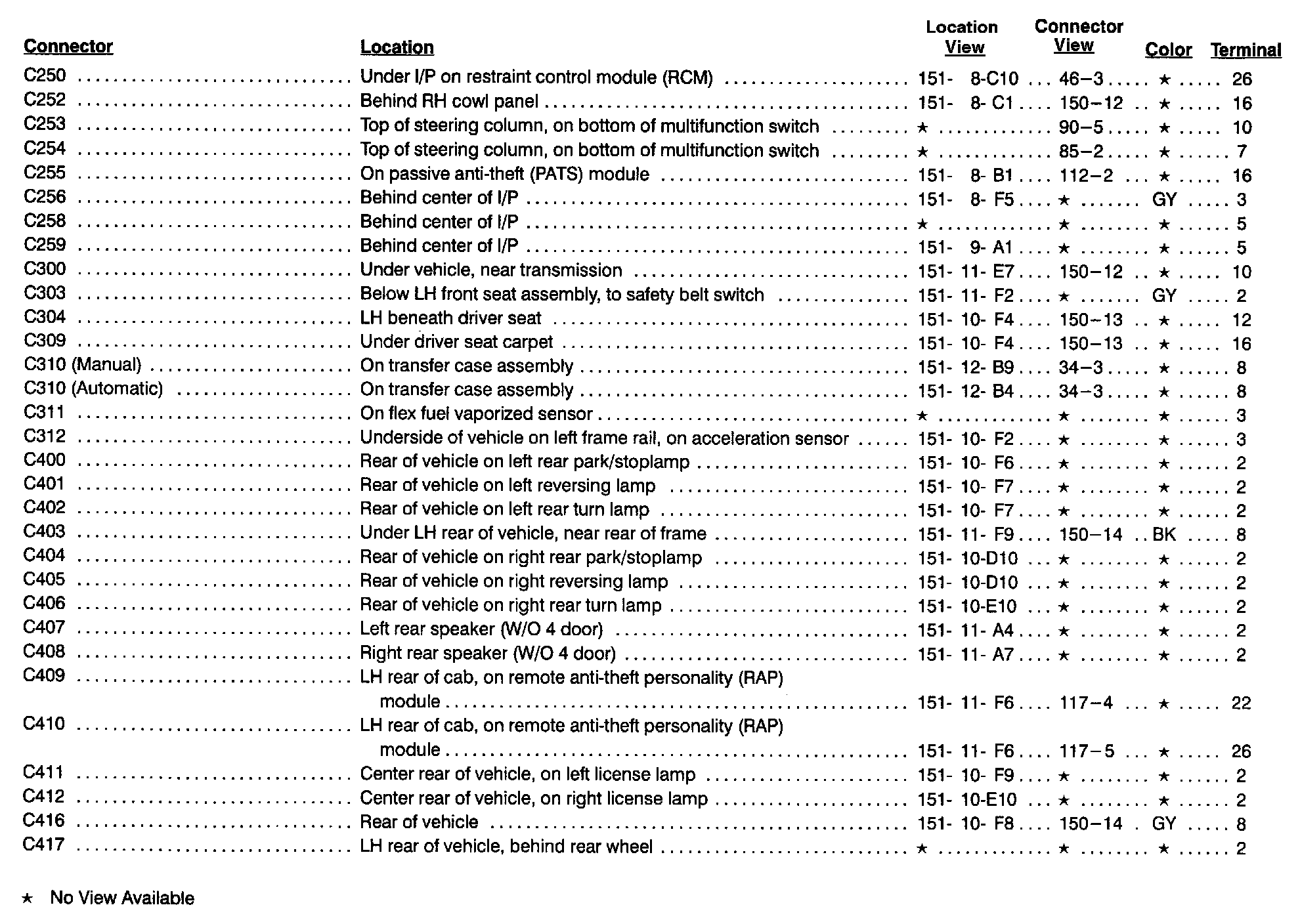

C250-C417:

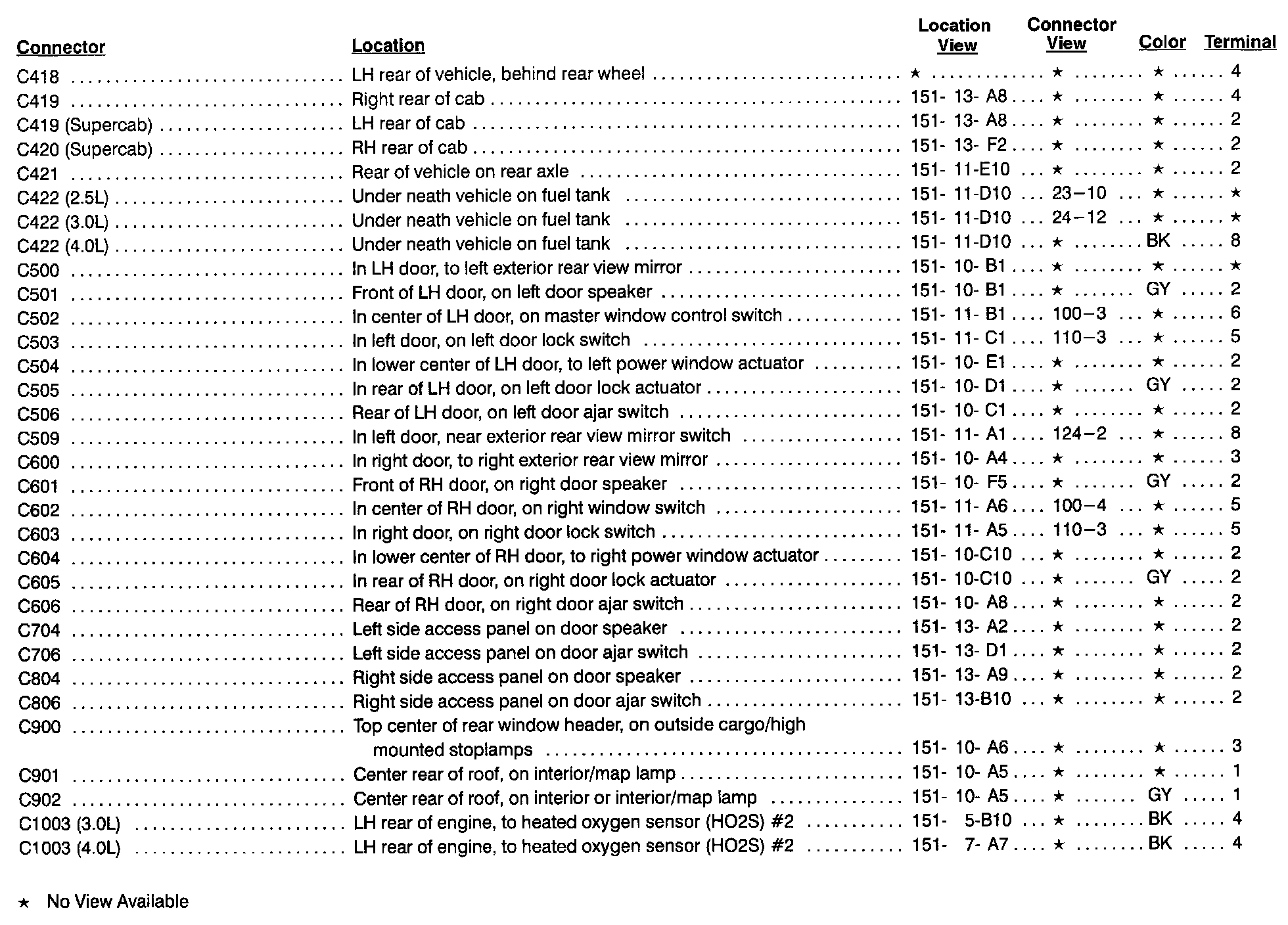

C418-C1003:

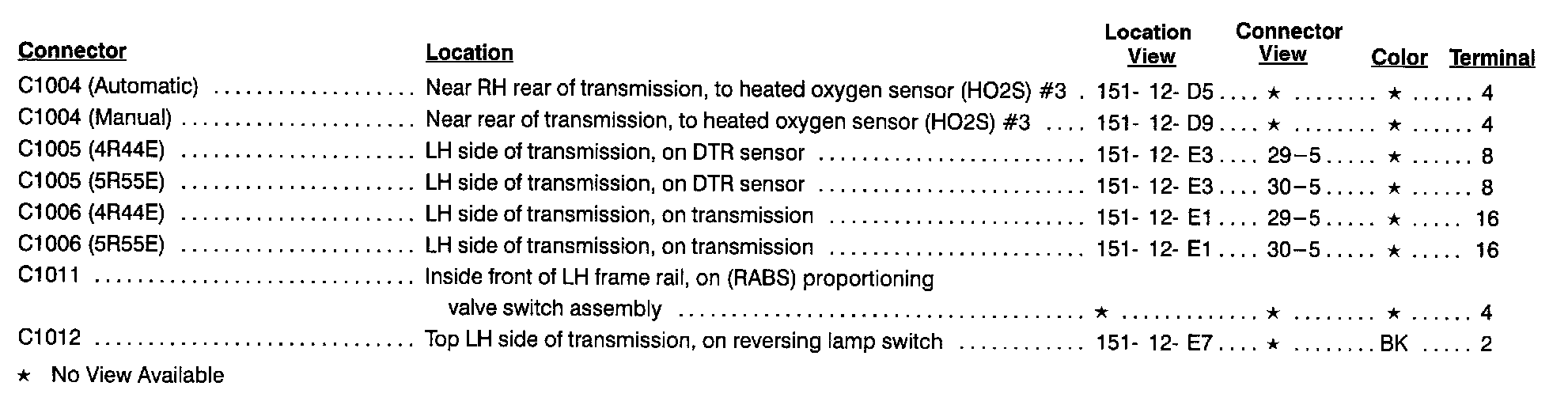

C1004-C1012:
