Clutch Switch: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.







2. Disconnect the electrical connector from the Clutch Pedal Position (CPP) switch.

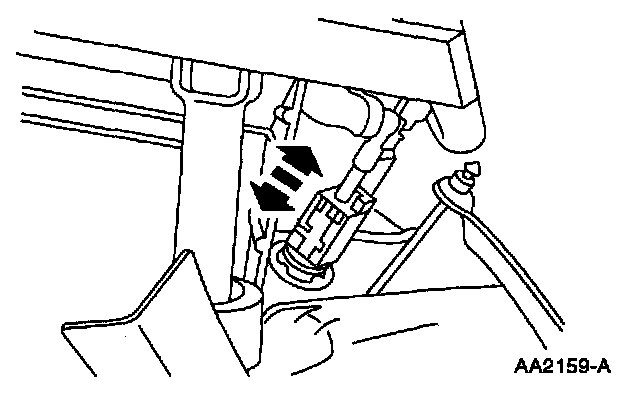

3. Spread the clutch pedal position switch apart; remove from the pedal rod.

INSTALLATION
1. Follow the removal procedure in reverse order.
