D: The Module Does Not Respond to the NGS Tester - (RAP)
D: The Module Does Not Respond to the NGS Tester - (RAP)
D1 - D2:

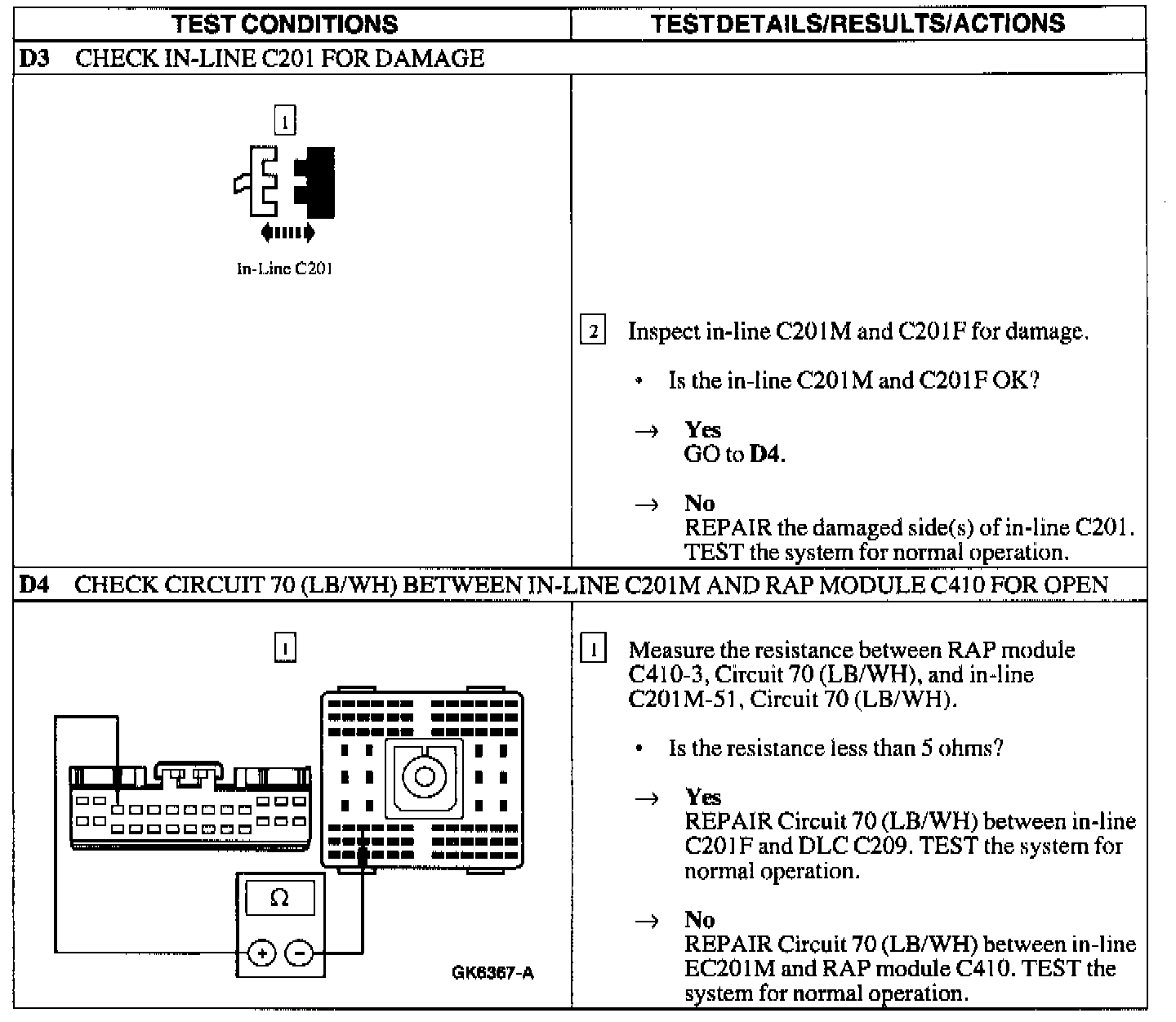

D3 - D4:
