Removal and Replacement

REMOVAL
1. Disconnect the battery ground cable.
2. Remove cowl top vent panel.

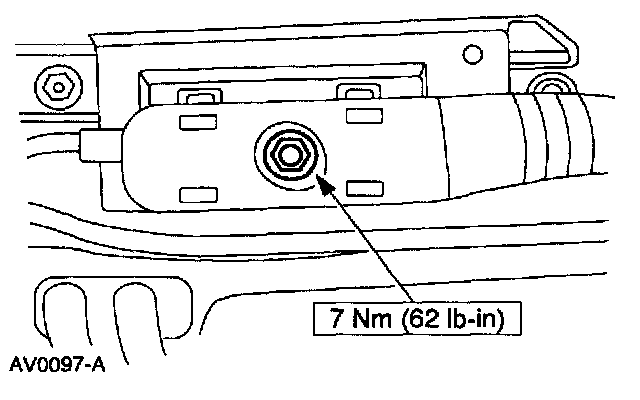

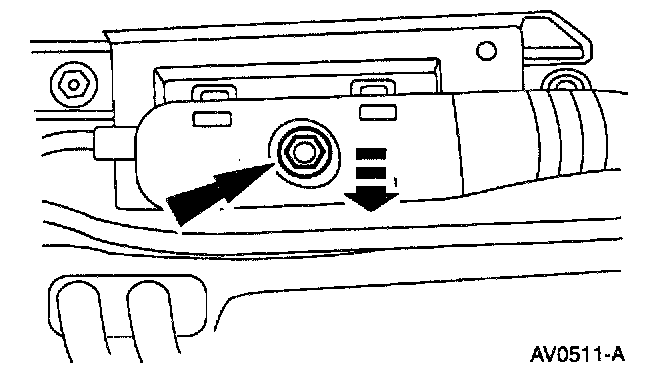

3. Remove the Powertrain Control Module (PCM) connector.
1 Remove the bolt.
2 Remove the connector.

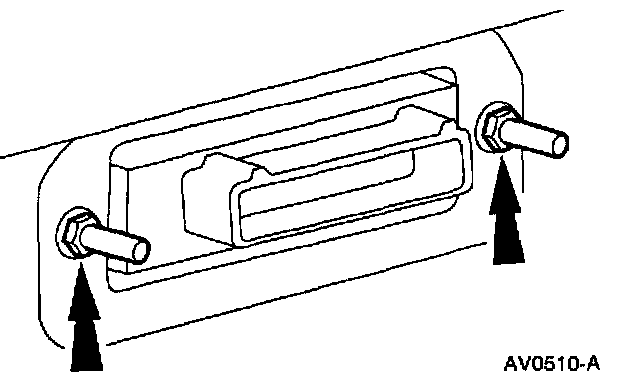

4. Remove the PCM cover.
- Remove the nuts. Remove the cover.
5. Remove the powertrain control module.

INSTALLATION







1. To install, reverse the removal procedure.
