Shift Solenoid Operation Chart

Use the following shift solenoid operation information when performing Pinpoint Test A.

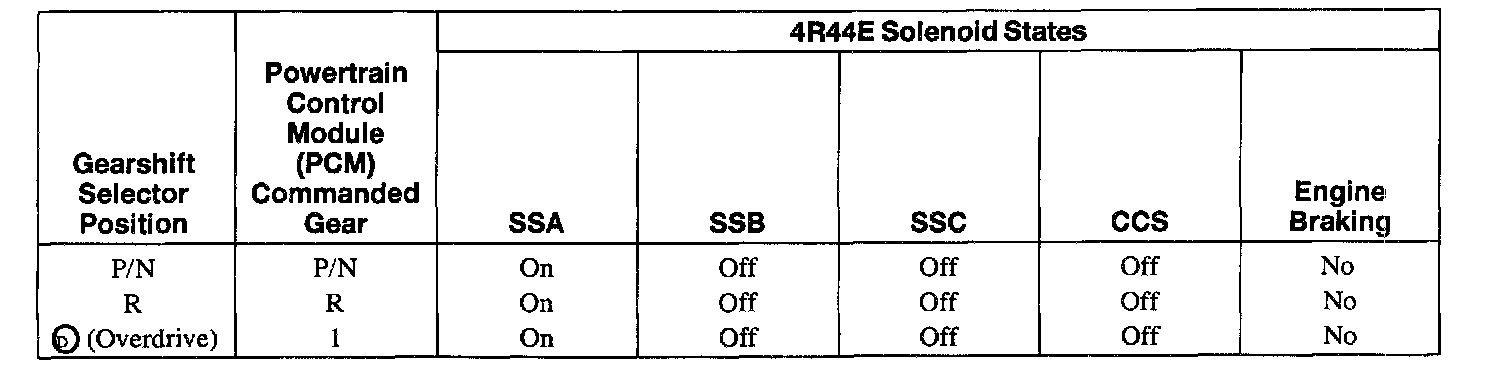

Solenoid Operation Chart - 1 Of 2:

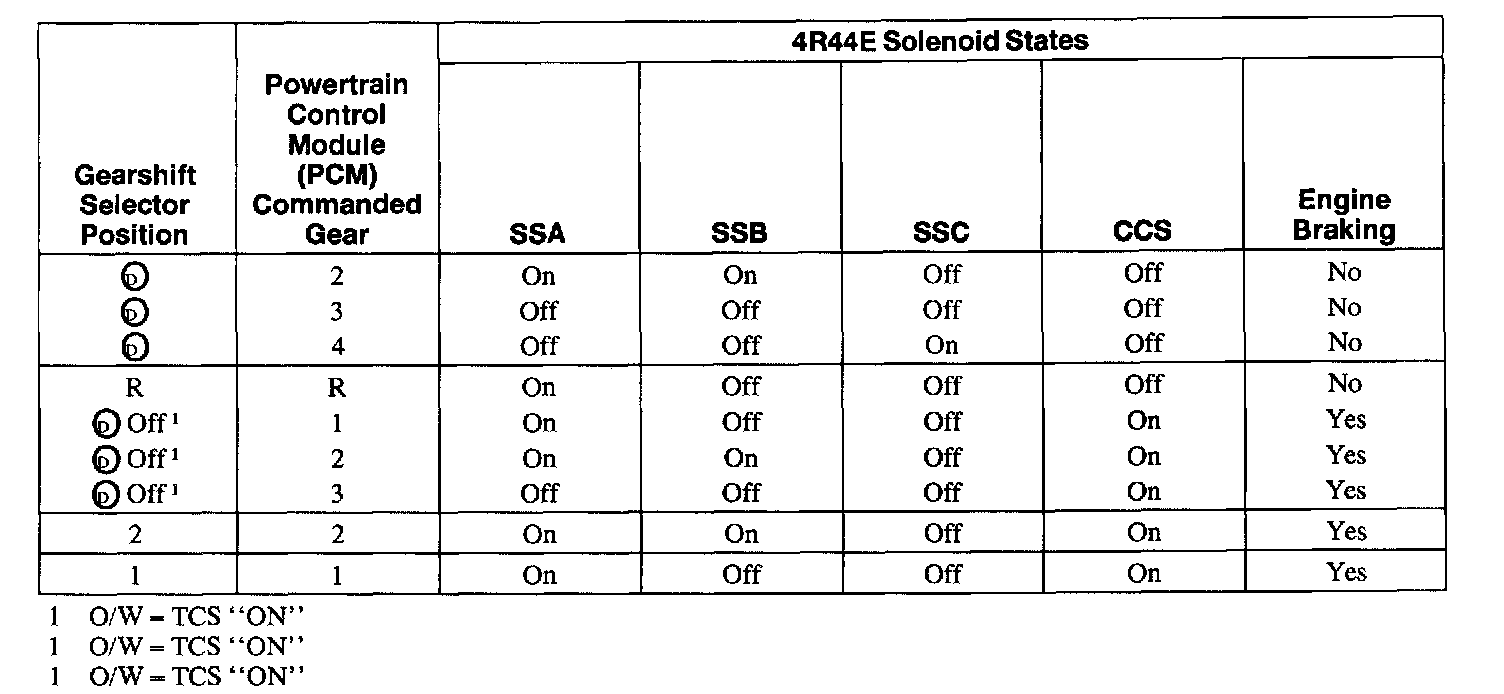

Solenoid Operation Chart - 2 Of 2:

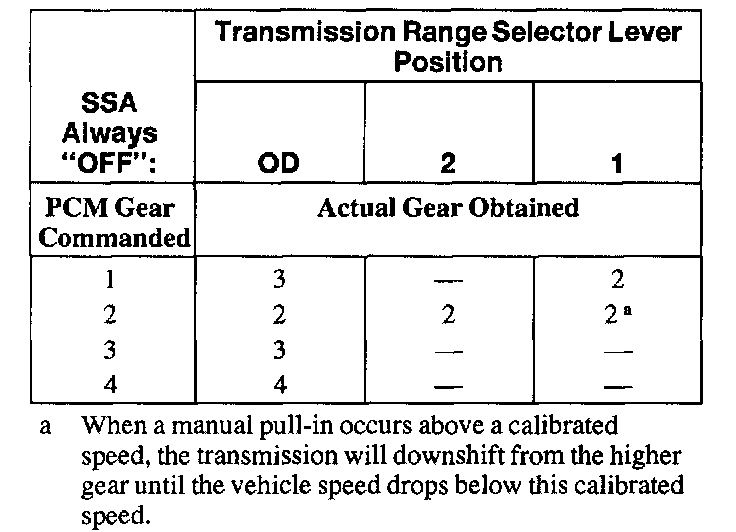

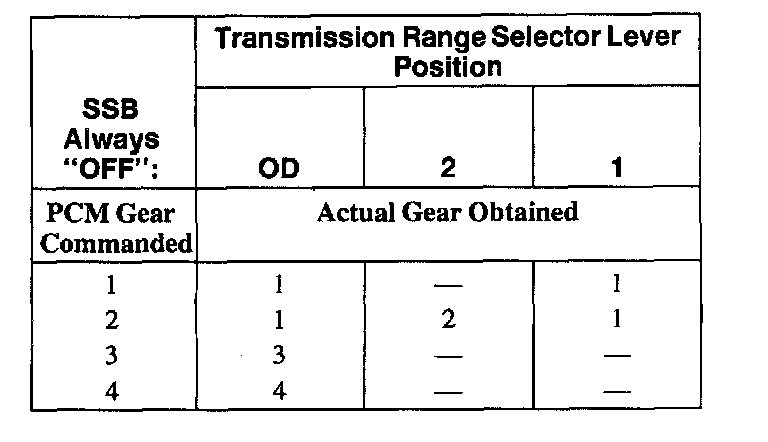

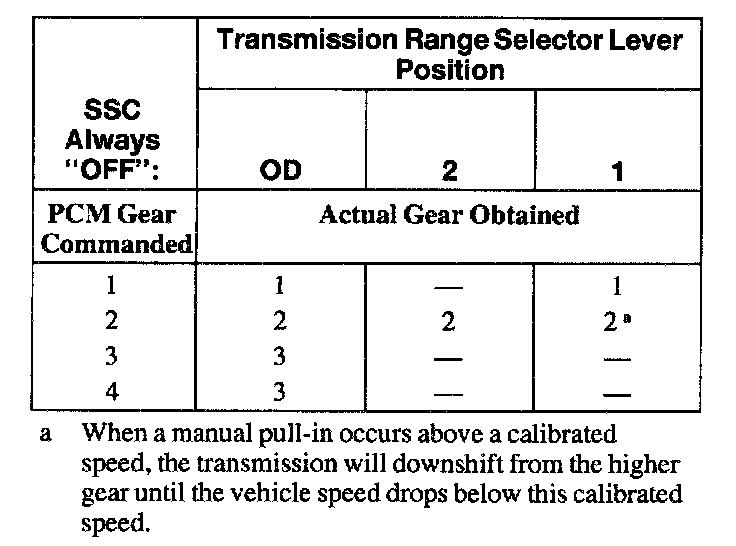

SHIFT SOLENOID FAILURE MODE CHART "ALWAYS OFF"














Failed ON due to powertrain control module and or vehicle wiring concerns, solenoid electrically, mechanically or hydraulically stuck OFF.

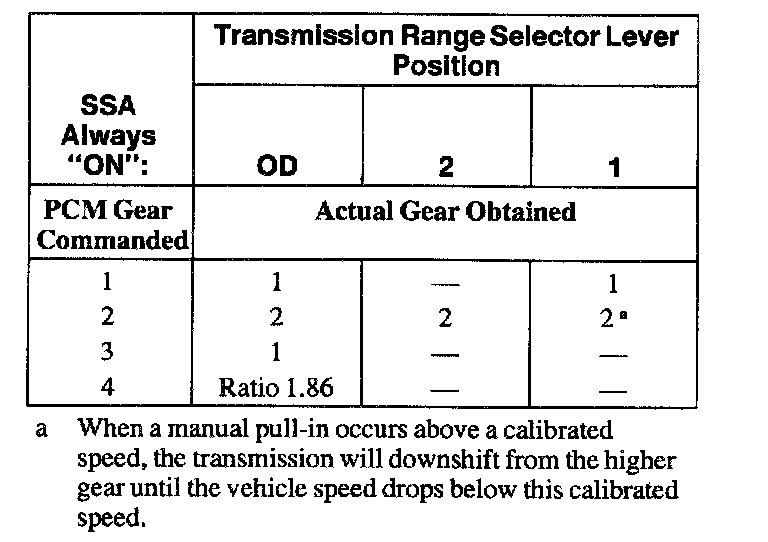

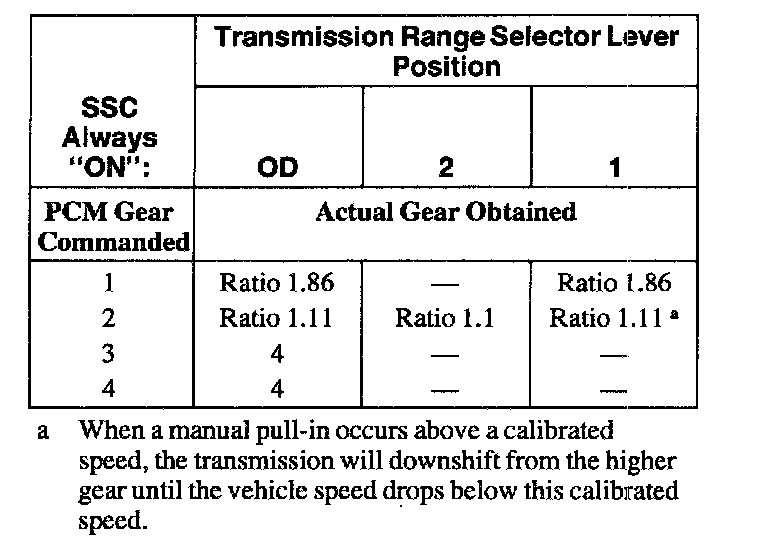

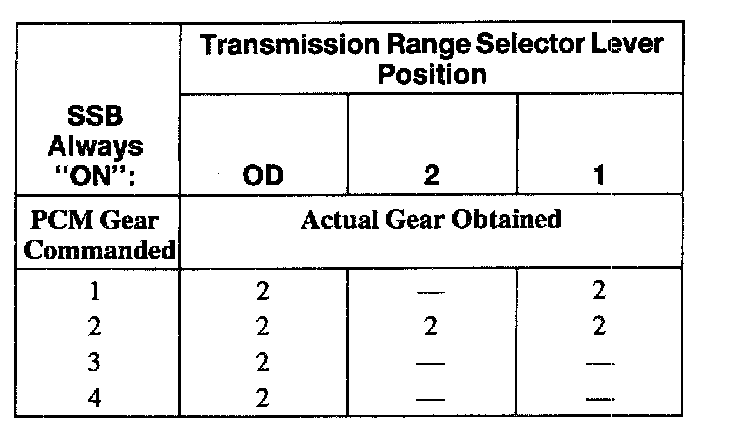

SHIFT SOLENOID FAILURE MODE CHART "ALWAYS ON"








Failed OFF due to powertrain control module and or vehicle wiring concerns, solenoid electrically, mechanically or hydraulically stuck ON.
