Audible Warning Device Control Module: Locations

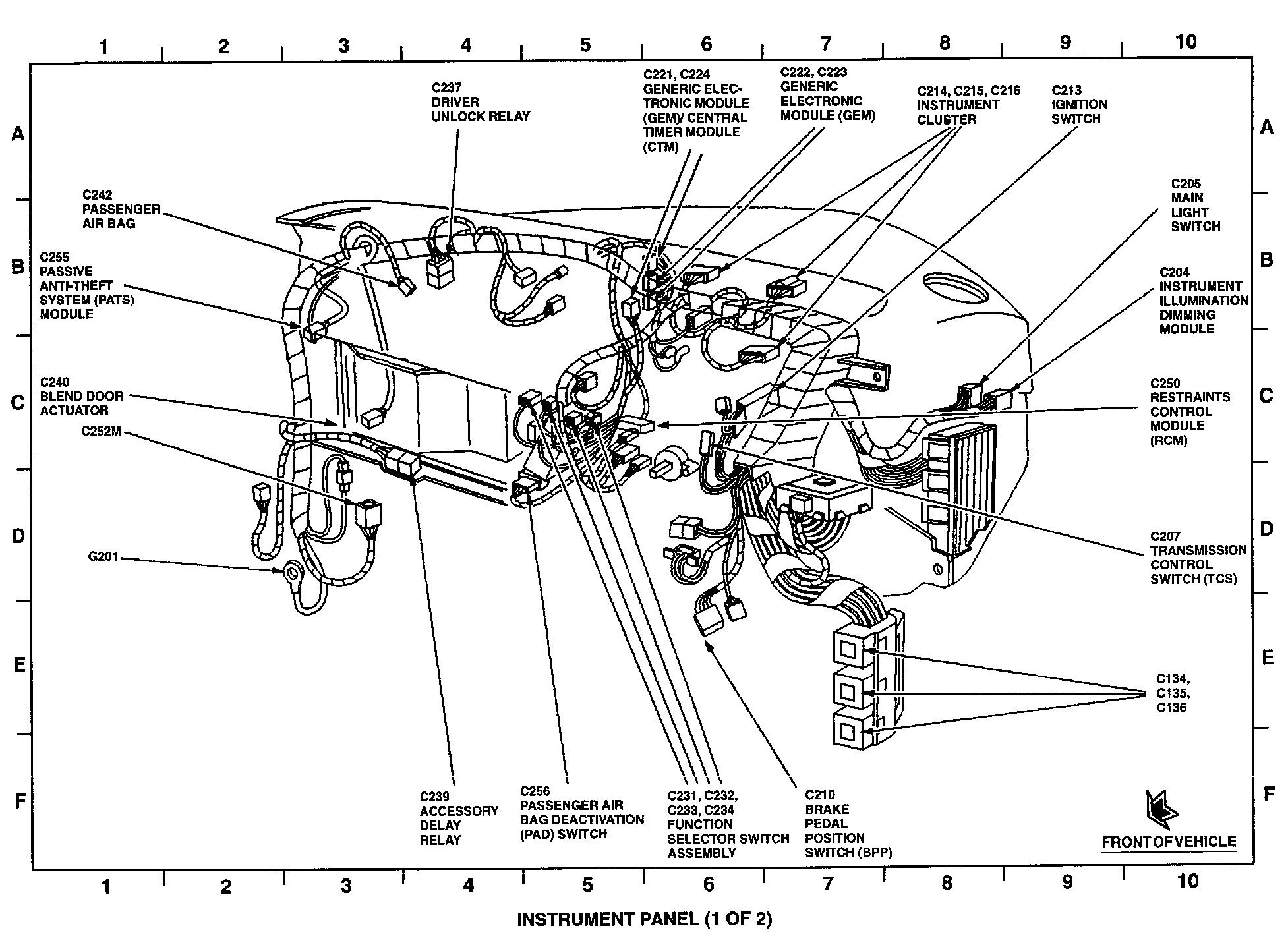

The Generic Electronic Module is located behind center of instrument panel.
