Cylinder Head Assembly
NOTE: The
cylinder head bolts are a torque-to-yield design and must not be reused. Always install new bolts.

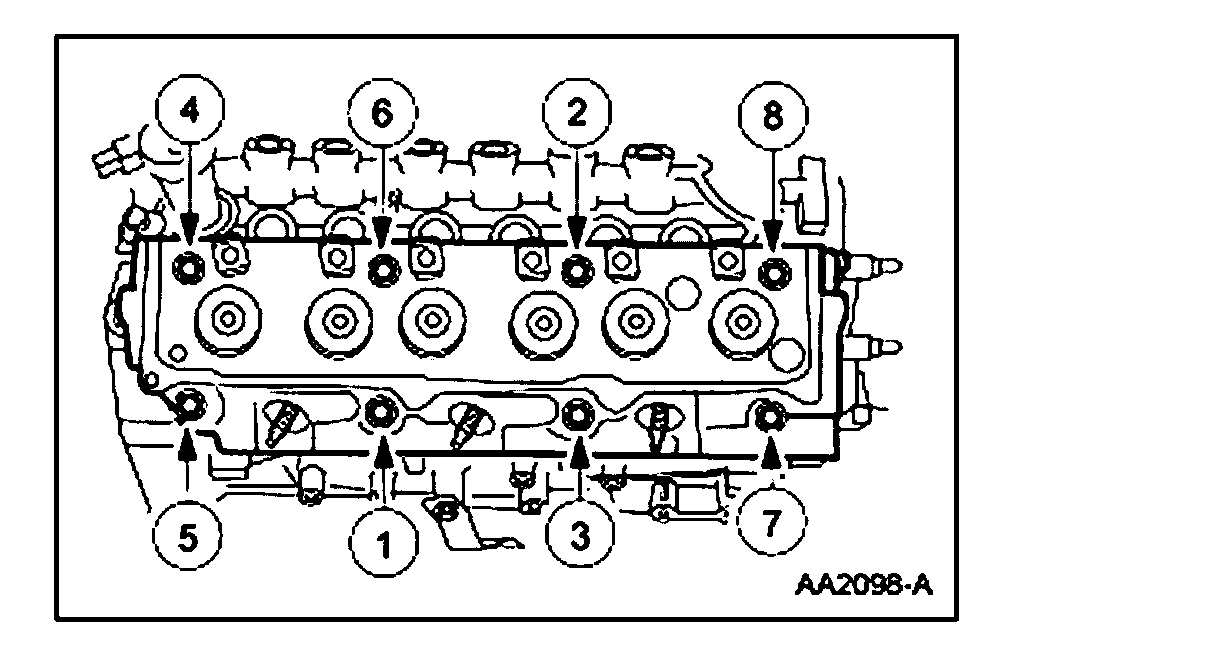

Install the bolts. Tighten the bolts in four stages in the sequence shown.
-
Tighten the bolts in the sequence shown in four steps.
1
Tighten the bolts to
80 Nm (59 ft. lbs.).
2
Loosen the bolts one full turn.
3
Tighten to
45 - 55 Nm (34 - 40 ft. lbs.).
4
Tighten to
85 - 99 Nm (63 - 73 ft. lbs.).
