Alternator: Service and Repair
REMOVAL 1.
Disconnect the battery ground cable.
2.
Remove the drive belt.
3.

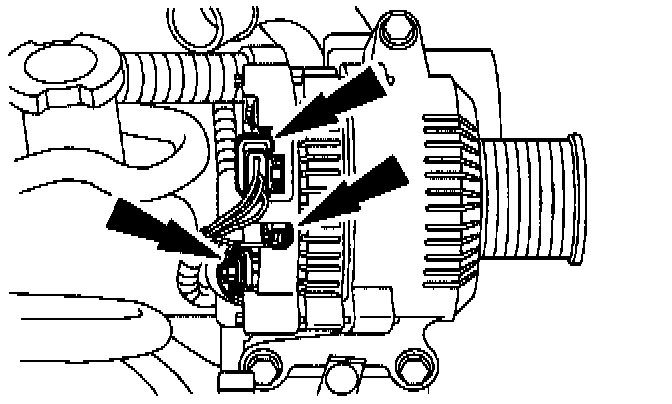

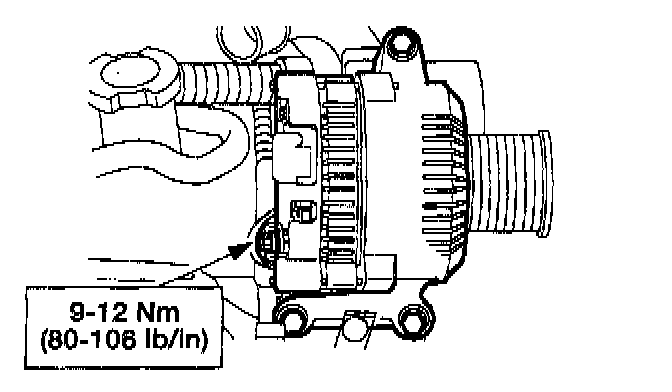

Disconnect the electrical connectors.
4.

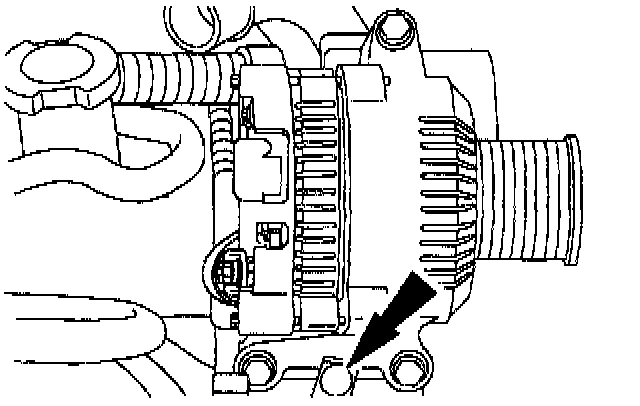

Remove the wiring harness to generator pushpin.
5.
Remove the Generator
(GEN).

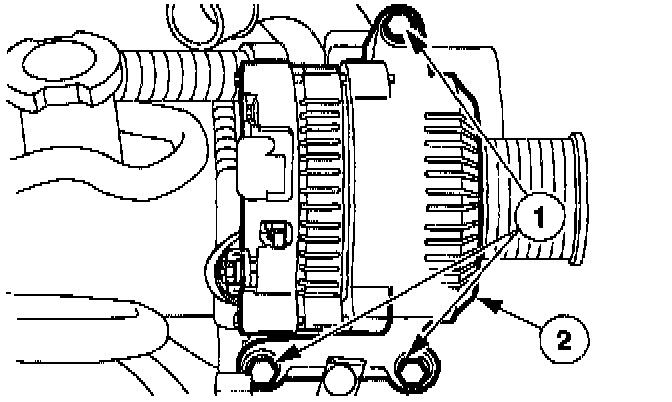

1

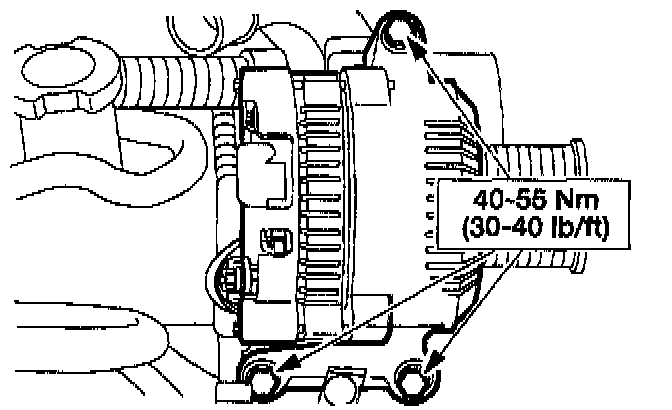

Remove the bolts.
2
Remove the generator.
INSTALLATION 1.
To install, reverse the removal procedure.
