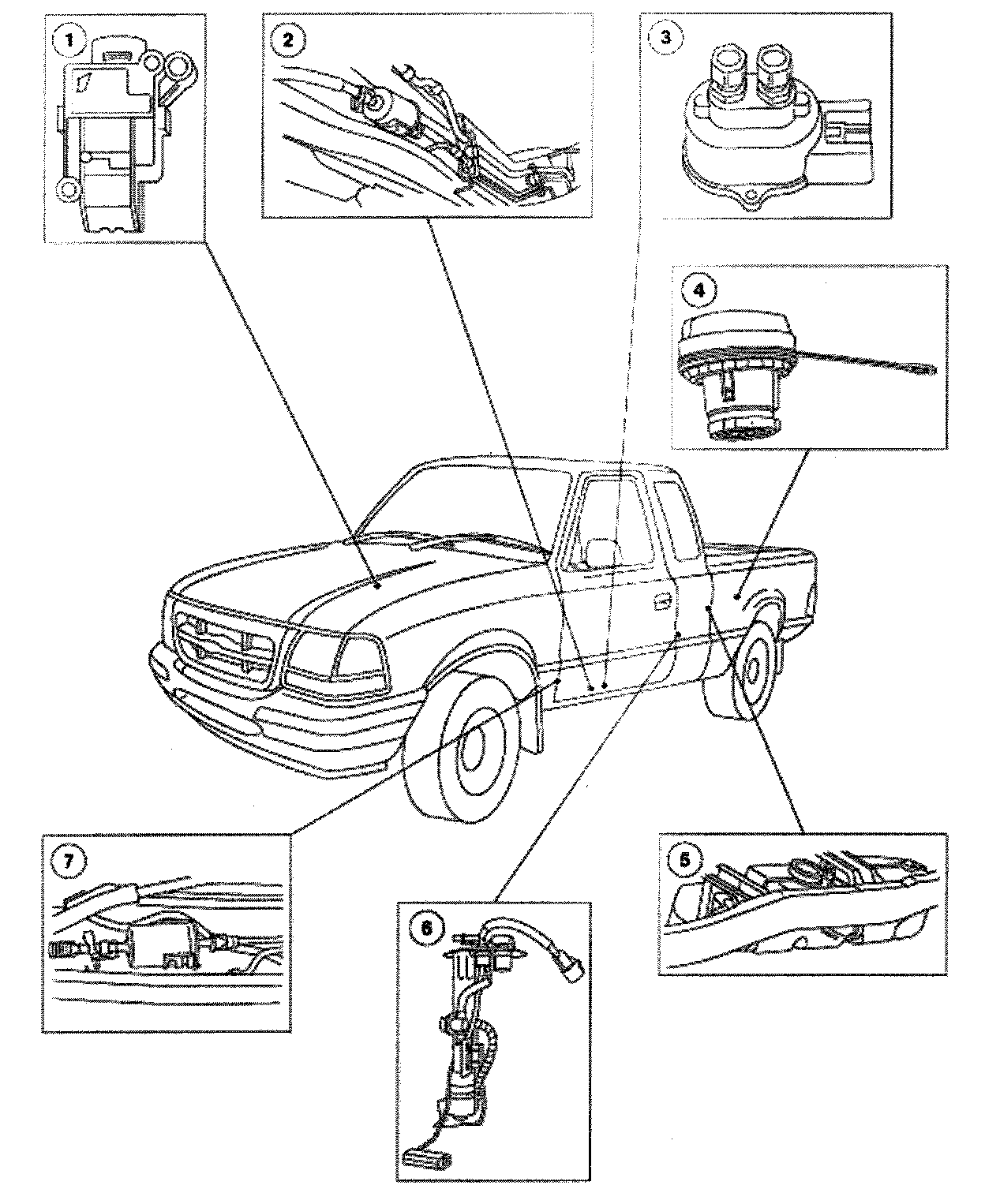

Powertrain Management: Locations
1. Inertia fuel shutoff switch
2. Fuel sender assembly
3. Flexible fuel sensor
4. Fuel tank filler cap
5. Fuel tank
6. Fuel pump and sender assembly
7. Fuel filter
