Compressor Bracket

REMOVAL
1. Remove the A/C compressor.
2. Remove the power steering pump from the A/C compressor mounting bracket.

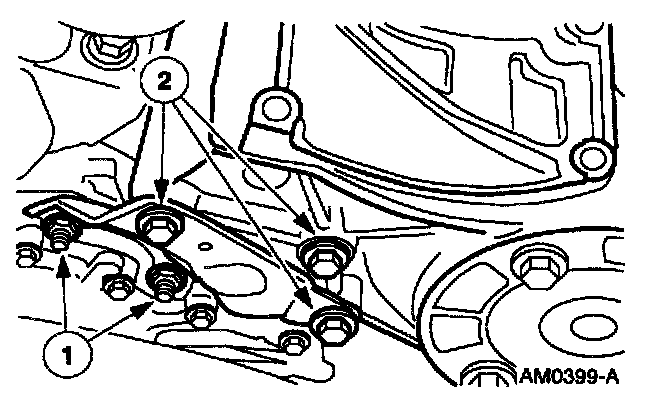

3. Remove the A/C compressor mounting bracket.
1. Loosen the nuts.
2. Remove the bolts and remove the A/C compressor mounting bracket.

INSTALLATION







1. Follow the removal procedure in reverse order.
