Ignition, Electronic






REMOVAL
1. Disconnect battery ground cable.
2. Disconnect the engine control sensor wiring from the Camshaft Position sensor (CMP sensor)at the connector.

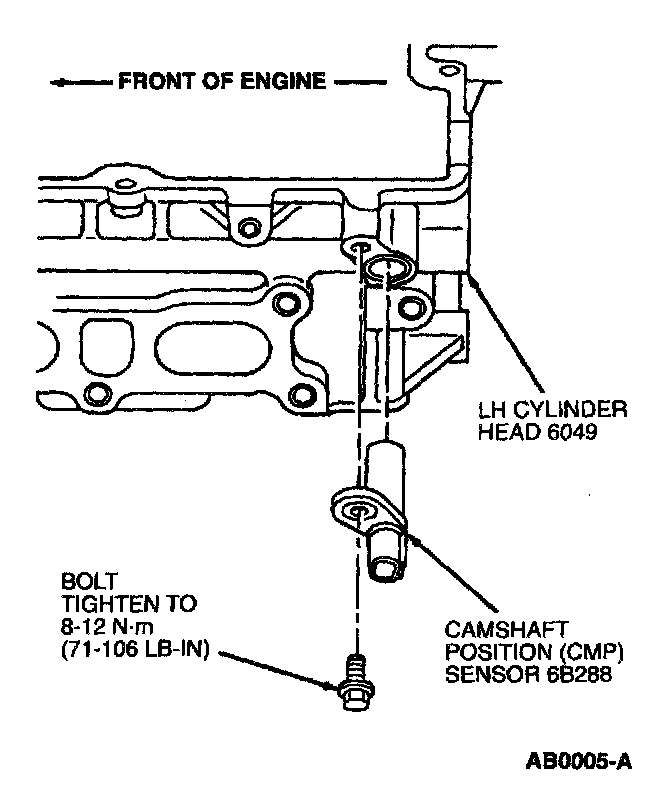

3. Remove camshaft position sensor retaining bolt from the LH cylinder head.

INSTALLATION
1. Make sure camshaft position sensor mounting surface is clean. Make sure that the camshaft position sensor O-ring is in proper location on camshaft position sensor.
2. Install camshaft position sensor retaining bolt. Tighten bolt to 8-12 N.m (71-106 Lb-In).

CAUTION: Do not overtighten camshaft position sensor retaining bolt or damage to the camshaft position sensor may occur.

3. Connect the engine control sensor wiring to the camshaft position sensor wiring connector.
4. Connect battery ground cable.
