Pressure Feedback Exhaust Sensor: Service and Repair

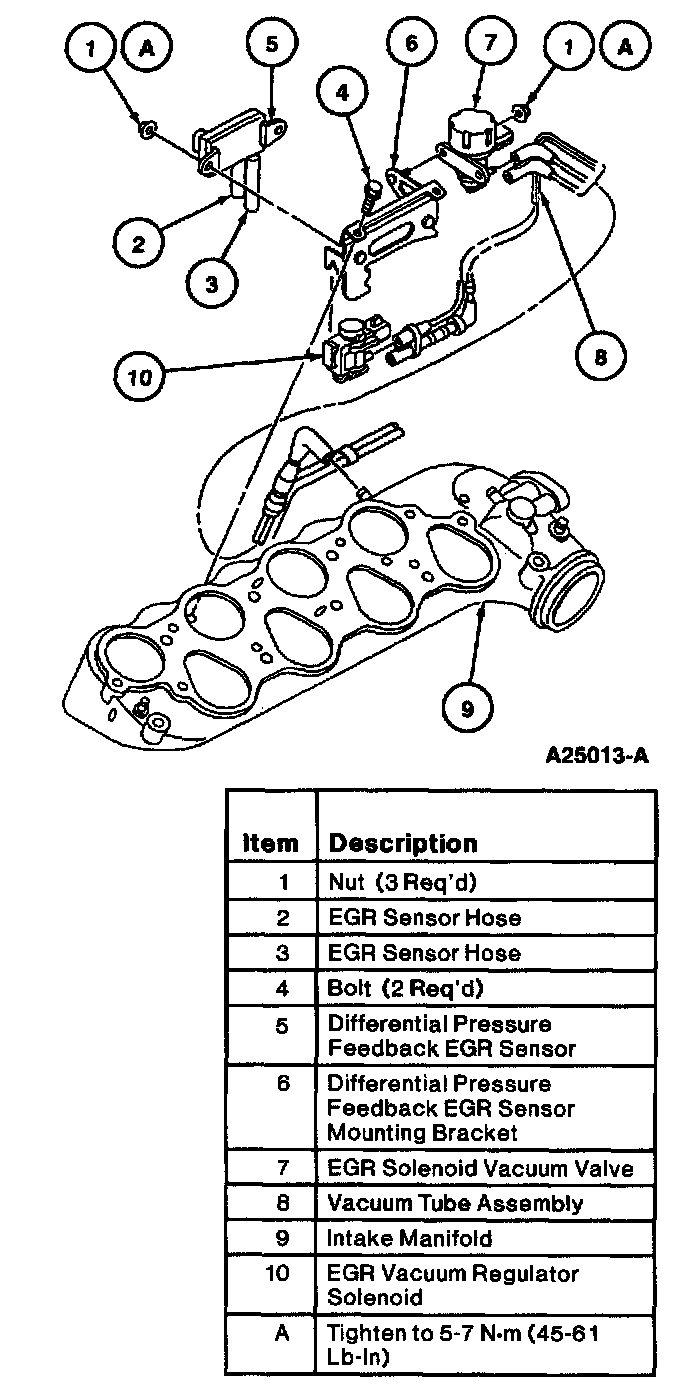

REMOVAL
1. Disconnect engine control sensor wiring from Differential Pressure Feedback EGR Sensor.
2. Disconnect Differential Pressure Feedback EGR Sensor hoses from EGR valve to exhaust manifold tube.
3. Remove retaining nuts or bolts (depending upon application) and EGR Differential Pressure Feedback transducer.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten retaining nuts or bolts (depending upon application) to 5-7 N.m (45-61 Lb-In).
