Compressor Fitting HVAC: Service and Repair

REMOVAL
1. Disconnect the battery.
2. Recover the refrigerant.

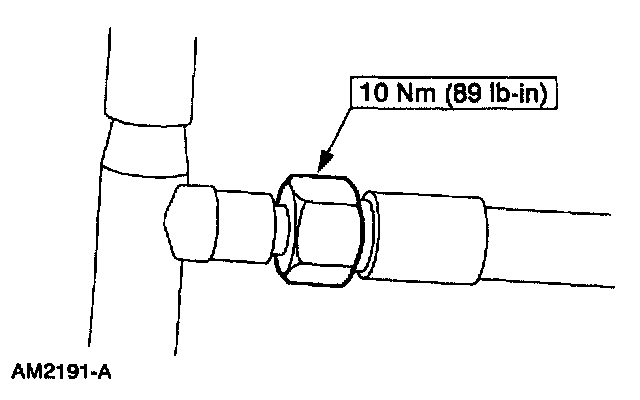

3. Remove the bolt.







4. Disconnect the A/C pressure transducer electrical connector.
5. Disconnect the manifold and tube fitting at the suction accumulator/drier.







6. Disconnect the A/C condenser core inlet line.
^ Disconnect the peanut fitting.
7. Remove the A/C pressure transducer.

INSTALLATION

















1. To install, reverse the removal procedure.
^ Lubricate the O-ring seals with PAG Compressor Oil YN-12-C, F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B.
