Receiver Dryer: Service and Repair

REMOVAL
1. Disconnect the battery.
2. Recover the refrigerant.

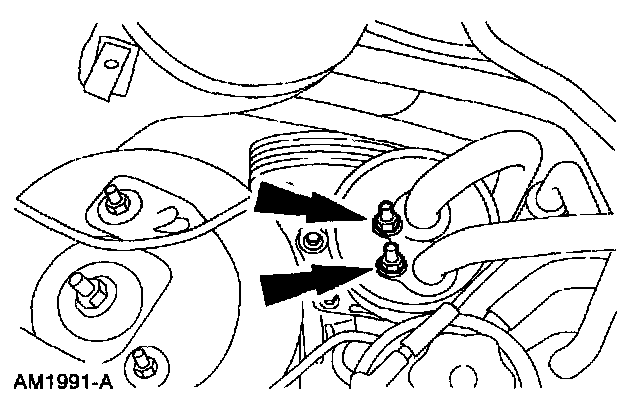

3. Disconnect the fittings.







4. Remove the bolts

INSTALLATION







1. To install, reverse the removal procedure.
^ Fill the new suction accumulator/drier with the correct amount of PAG Compressor Oil YN-12-C, F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B.
