Overhead Console Reading Lamp Assembly

REMOVAL
1. Remove the overhead console assembly.

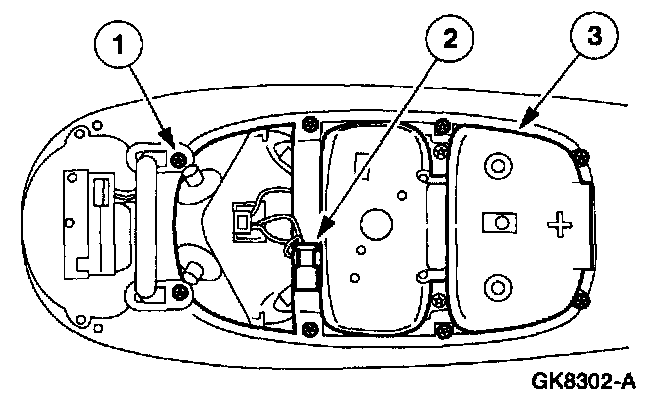

2. Separate the reading lamp assembly from the console.
1. Remove the eight screws.
2. Release the electrical connector.
3. Separate the reading lamp assembly.

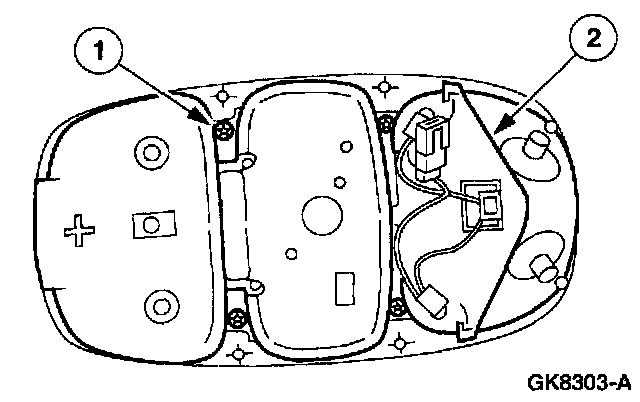

3. Remove the storage bin doors.
1. Remove the four screws.
2. Remove the storage bin doors.

INSTALLATION
1. To install, reverse the removal procedure.
