Connector Locations

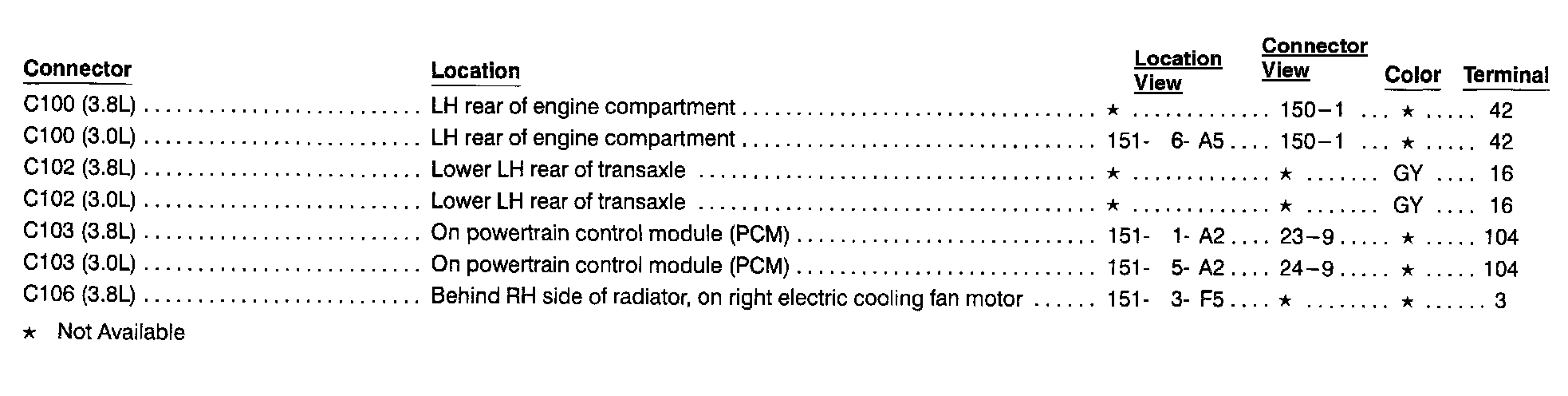

C100-C106:

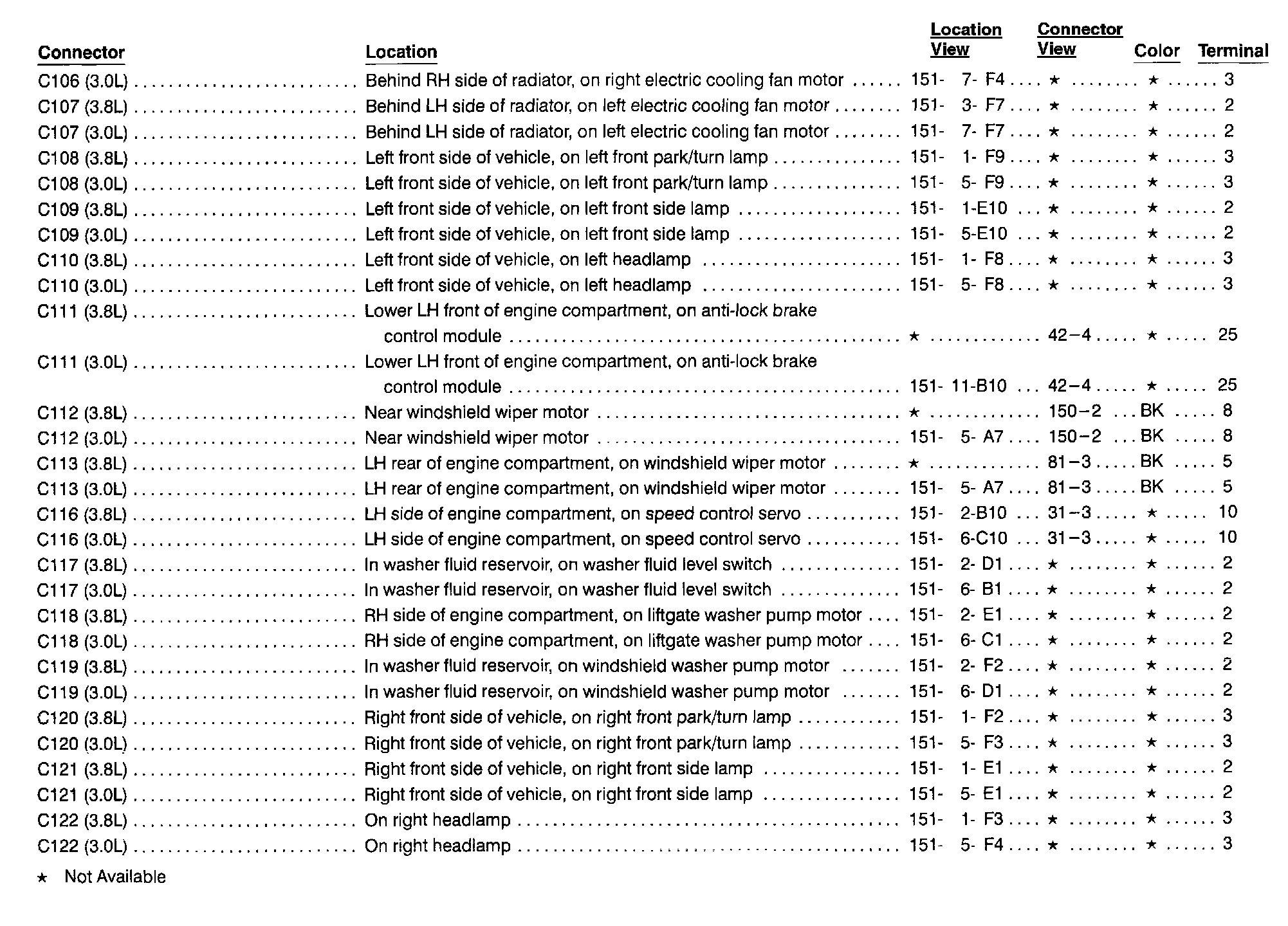

C106-C122:






C123-C141:

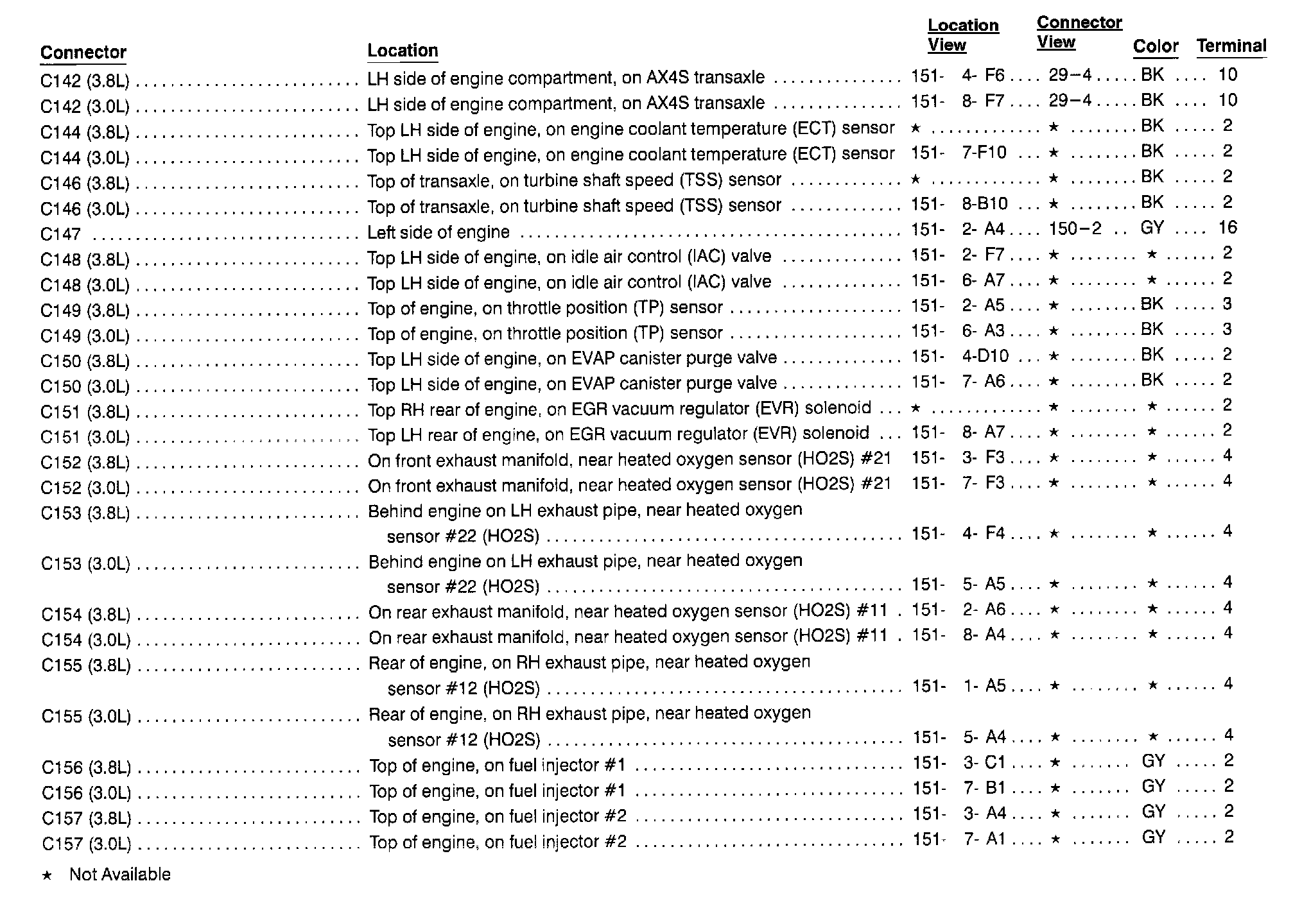

C142-C157:

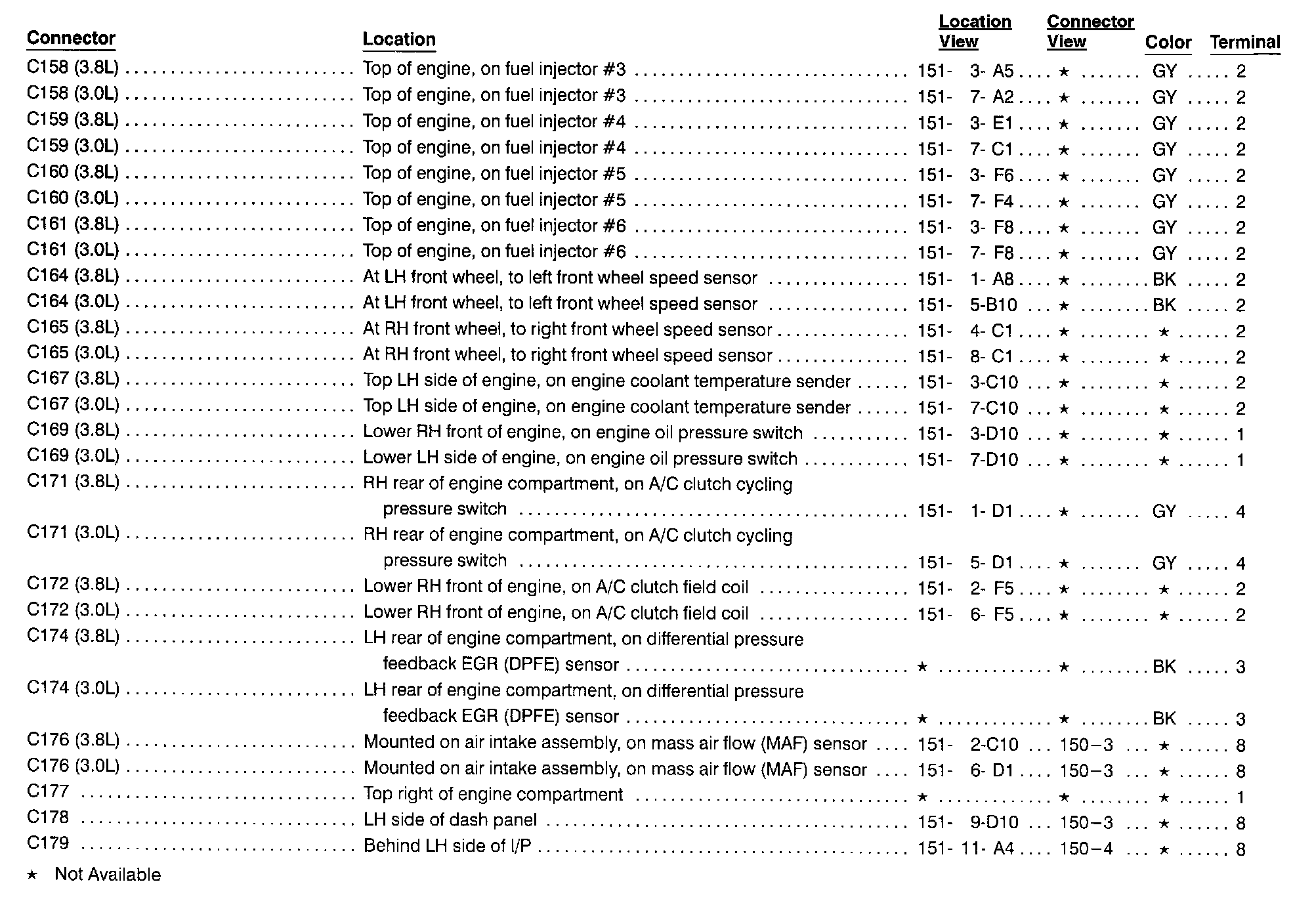

C158-C179:

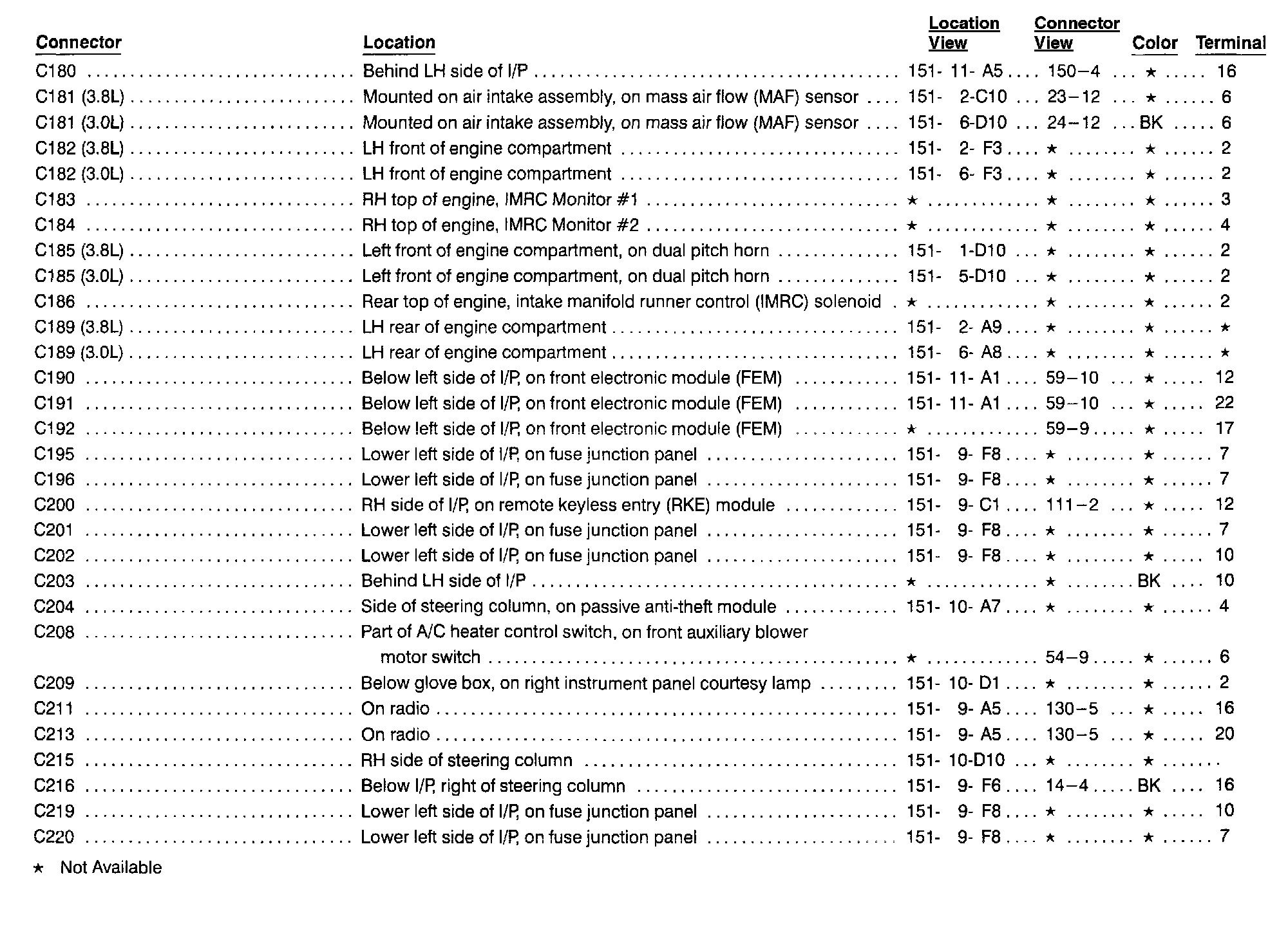

C180-C220:

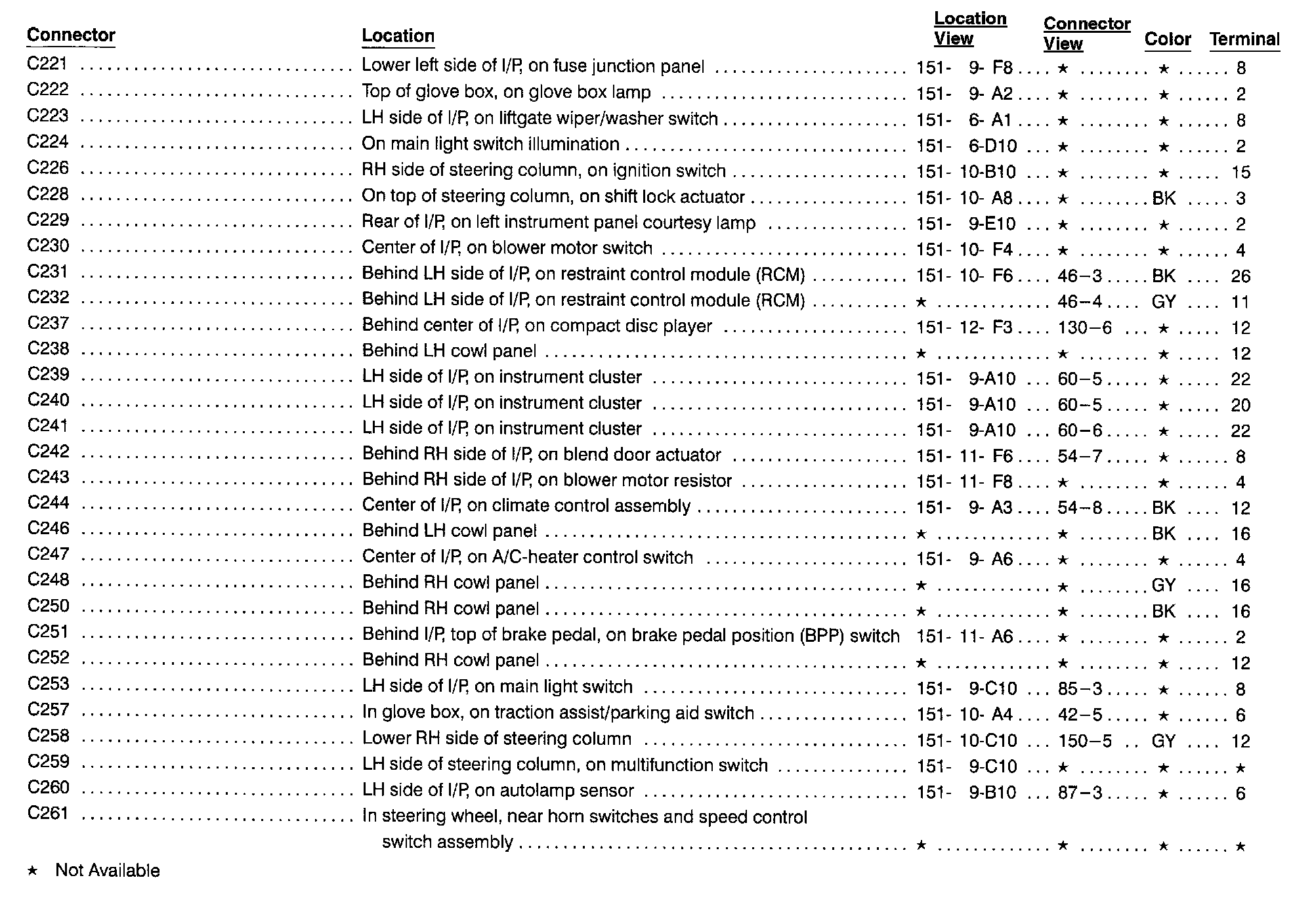

C221-C261:

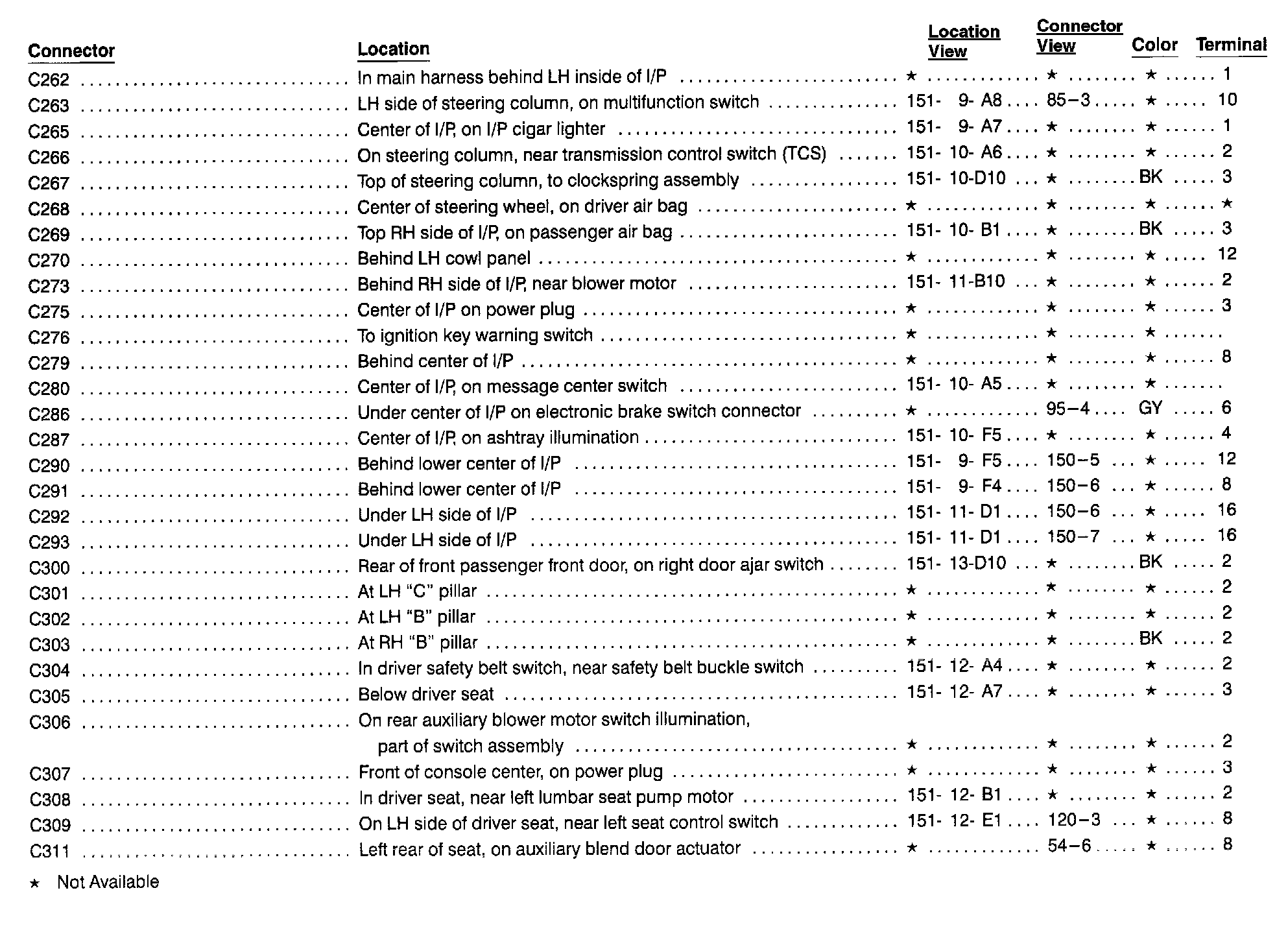

C262-C311:

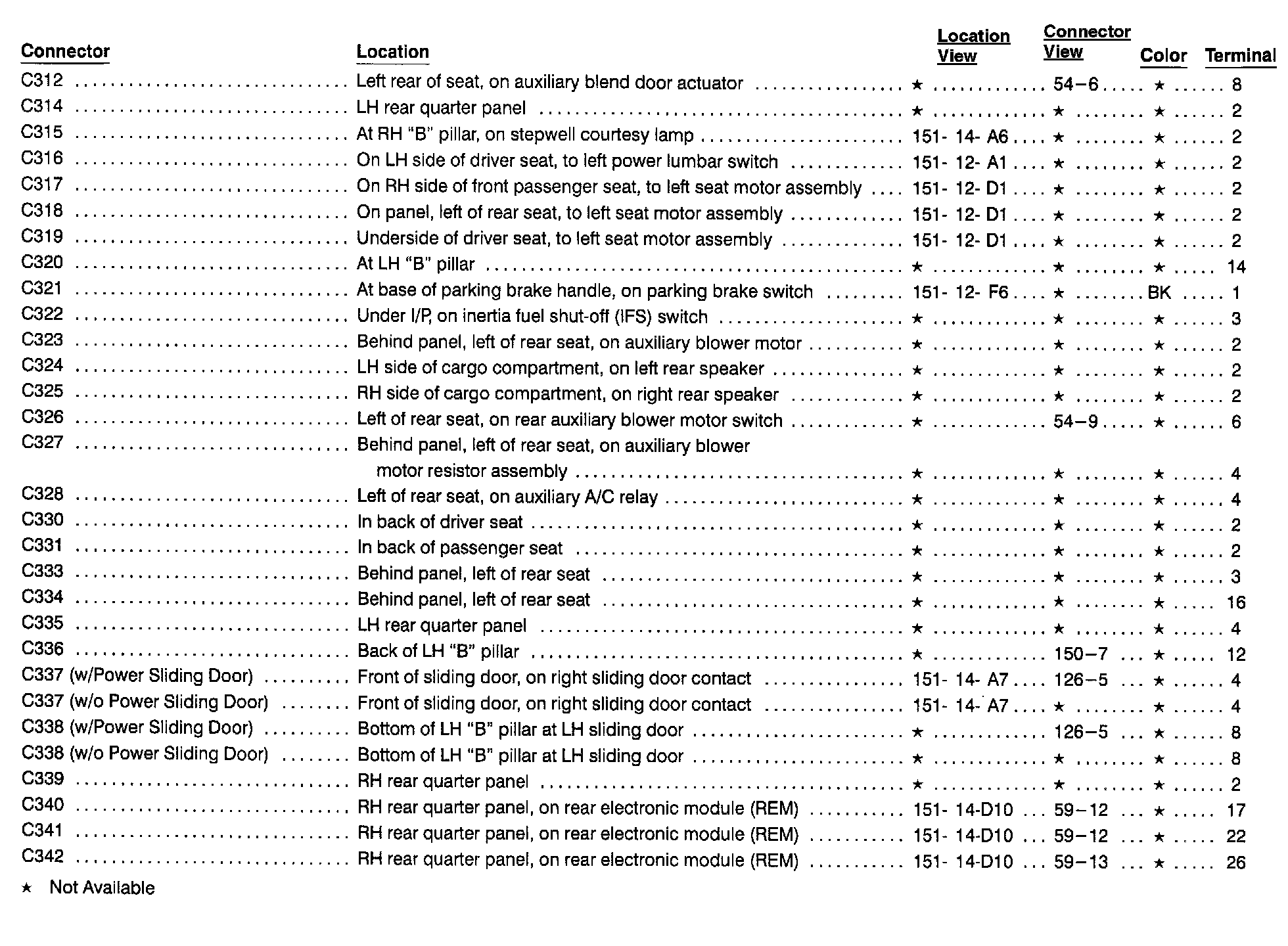

C312-C342:

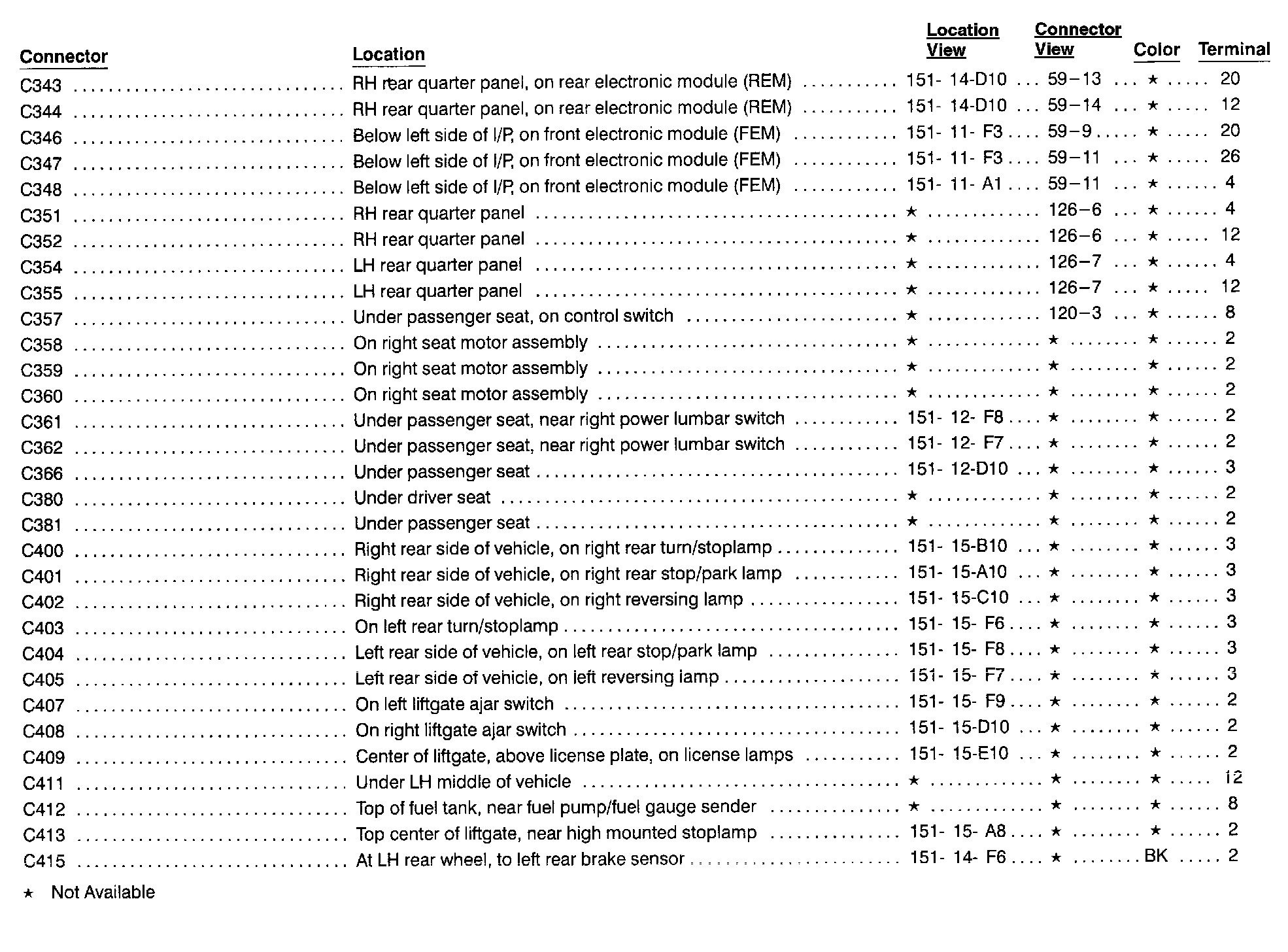

C343-C415:

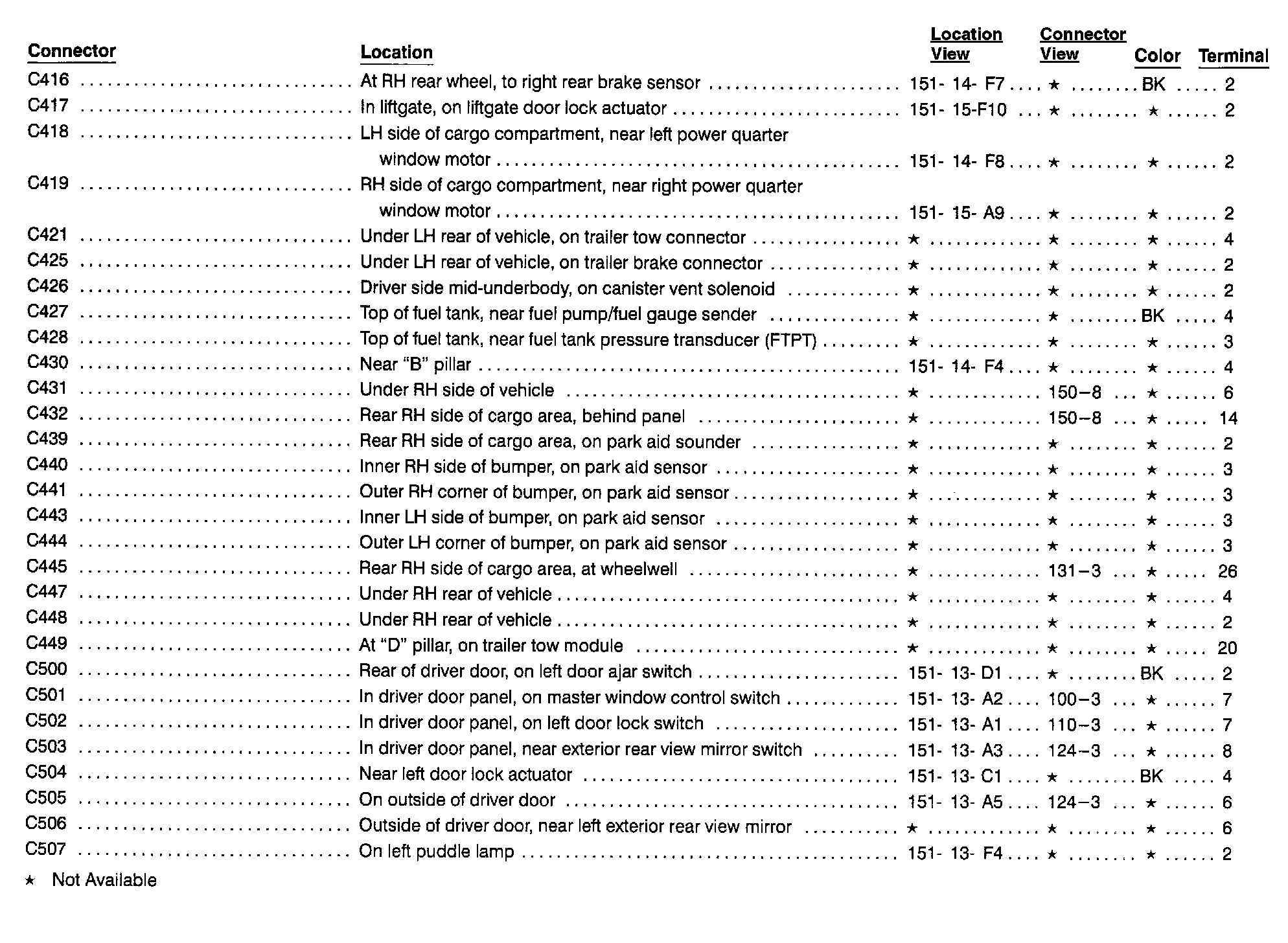

C416-C507:

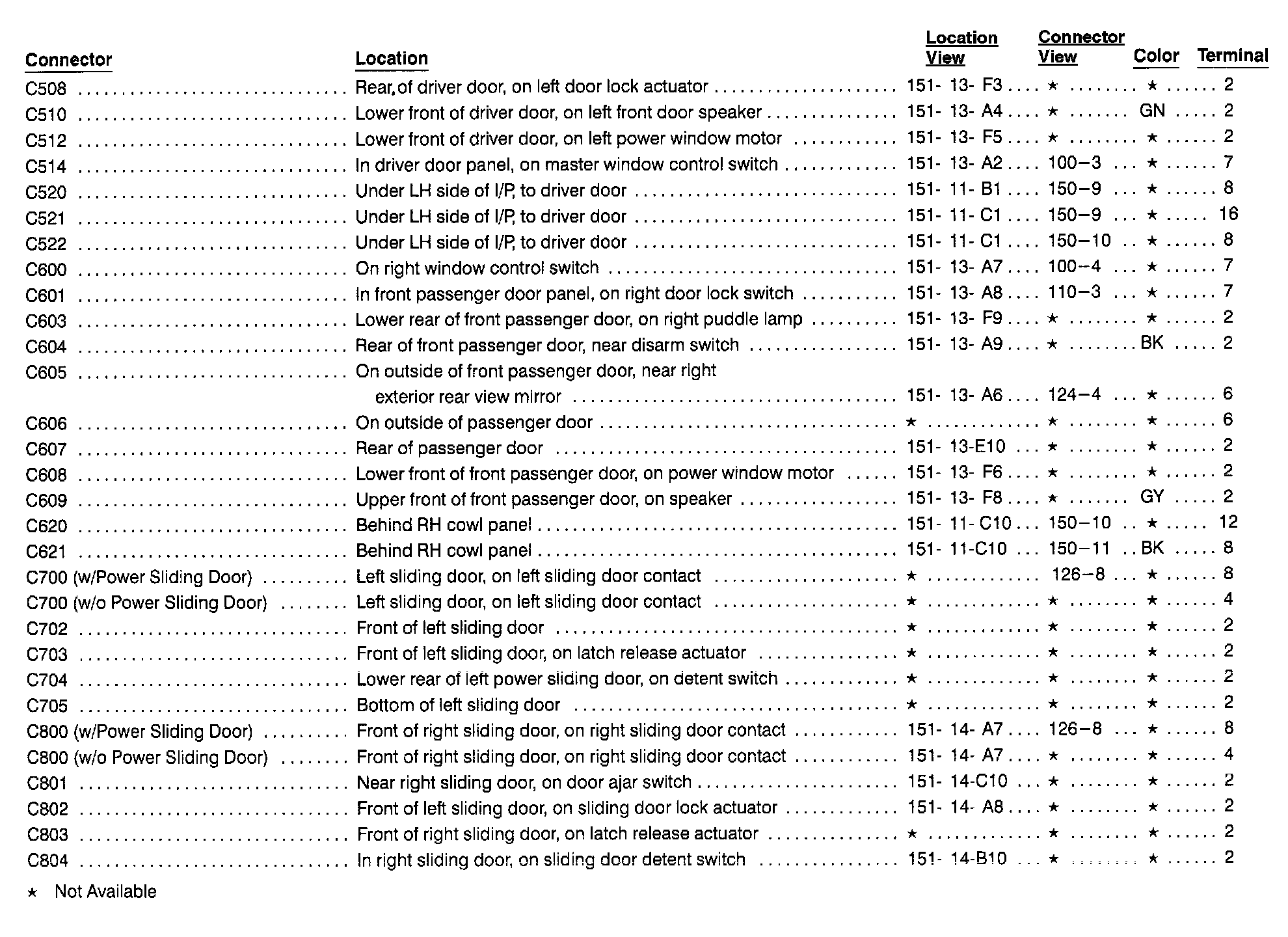

C508-C804:

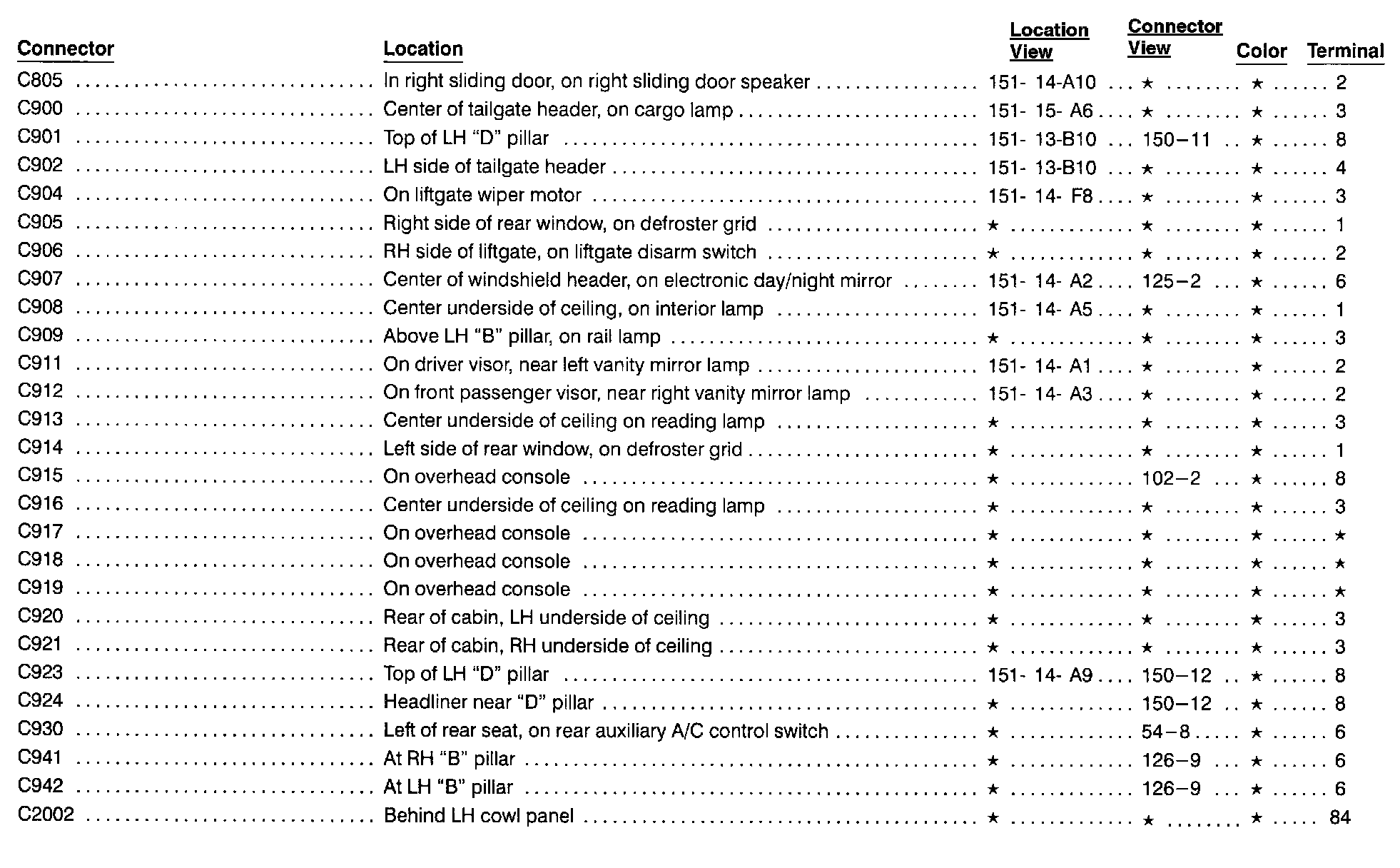

C805-C2002:
