Pressure Feedback Exhaust Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

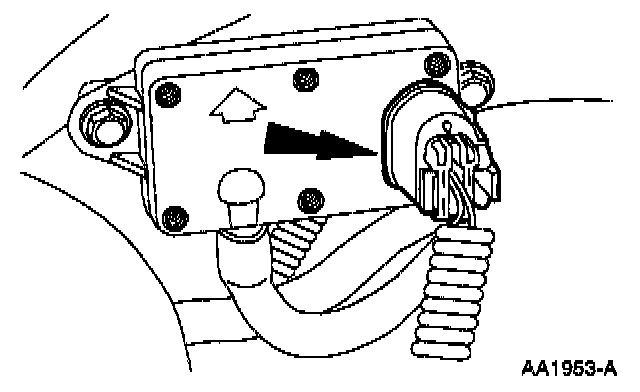

2. Disconnect the differential pressure feedback EGR valve electrical connector.

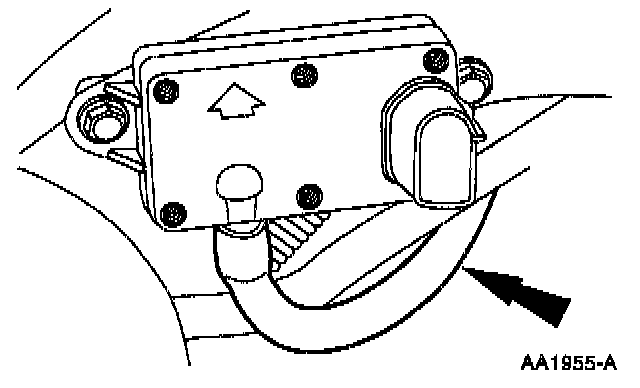

3. Disconnect the differential pressure feedback EGR valve hoses.

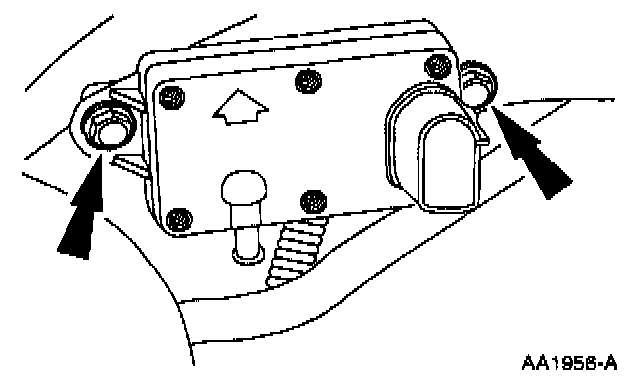

4. Remove the bolts and the differential pressure feedback EGR valve.

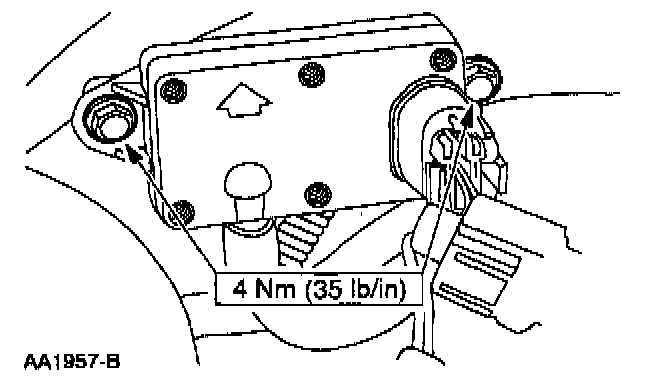

INSTALLATION







1. To install, reverse the removal procedure.
