EGR Tube: Service and Repair

REMOVAL
1. Raise and support the vehicle.

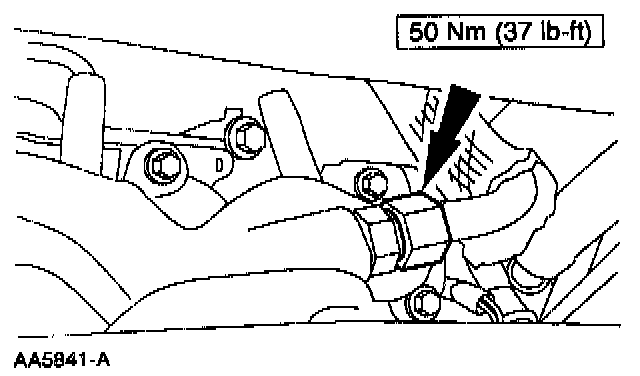

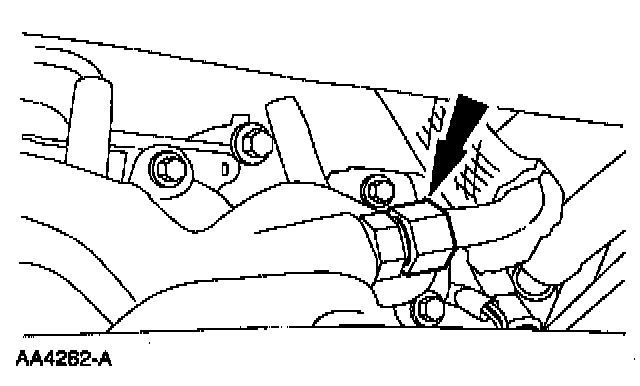

2. Disconnect the EGR tube nut at the manifold connector.
3. Lower the vehicle.

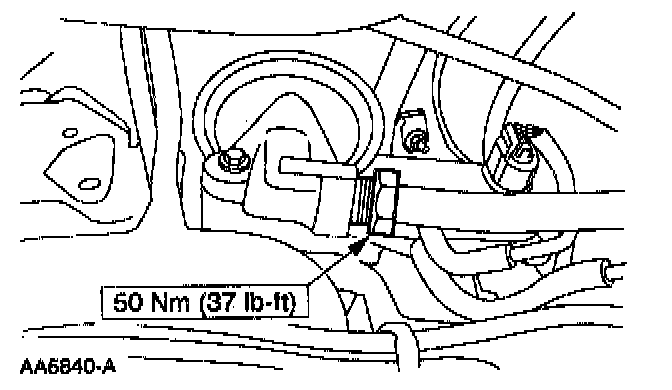

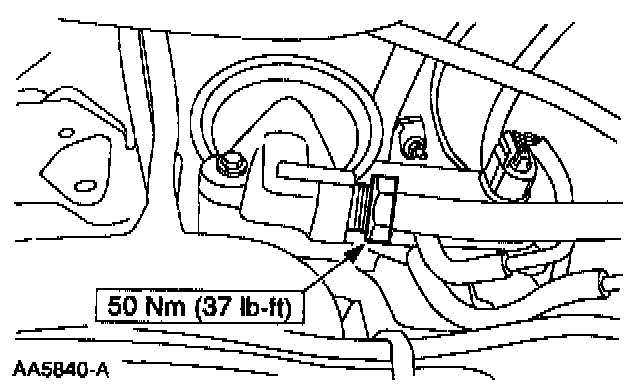

4. Disconnect the nut at the Exhaust Gas Recirculation (EGR) valve.

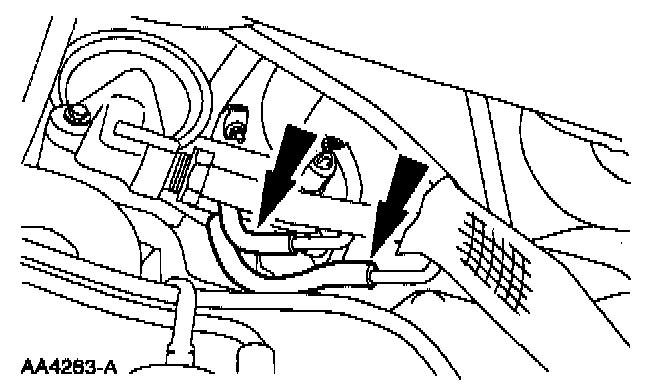

5. Disconnect the differential pressure feedback EGR vacuum hoses and the EGR valve tube.

INSTALLATION












1. To install, reverse the removal procedure.
