Connector Views

C142:

Transaxle Vehicle Harness Connector

1 Of 2:

2 Of 2:

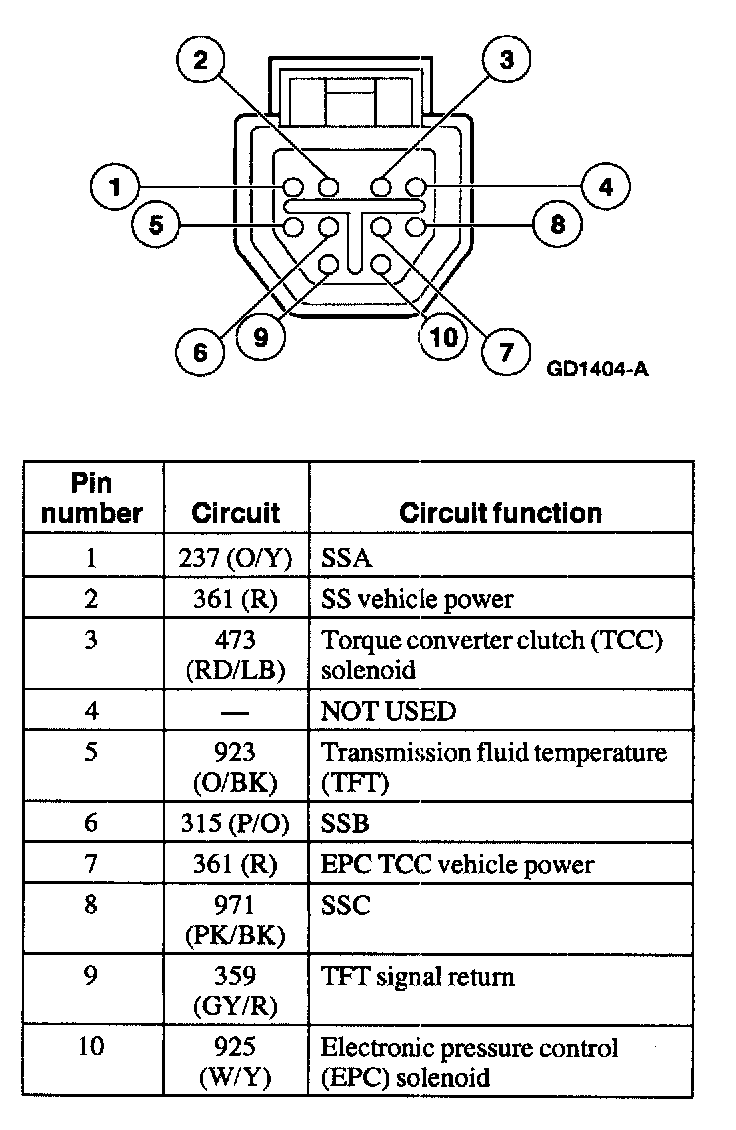

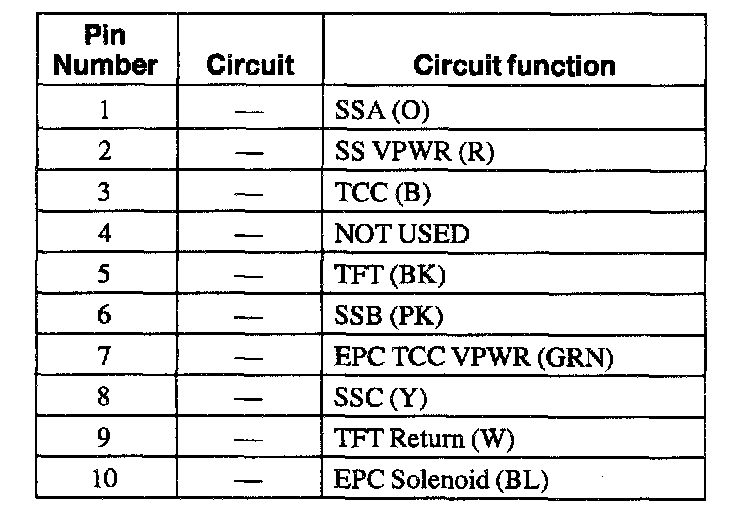

Transaxle Internal Harness Connector

1 Of 2:

2 Of 3:

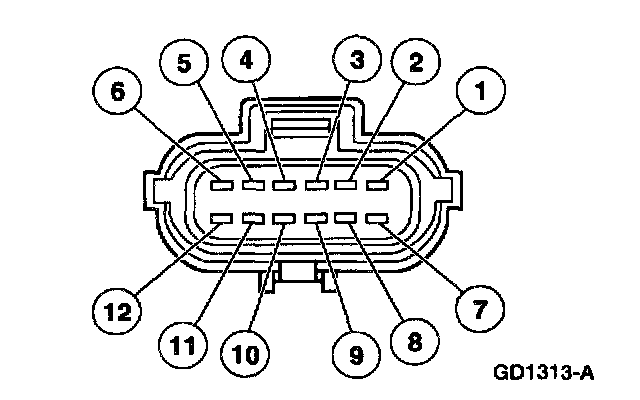

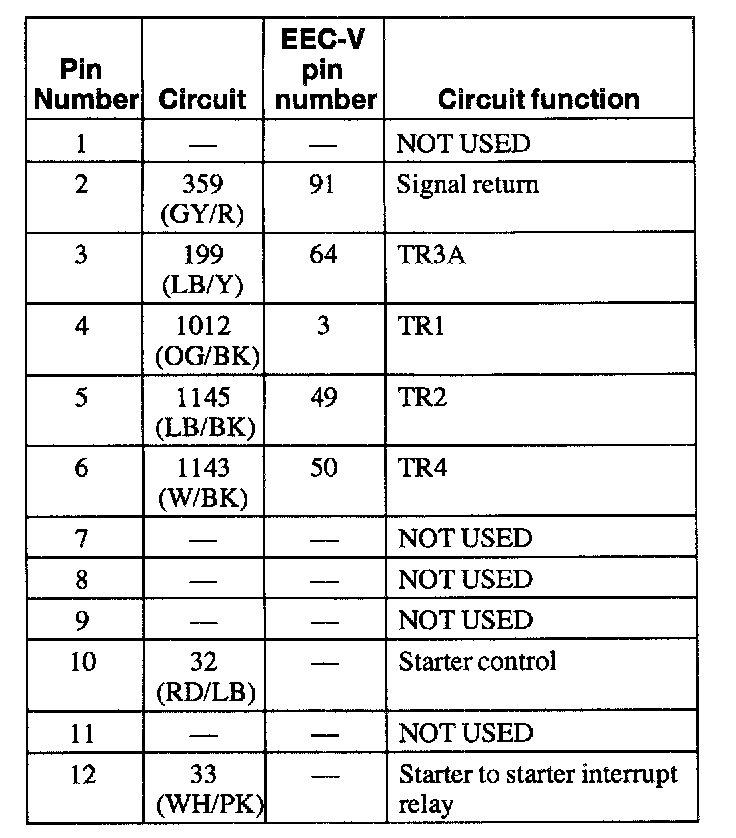

Digital Transmission Range (TR) Sensor Connector

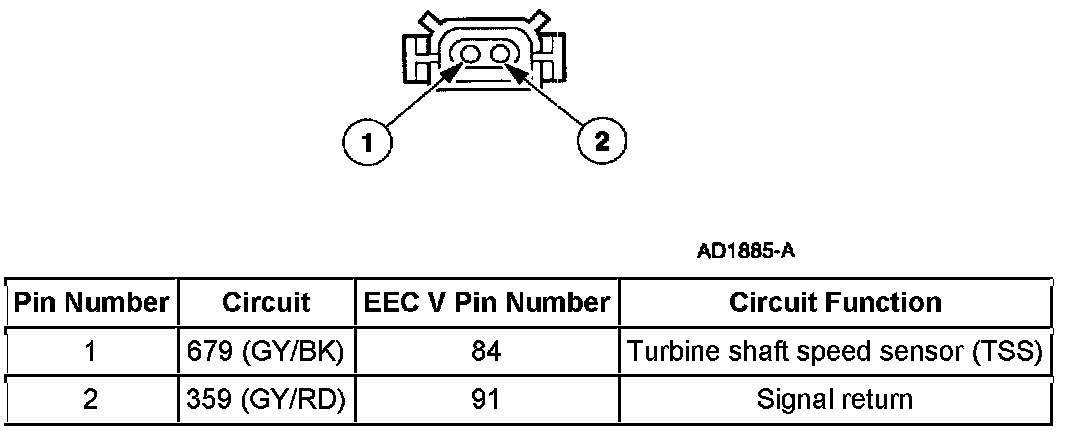

TSS Connector C146:

Turbine Shaft Speed (TSS) Sensor Connector

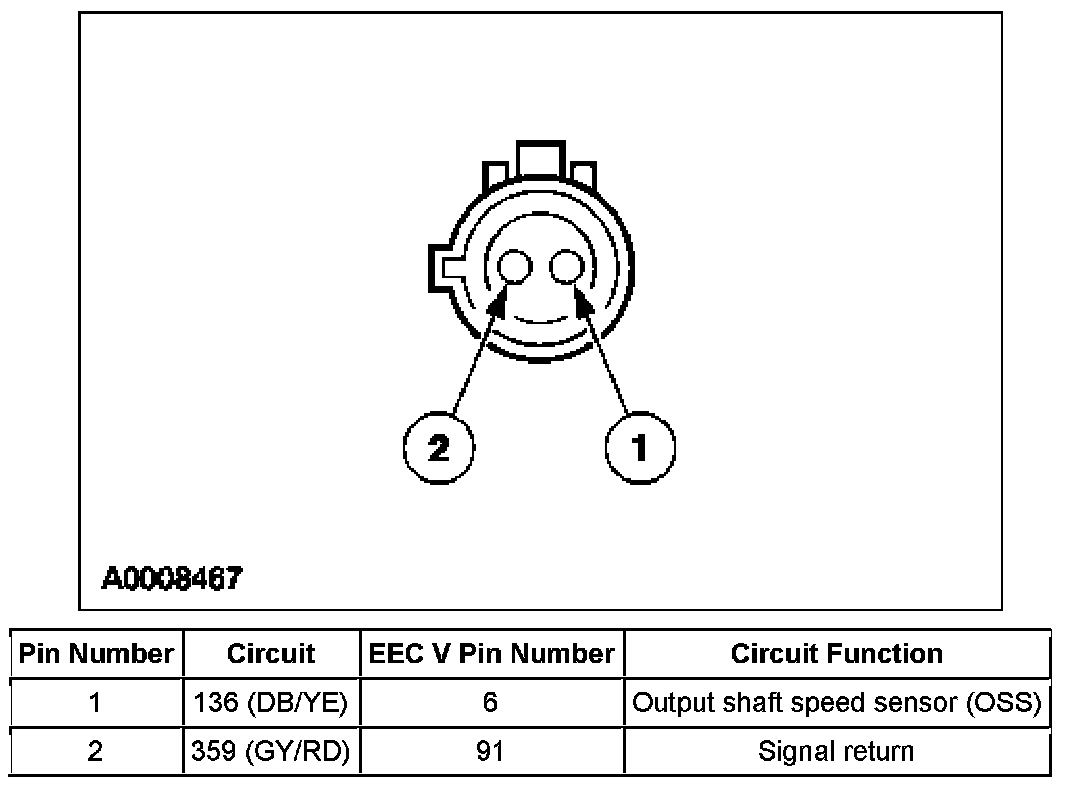

OSS Connector C129:

Output Shaft Speed (OSS) Sensor Connector

1 Of 2:

2 Of 2:

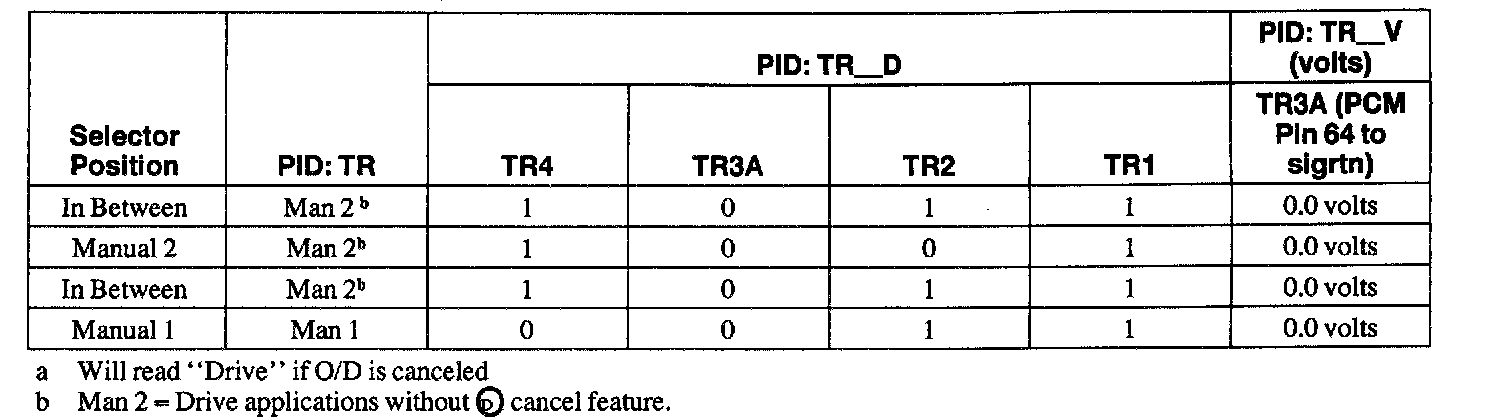

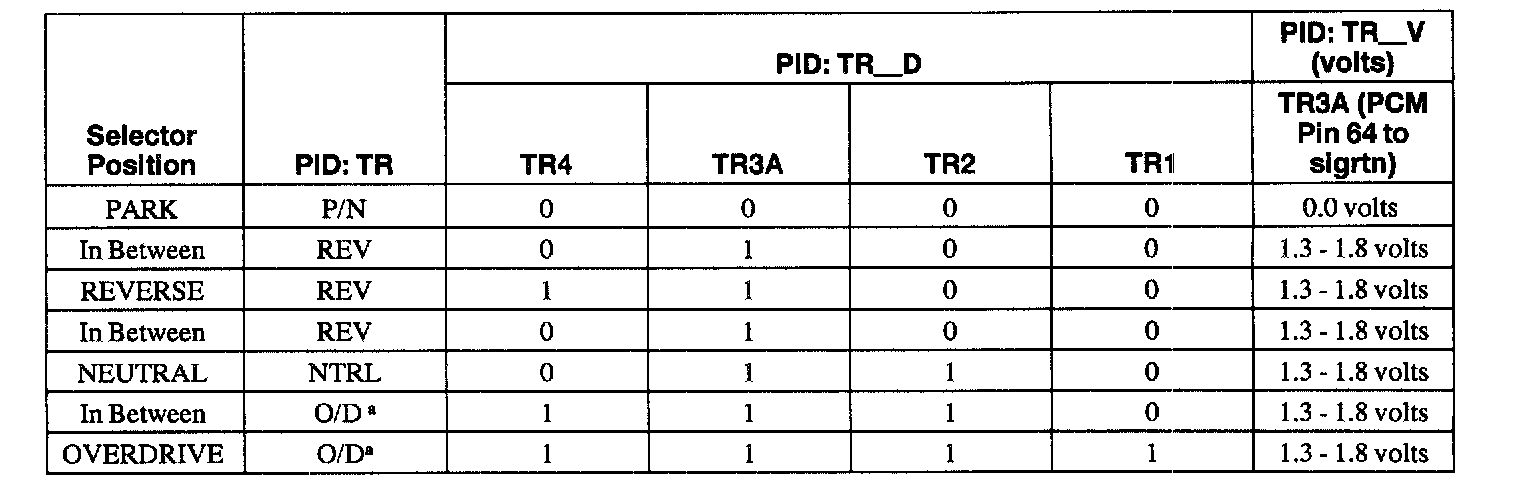

Digital Transmission Range (TR) Sensor Diagnosis Chart

A. TR_V is the voltage at the PCM Pin 64 (TR3A Circuit) to signal return.
B. "In Between" reading could be caused by a shift cable or digital TR sensor misaligned or a digital TR sensor circuit failure of TR1, TR2, TR3A, or TR4.
C. TR_D: 1=Open digital TR switch, 0-Closed digital TR switch.
D. Breakout Box Readings: Taken from PCM signal pins for TR1, TR2, TR3A, TR4 to signal return.
- Voltages for TR1, TR2, TR4:
- 0 - 0.0 volts (circuit shorted to ground)
- 1 = 9.0 - 14.0 volts (open circuit).

- Voltage for TR3A:
- 0 - 0.0 volts (circuit shorted to ground).
- 1 = 1.3 - 1.8 volts (open circuit).
- 1.8 - 5.0 volts=Invalid Reading (open in wires or bad resistor in digital TR sensor).
