Electrical Diagrams

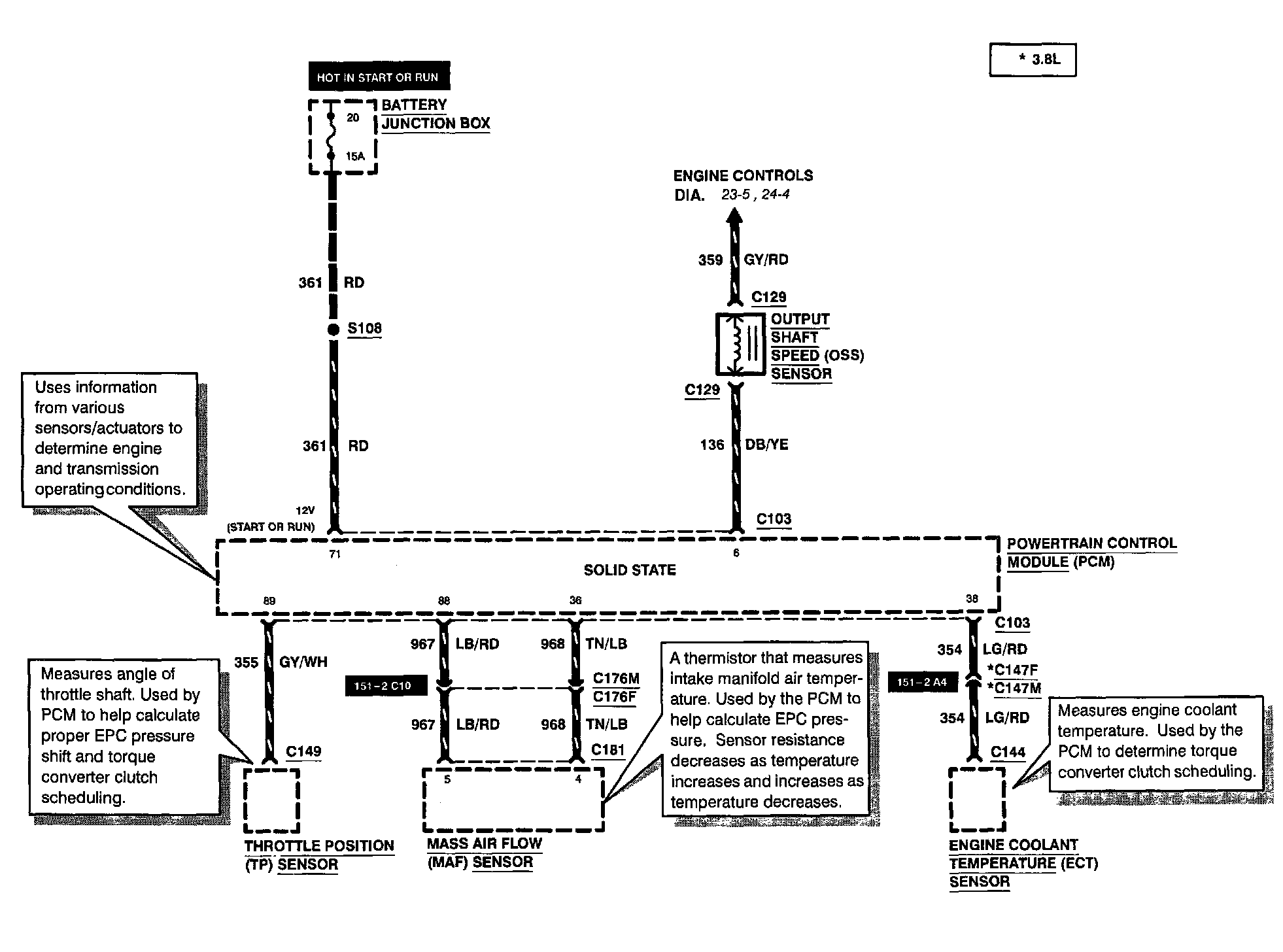

Diagram 29-1:

Battery Junction Box
Engine Coolant Temperature Sensor
Fuse 20
Mass Air Flow Sensor
Output Shaft Speed Sensor
Powertrain Control Module
Throttle Position Sensor

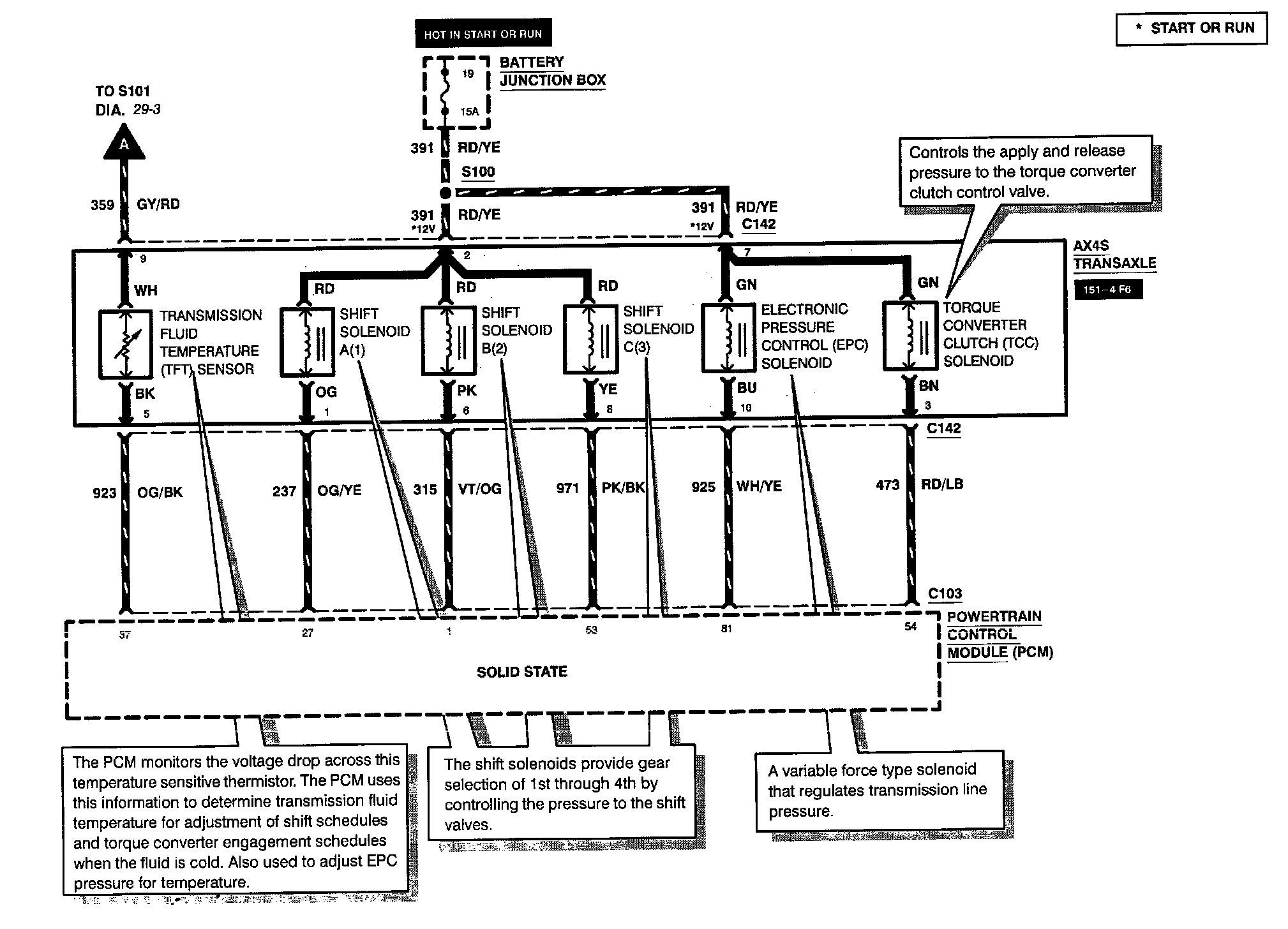

Diagram 29-2:

AX4S Transaxle
Battery Junction Box
Electronic Pressure Control Solenoid
Fuse 19
Powertrain Control Module
Shift Solenoid A(1)
Shift Solenoid B(2)
Shift Solenoid C(3)
Torque Converter Clutch Solenoid
Transmission Fluid Temperature Sensor

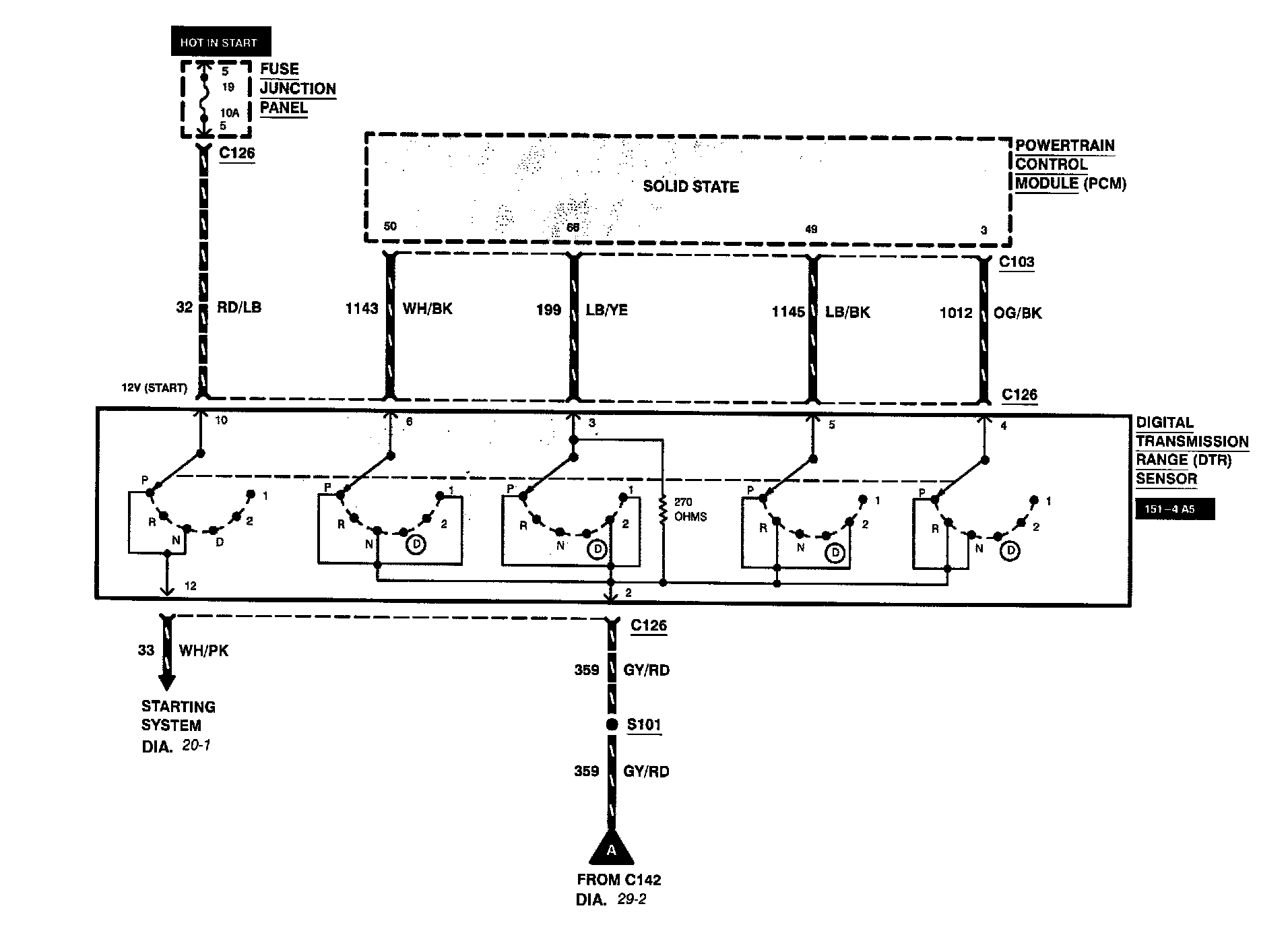

Diagram 29-3:

Digital Transmission Range Sensor
Fuse 19
Fuse Junction Panel
Powertrain Control Module
