Shift Solenoid Operation Chart

Use the following shift solenoid operation information when Carrying out Pinpoint Test A. A: Shift Solenoids

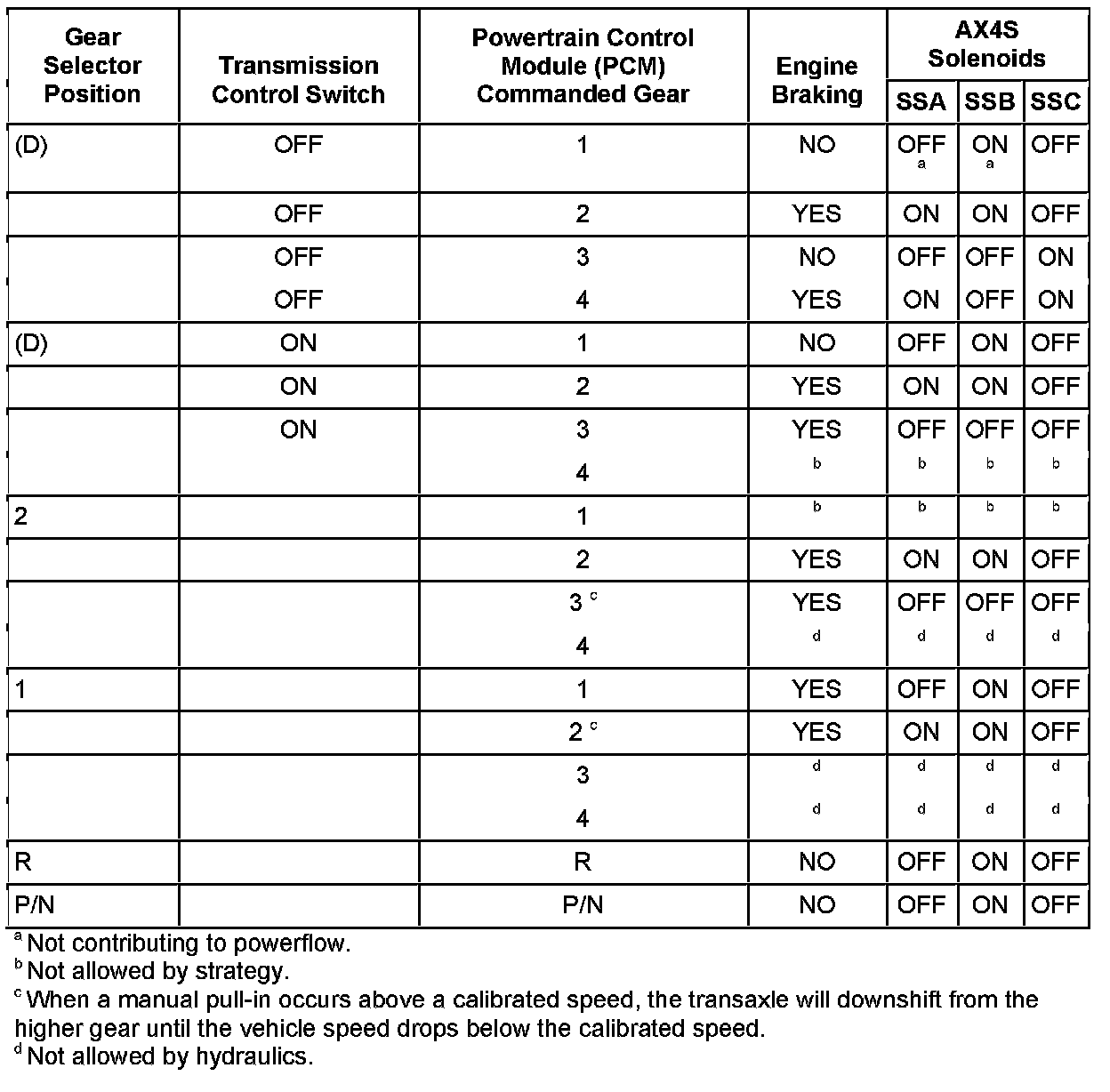

Solenoid Operation Chart:

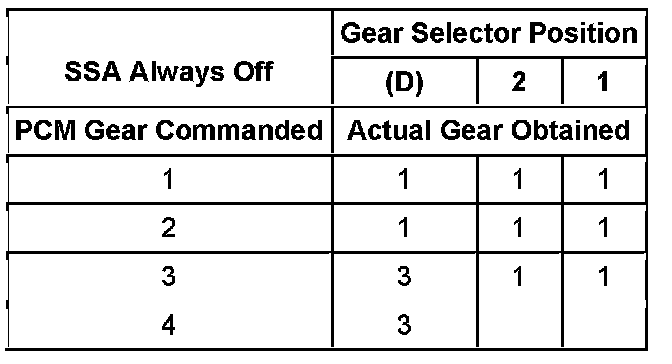

SSA Always OFF:

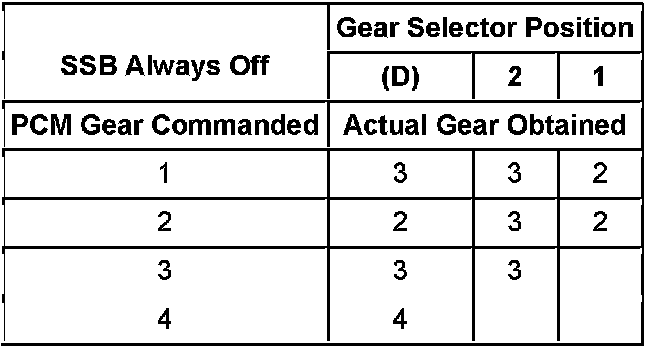

SSB Always OFF:

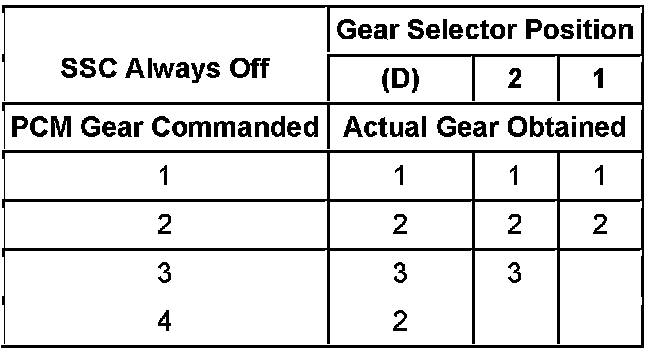

SSC Always OFF:

Shift Solenoid Failure Mode Chart "Always OFF"

Failed OFF due to Powertrain Control Module (PCM), vehicle wiring concerns, solenoid electrically, or hydraulically stuck OFF.

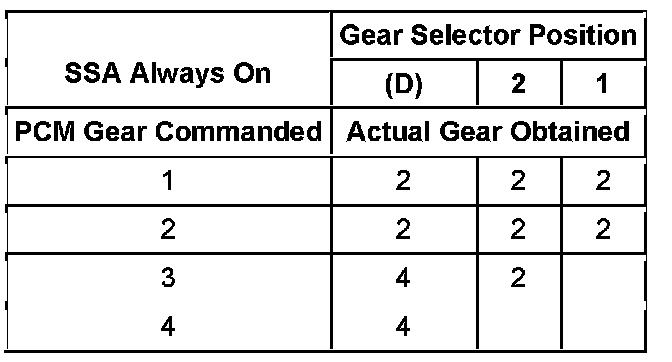

SSA Always ON:

SSB Always ON:

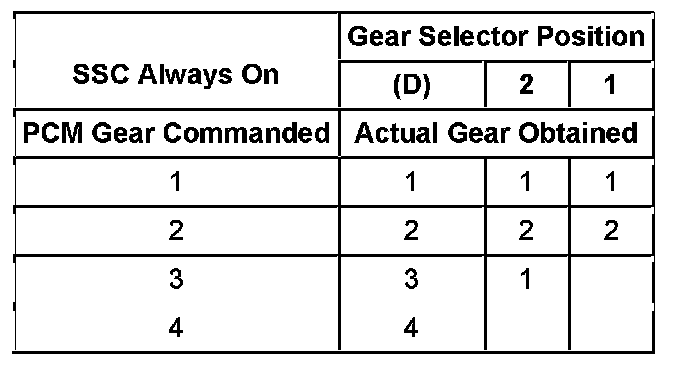

SSC Always ON:

Shift Solenoid Failure Mode Chart "Always ON"

Failed ON due to PCM, vehicle wiring concerns, solenoid electrically or mechanically stuck ON.
