Reading Lamp Assembly

REMOVAL

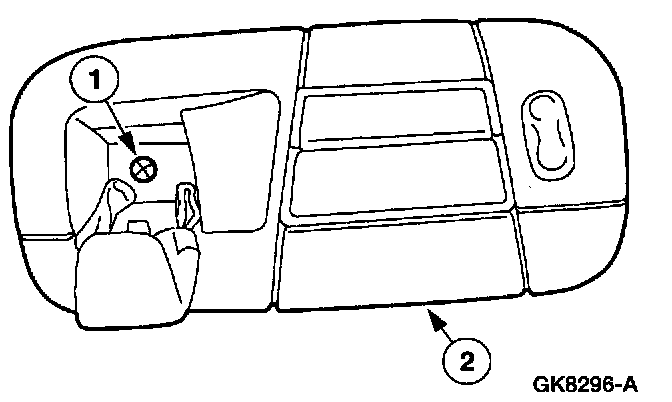

1. Position the reading lamp aside.
1. Remove the screw.
2. Position the reading lamp aside.

CAUTION: When removing lamp assembly, use care to avoid damaging the lamp assembly.

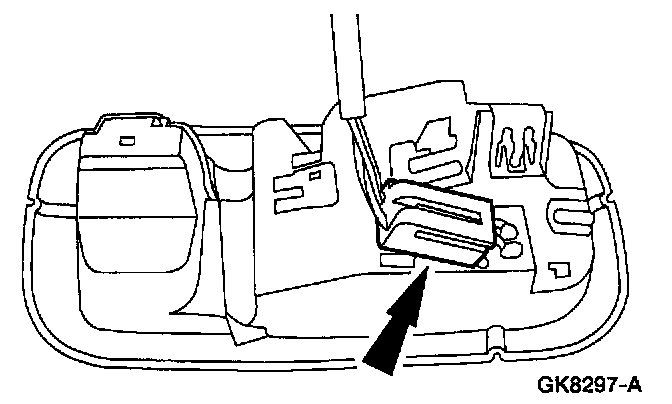

2. Remove the reading lamp.
^ Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
