B: Transmission Fluid/Oil Temperature (TFT/TOT) Sensor

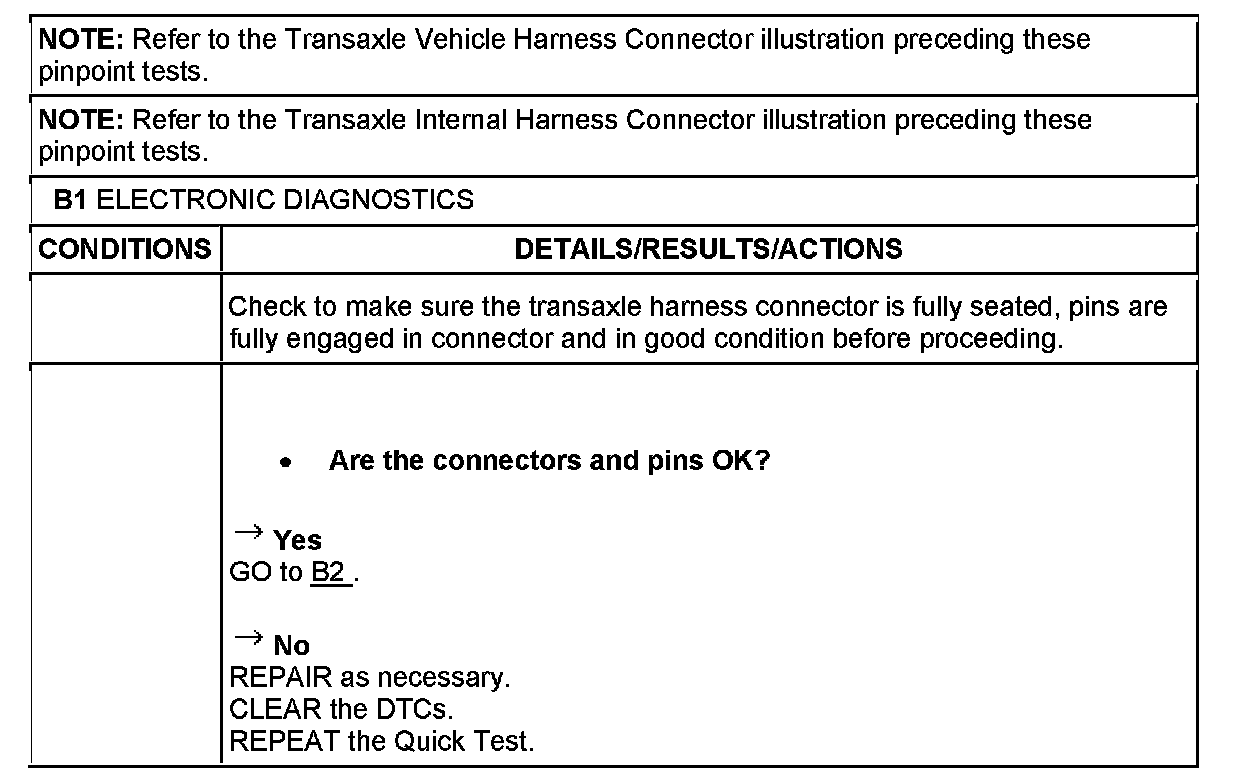

B1:

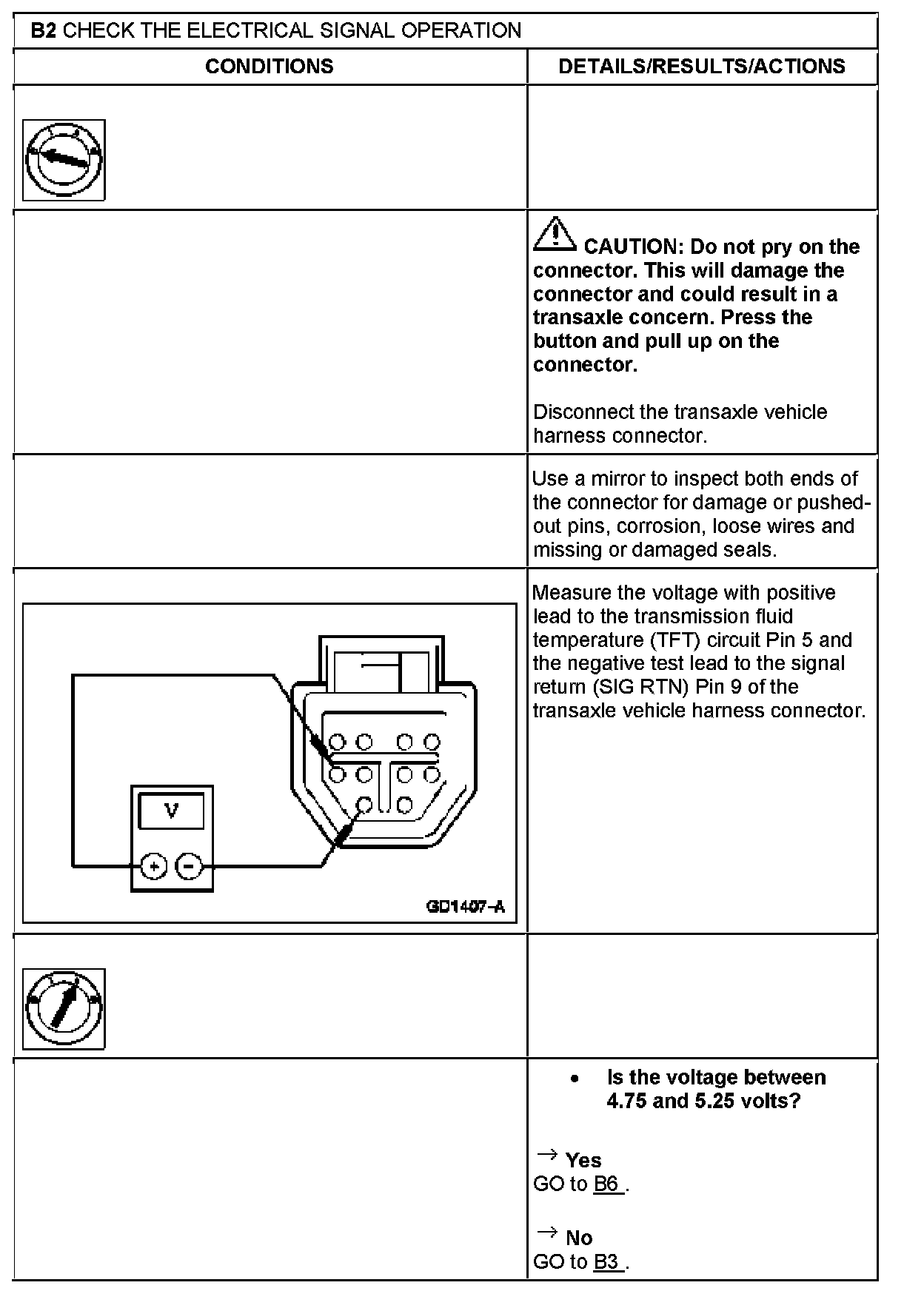

B2:

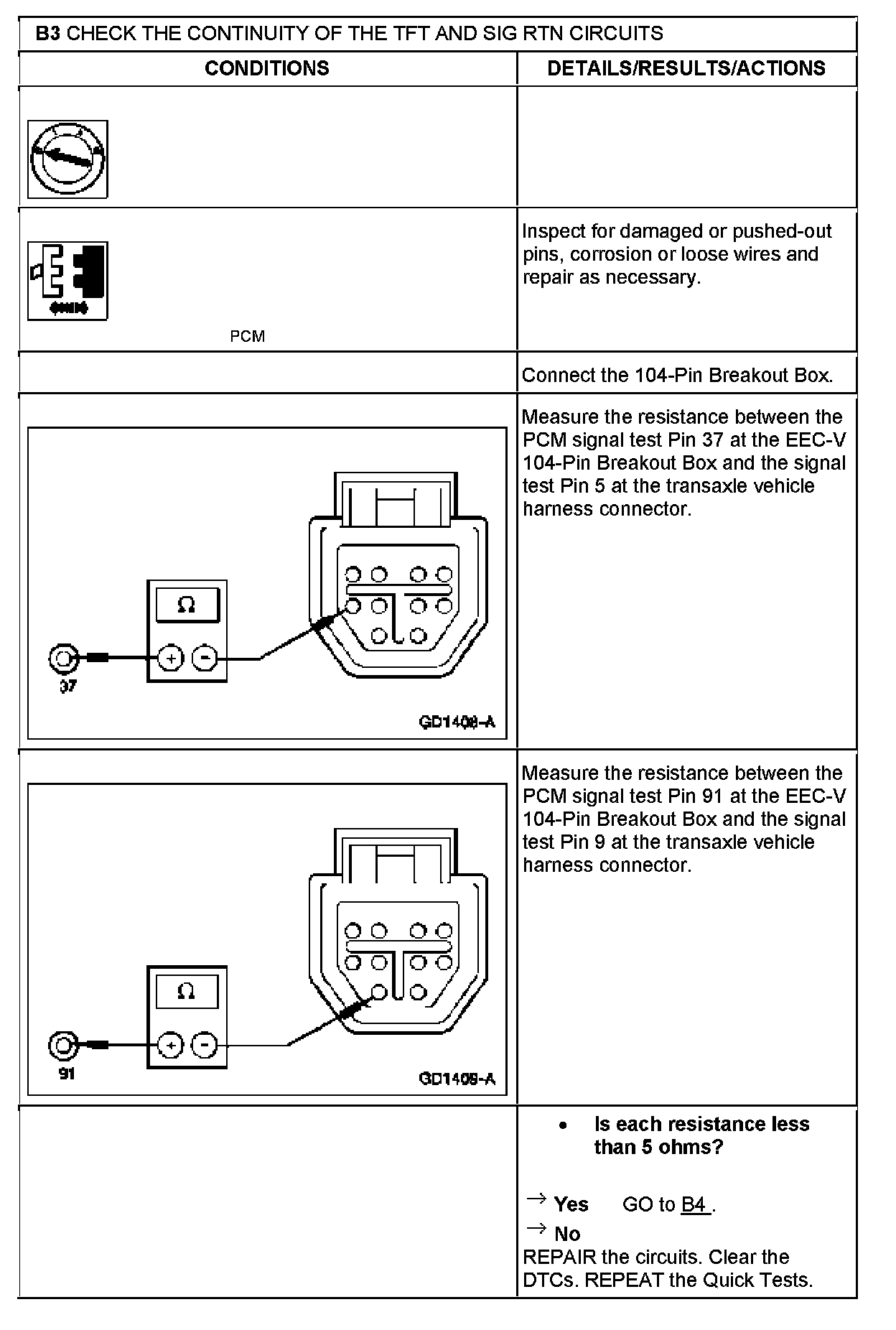

B3:

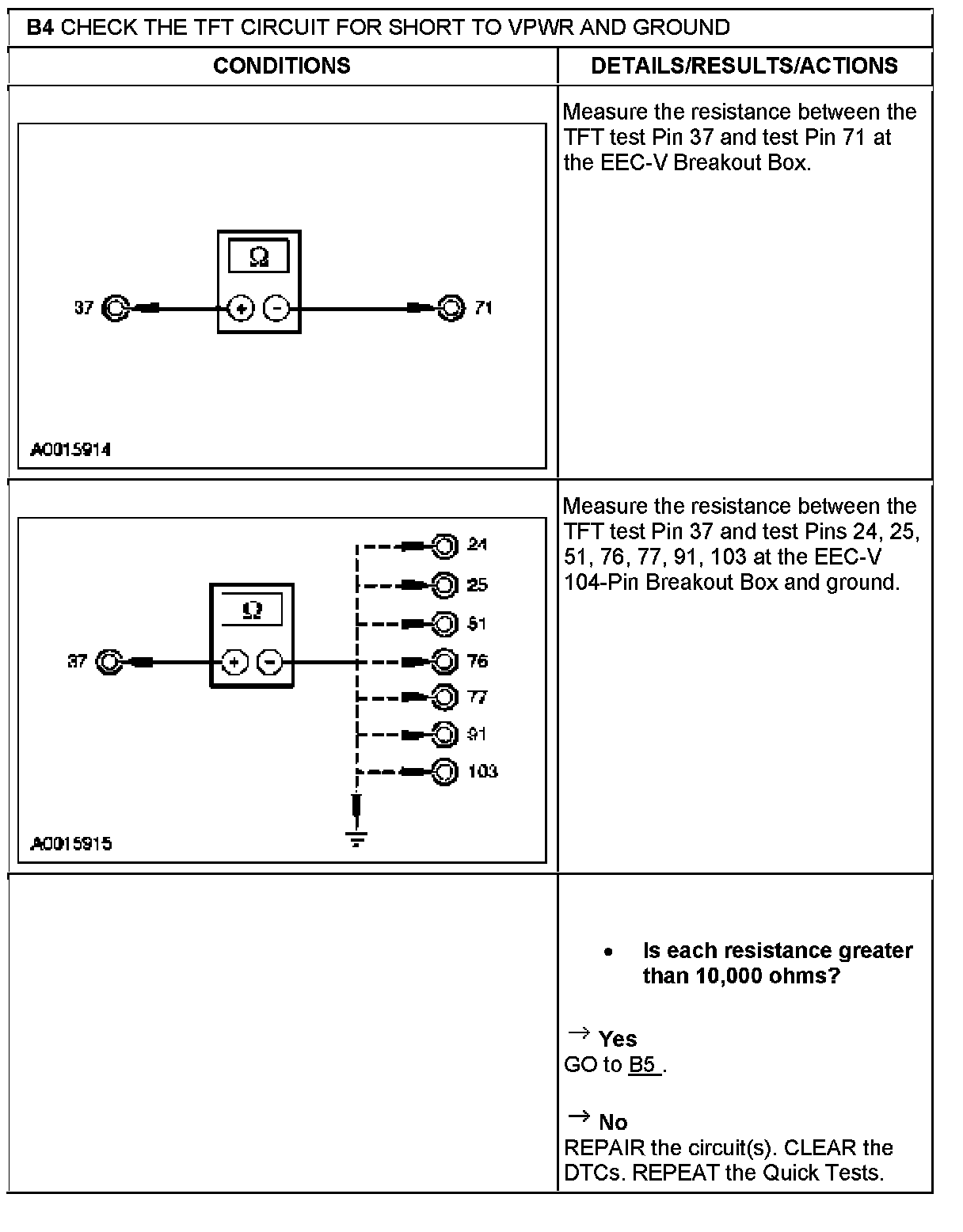

B4:

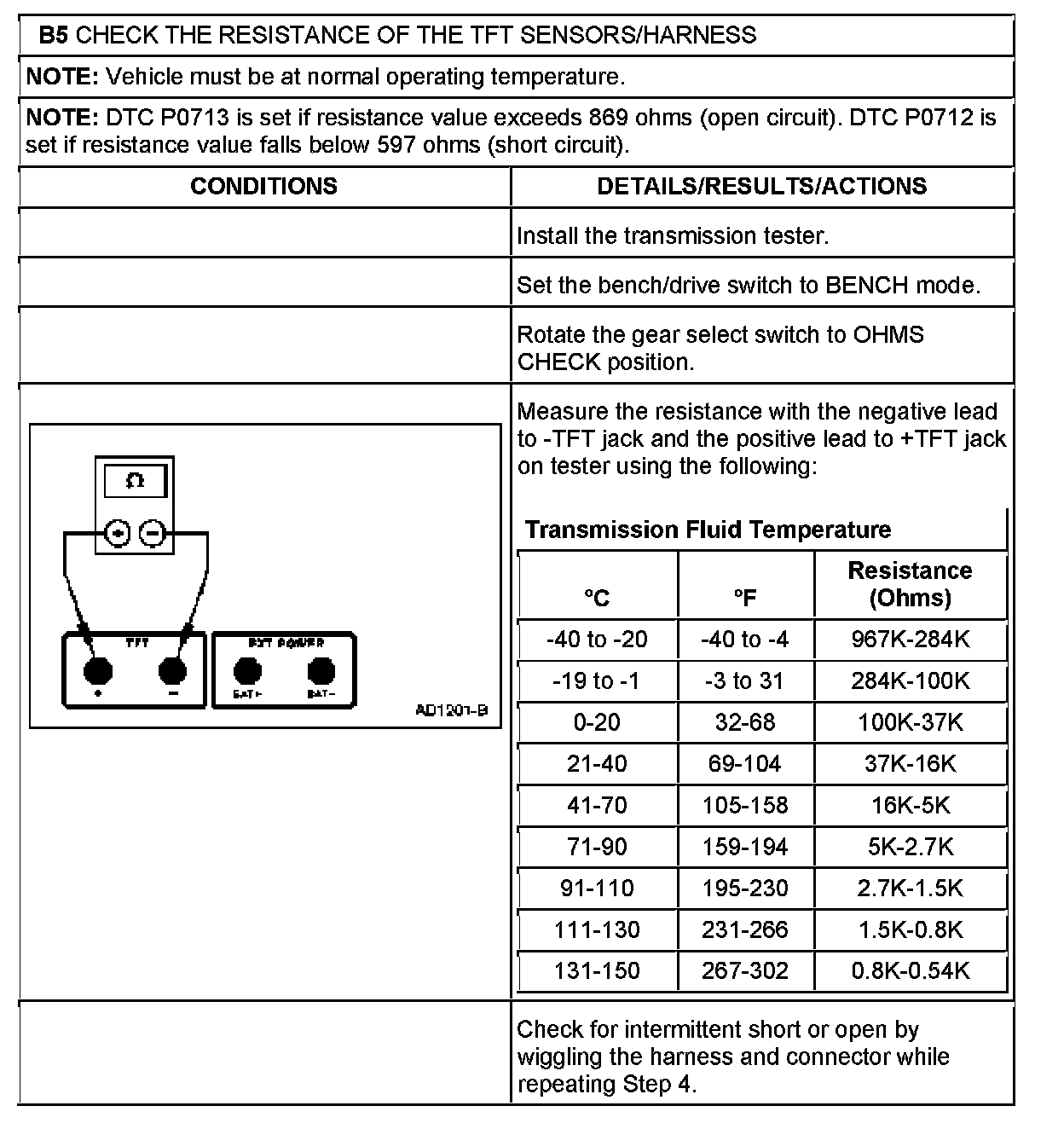

B5 Part 1:

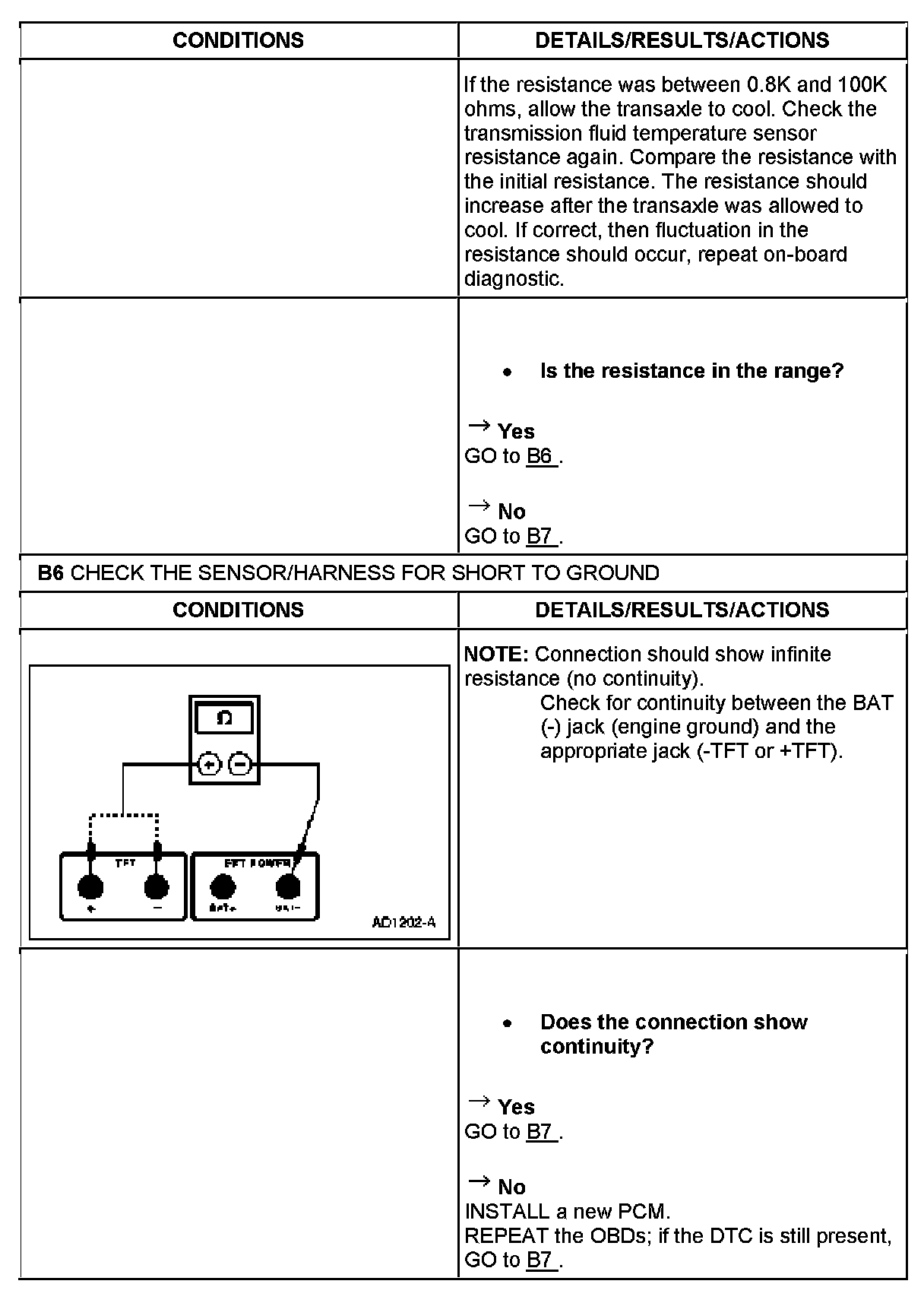

B5 Part 2 & B6:

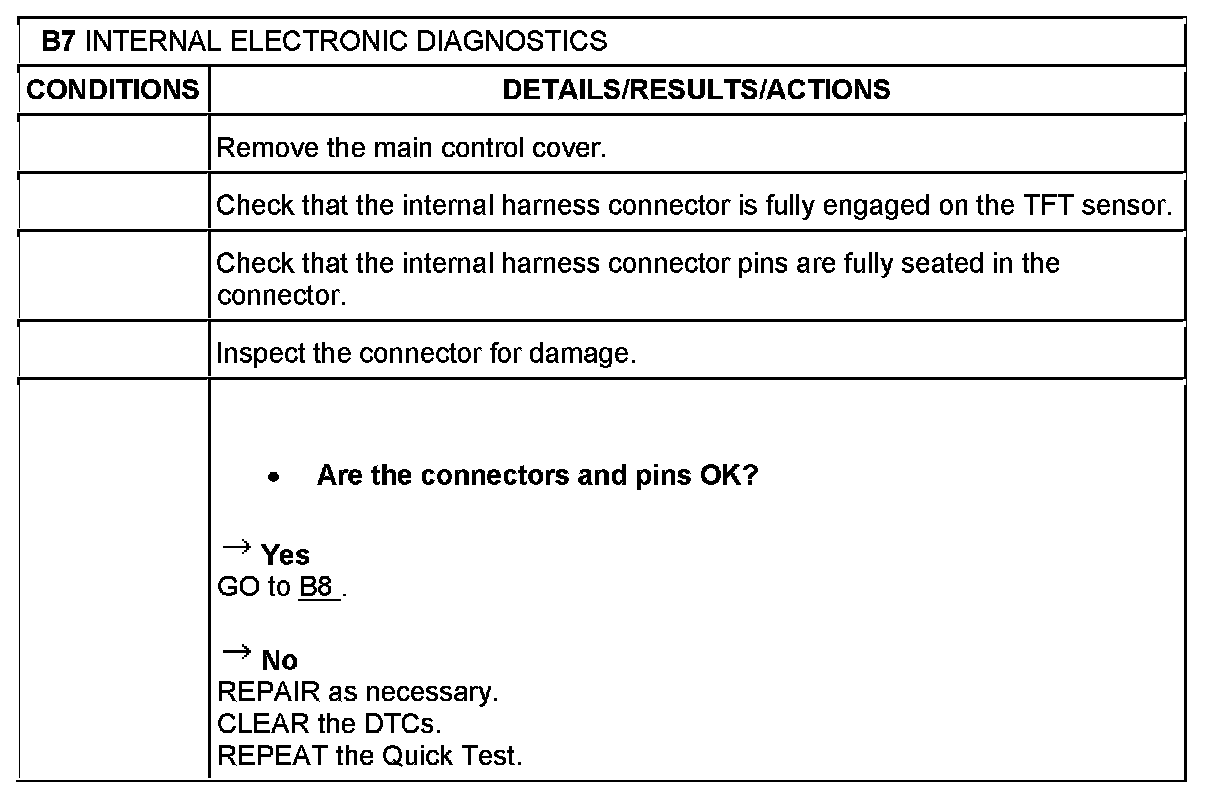

B7:

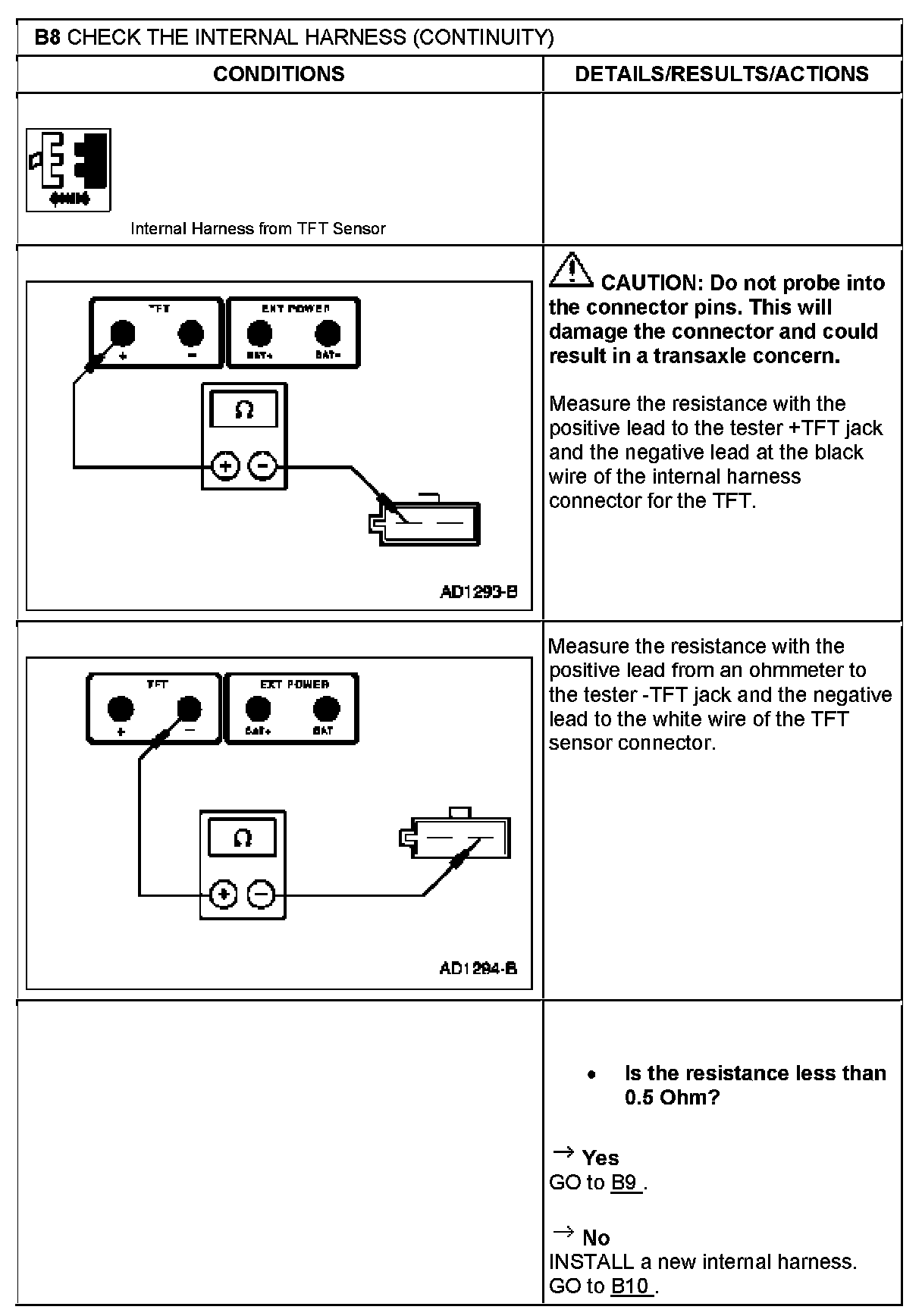

B8:





B9:

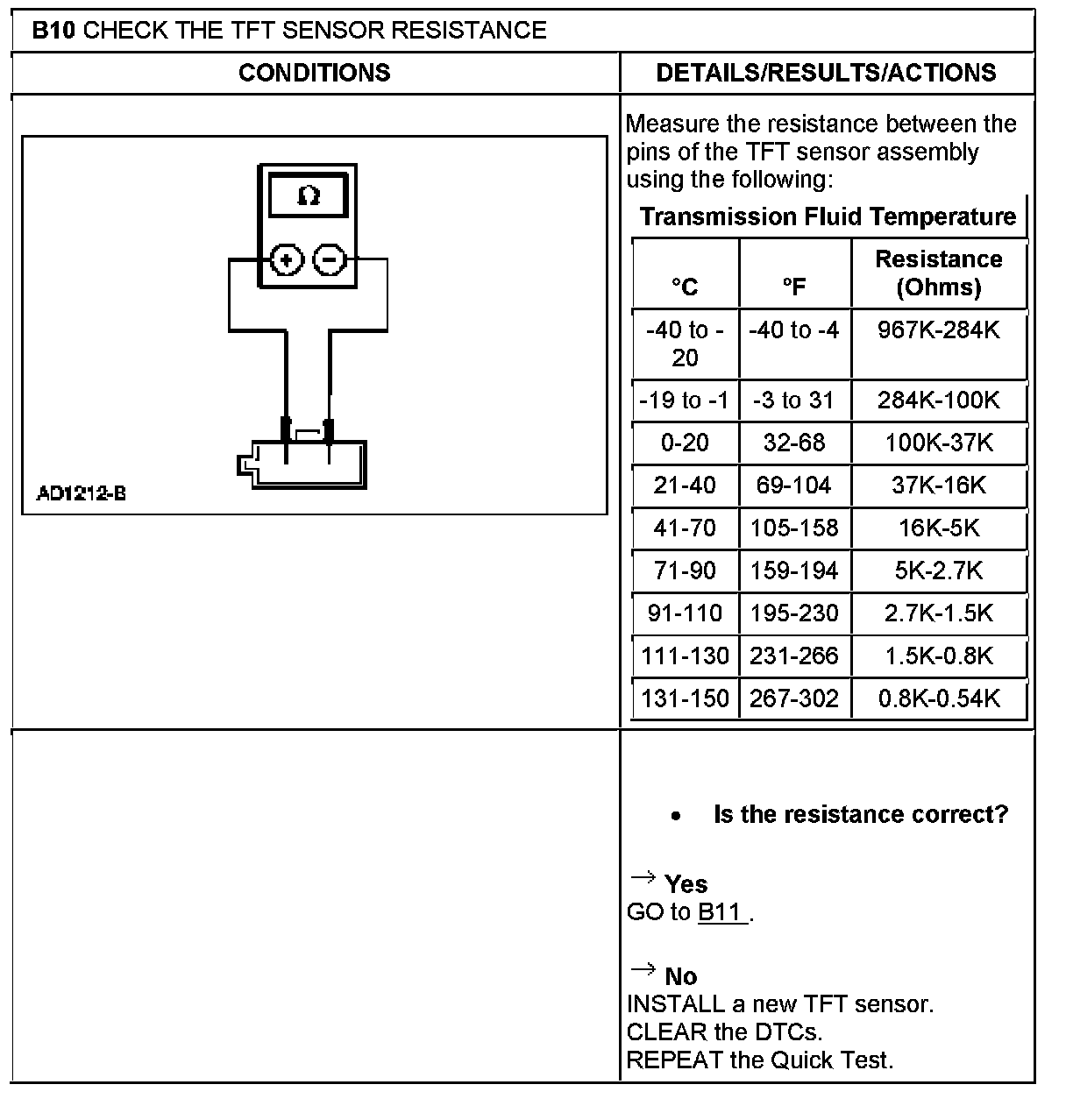

B10:

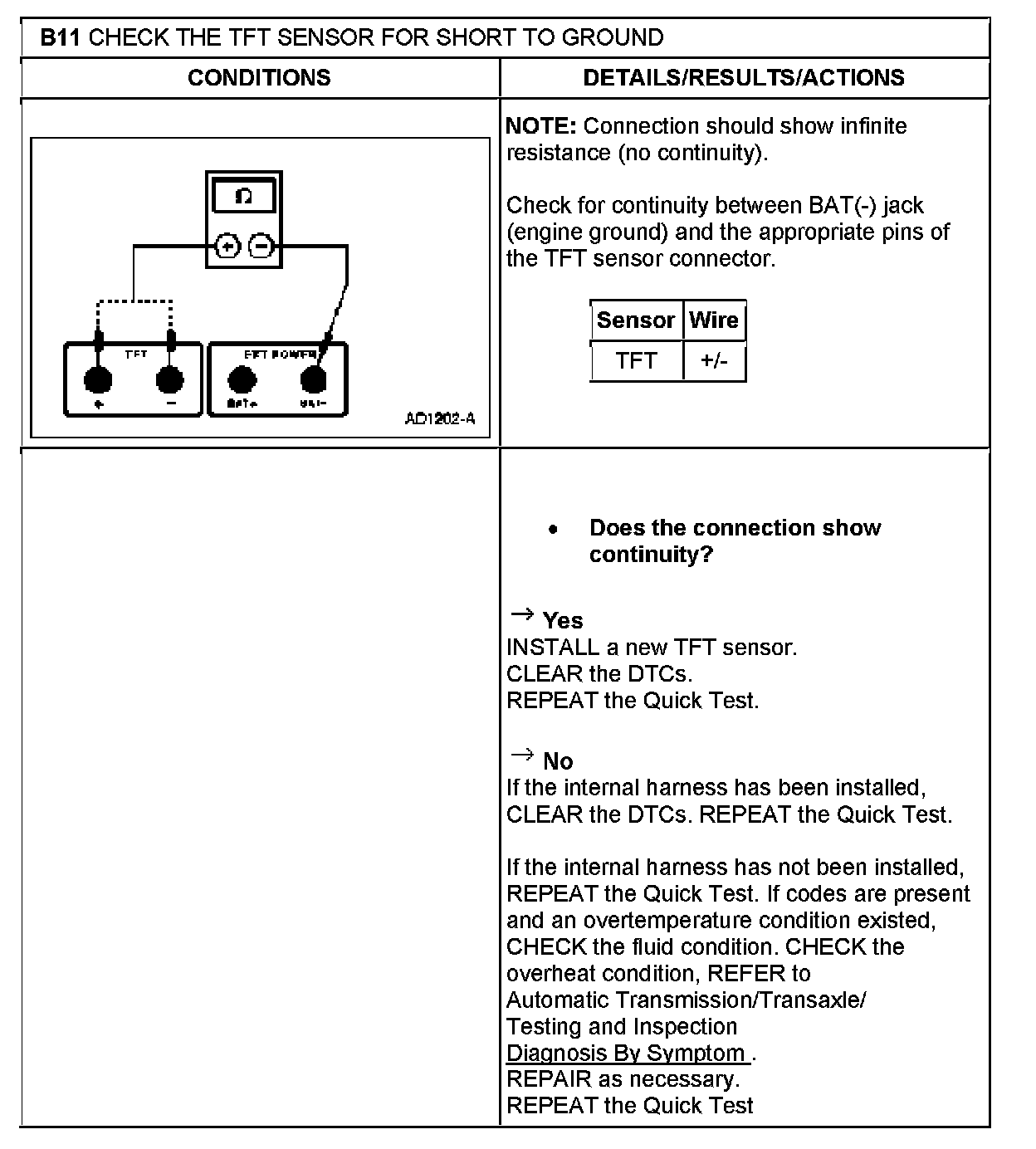

B11:
