E: Electronic Pressure Control (EPC) Solenoid

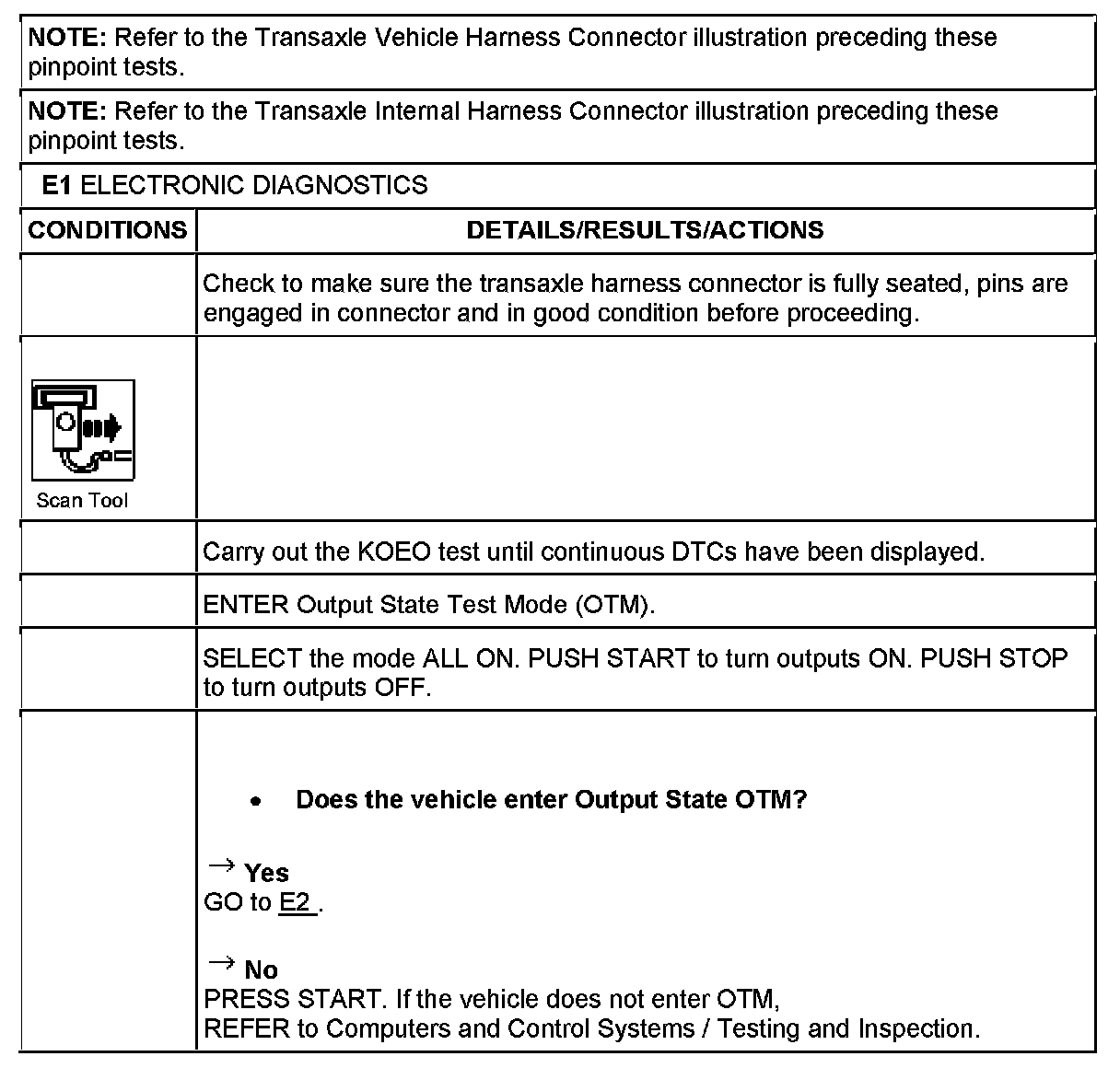

E1:

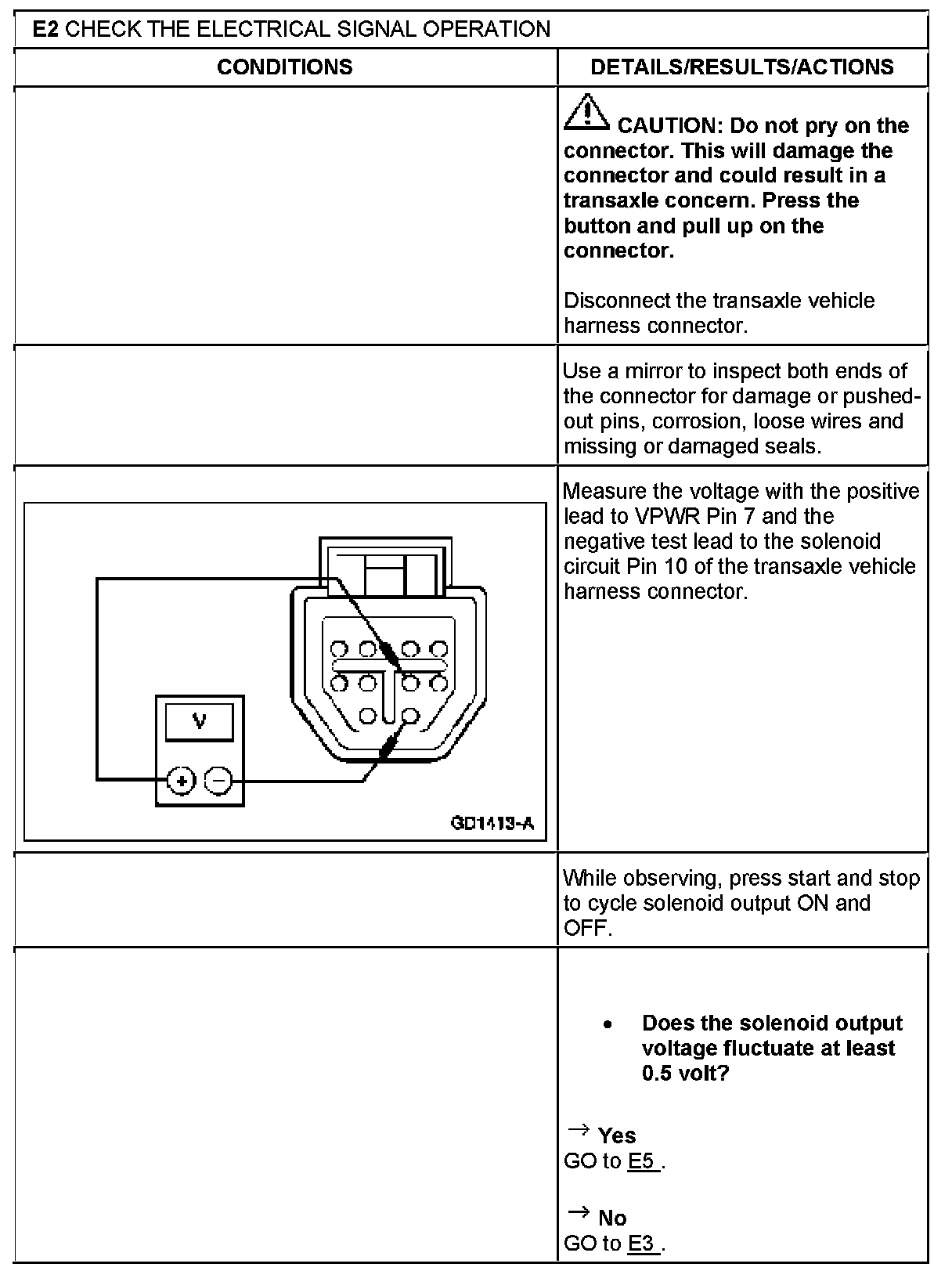

E2:





E3:

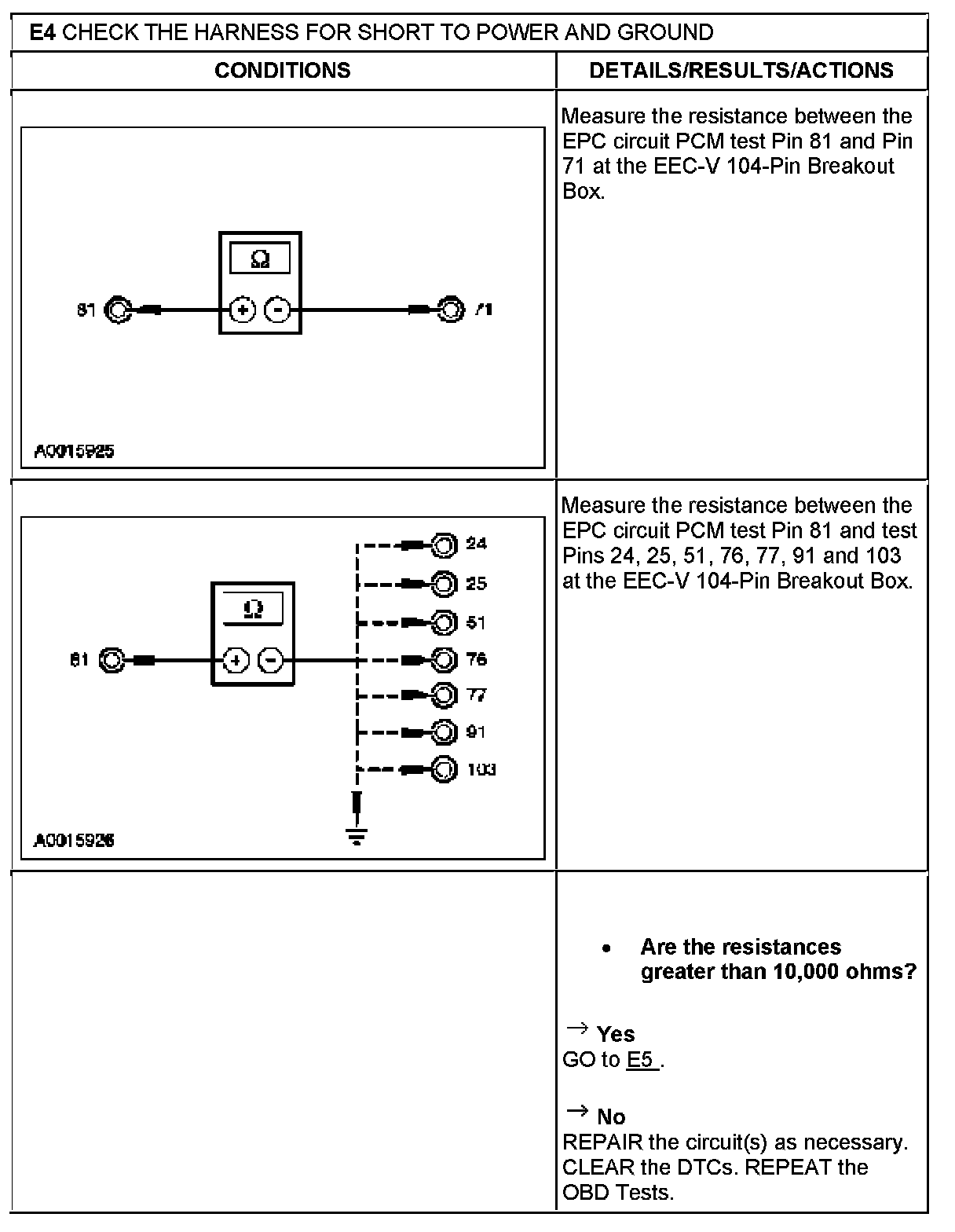

E4:





E5:

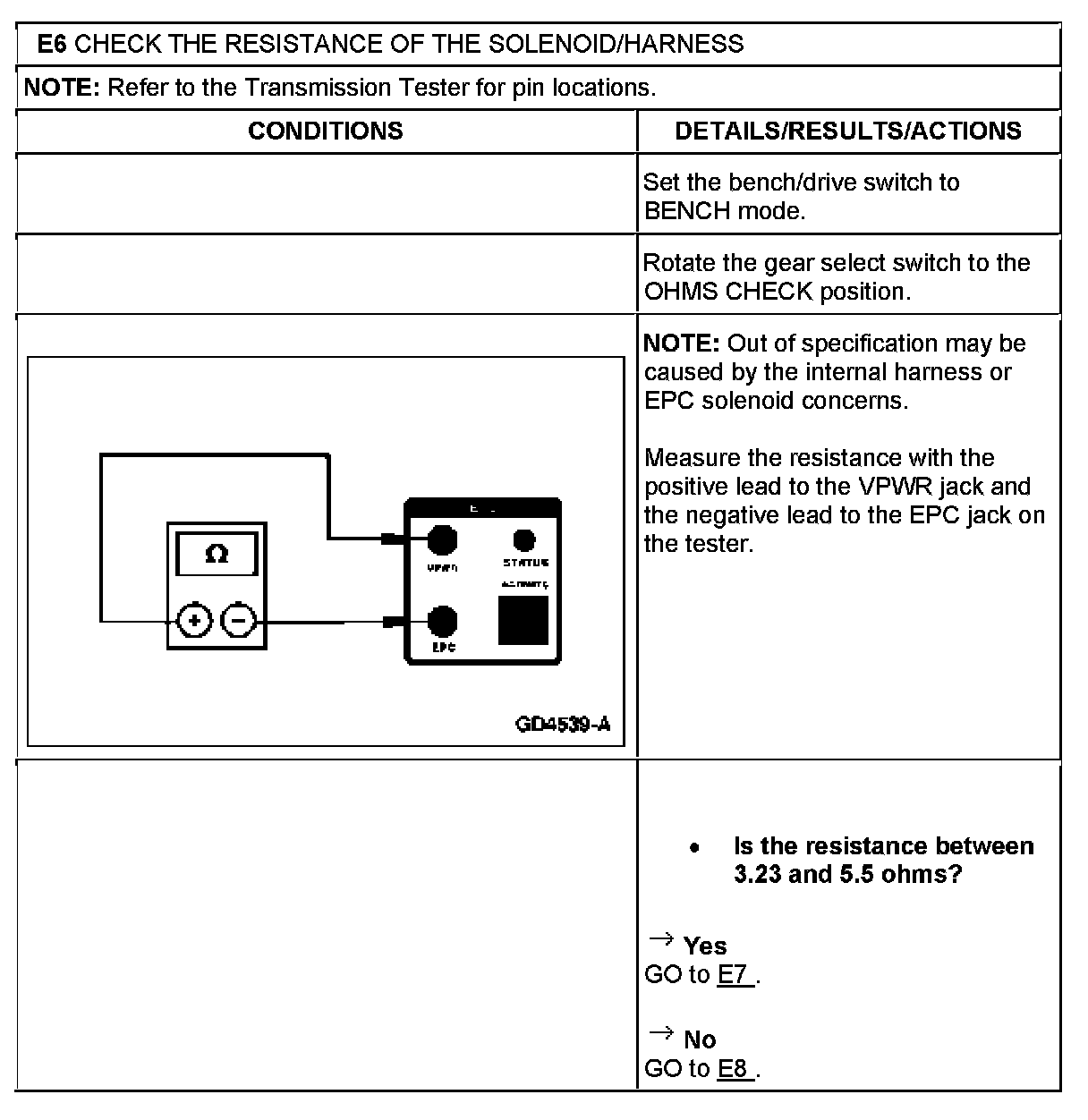

E6:

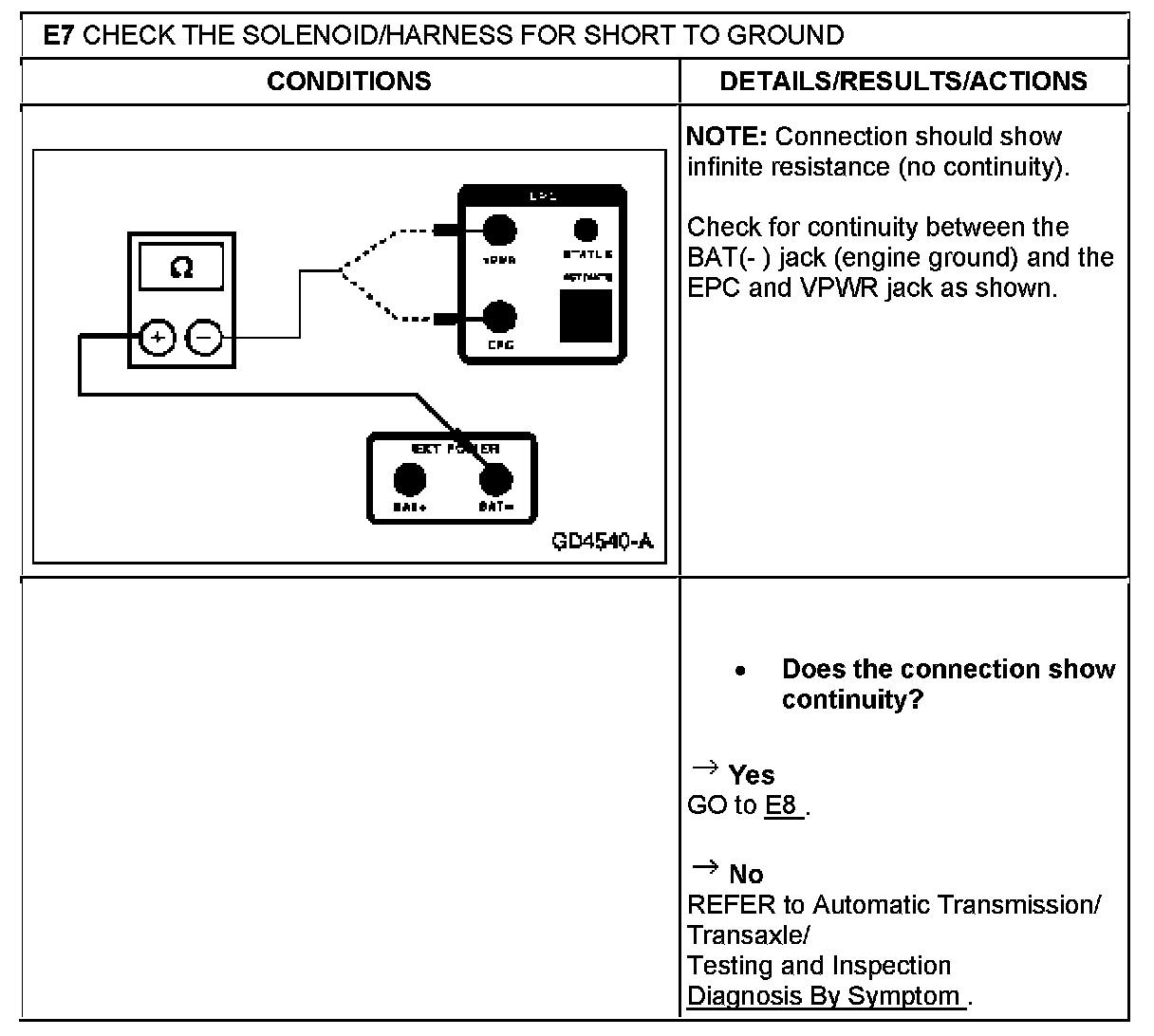

E7:

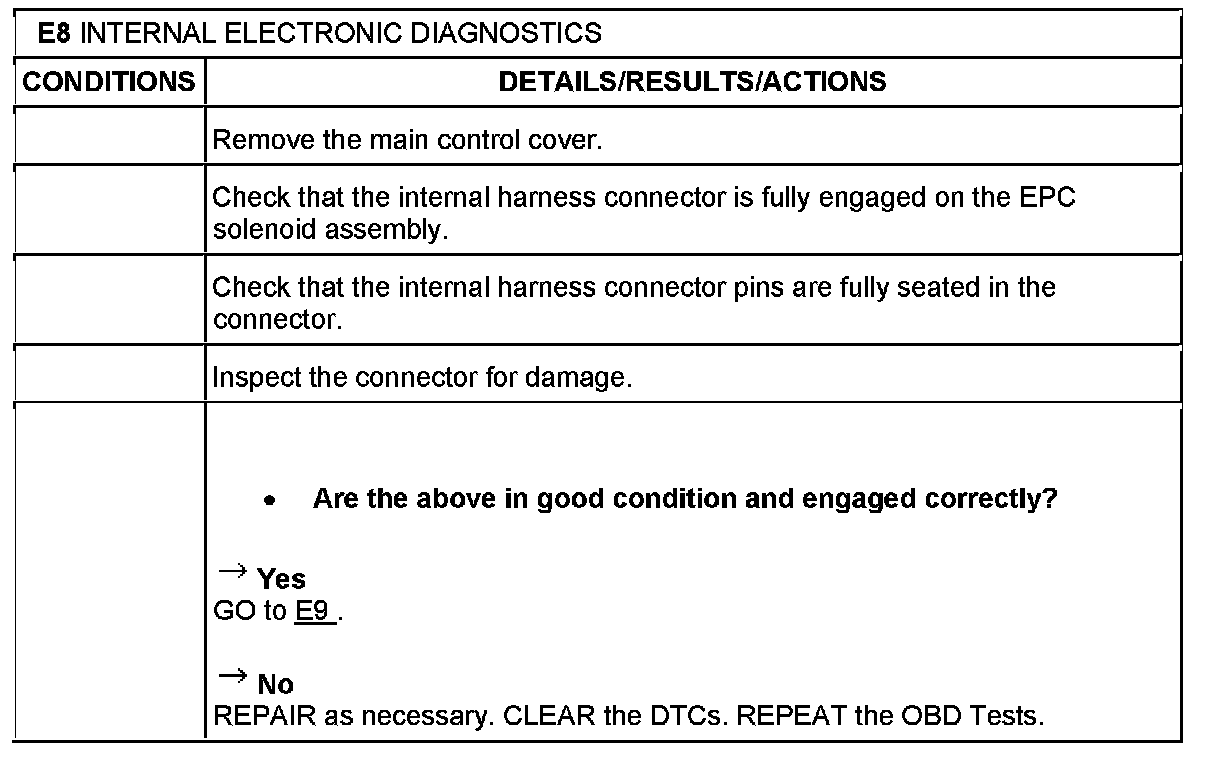

E8:

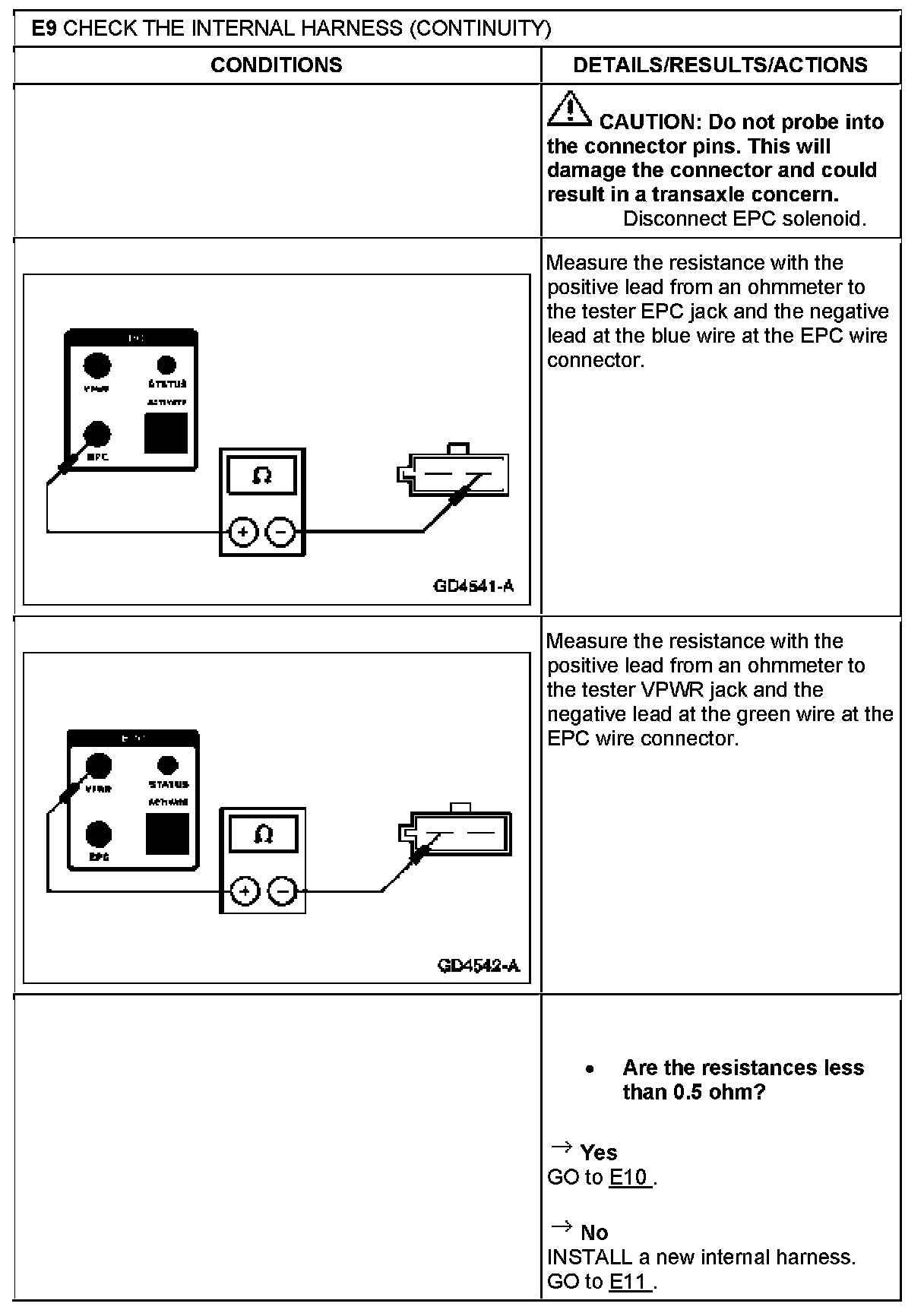

E9:

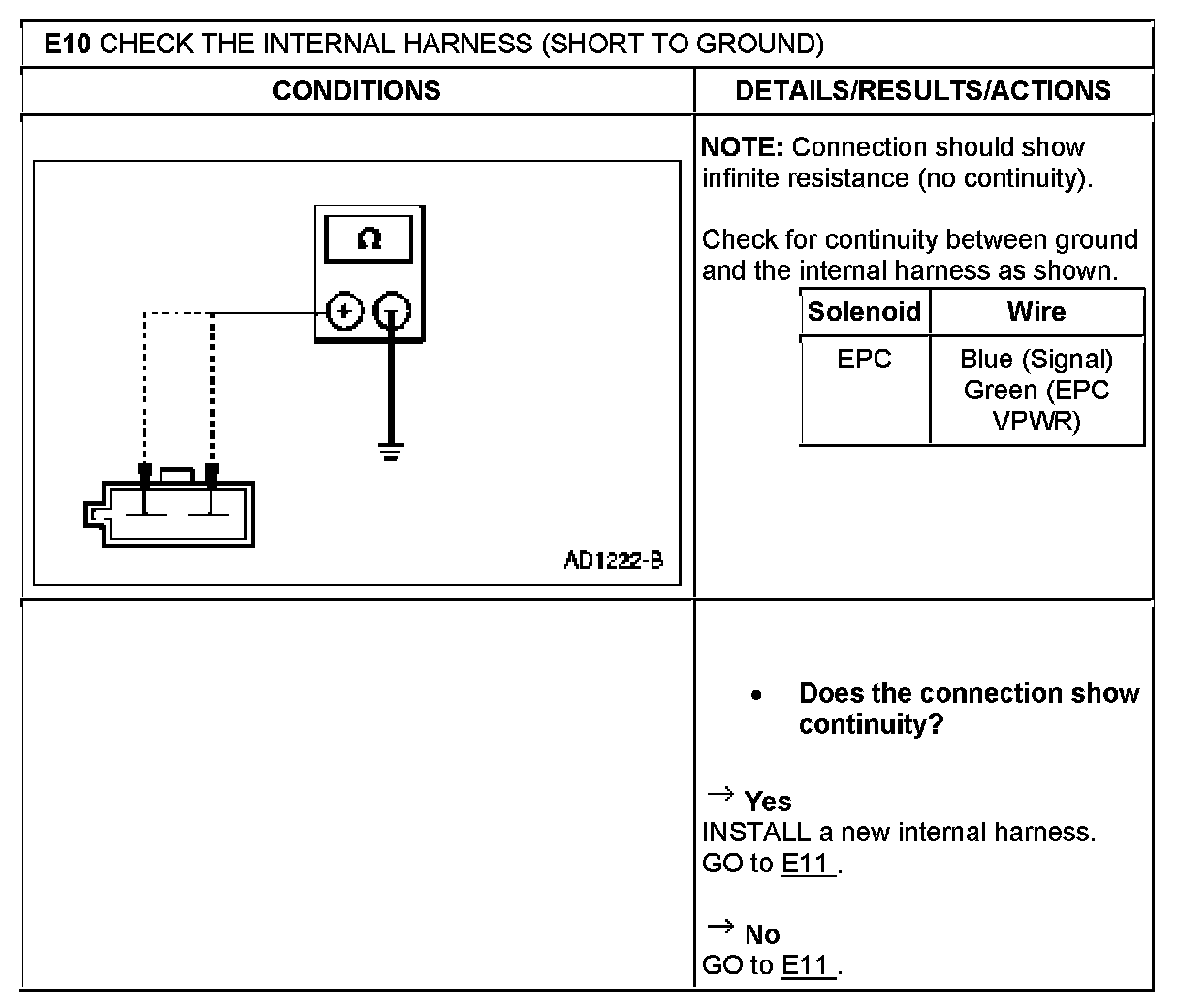

E10:

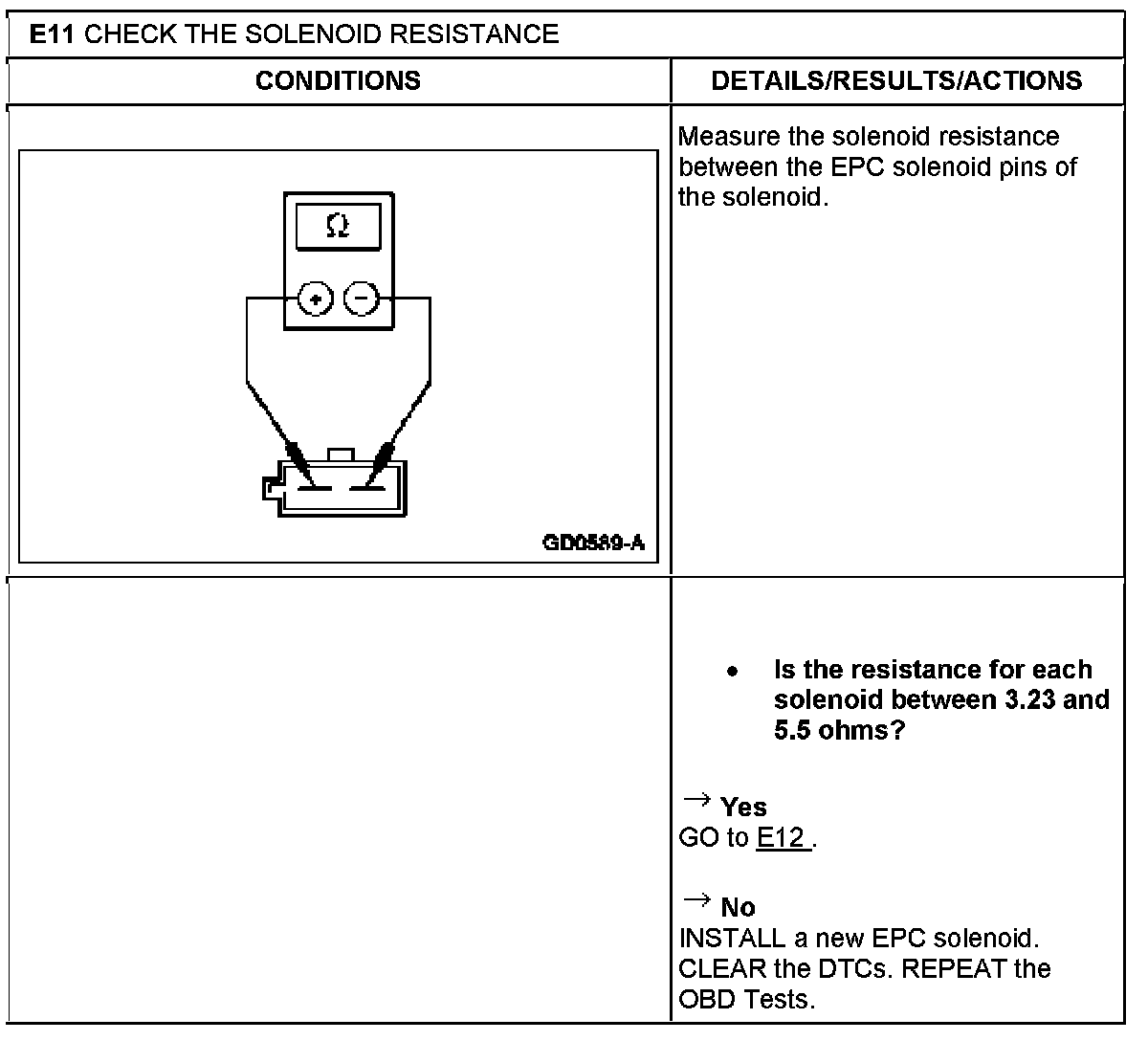

E11:

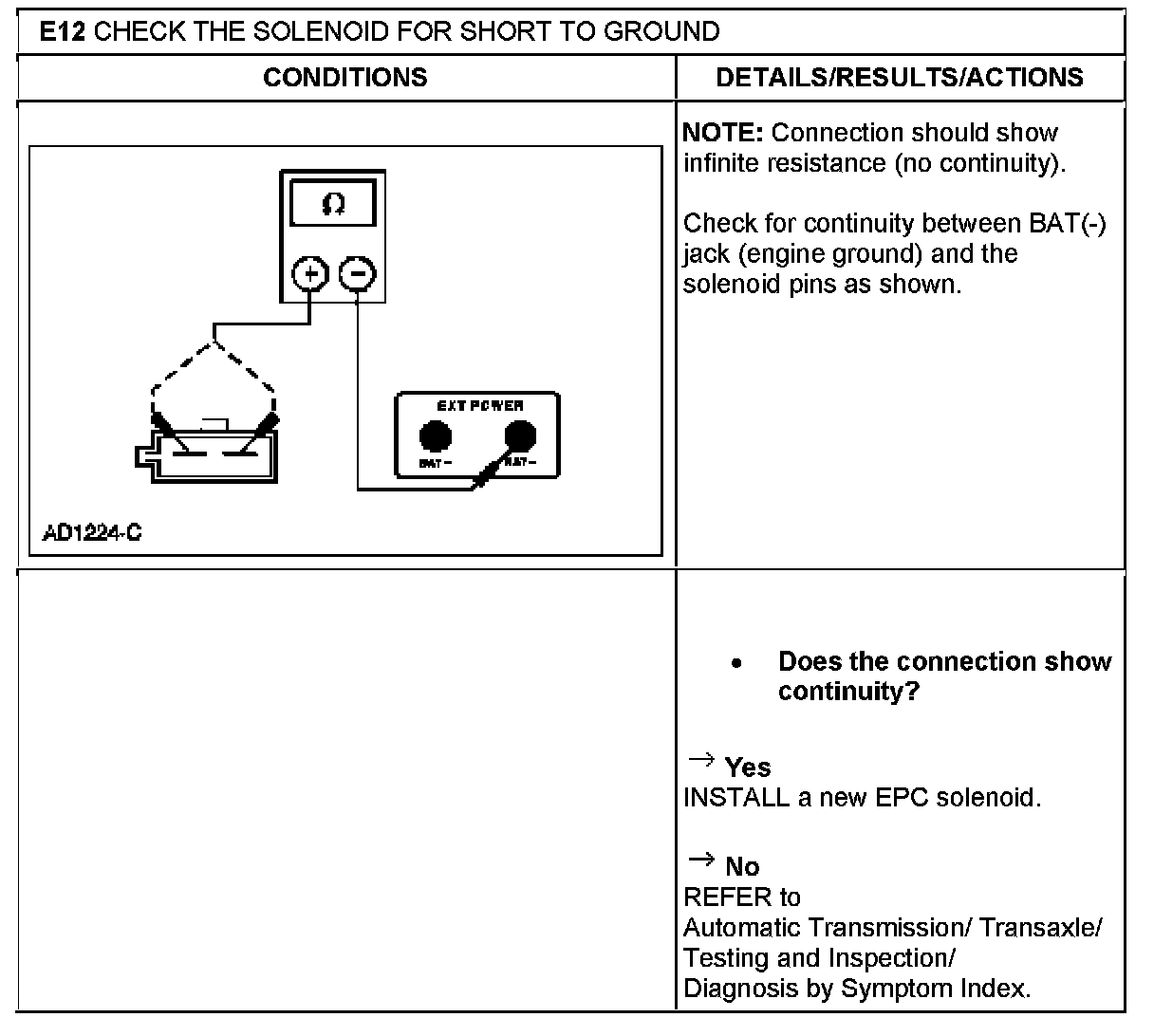

E12:
