Feed Circuit

WARNING: WHEN REPAIRING THE STARTER MOTOR OR WORKING UNDERHOOD IN THE VICINITY OF THE STARTER MOTOR, BE AWARE THAT THE HEAVY GAUGE BATTERY INPUT LEAD AT THE STARTER SOLENOID IS "ELECTRICALLY HOT" AT ALL TIMES.

CAUTION: A protective cap or boot is provided over the battery input terminal on all vehicle lines and must be reinstalled after repairing. Be sure to disconnect the battery ground cable before repairing the starter motor.

Always make the 73 Digital Multimeter connections at the component terminal rather than at the wiring end connector. Making a connection at the wiring end connector could result in false readings because the meter will not pick up a high resistance between the wiring connector and the component.

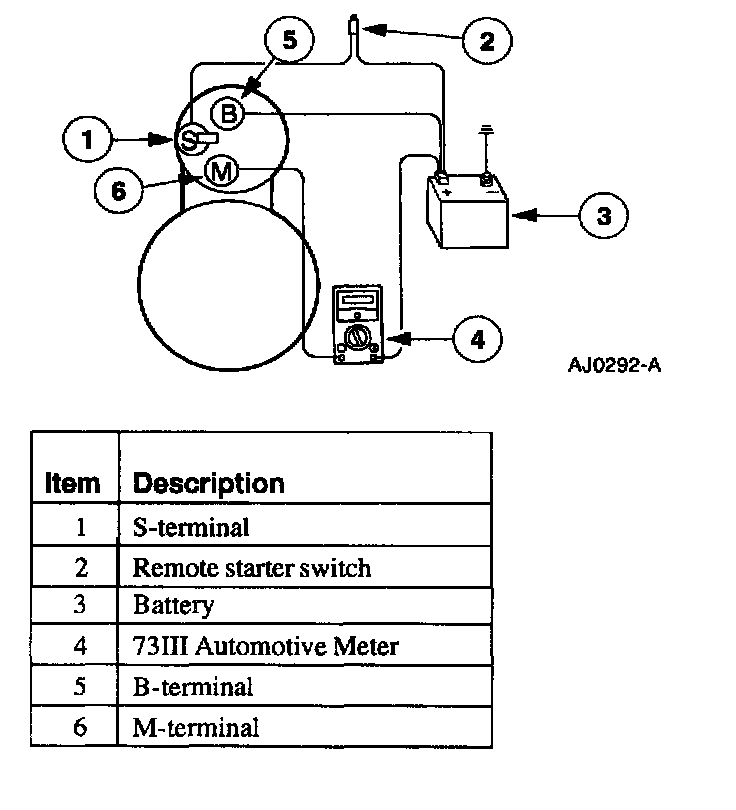

Motor Feed Circuit
1. Make sure the battery is fully charged, carry out a battery load test.
2. Disconnect the inertia fuel shut off switch.
3. Connect a remote starter switch between the starter solenoid S-pin and the battery positive (+) pin.







4. Connect the 73 Digital Multimeter positive lead to the battery positive (+) post. Connect the negative lead to the starter solenoid M-pin.
5. Engage the remote starter switch. Read and record the voltage. The voltage reading should be 0.5 volt or less.
6. If the voltage reading is 0.5 volts or less, go to the Starter Motor-Ground Circuit Component Test.







7. If the voltage reading is greater than 0.5 volt, this is an indication of excessive resistance in the connections, the positive battery cable or in the starter solenoid. Move the 73 Digital Multimeter negative lead to the starter solenoid B-pin and repeat the test. If the voltage reading at the B-pin is lower than 0.5 volts, the concern is either in the connections at the starter solenoid or in the solenoid contacts.
8. Remove the cables from solenoid B-, S- and M-pins. Clean the cables and connections and reinstall the cables to the correct pins. Repeat Steps 3 through 6. If the voltage drop reading is still greater than 0.5 volts when checked at the M-pin or less than 0.5 volts when checked at the B-pin, the concern is in the solenoid contacts. Install a new starter motor.
9. If the voltage reading taken at the solenoid B-pin is still greater than 0.5 volts after cleaning the cables and connections at the solenoid, the concern is either in the positive (+) battery cable connection or in the positive battery cable itself.
10. Clean the positive (+) battery cable connection. If this does not solve the problem, install a new positive battery cable.
