Driver Seat Control Switch

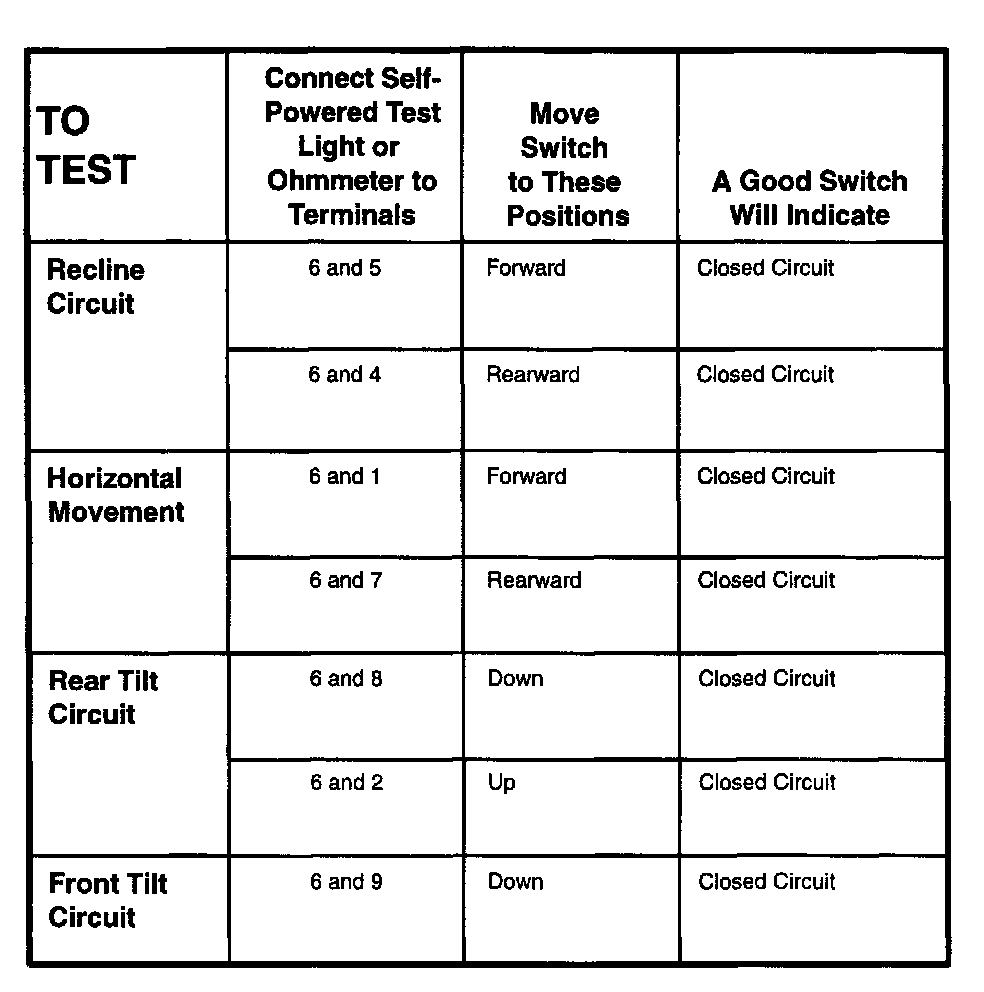

Component Testing Procedure:






Component Testing Procedure:

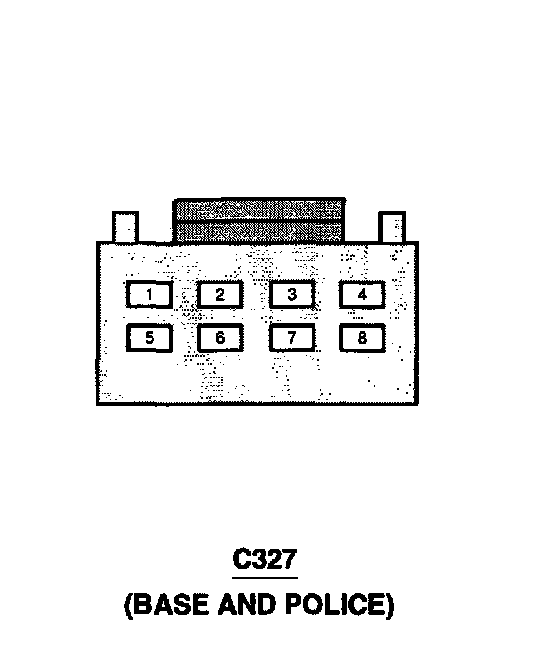

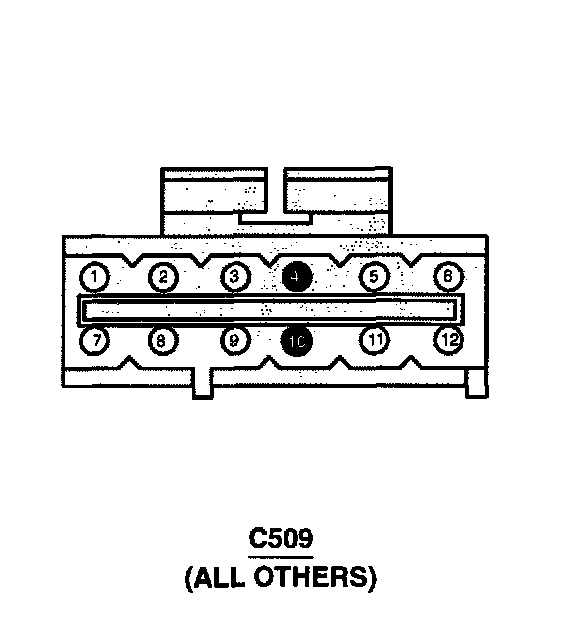

Terminals:






Terminals:

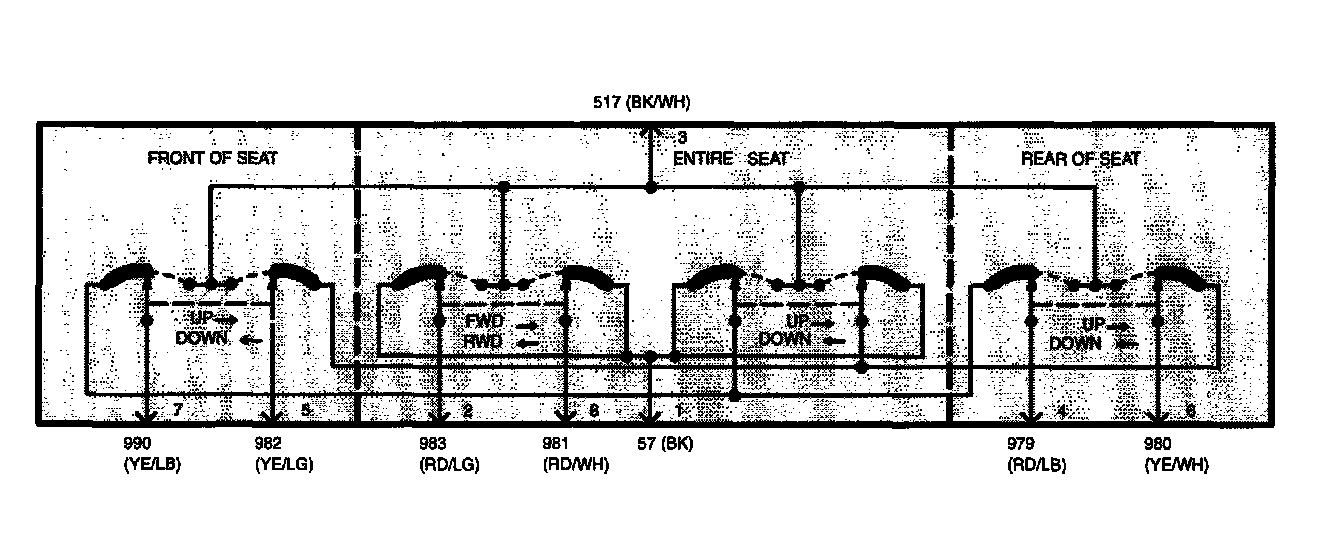

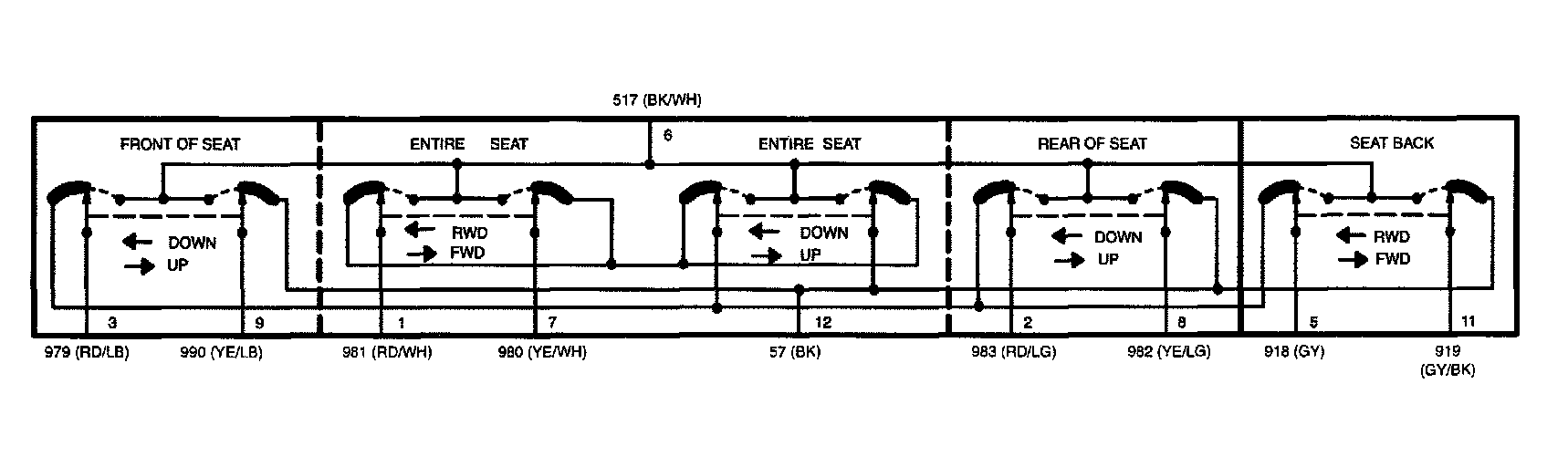

Schematic:






Schematic:
