Body / Frame Mount Bushing: Service and Repair

BODY SUPPORT





































Removal And Installation

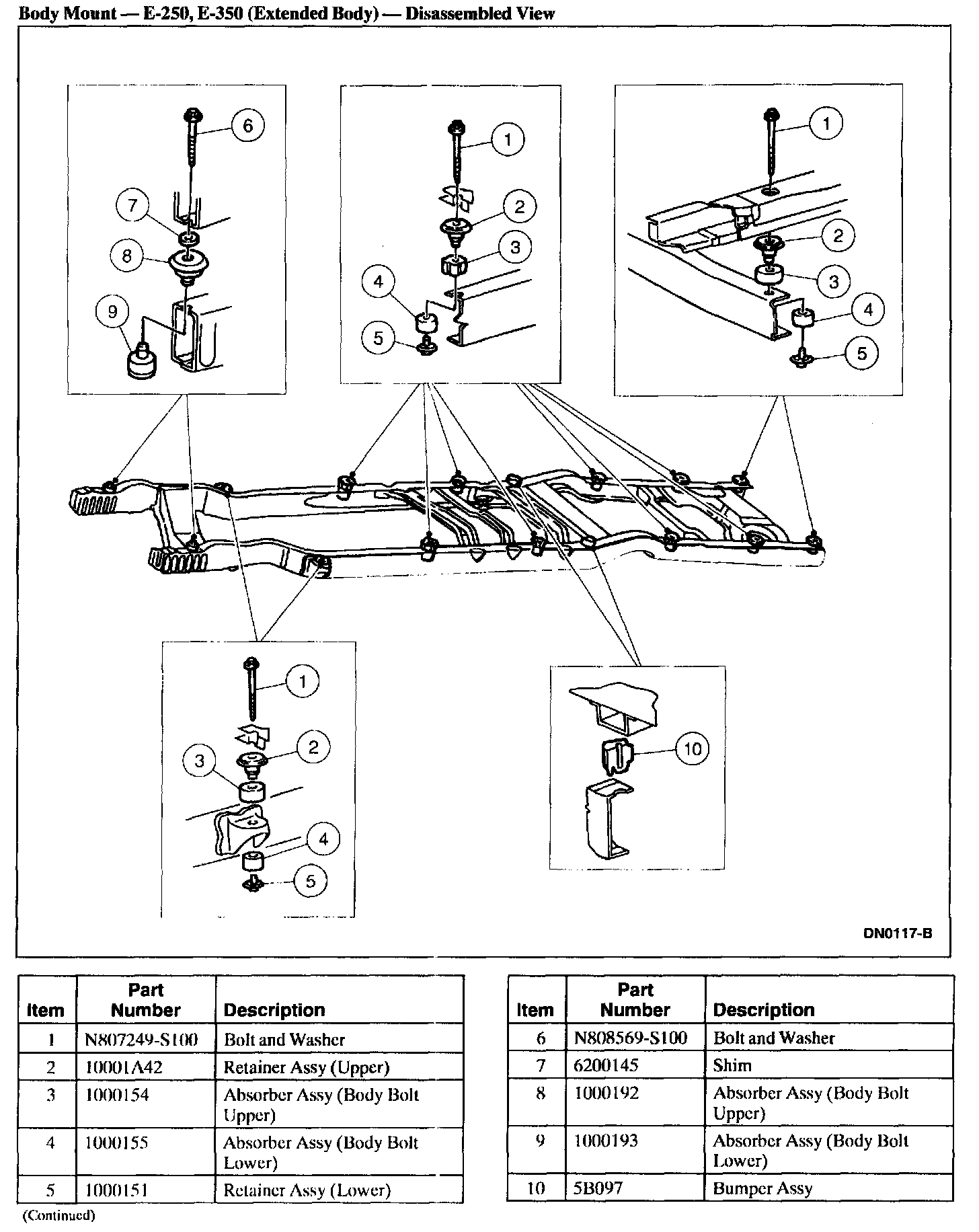

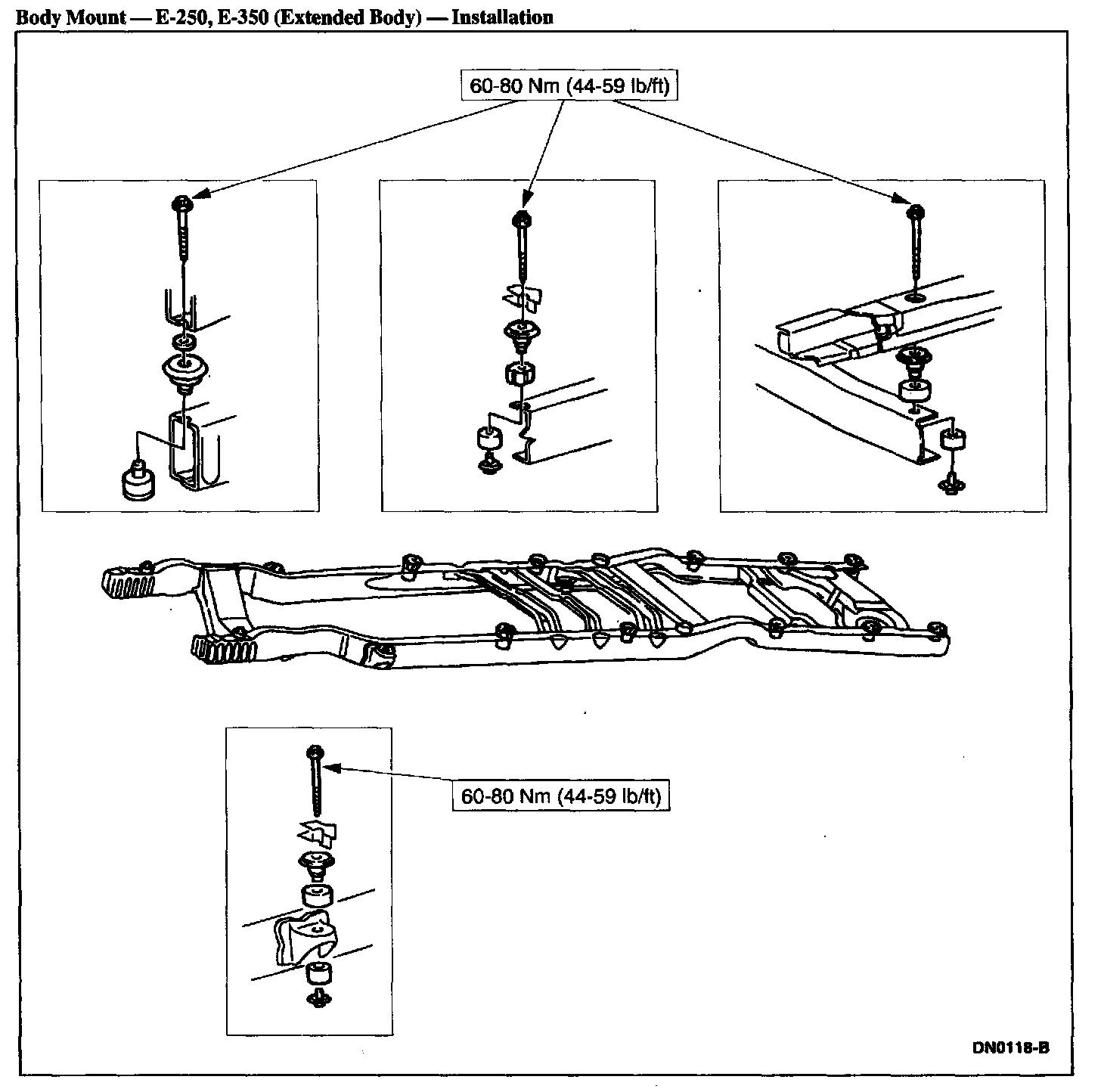

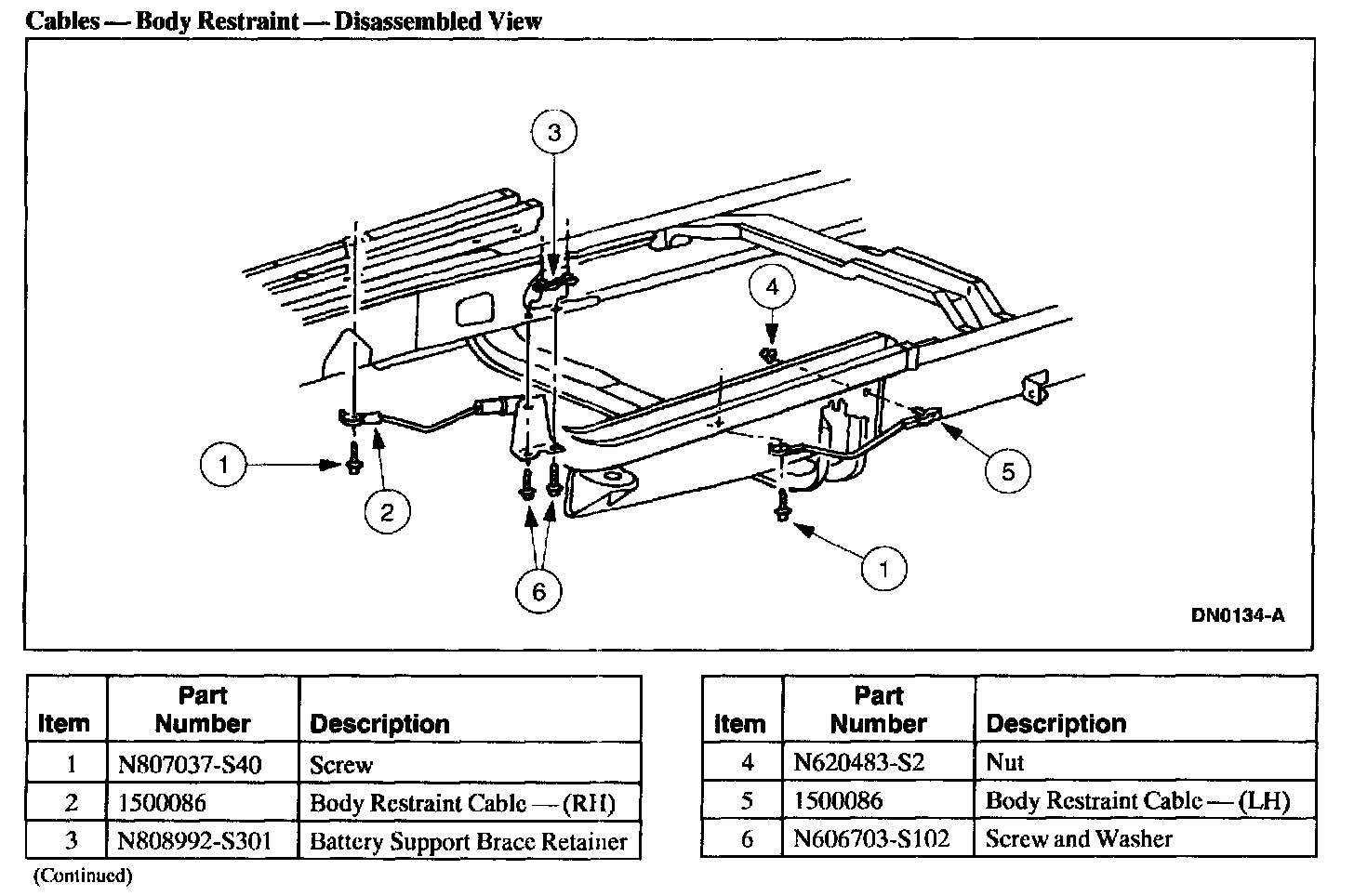

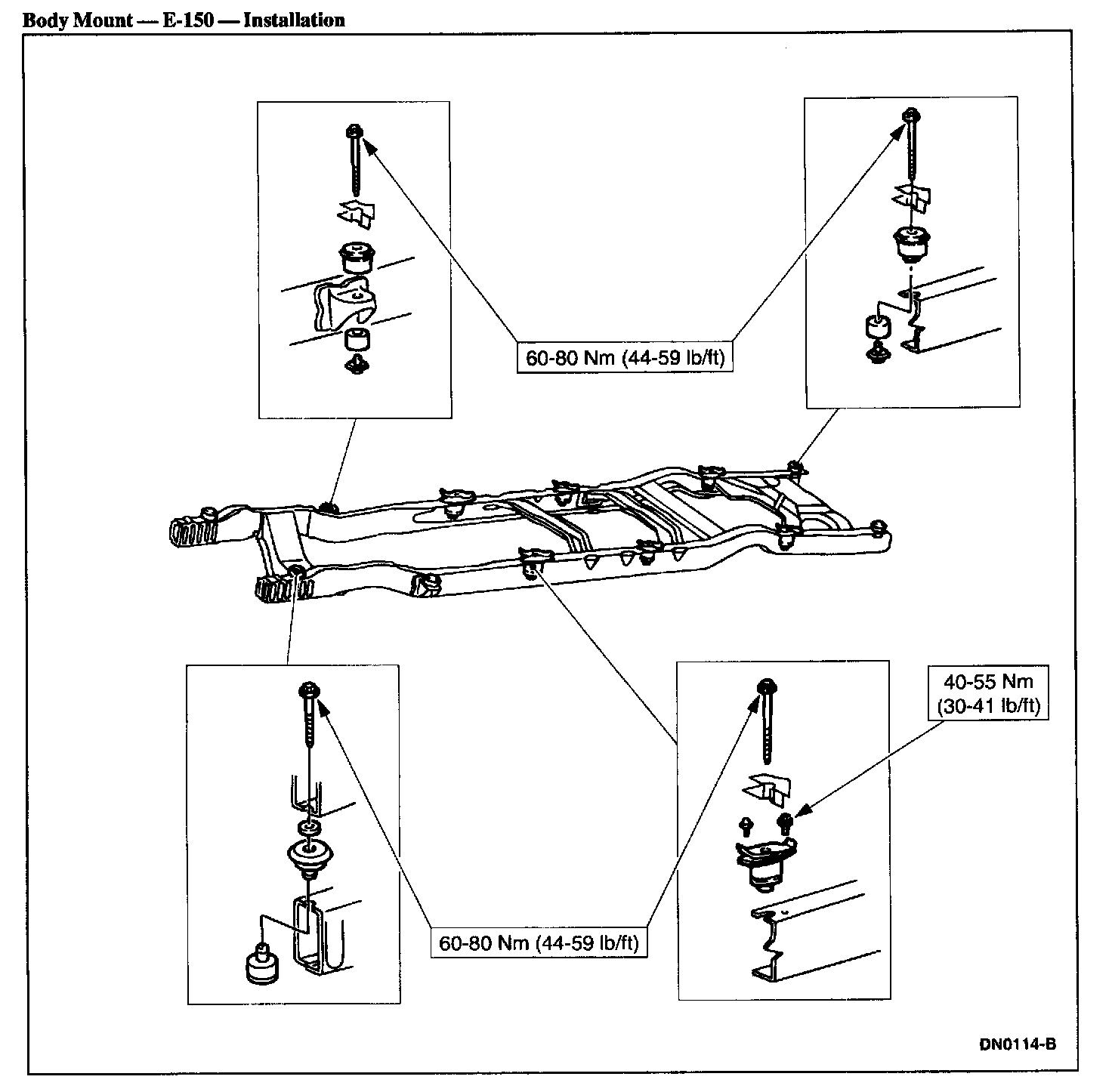

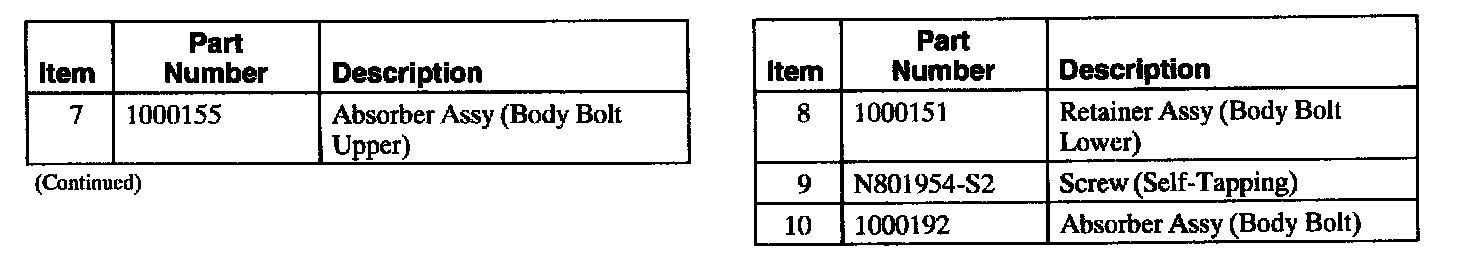

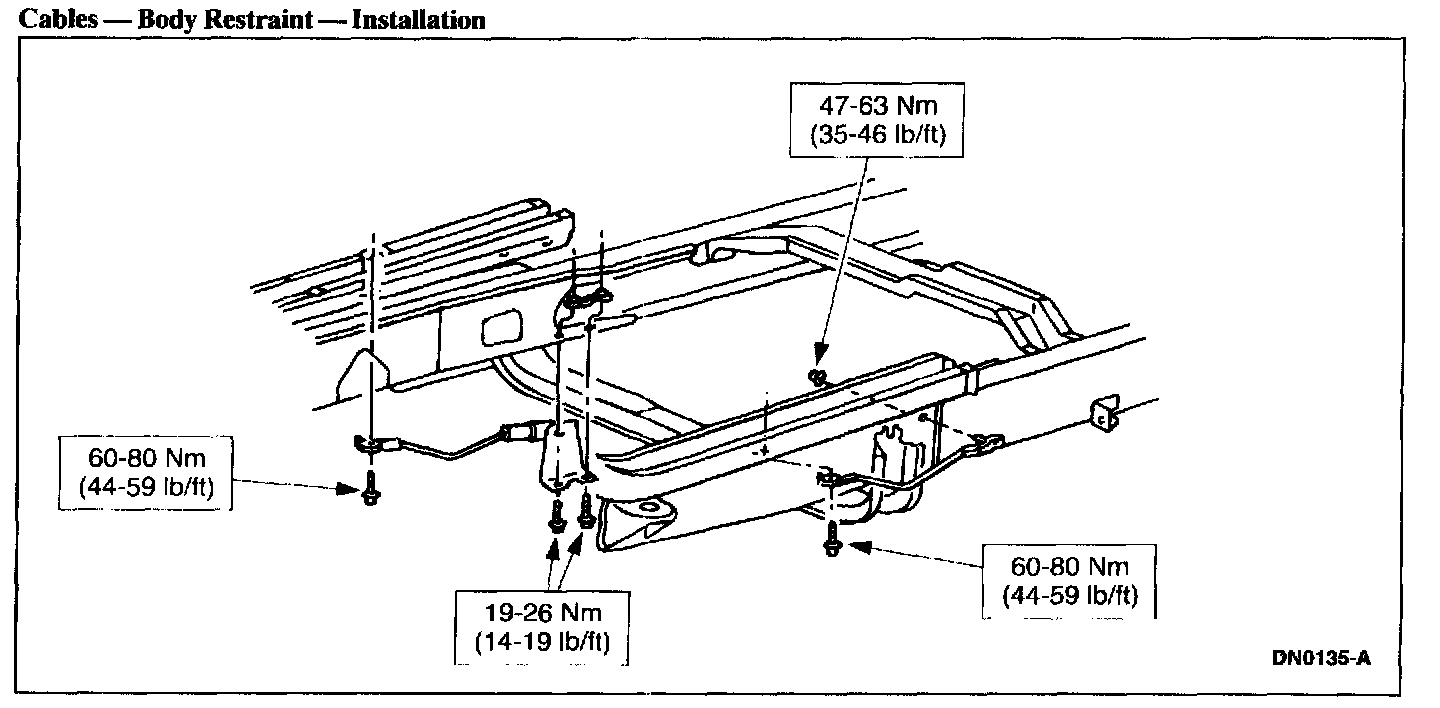

1. Refer to the preceding illustrations.
- For information on E-350 Commercial, E-350 RV Stripped, and E-350 RV Cutaway, refer to the Ford Light and Heavy Truck Body Builder's Layout Book.
