Cruise Control Servo Cable: Service and Repair

REMOVAL
1. Remove the speed control servo; refer to Cruise Control Servo.







2. Remove the speed control actuator cable.

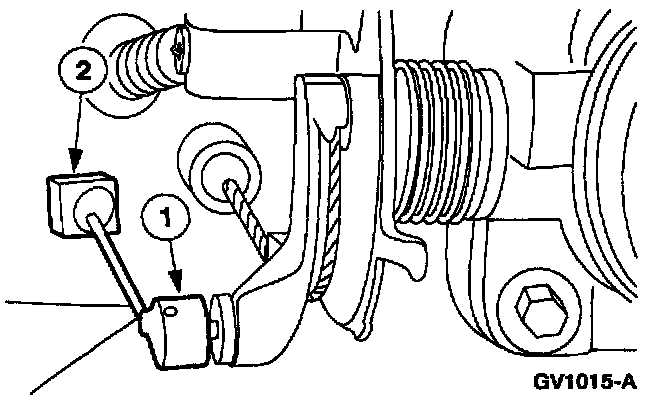

1 Disconnect the speed control actuator cable from the throttle body cam.
2 Squeeze the retaining tabs and remove the speed control actuator cable.

INSTALLATION

1. To install, reverse the removal procedure.

NOTE: If equipped, it is necessary to adjust the speed control actuator cable after installation is complete; refer to Cable Adjustment. Adjustments
