Cruise Control Servo: Service and Repair

1. Disconnect the battery ground cable; refer to Battery.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

2. Remove the engine air cleaner. For additional information, refer to Fuel Delivery and Air Induction.
3. Remove the air cleaner outlet tube.

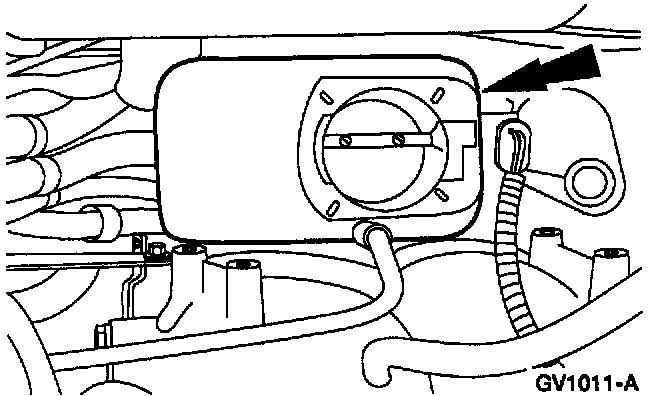

4. Remove the accelerator control splash shield.

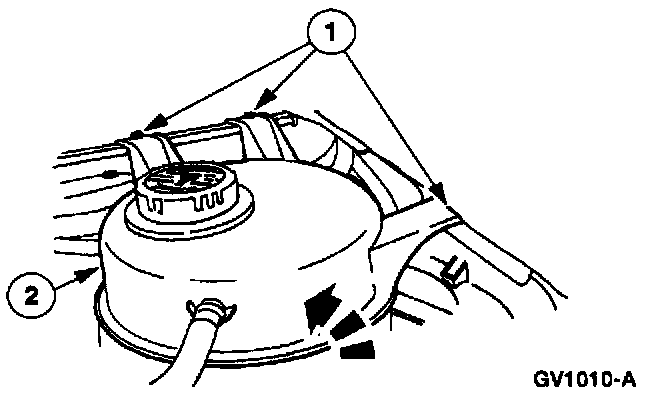

5. Position the radiator coolant recovery reservoir aside.
1 Remove the bolts.
2 Position the radiator coolant recovery reservoir aside.

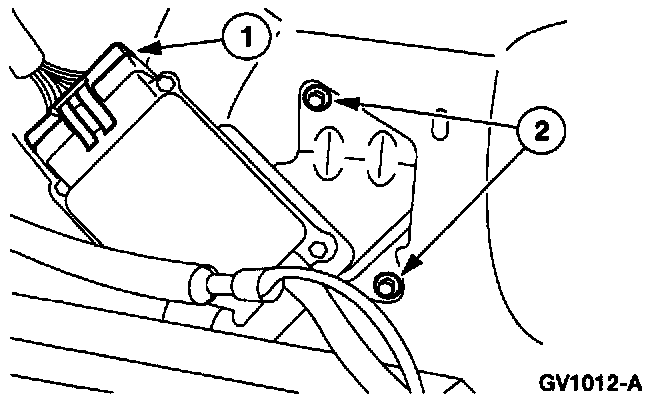

6. Detach the speed control servo from the inner fender well.
1 Disconnect the speed control servo electrical connector.
2 Remove the bolts to detach the speed control servo.

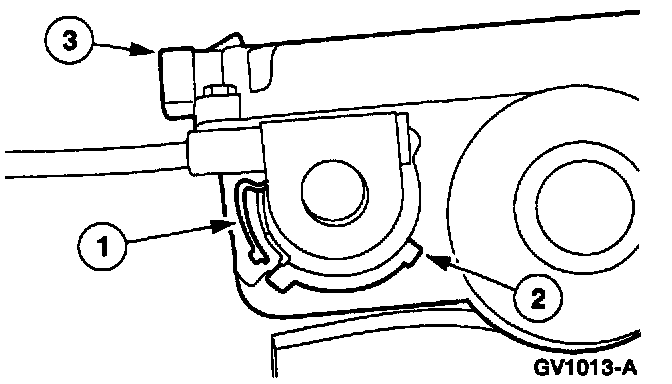

7. Remove the speed control servo.
1 Press the locking tab in.
2 Rotate the speed control actuator cable cap and disconnect the speed control actuator cable.
3 Remove the speed control servo.

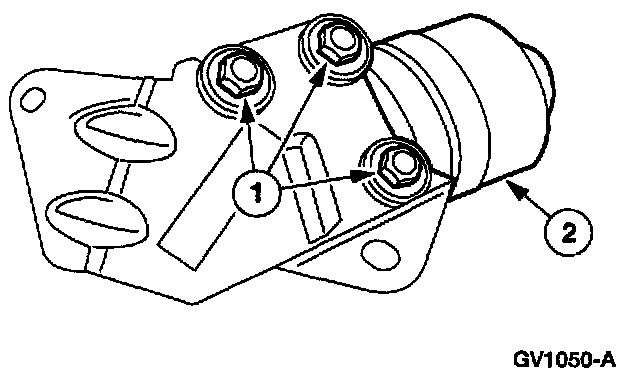

8. Detach the speed control servo from the bracket.
1 Remove the bolts.
2 Detach the speed control servo from the bracket.

INSTALLATION

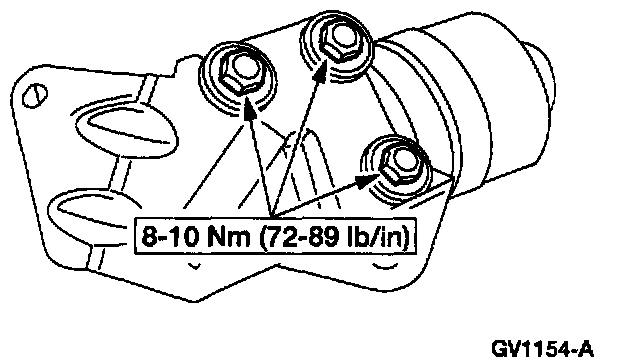

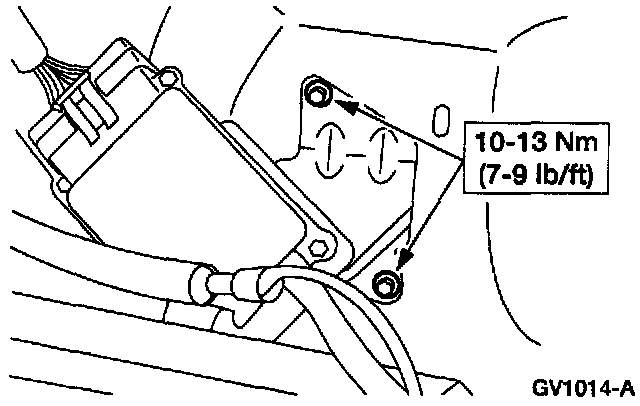

1. To install, reverse the removal procedure.

NOTE:
^ When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.
^ If equipped, it is necessary to adjust the speed control actuator cable after the speed control servo is installed; refer to Cable Adjustment. Adjustments
