Drive Belt: Service and Repair

Accessory Drive

Removal

1. Rotate the drive belt tensioner clockwise and remove the drive belt.


Installation


1. To install, reverse the removal procedure.

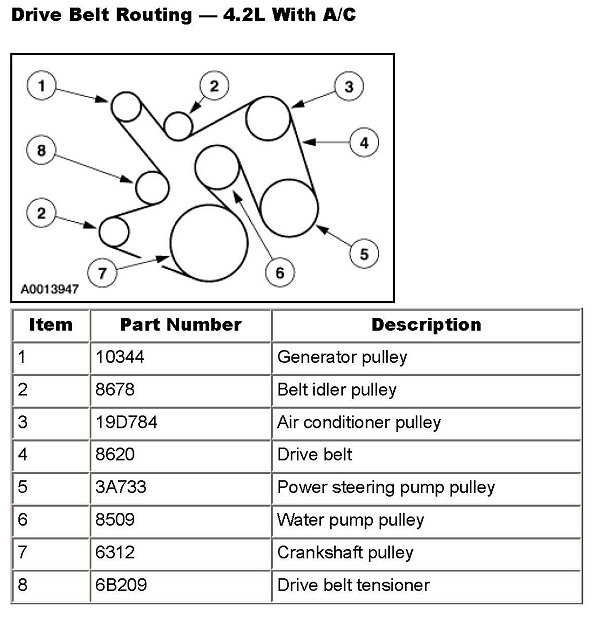

4.2L With A/C:

4.2L Without A/C:

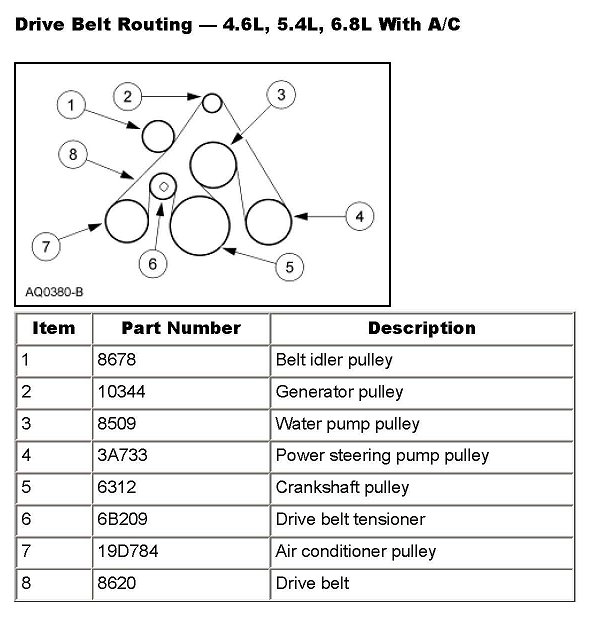

4.6L, 5.4L, 6.8L With A/C:

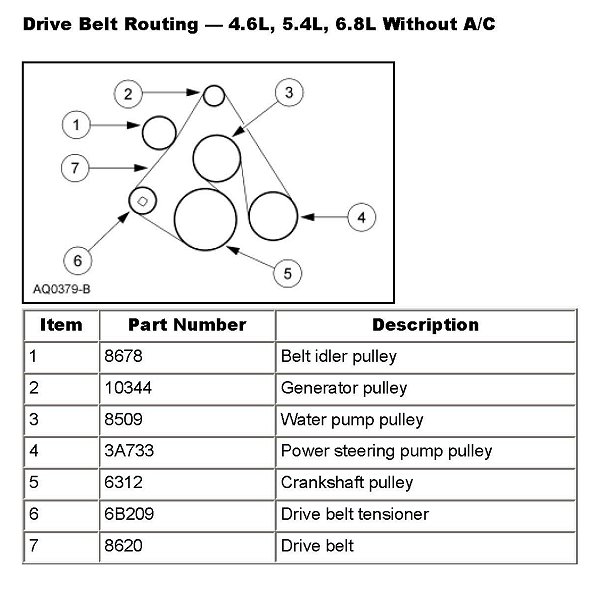

4.6L, 5.4L, 6.8L Without A/C:

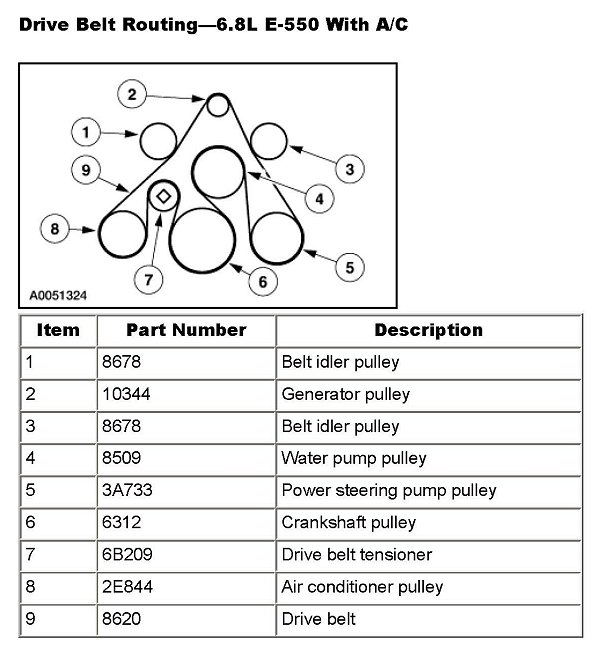

6.8L E-550 With A/C:

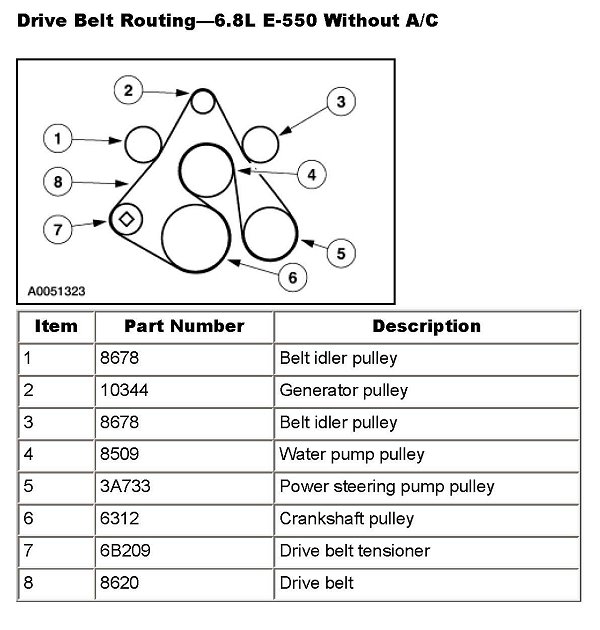

6.8L E-550 Without A/C:

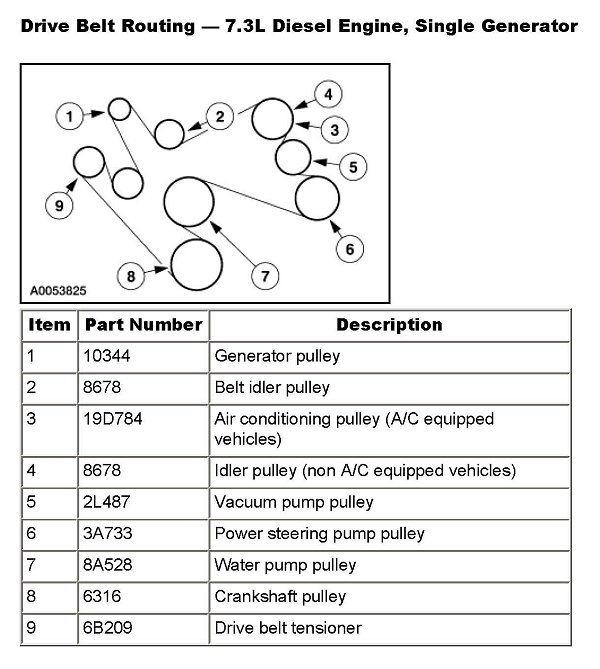

7.3L Diesel Engine-Single Generator:

7.3 Diesel Engine-Dual Generator:
