Home >> Ford >> 2000 >> Excursion 2WD V8-7.3L DSL Turbo VIN F >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Testing and Inspection >> Pinpoint Tests >> Test A: Loss of Coolant

Test A: Loss of Coolant

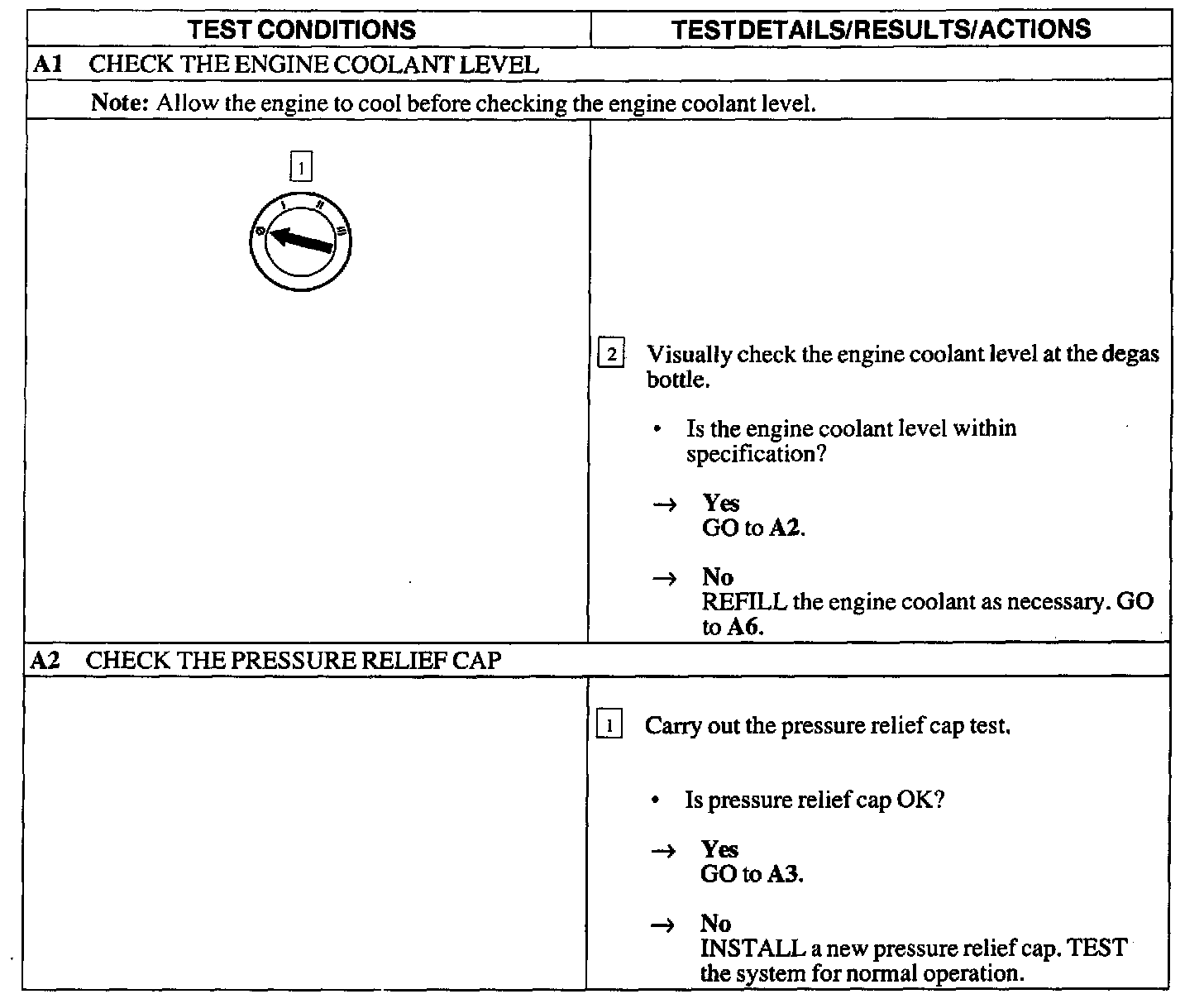

A1-A2

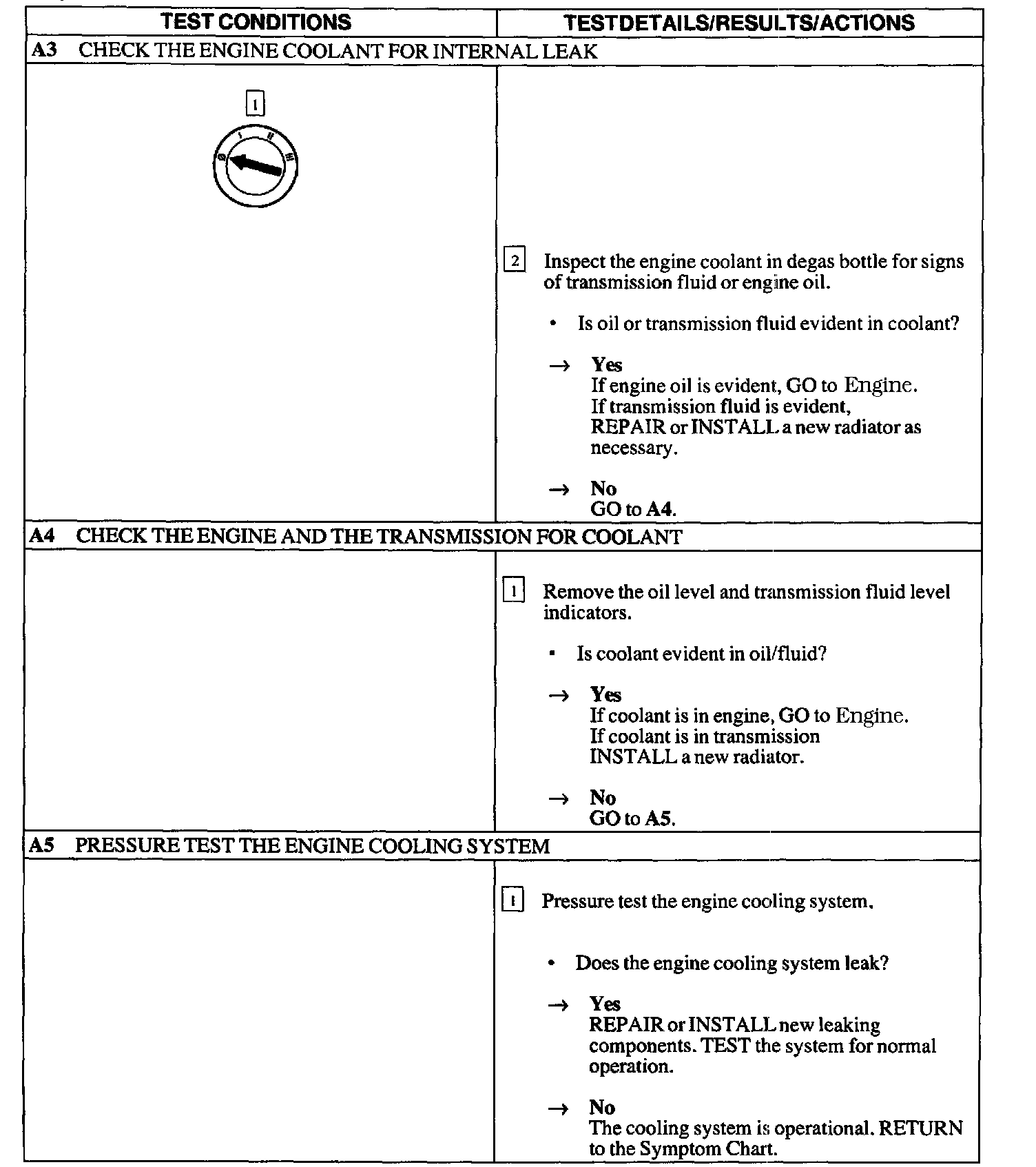

A3-A5

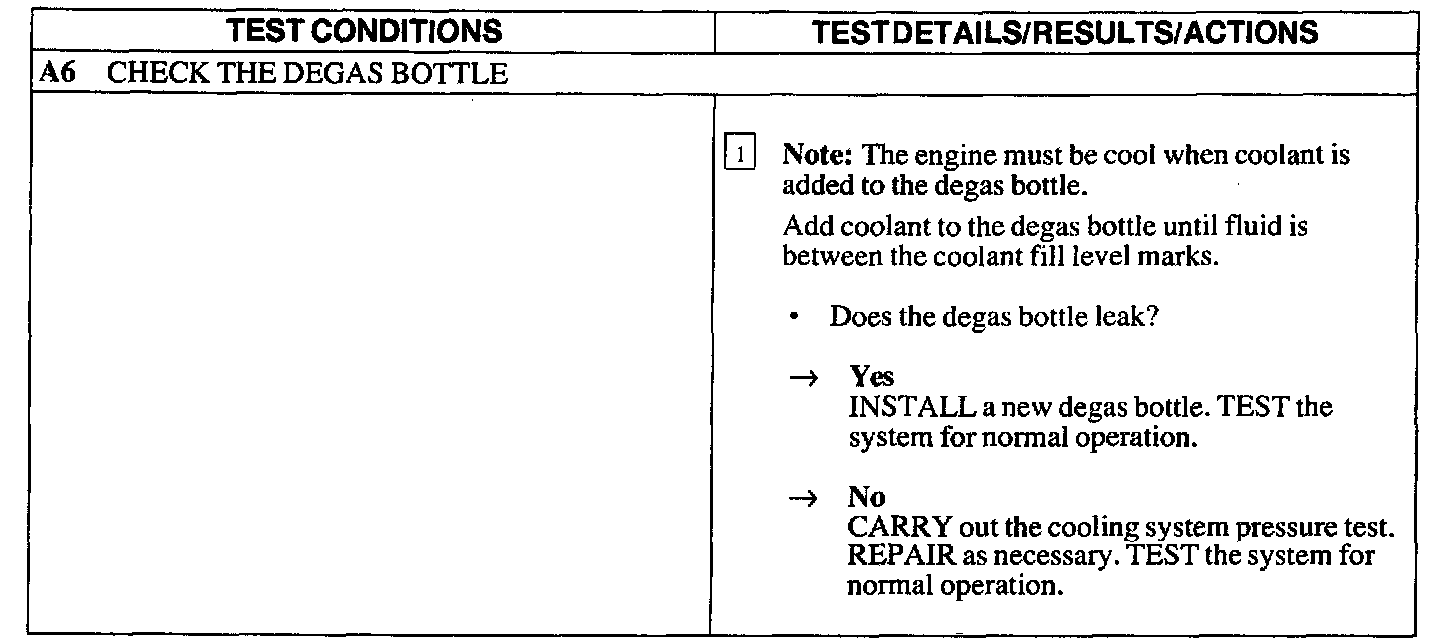

A6
