Compressor Clutch Coil: Service and Repair

Clutch and Clutch Field Coil - 7.3L

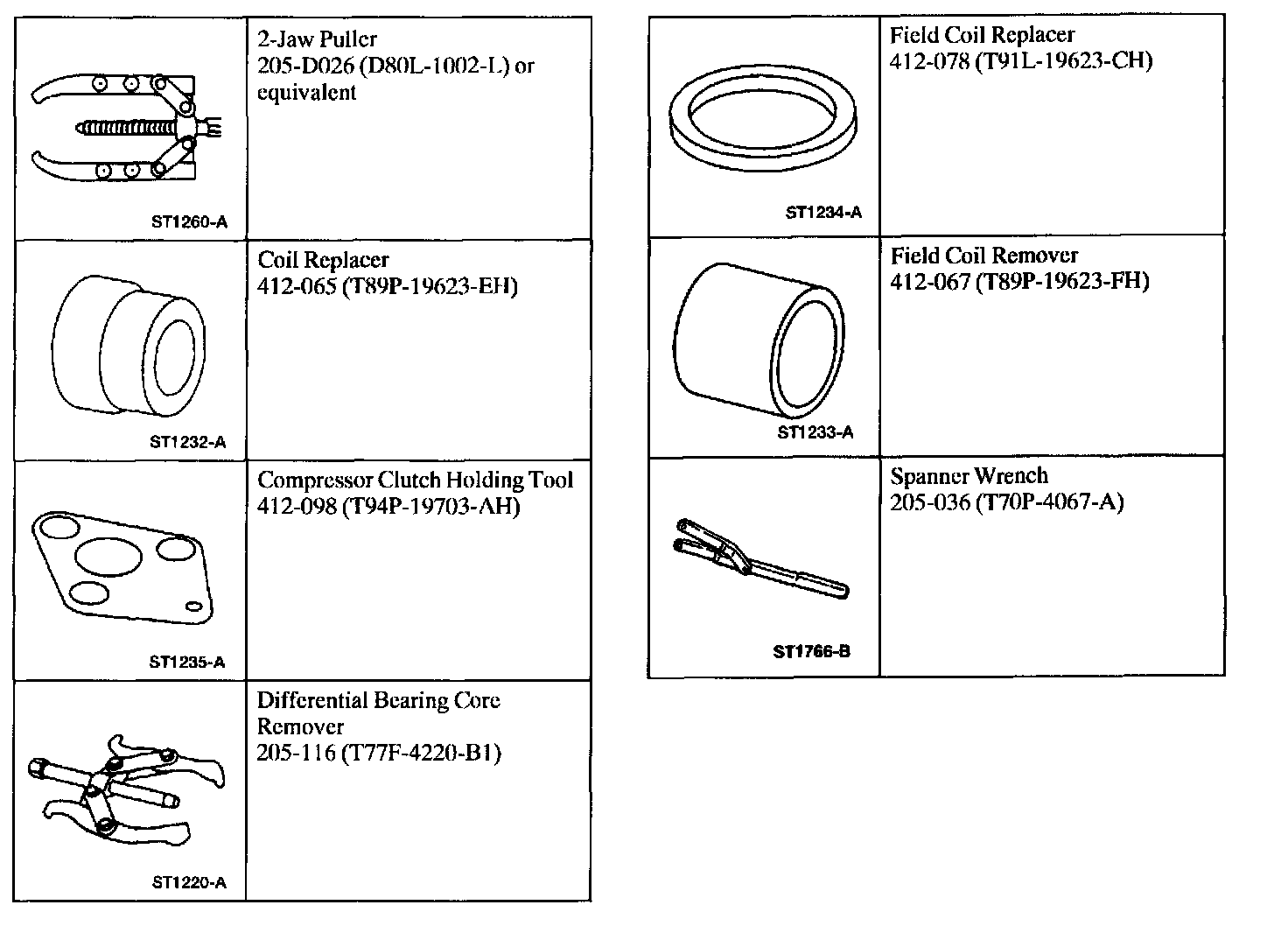

SPECIAL SERVICE TOOL(S)

REMOVAL
1. Remove the A/C compressor; refer to Air Conditioning Compressor.

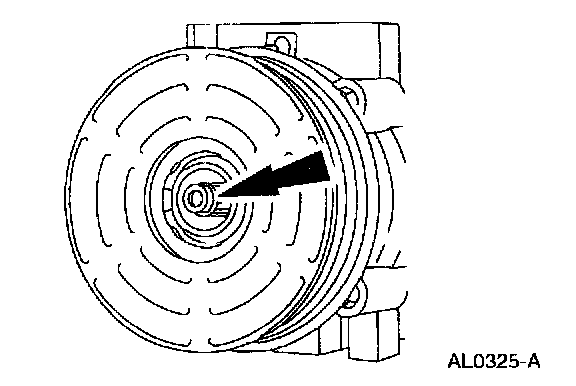

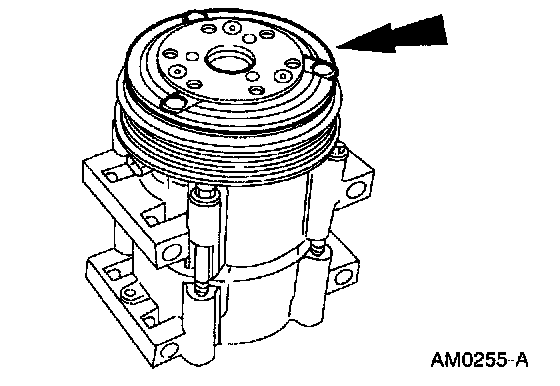

2. Remove the A/C clutch hub retaining bolt.

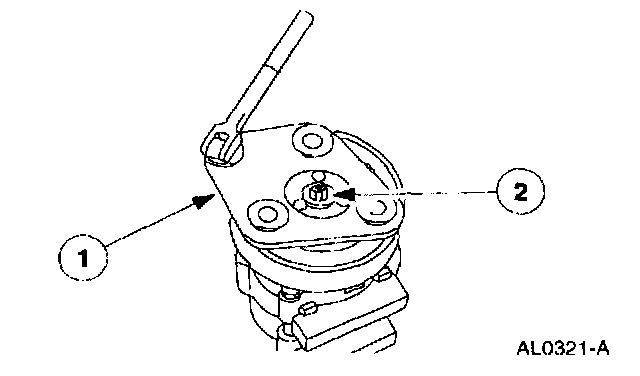

1 Hold the A/C clutch hub with the Compressor Clutch Holding Tool.
2 Remove the bolt.

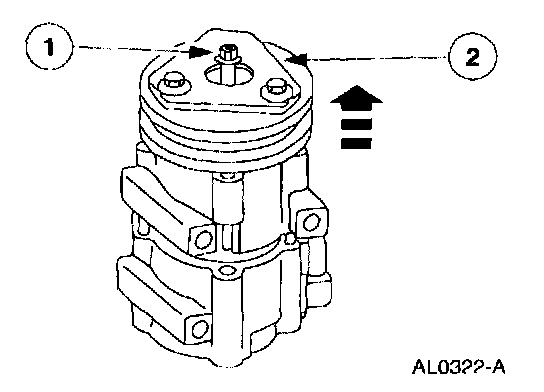

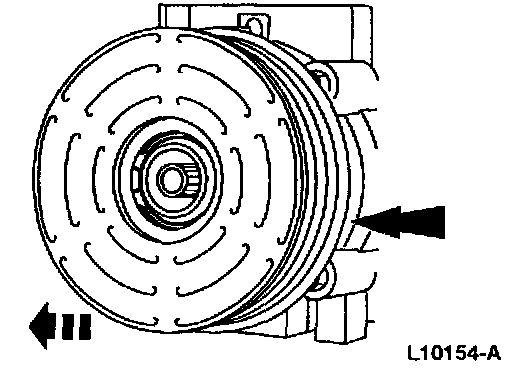

3. Remove the A/C clutch and the A/C clutch hub spacer.
1 Thread an 8 x 1.25 mm bolt into the A/C clutch hub spacer to force it from the compressor shaft.
2 Lift the A/C clutch and the A/C clutch hub spacer from the compressor shaft.

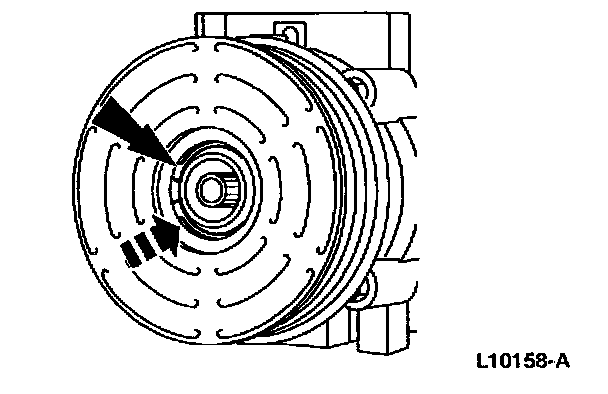

4. Remove the pulley snap ring.






5. Remove the A/C clutch pulley.






6. Remove the A/C clutch field coil.
1 Note the location of the A/C clutch field coil electrical connector.

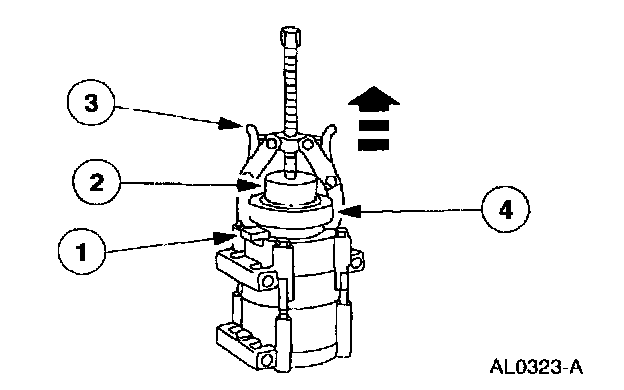

2 Install the Field Coil Remover on the nose opening of the A/C compressor.
3 Install the Differential Bearing Core Remover.
4 Remove the A/C clutch field coil.

CAUTION: Do not use air tools. The A/C clutch field coil can be easily damaged.

INSTALLATION
1. Clean the A/C clutch field coil and the pulley bearing mounting surfaces.






2. Install the A/C clutch field coil.
1 Place the A/C clutch field coil on the A/C compressor with the A/C clutch field coil electrical connector properly positioned.

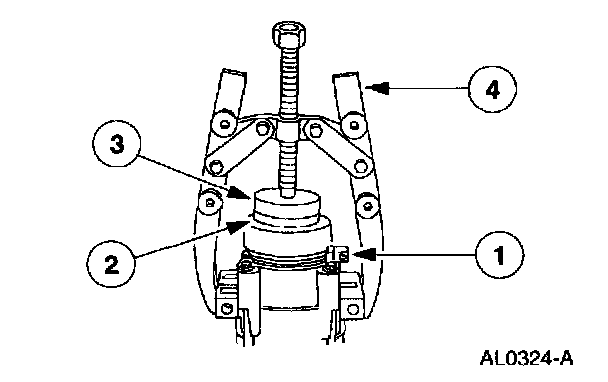

2 Place the Field Coil Replacer on the A/C clutch field coil.
3 Place the Coil Replacer on the field Coil Replacer.
4 Use the 2-Jaw Puller to install the A/C clutch field coil until bottomed completely against the A/C compressor.

CAUTION: Do not use air tools. The A/C clutch field coil can be easily damaged.






3. Install the A/C clutch pulley.

NOTE: The A/C clutch pulley is a tight fit on the A/C compressor head; it must be properly aligned during installation.






4. Install the pulley snap ring with the bevel side out.






5. Place one nominal thickness A/C clutch hub spacer inside the clutch hub spline opening.






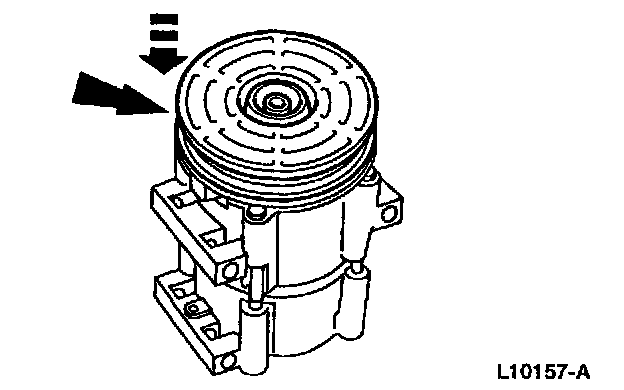

6. Install the A/C clutch.

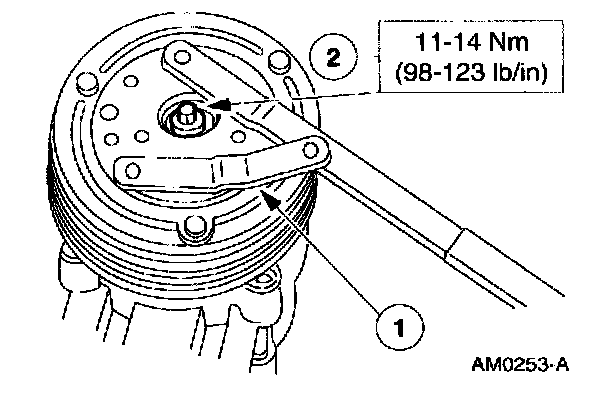

7. Install the A/C clutch hub retaining bolt.
1 Hold the A/C clutch hub with the Spanner Wrench.
2 Tighten the bolt.

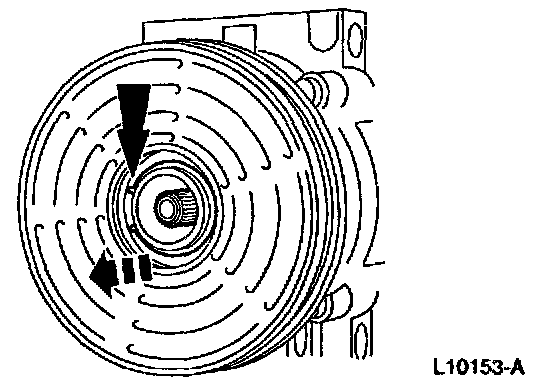

Compressor Clutch Components:

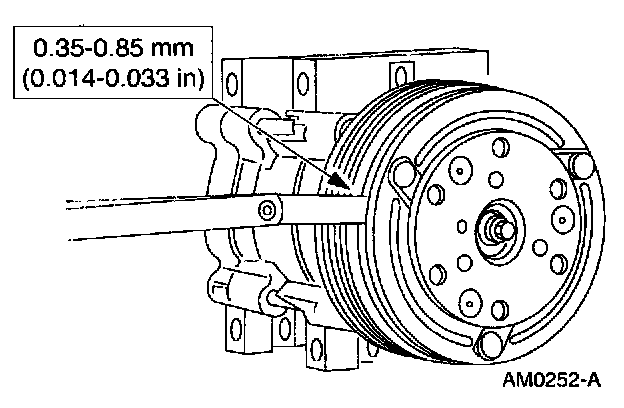

8. Measure and adjust the clutch air gap by removing or adding the A/C clutch hub spacer.
