Ground Diagrams (By Component Name)

Diagram 10-1:

Battery Junction Box
Engine Compartment Lamp
Front Washer Pump Relay
Powertrain Control Module
Real Wiper Relay
Rear Washer Pump Relay
Trailer Running Lamp Relay
Vent Window Relay
Windshield Wiper Motor

Diagram 10-2:

A/C Clutch Diode
Brake Fluid Level Switch
Battery Junction Box
Diesel Fuel Pump Motor
Fuel Tank Assembly
High To Low Relay
Left Front Park/turn Lamp
Left Front Side Lamp
Left Headlamp
Low To High Relay
PCM Power Relay
Transfer Case Shift Relay

Diagram 10-3:

Anti-Lock Brake System Module
Instrument Cluster
Trailer Battery Charge Relay
Trailer Reversing Lamps Relay
Trailer Tow Relay Block

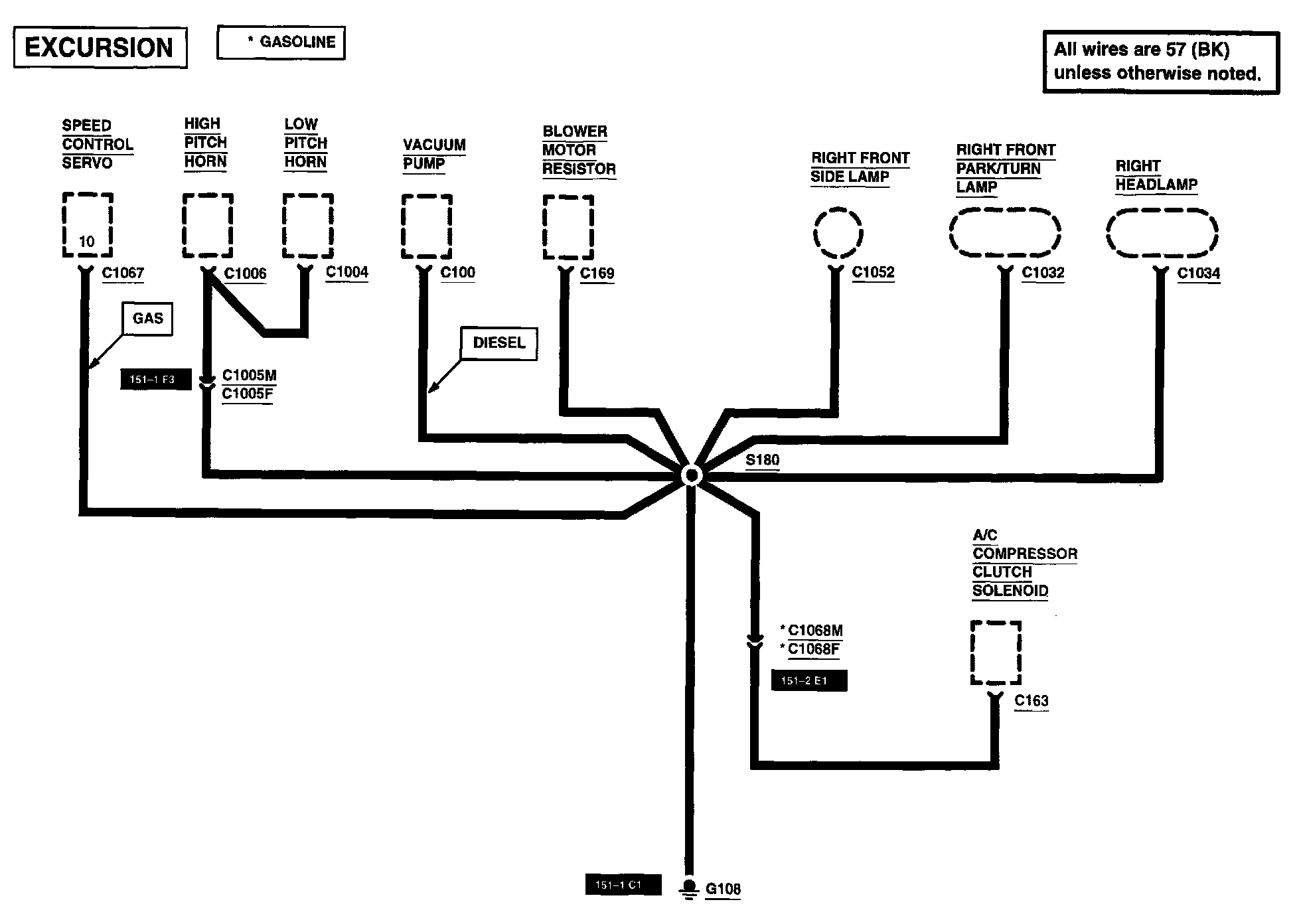

Diagram 10-4:

A/C Compressor Clutch Solenoid
Blower Motor Resistor
High Pitch Horn
Low Pitch Horn
Right Front Side Lamp
Right Front Part/turn Lamp
Right Headlamp
Speed Control Servo
Vacuum Pump

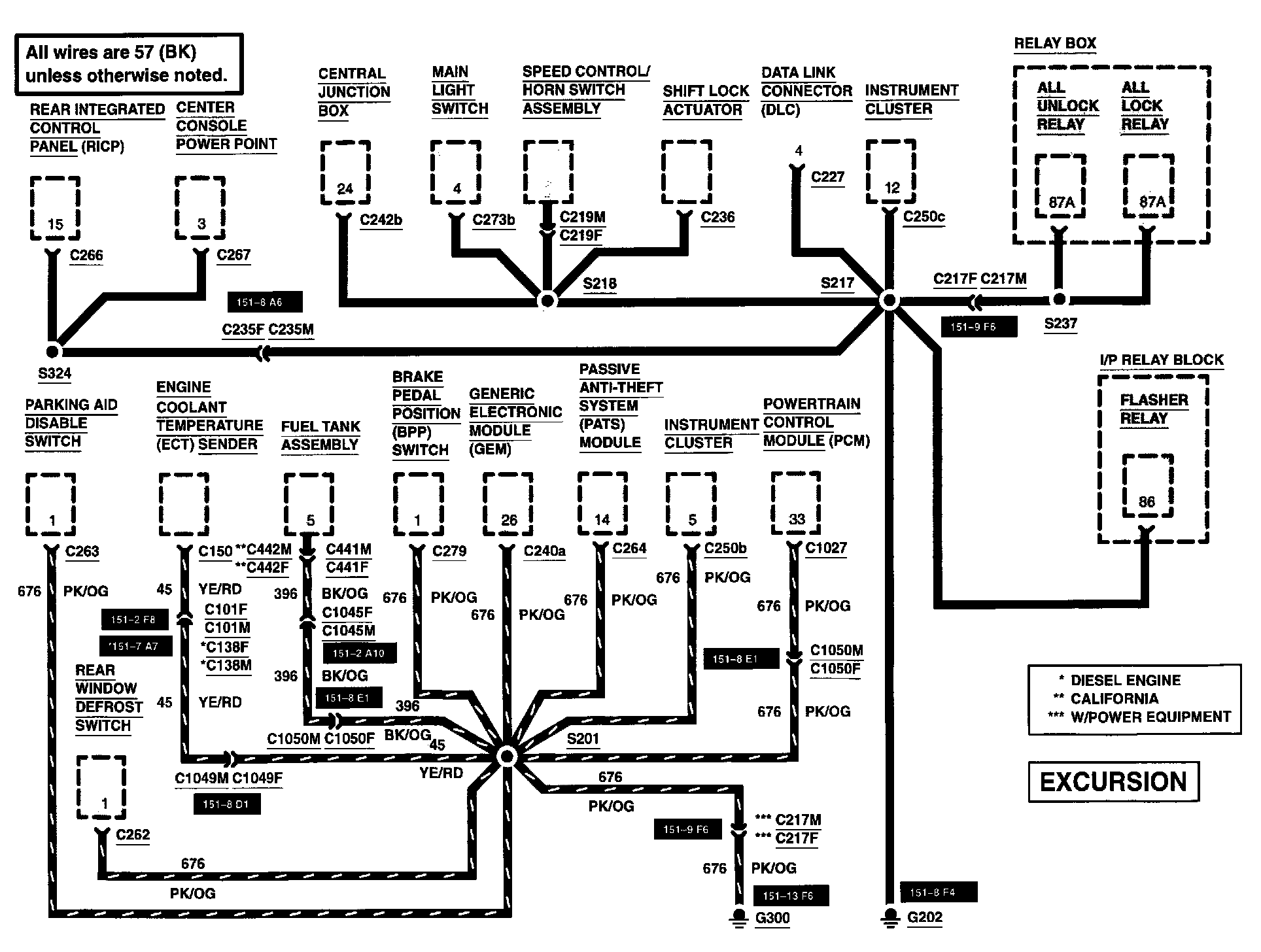

Diagram 10-5:

CKP Sensor Shield
Crankshaft Position (CKP) Sensor
Data Link Connector (DLC)
Engine Controls
Exhaust Pressure Regulator (EPR)
Injector Driver Module (IDM)
Mass Air Flow (MAF) Sensor
Powertrain Control Module (PCM)

Diagram 10-6:

All Lock Relay
All Unlock Relay
Brake Pedal Position (BPP) Switch
Center Console Power Point
Central Junction Box
Data Link Connector (DLC)
Engine Coolant Temperature Sensor
Flasher Relay
Fuel Tank Assembly
Generic Electronic Module (GEM)
I/P Relay Block
Instrument Cluster
Main Light Switch
Parking Aid Disable Switch
Passive Anti-theft System (PATS)
Powertrain Control Module (PCM)
Rear Integrated Control Panel (RICP)
Rear Window Defrost Switch
Relay Box
Shift Lock Actuator
Speed Control/Horn Switch Assembly

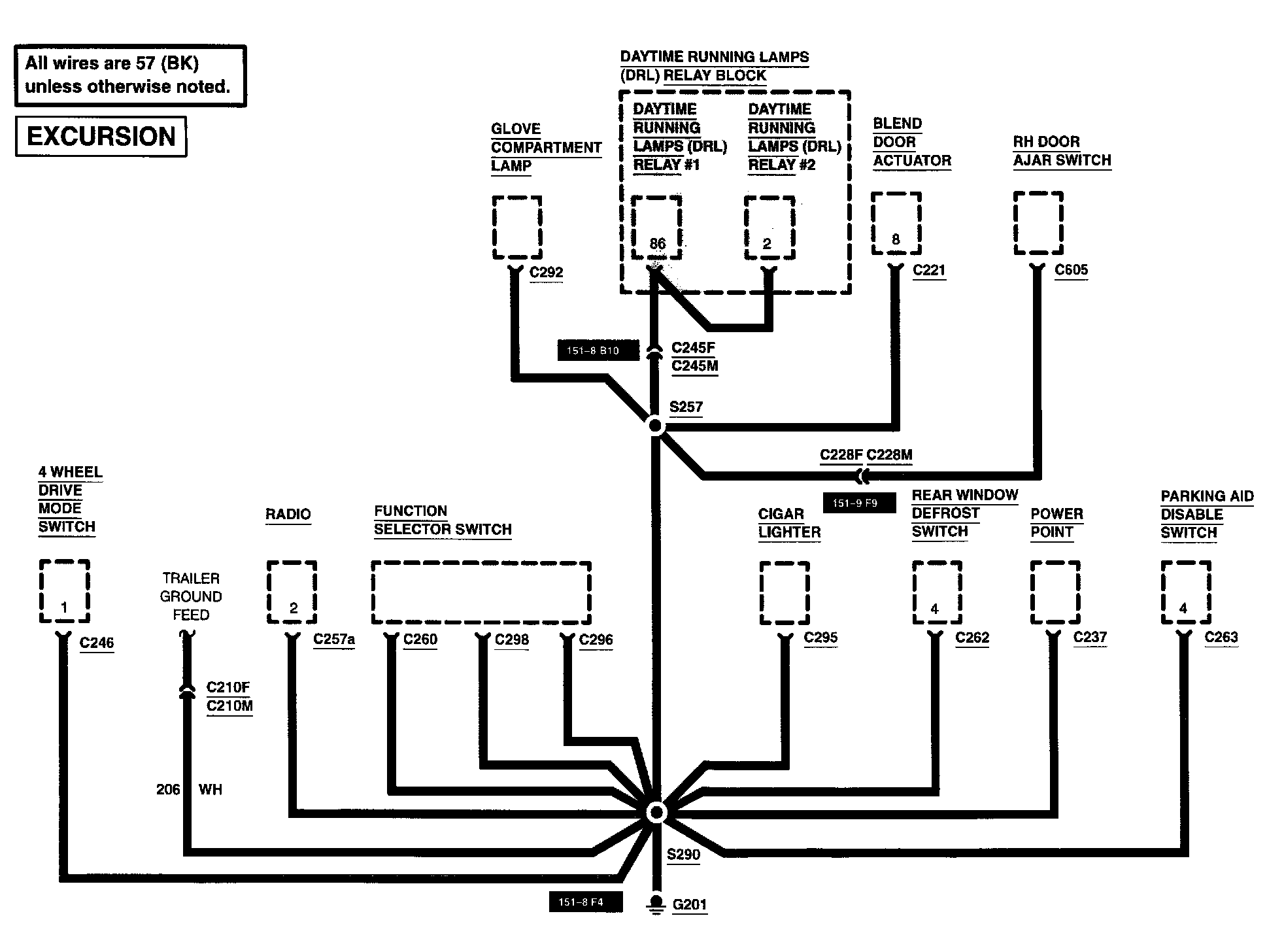

Diagram 10-7:

4 Wheel Mode Switch
Blend Door Actuator
Cigar Lighter
Daytime Running Lamps (DRL) Relay #1
Daytime Running Lamps (DRL) Relay #2
Daytime Running Lamps (DRL) Relay Block
Function Selector Switch
Glove Compartment Lamp
Parking Aid Disable Switch
Power Point
Radio
Rear Integrated Control Panel (RICP)
Rear Window Defrost Switch
RH Door Ajar Switch
Trailer Ground Feed

Diagram 10-8:

Air Bag Diagnostic Module
CD Changer
Left Front Running Board Lamp
Left License Lamp
Left Rear Running Board Lamp
Radio
Rear Integrated Control Panel (RICP)
Right Front Running Board Lamp
Right License Lamp
Right Rear Running Board Lamp
Trailer/camper Adapter

Diagram 10-9:

Left Rear Park/Stop/Turn Lamp
LH Reversing Lamp
RH Reversing Lamp
Right Rear Park/Stop/Turn Lamp

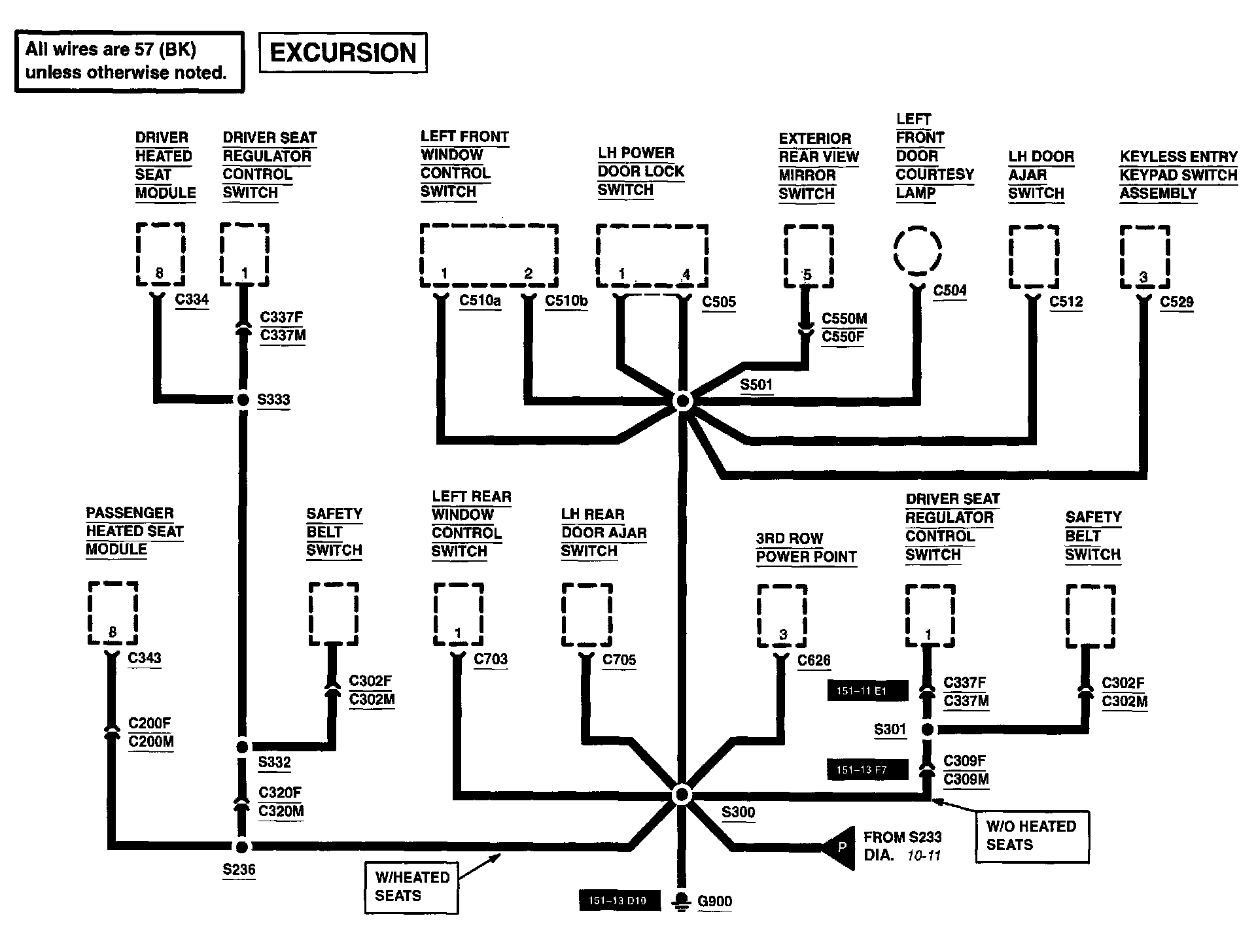

Diagram 10-10:

3rd Row Power Point
Driver Heated Seat Module
Driver Seat Module Control Switch
Driver Seat Regulator Control Switch
Exterior Rear View Mirror Switch
Keyless Entry Keypad Switch Assembly
Left Front Door Courtesy Lamp
Left Front Window Control Switch
Left Rear Window Control Switch
LH Door Ajar Switch
LH Power Door Lock Switch
LH Rear Door Ajar Switch
Passenger Heated Seat Module
Safety Belt Switch

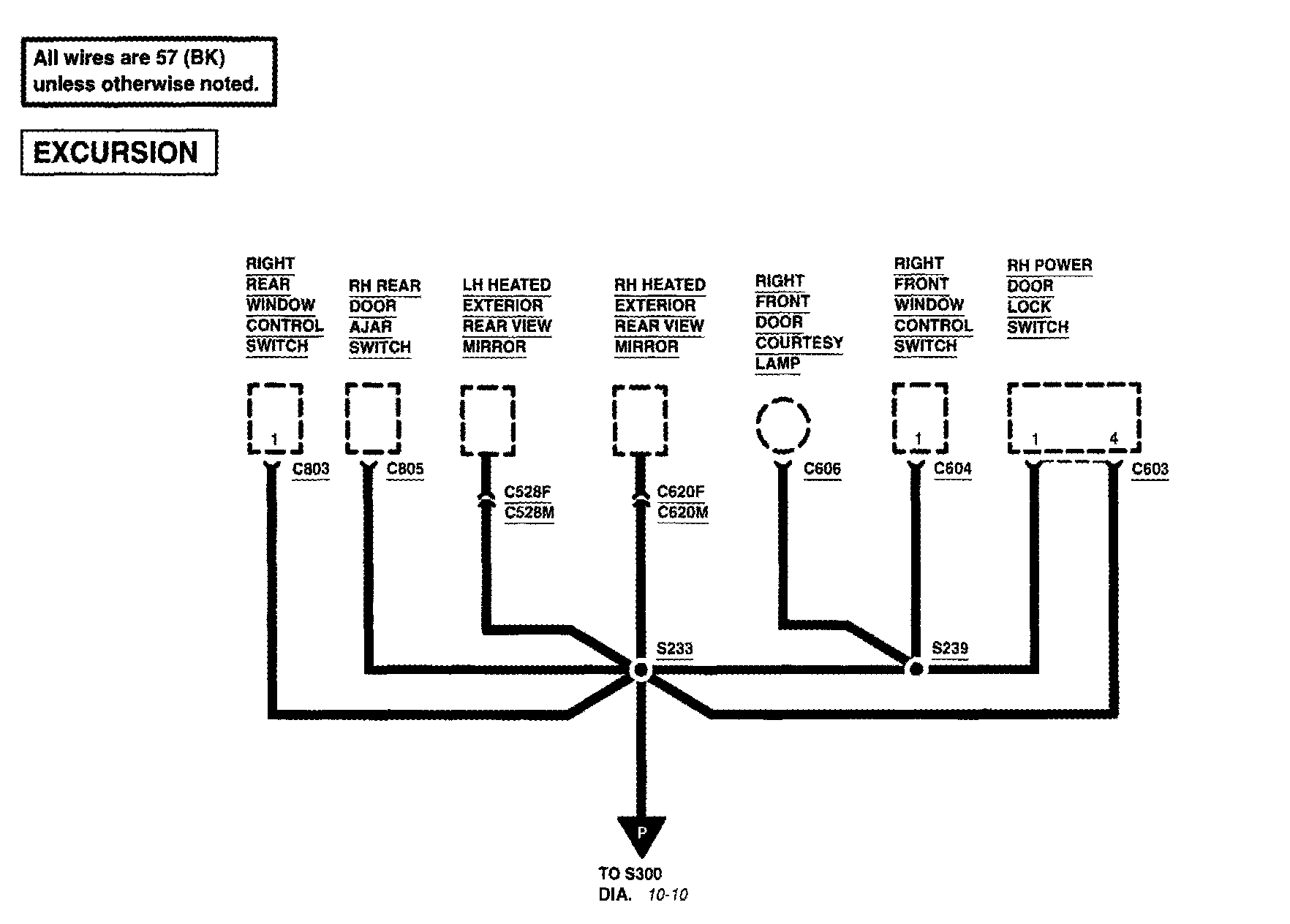

Diagram 10-11:

LH Heated Exterior Rear View Mirror
RH Heated Exterior Rear View Mirror
RH Power Door Lock Switch
RH Rear Door Ajar Switch
Right Front Door Courtesy Lamp
Right Front Window Control Switch
Right Rear Window Control Switch

Diagram 10-12:

Auxiliary A/C Blend Door Actuator
Auxiliary A/C Control Module
Auxiliary A/C Mode Actuator
D-pillar Power Point
High Speed Auxiliary A/C Relay
Parking Aid Module (PAM)

Diagram 10-13:

1st Row Controller Illumination
1st Row Interior/map Lamp Assembly
Electronic Day/Night Mirror
Front Auxiliary A/C Blower Motor Switch
Left Vanity Lamp
Overhead Console Module
Overhead Trip Computer (OTC) Module
Right Vanity Lamp

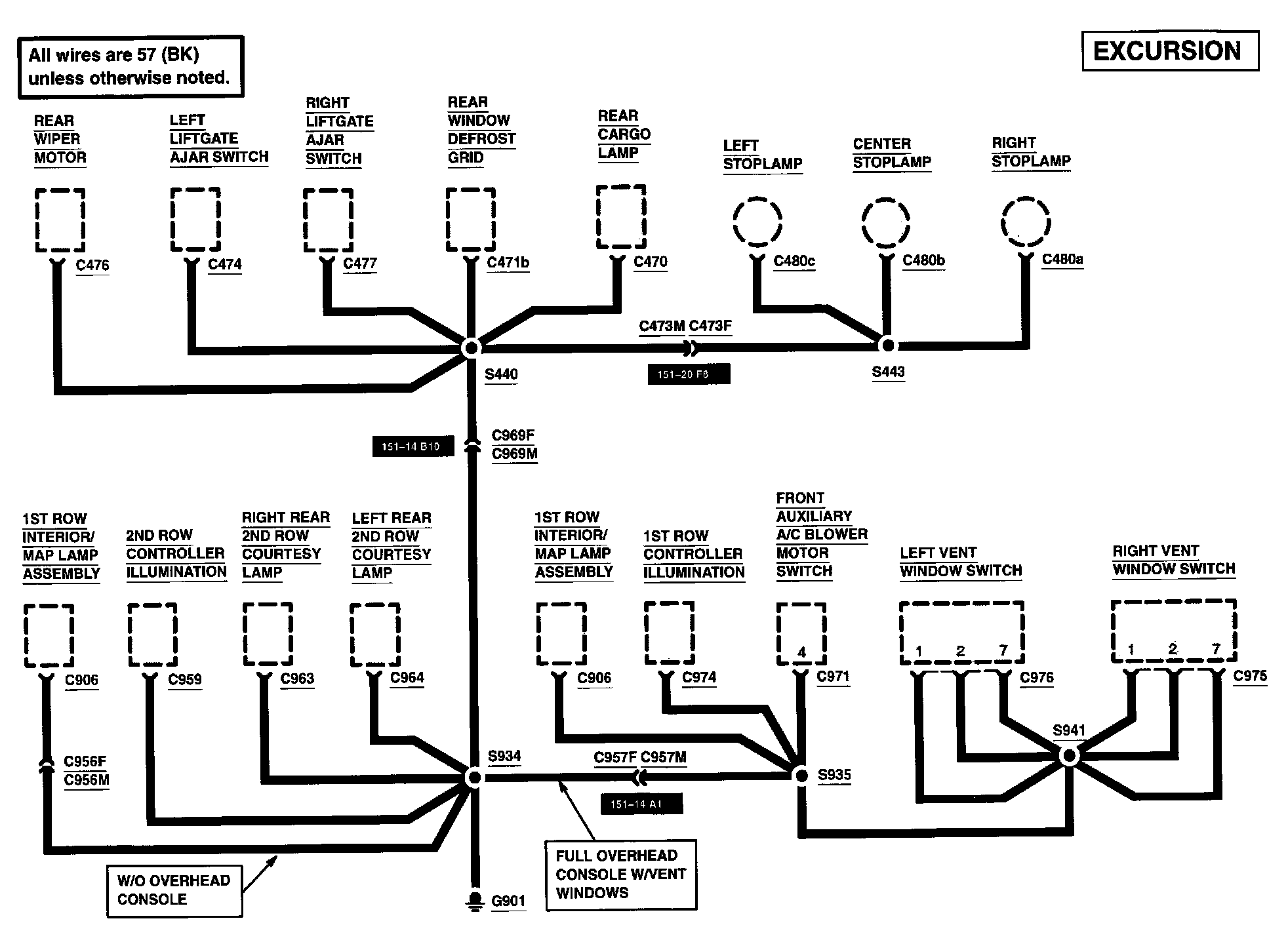

Diagram 10-14:

1st Row Controller Illumination
1st Row Interior/Map Lamp Assembly
2nd Row Controller Illumination
Center Stoplamp
Front Auxiliary A/C Blower Motor Switch
Left Liftgate Ajar Switch
Left Rear 2nd Row Courtesy Lamp
Left Stoplamp
Left Vent Window Switch
Rear Cargo Lamp
Rear Window Defrost Grid
Rear Wiper Motor
Right Liftgate Ajar Switch
Right Rear 2nd Row Courtesy Lamp
Right Stoplamp
Right Vent Window Switch
