Auxiliary Climate Control

REMOVAL
1. Remove the air conditioning and heater assembly. Refer to: Heating and Air Conditioning, Evaporator Case, Service and Repair, Auxiliary Climate Control, Auxiliary Climate Control

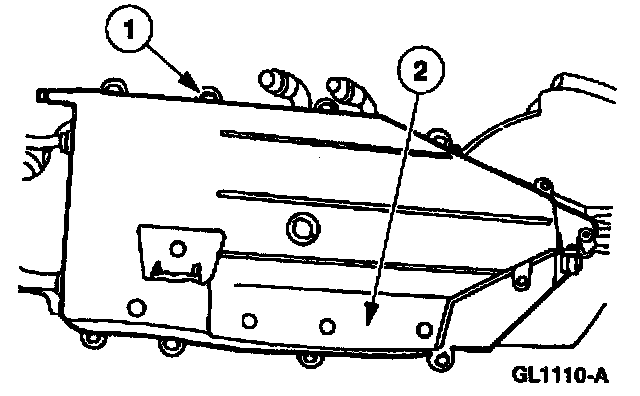

2. Remove the evaporator/heater core access cover.
1 Remove the ten bolts.
2 Remove the evaporator/heater core access cover.

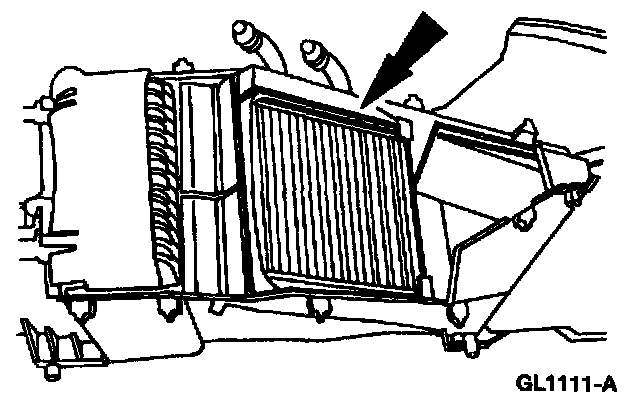

3. Remove the heater core.

INSTALLATION
1. To install, reverse the removal procedure.
