Front Fender: Service and Repair

FENDER - FRONT, EXPEDITION

Removal and Installation
1. Remove the radiator grille opening panel reinforcement (8A284).

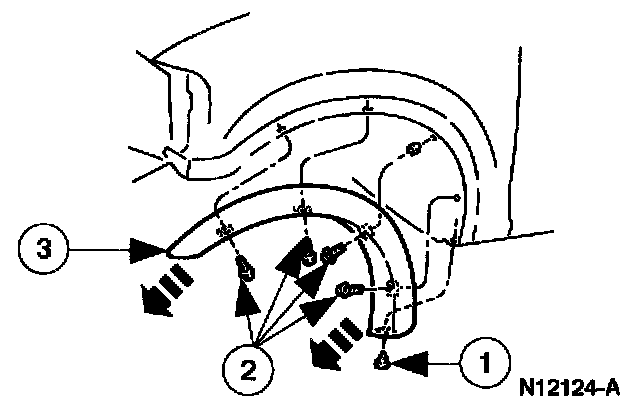

2. If equipped, remove the front wheel opening moulding.
1 Remove the pin-type retainer.
2 Remove the screws.
3 Remove the wheel opening moulding.

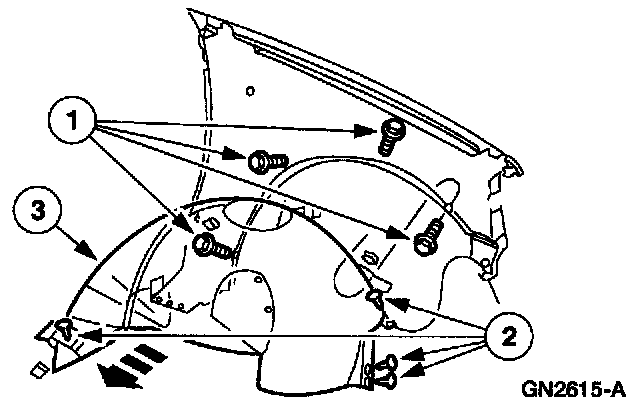

3. Remove the front fender splash shield (16103).
1 Remove the screws.
2 Remove the pin-type retainers.
3 Remove the front fender splash shield.


4. Remove the cowl grille.
5. Remove the inner fender stuffer.

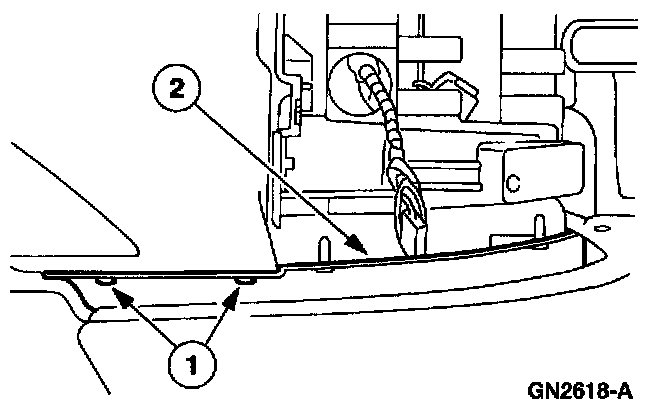

6. Remove the stone guard.
1 Remove the pin-type retainers.
2 Remove the stone guard.

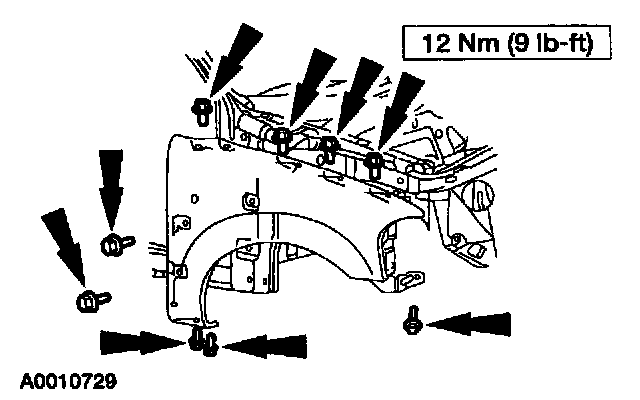

7. Remove the front fender.
- Remove the bolts.

8. To install, reverse the removal procedure.
