Test A: Speed Control Is Inoperative

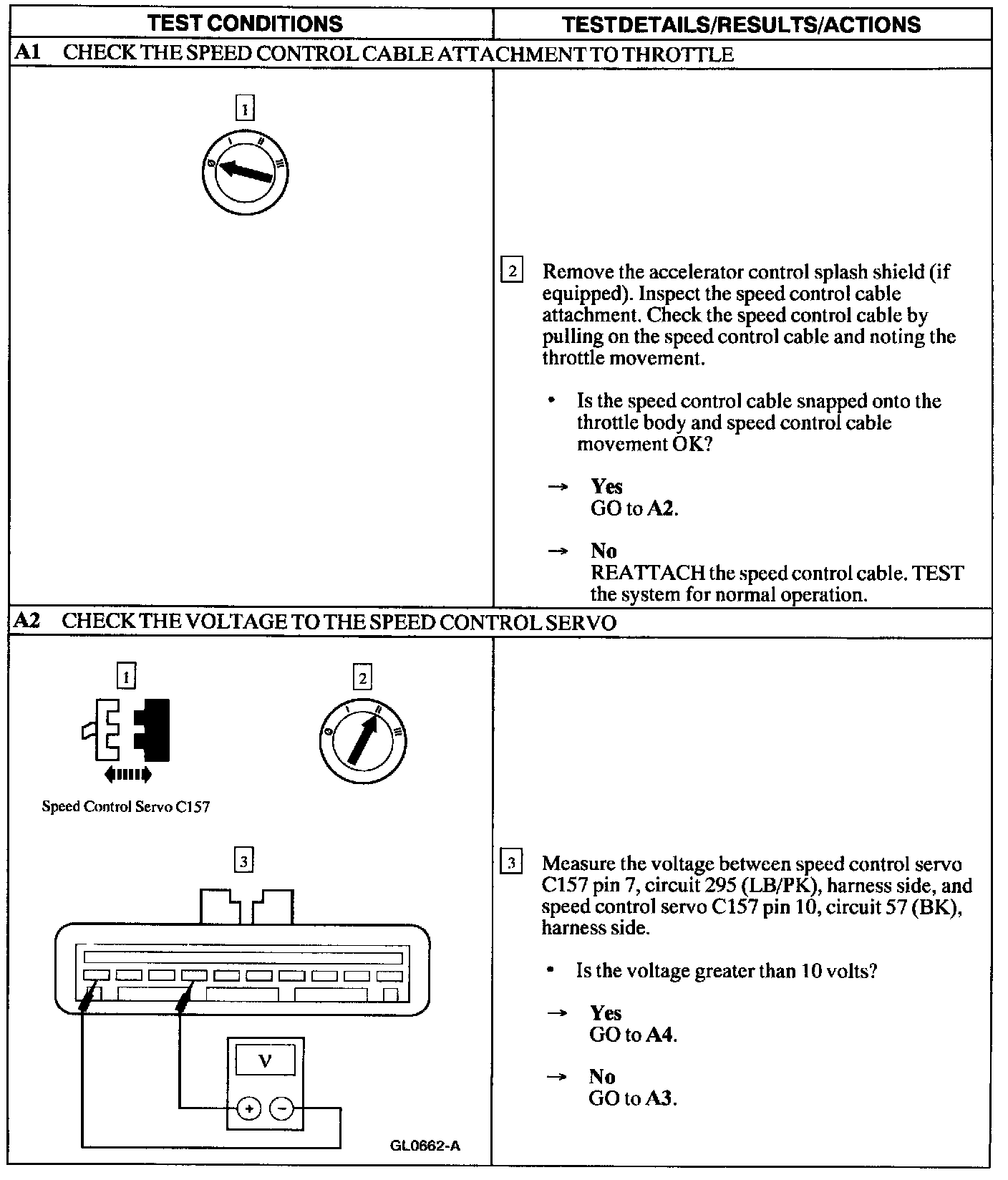

A1 - A2:






A3 - A4:

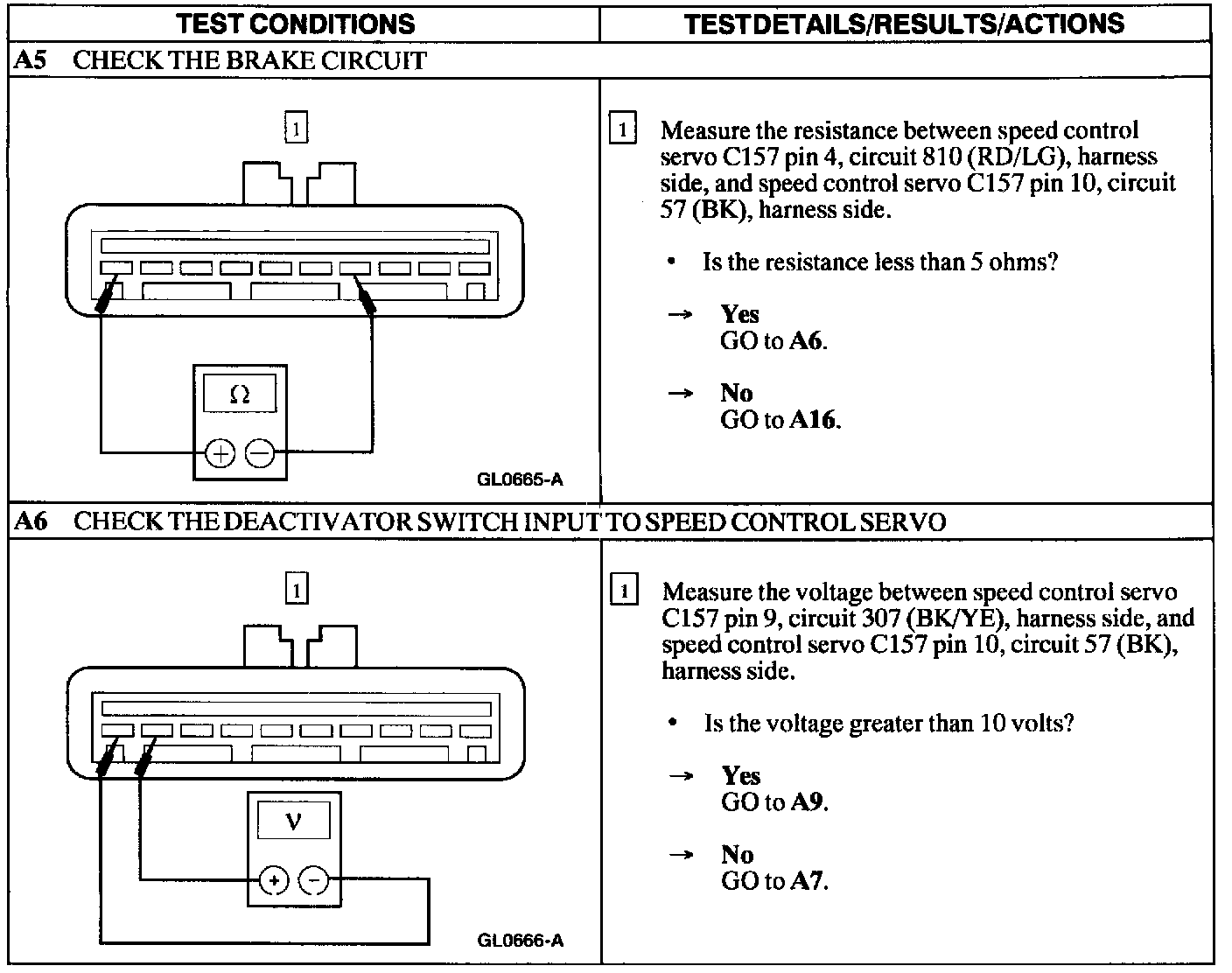

A5 - A6:

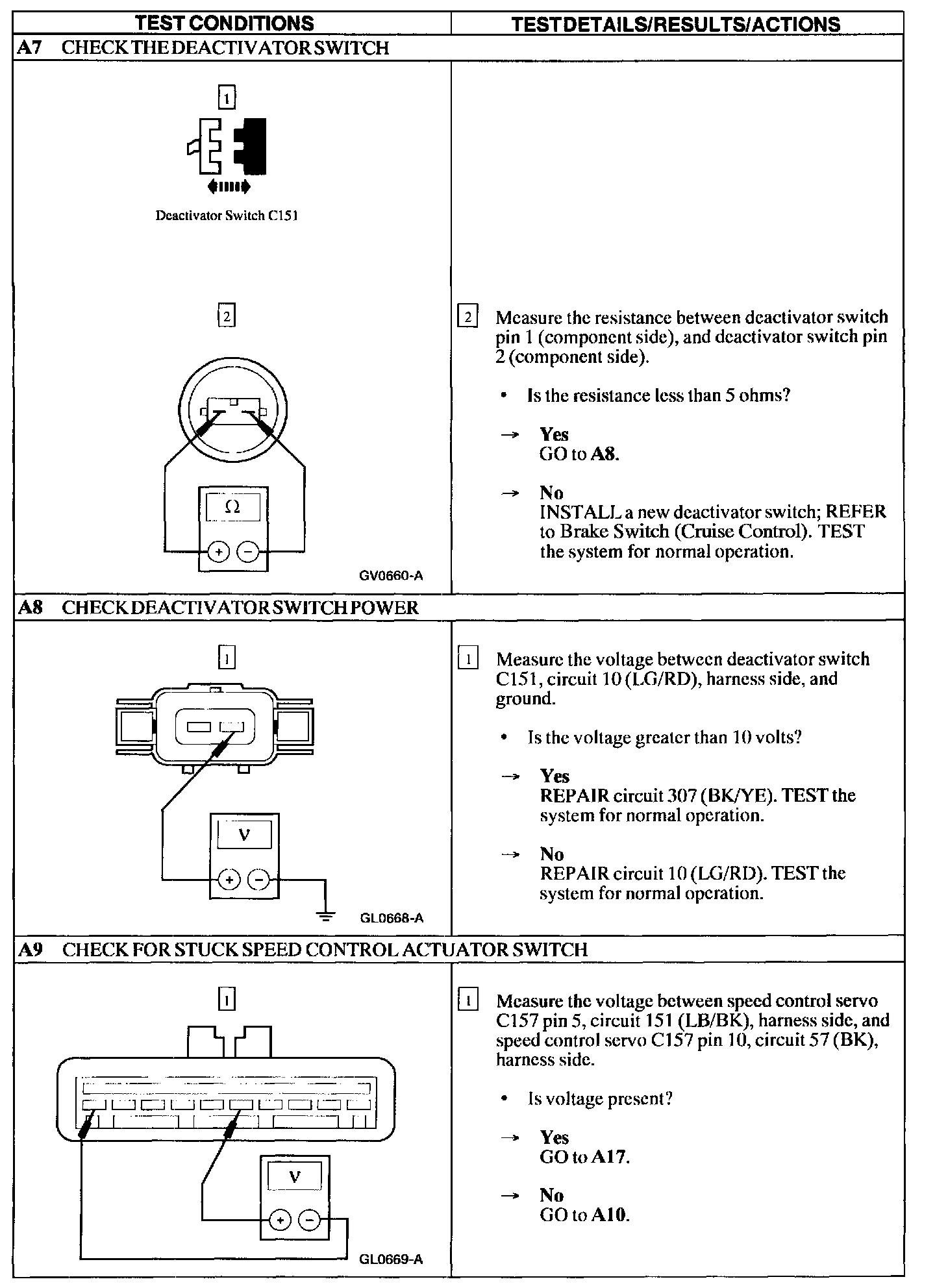

A7 - A9:

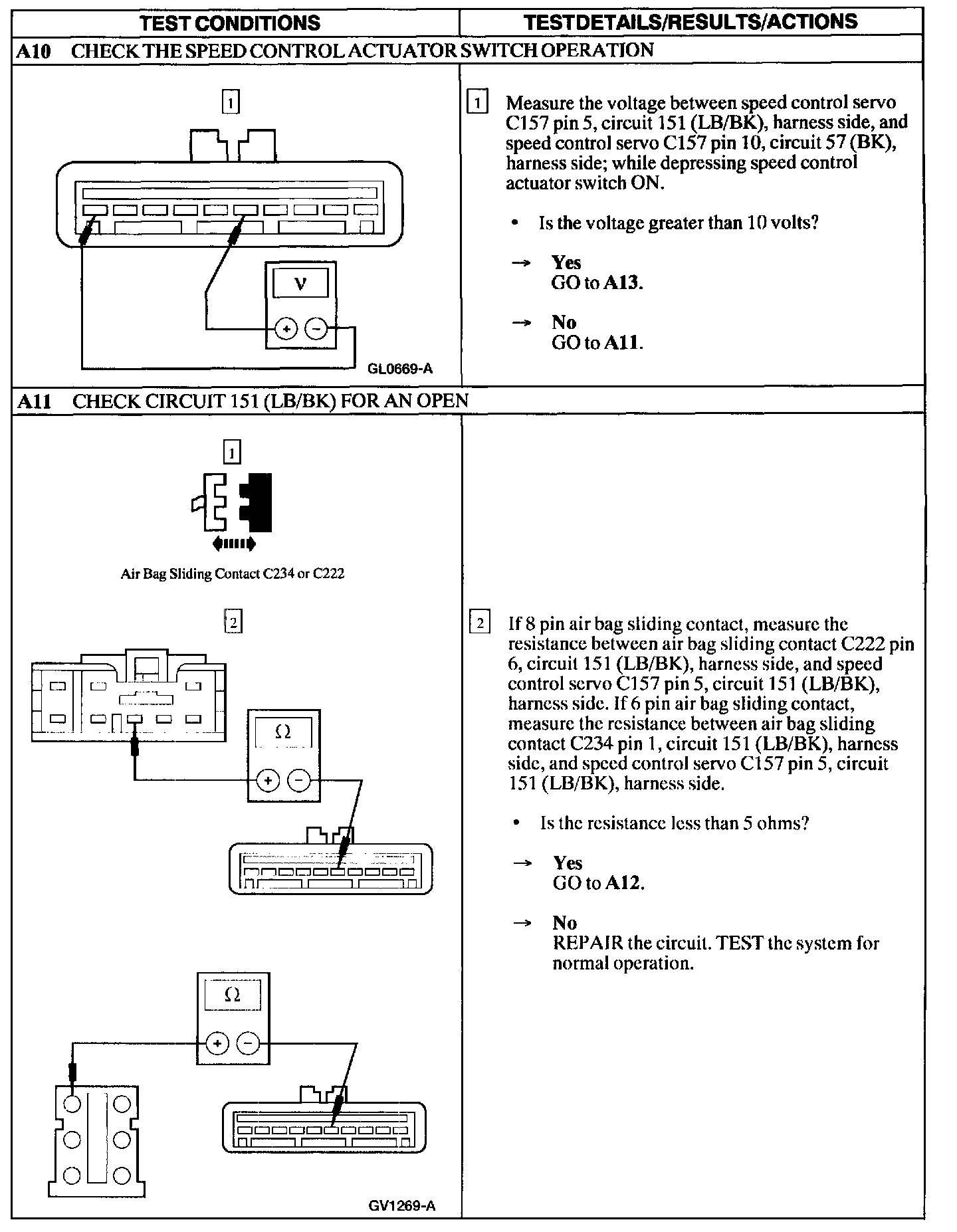

A10 - A11:

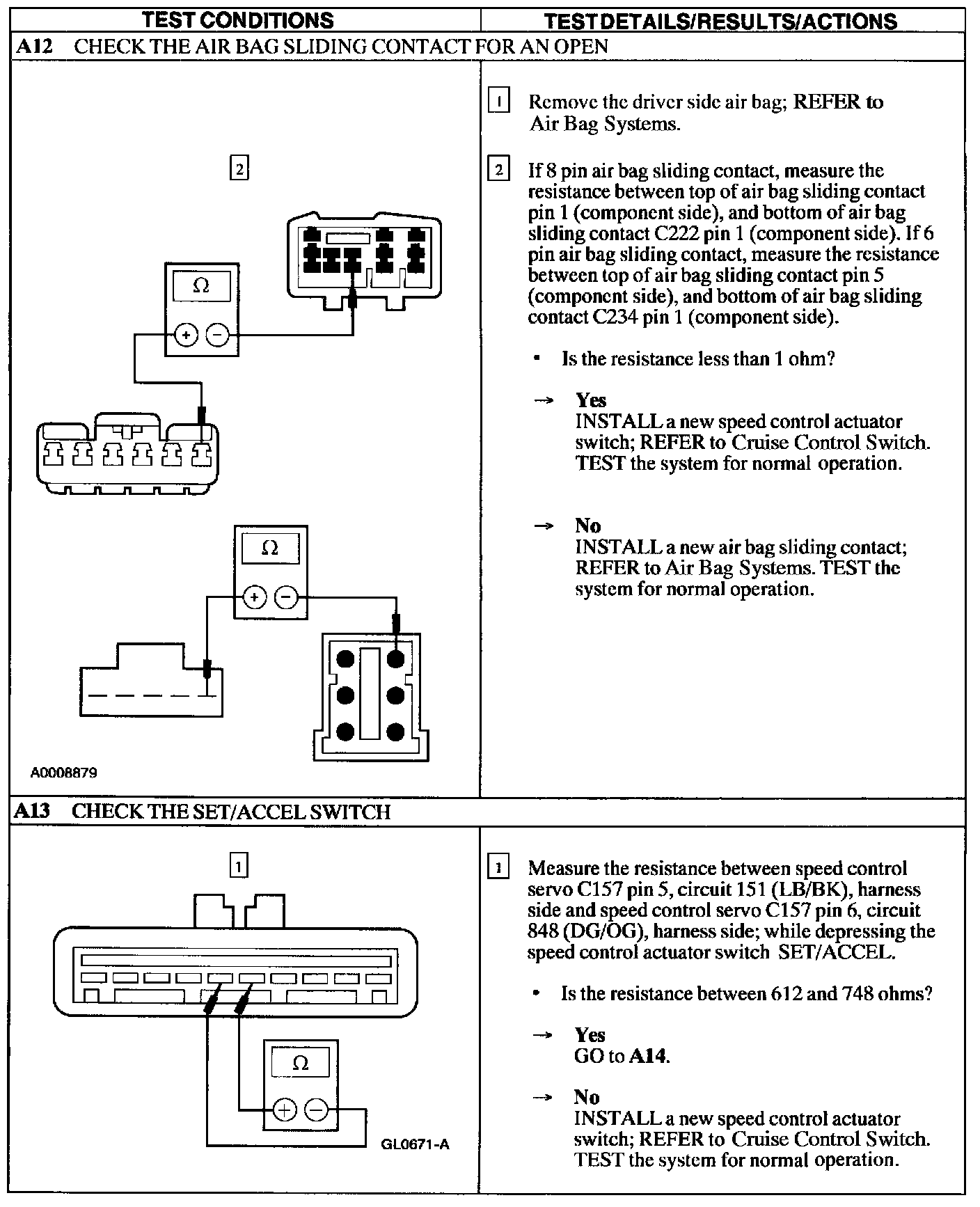

A12 - A13:

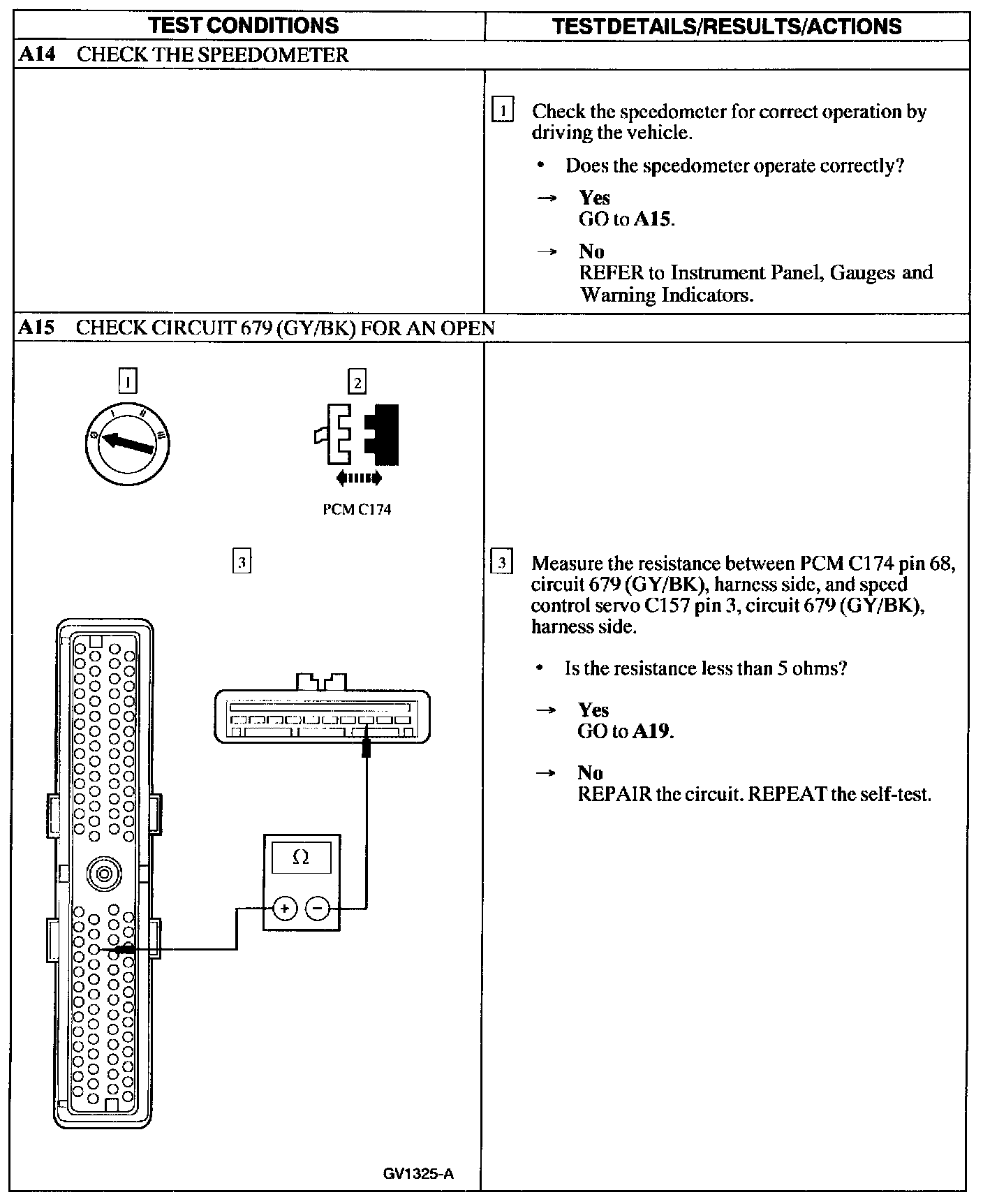

A14 - A15:

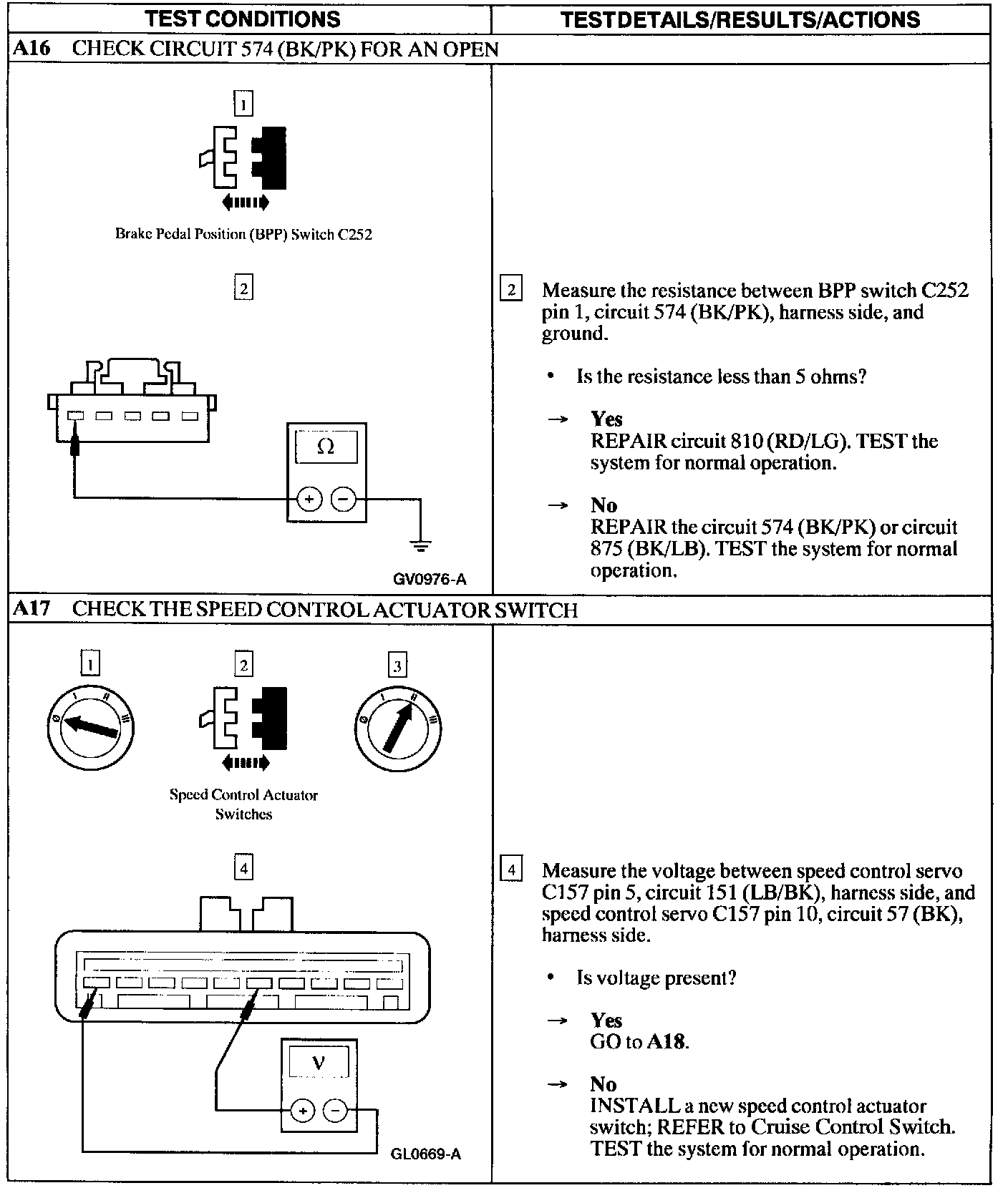

A16 - A17:

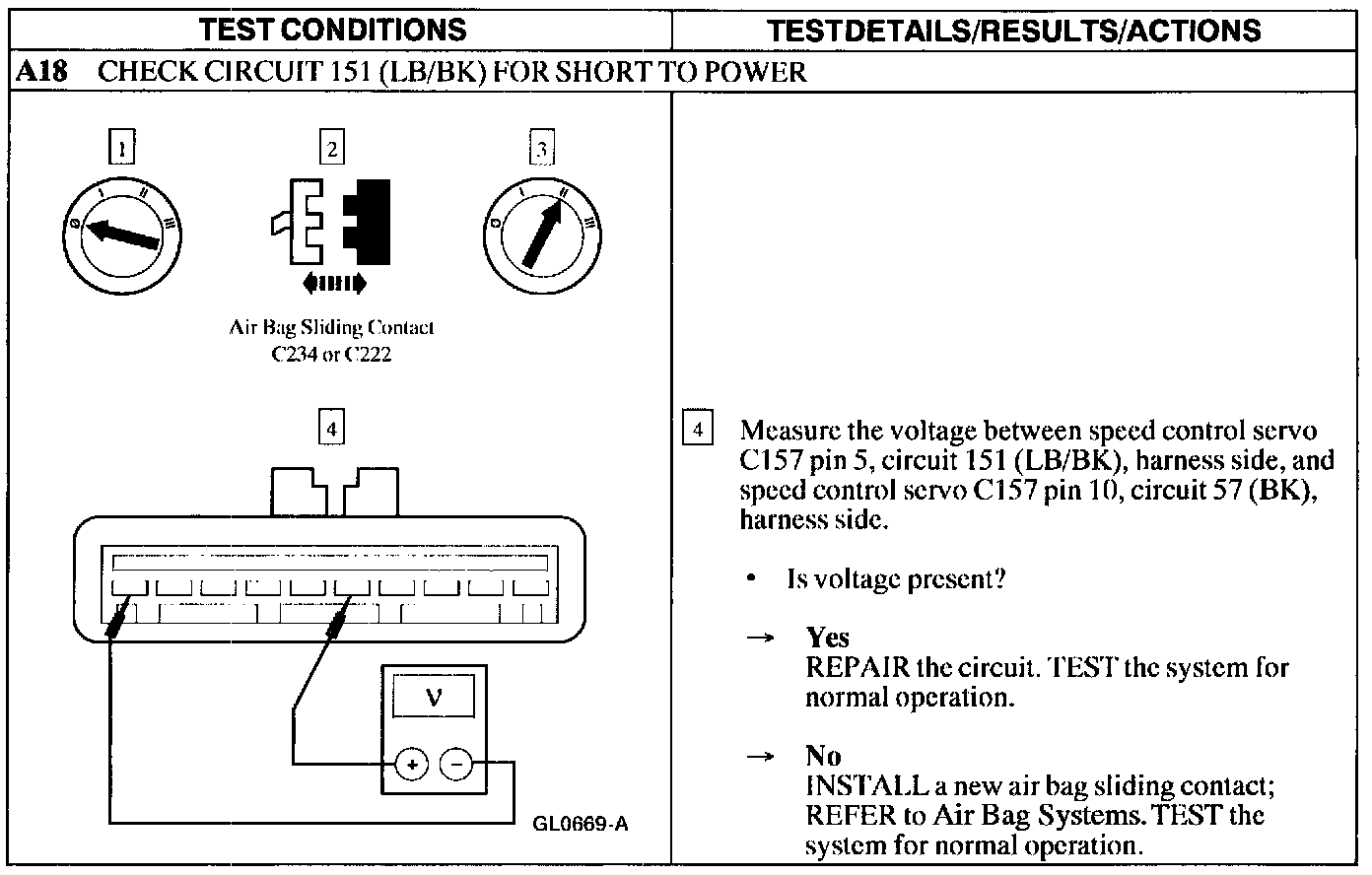

A18:

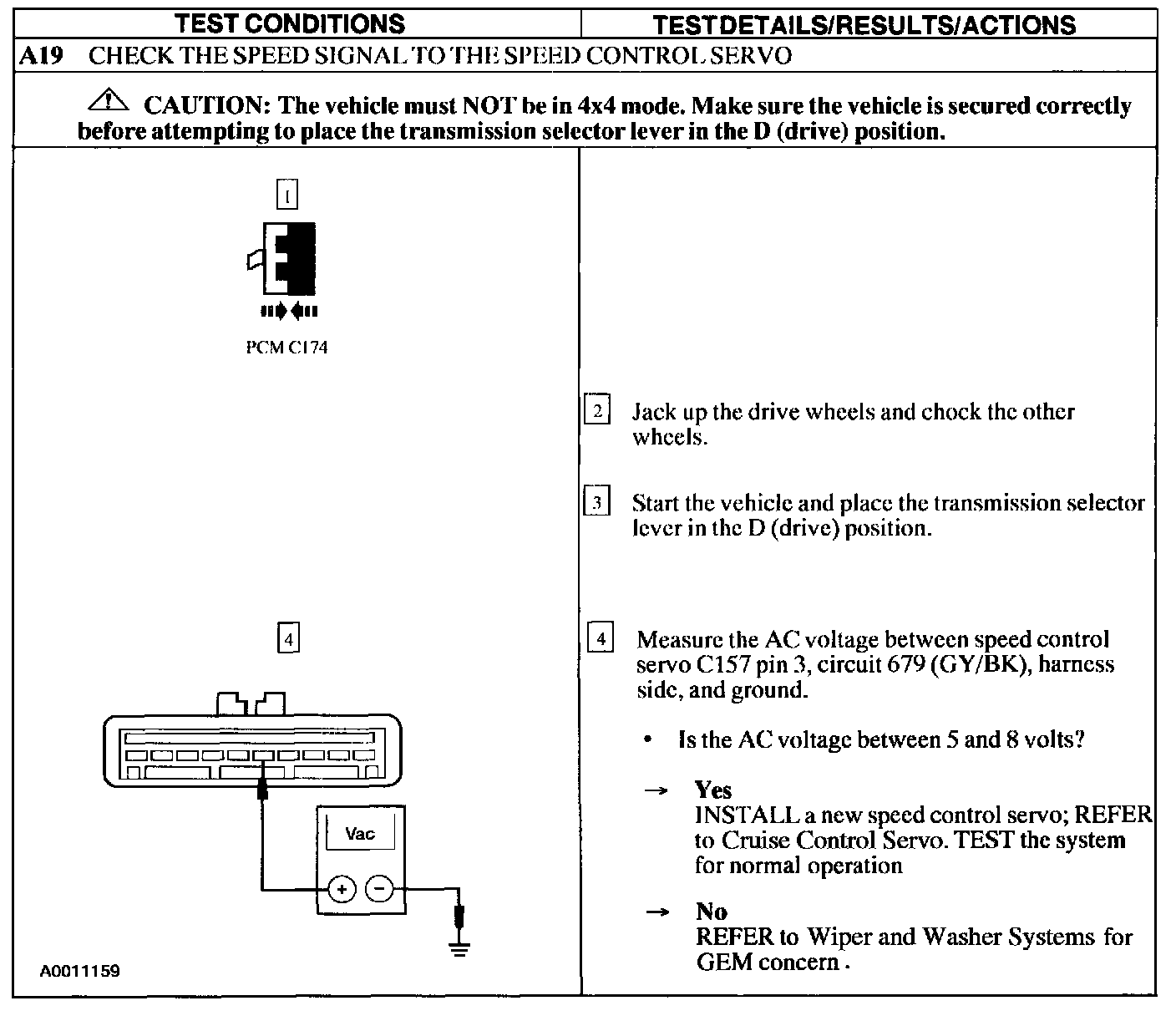

A19:
