Test C: Courtesy Lamps Stay On Continuously

C1 - C2:






C3 - C4:






C5 - C7:

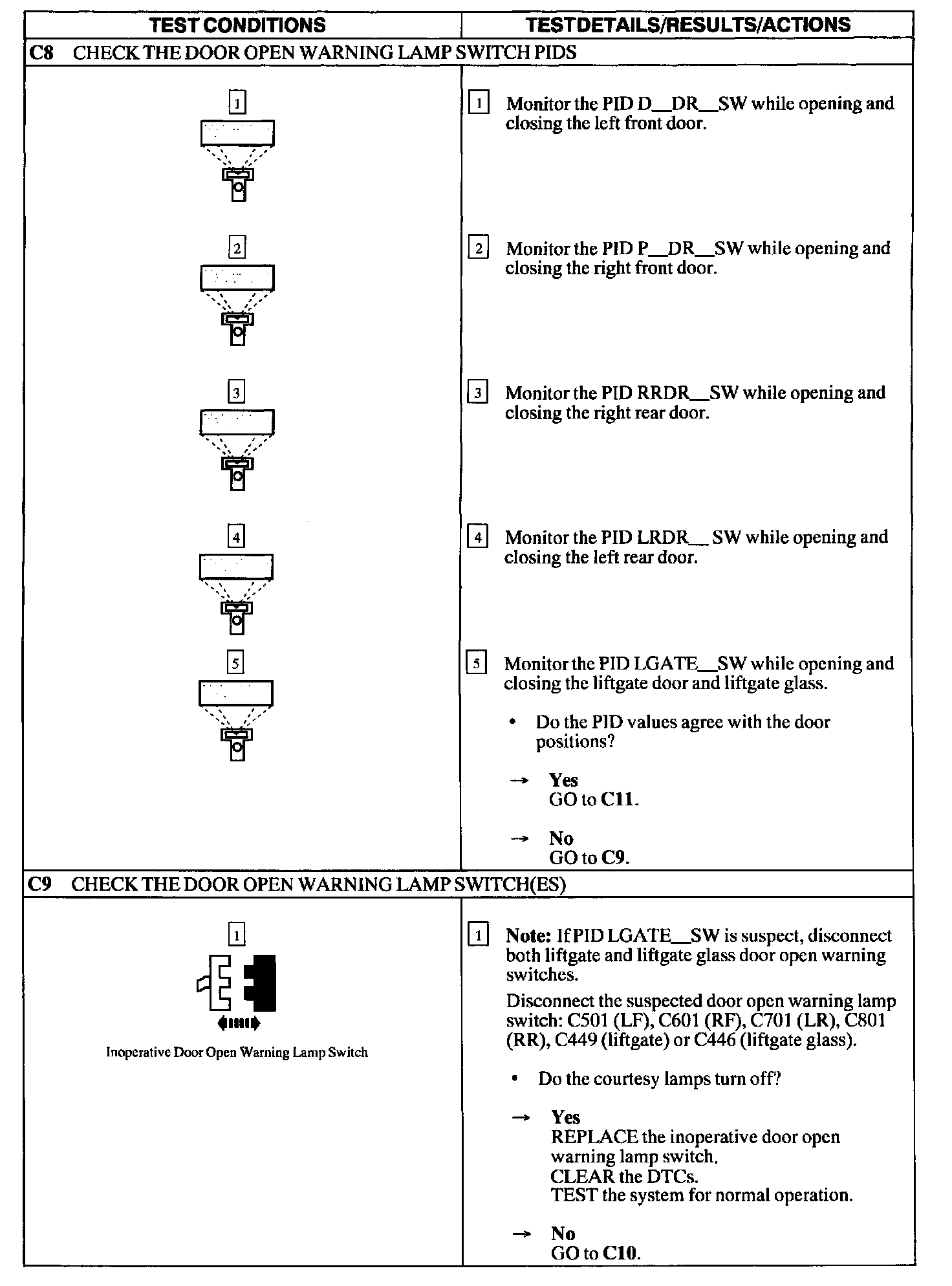

C8 - C9:






C10:






C11 - C12:
