Front Crankshaft Seal

Special Tools:

Removal
1. Remove the crankshaft pulley.





2. Use the (A) Front Cover Seal Remover to remove the (B) front cover seal.

Installation





1. Lubricate the (A) and the (B) front oil seal inner lip. Use Super Premium SAE 5W-30 Motor Oil XO-5W30-QSP or equivalent meeting Ford specification WSS-M2C153-G.

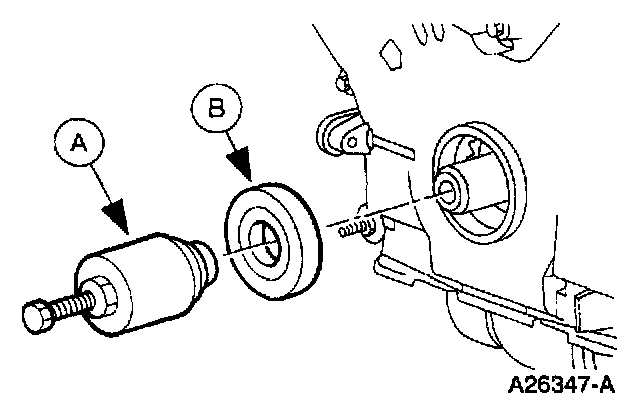

2. Use the (A) Crankshaft Seal Replacer/Cover Aligner to install the (B) front cover seal into the (C) engine front cover.
3. Install the crankshaft pulley.
