Blower Motor: Service and Repair

REMOVAL
1. If equipped, remove the aftermarket air filter.
2. If equipped, remove the mounting bracket for the removed cover.

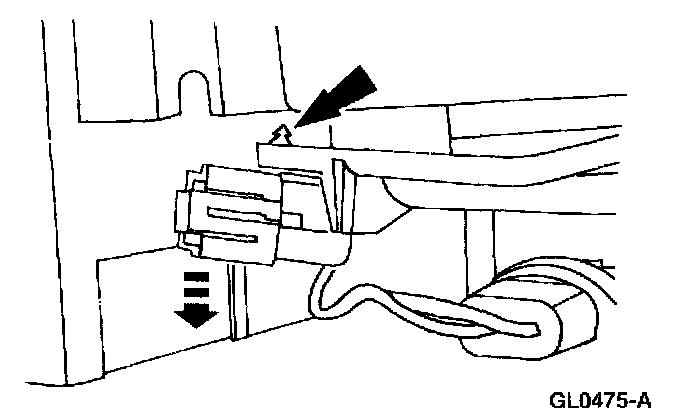

3. Disconnect the christmas tree retainer from the motor mounting plate.

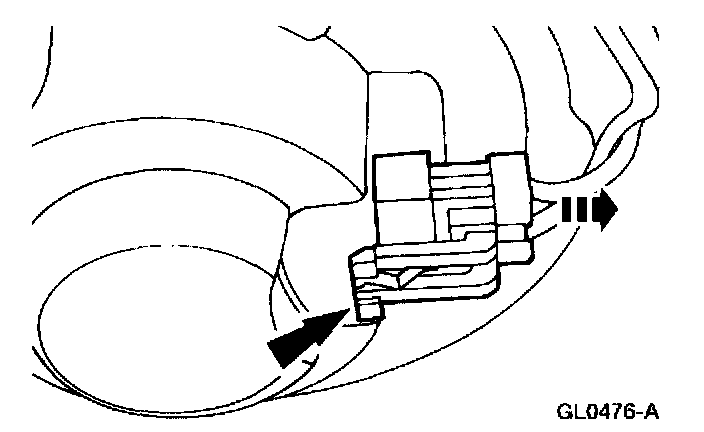

4. Disconnect the connector.

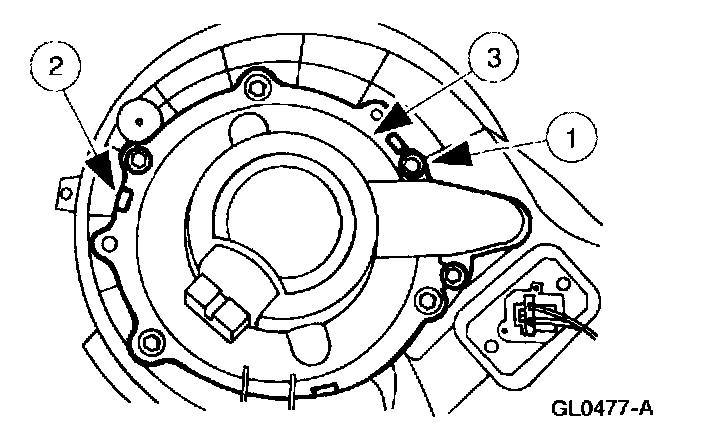

5. Remove the blower motor cover.
1 Remove the three screws.
2 Pry to release the three tabs.
3 Remove the cover.

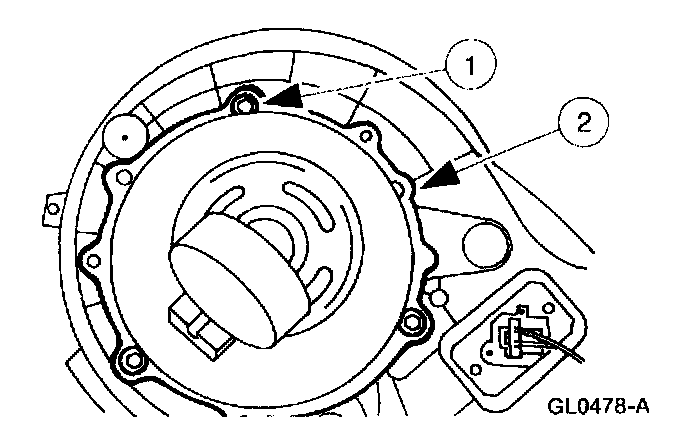

6. Remove the blower motor.
1 Remove the three screws.
2 Remove the blower motor.

CAUTION: Carefully remove the blower motor to avoid damage to the wheel.







7. Remove the wheel from the blower motor.
1 Remove the push clip.
2 Remove the wheel.

8. Remove the gasket.

INSTALLATION
1. To install, reverse the removal procedure.
