Power Steering Line/Hose: Service and Repair

Special Tools:

Removal

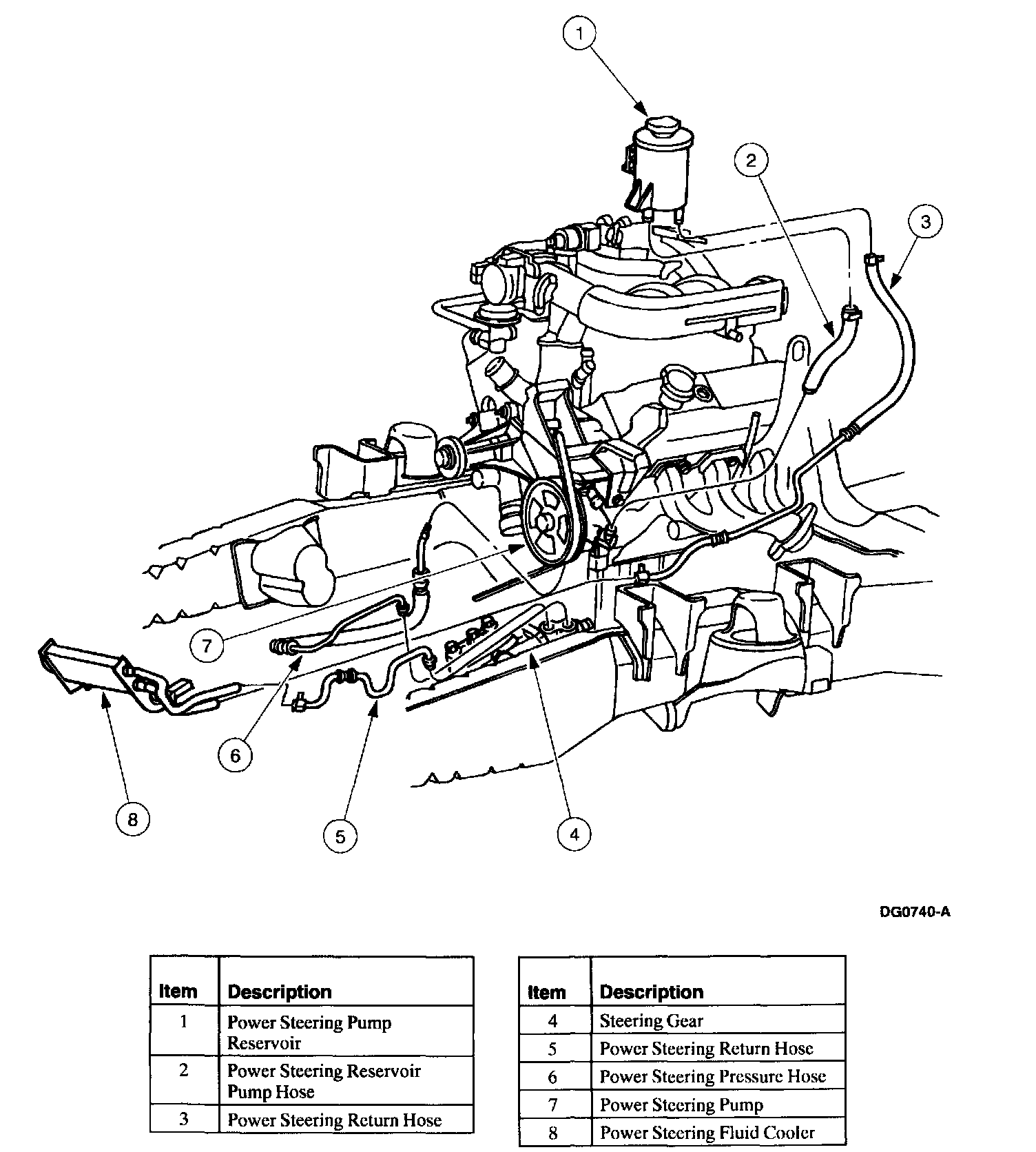

1. Refer to illustration for the hose routing and retention points.

Installation





1. When connecting a fitting with a seal ring, the ring must be replaced.
^ The Seal Replacer is used to install the return line connector seal and the pressure line connector seal.
2. Fill, purge and leak check the system.
