Camshaft Position (CMP) Sensor

REMOVAL
1. Partially drain the cooling system. For additional information, refer to Cooling System.
2. Remove the air cleaner outlet tube. For additional information, refer to Fuel Delivery and Air Induction.







3. Disconnect the engine harness from the water tube, remove the bolt and position the heater water outlet tube aside.

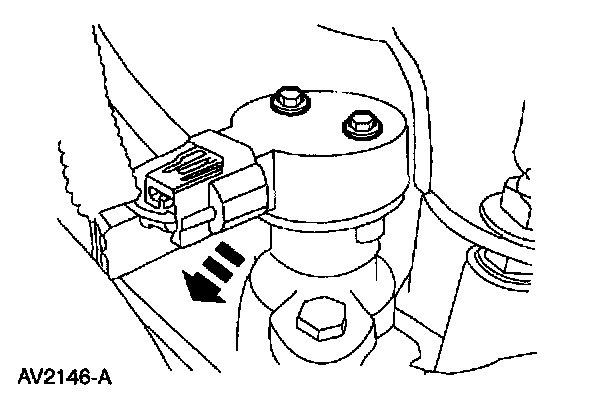

4. Disconnect the Camshaft Position (CMP) sensor electrical connector.







5. Remove the screws and the CMP sensor.

INSTALLATION
1. To install, reverse the removal procedure.
