EGR Tube: Service and Repair

REMOVAL







1. Remove the bolts and remove the engine appearance cover.

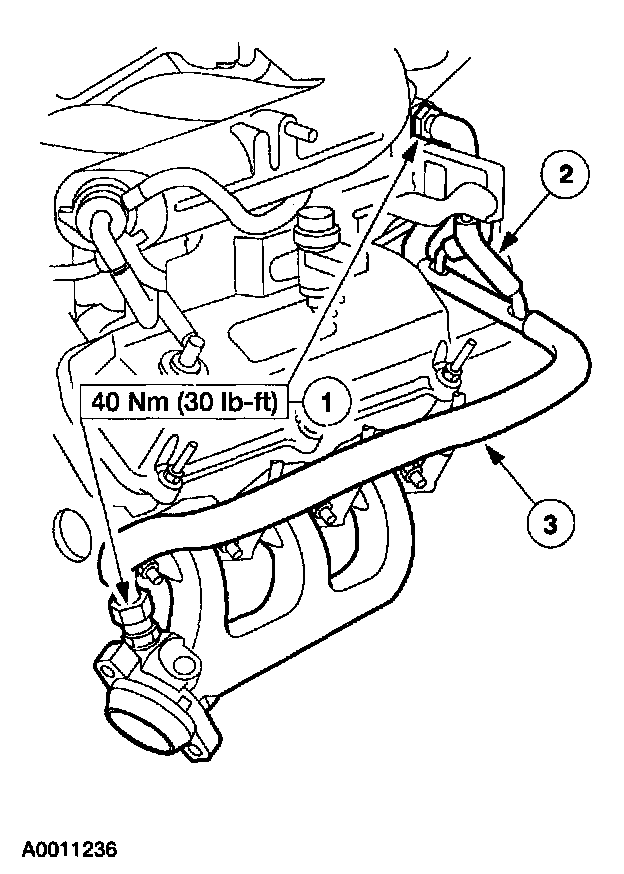

2. Remove the Exhaust Gas Recirculation (EGR) valve tube.
1 Disconnect the EGR tube nuts.
2 Remove the differential pressure feedback EGR sensor hoses.
3 Remove the EGR tube.

INSTALLATION
1. To install, reverse the removal procedure.
