EGR Valve: Service and Repair

REMOVAL

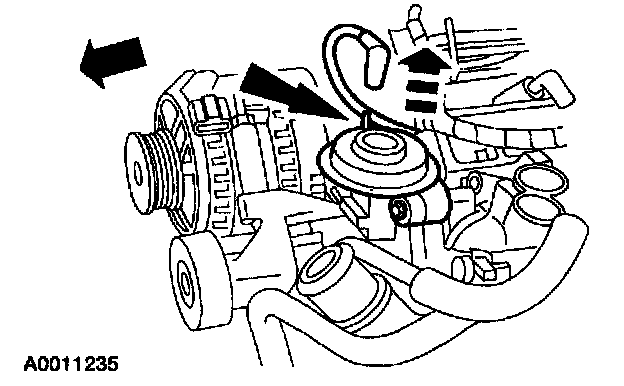

1. Disconnect the Exhaust Gas Recirculation (EGR) valve vacuum hose.







2. Disconnect the EGR valve tube upper fitting.







3. Remove the EGR valve.
1 Remove the bolts.
2 Remove the EGR valve.
^ Discard the gasket.

INSTALLATION
1. To install, reverse the removal procedure.
^ Carefully clean all sealing surfaces and install a new EGR valve gasket.

NOTE: The EGR valve sealing surfaces are soft metals.
