Quarter Window Glass: Service and Repair

REMOVAL

NOTE: Hinged glass shown, fixed glass similar.

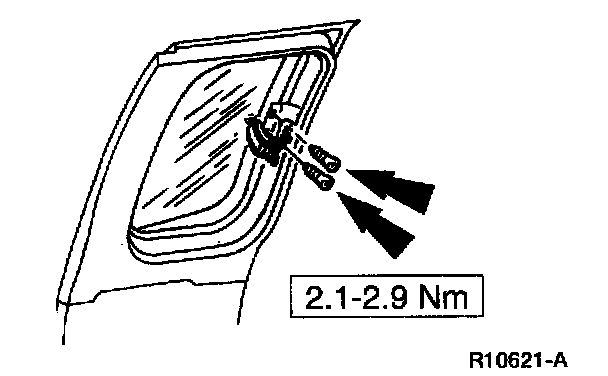

1. If equipped, remove the rear door window latch screws.

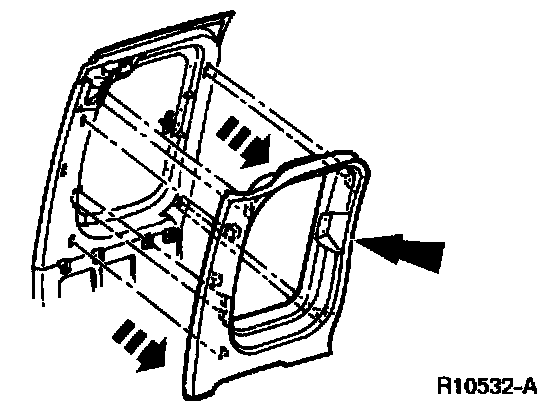

2. Remove the rear door window garnish.







3. Remove the rear door window glass.

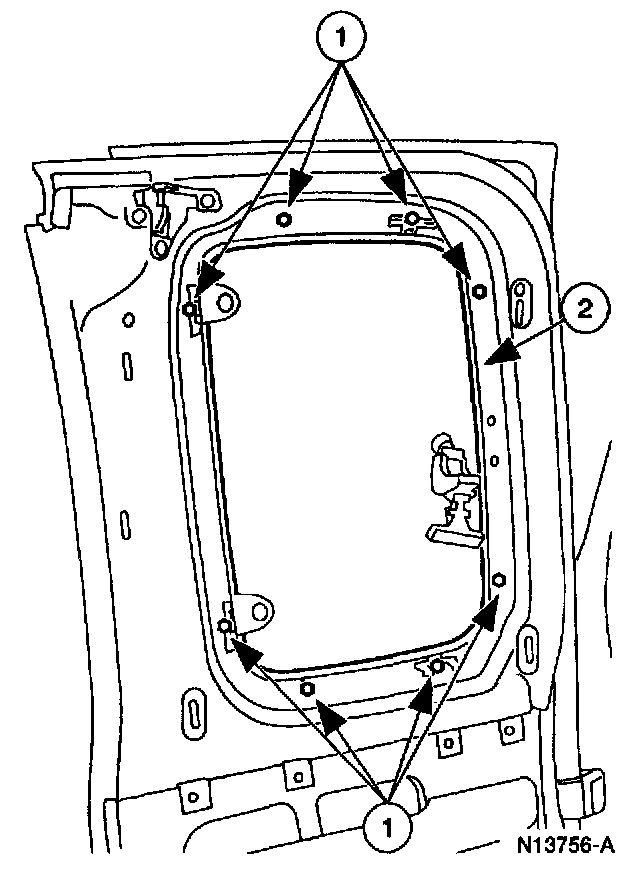

1 Remove the nuts.
2 Remove the rear door window glass.

4. Cut the excess foam butyl from the window frame.
5. Pry the window frame from the door.
6. Remove the excess foam butyl from the window opening.

INSTALLATION
1. Apply 8mm foam butyl, or equivalent meeting Ford specification WSB-M2G234-C to the rear window frame.
^ Start at the bottom middle and work around the frame.

NOTE: When applying foam butyl, leave a slight overlap at the bottom to allow for drainage.







2. Install the rear window frame and glass.

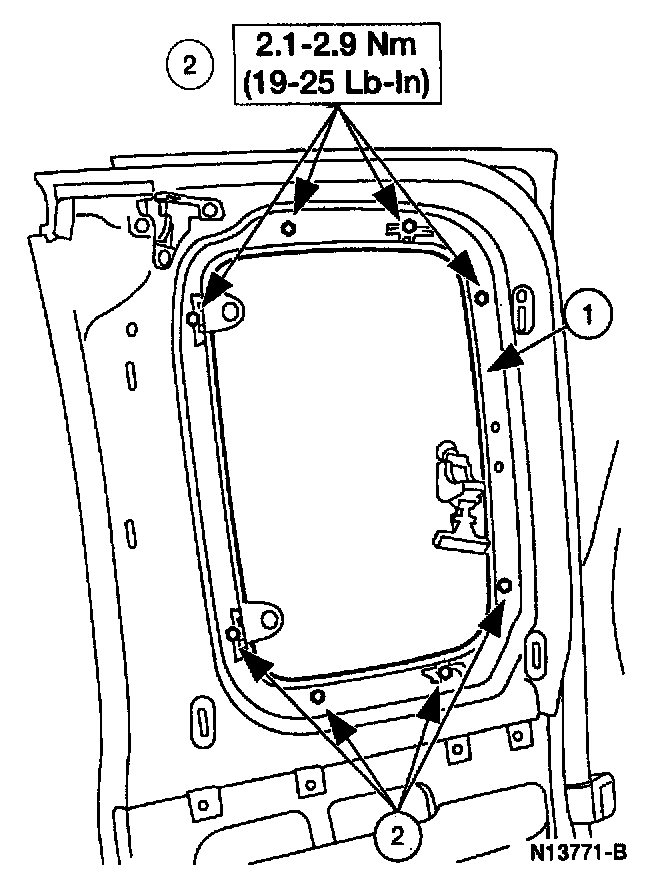

1 Position the rear window frame and glass.
2 Tighten the nuts to specification.

NOTE: Loosely install all nuts before tightening.

3. Install the rear door window garnish.

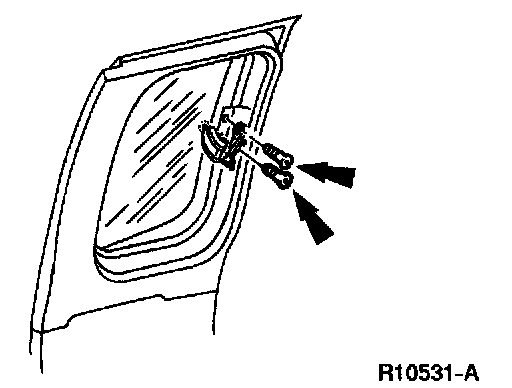

4. If equipped, install the rear door window latch screws.
