Engine

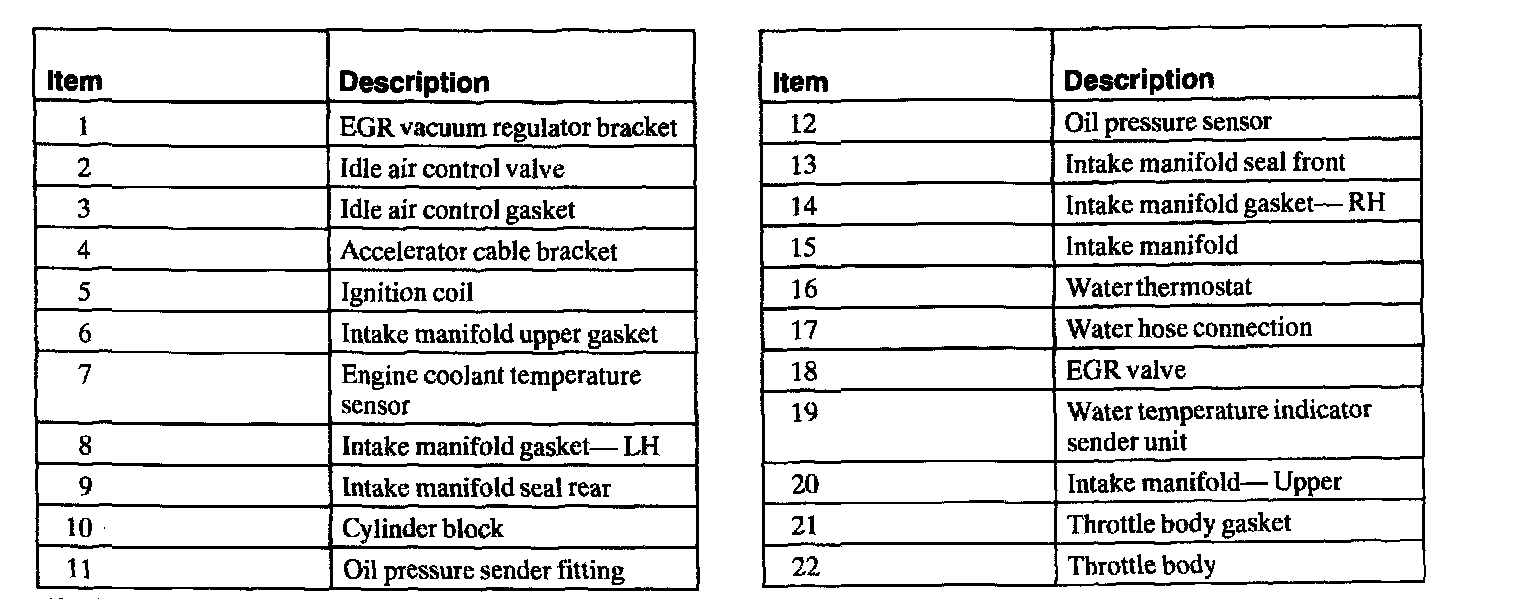

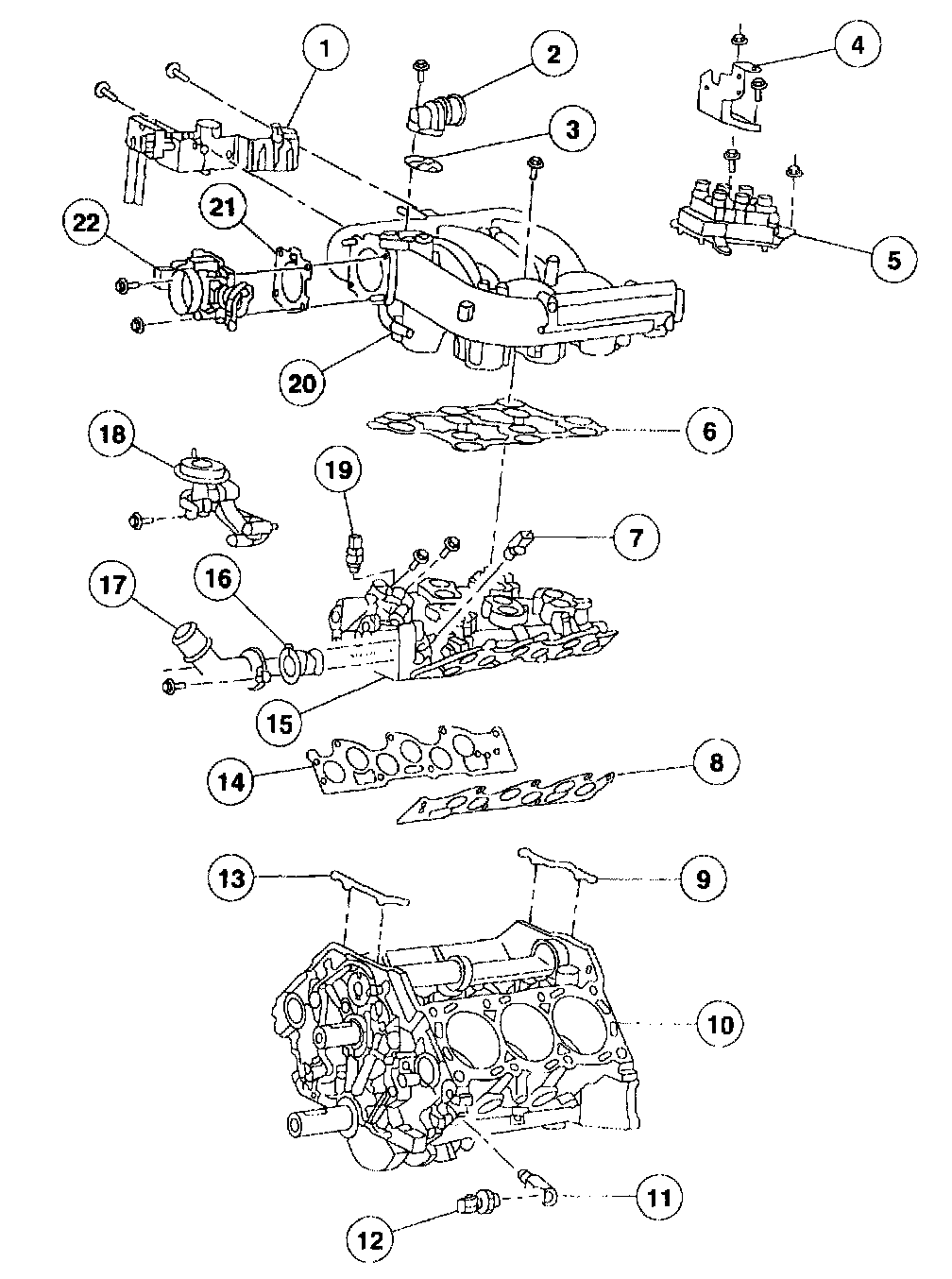

Major Upper Engine Components

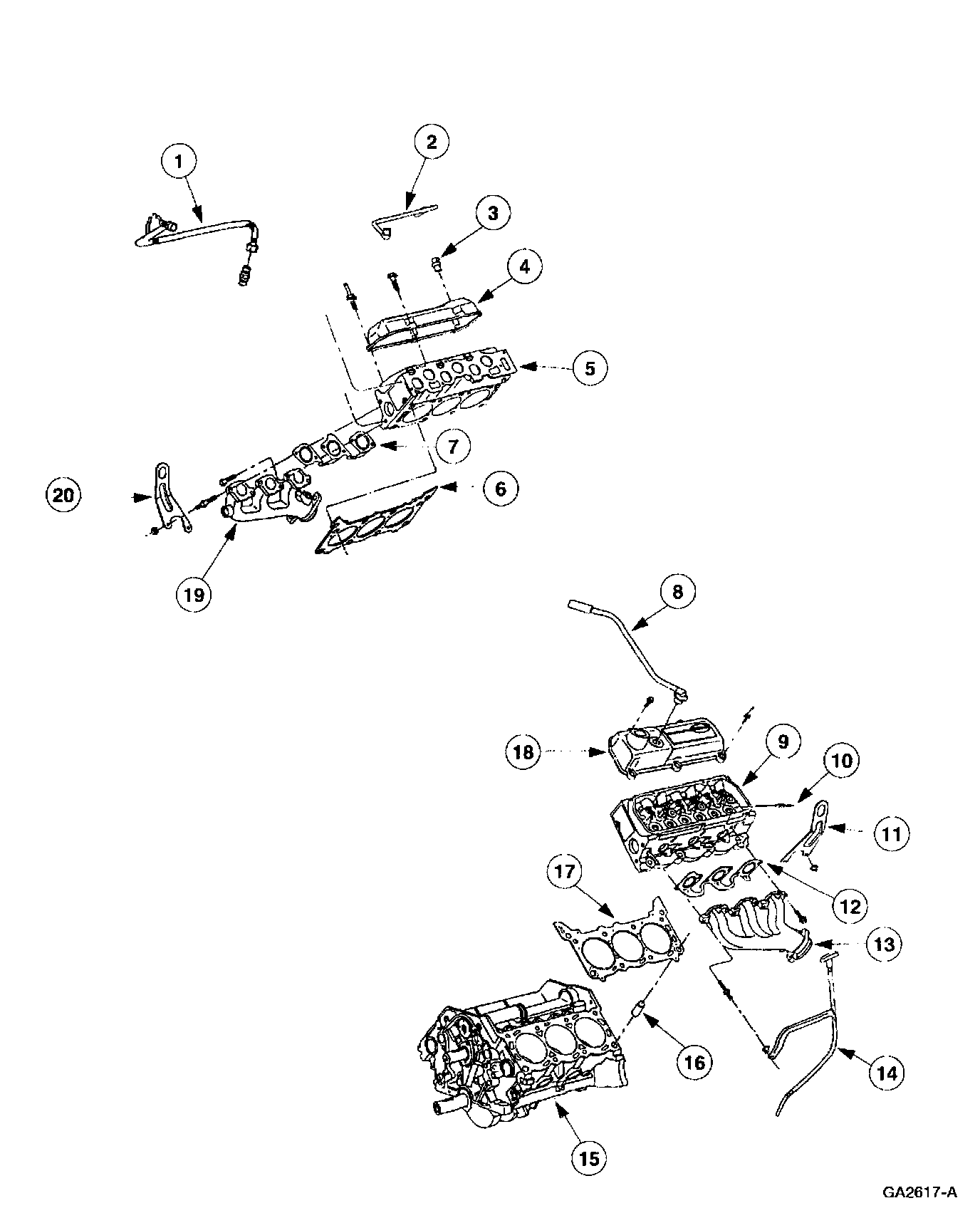

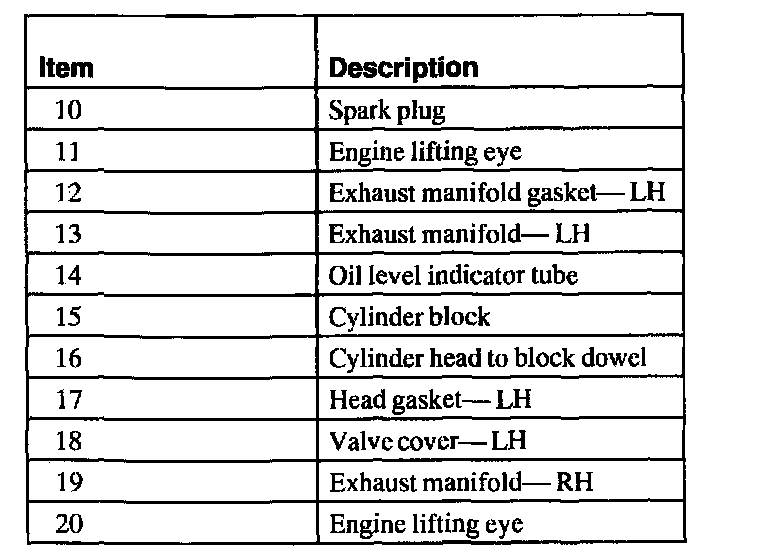

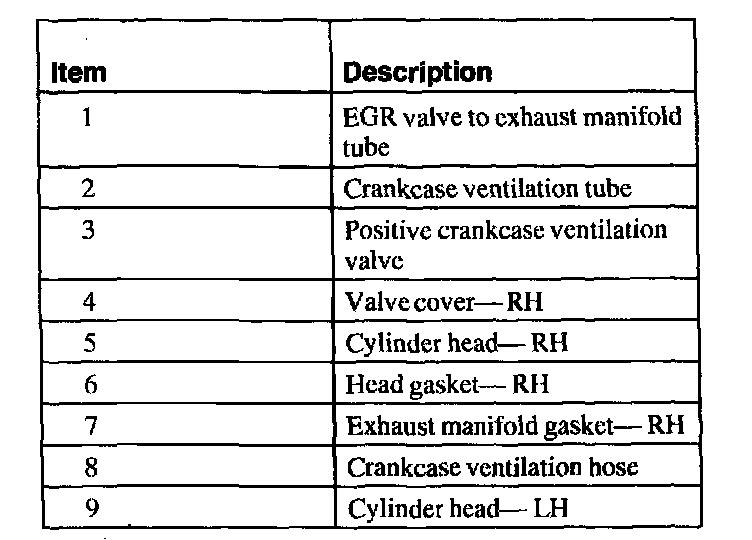

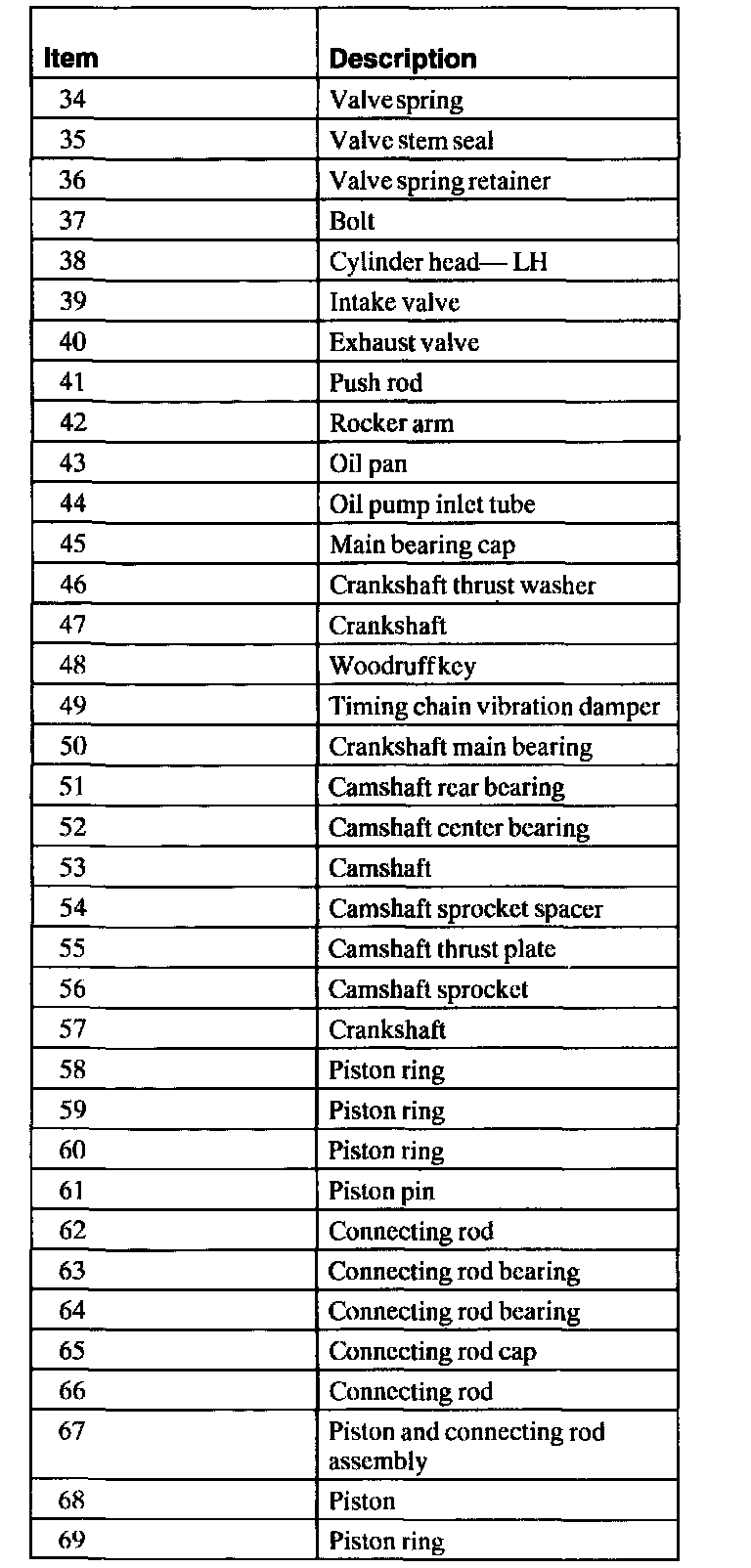

Cylinder Heads and Valve Train

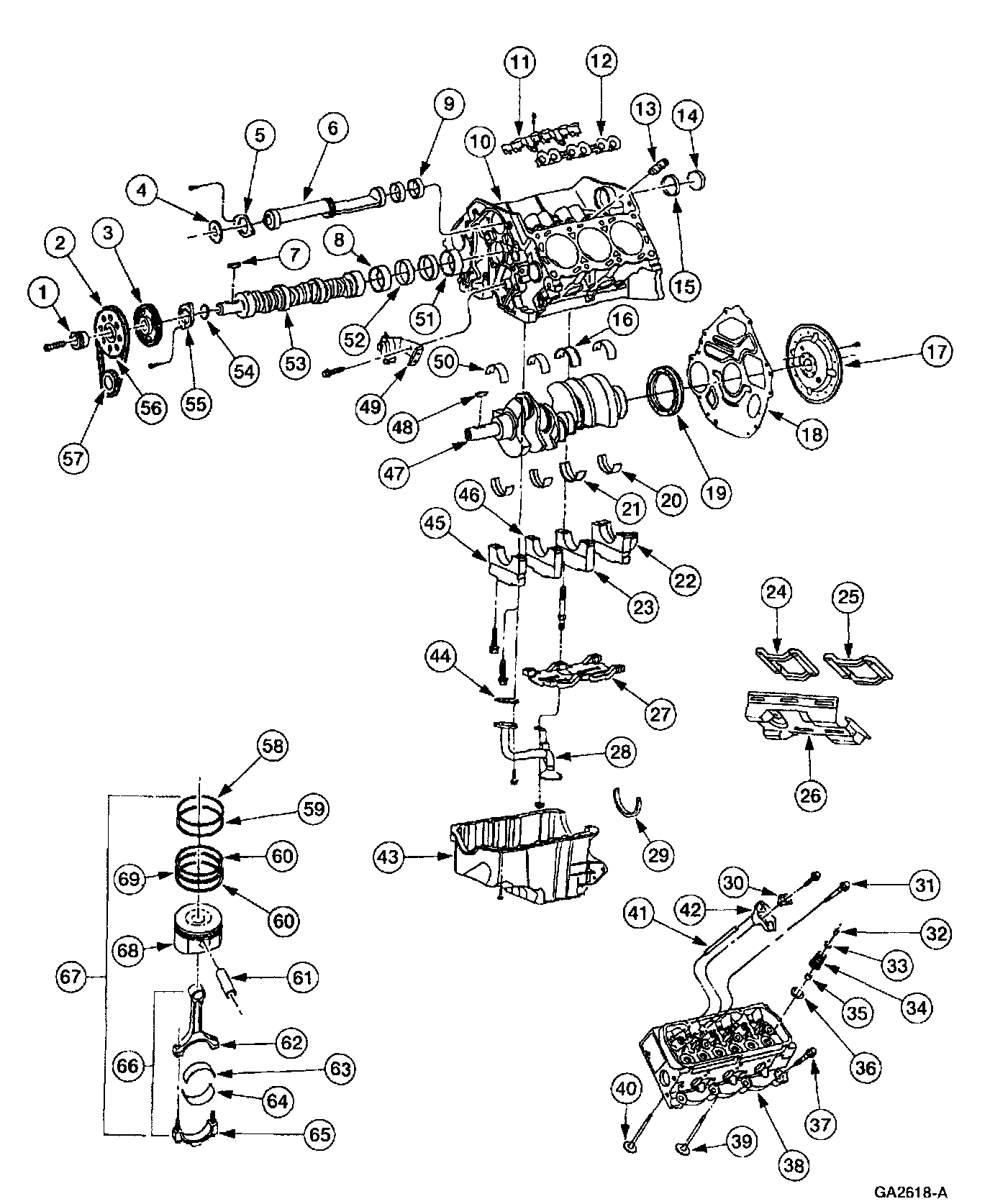

Cylinder Block and Lower End Components

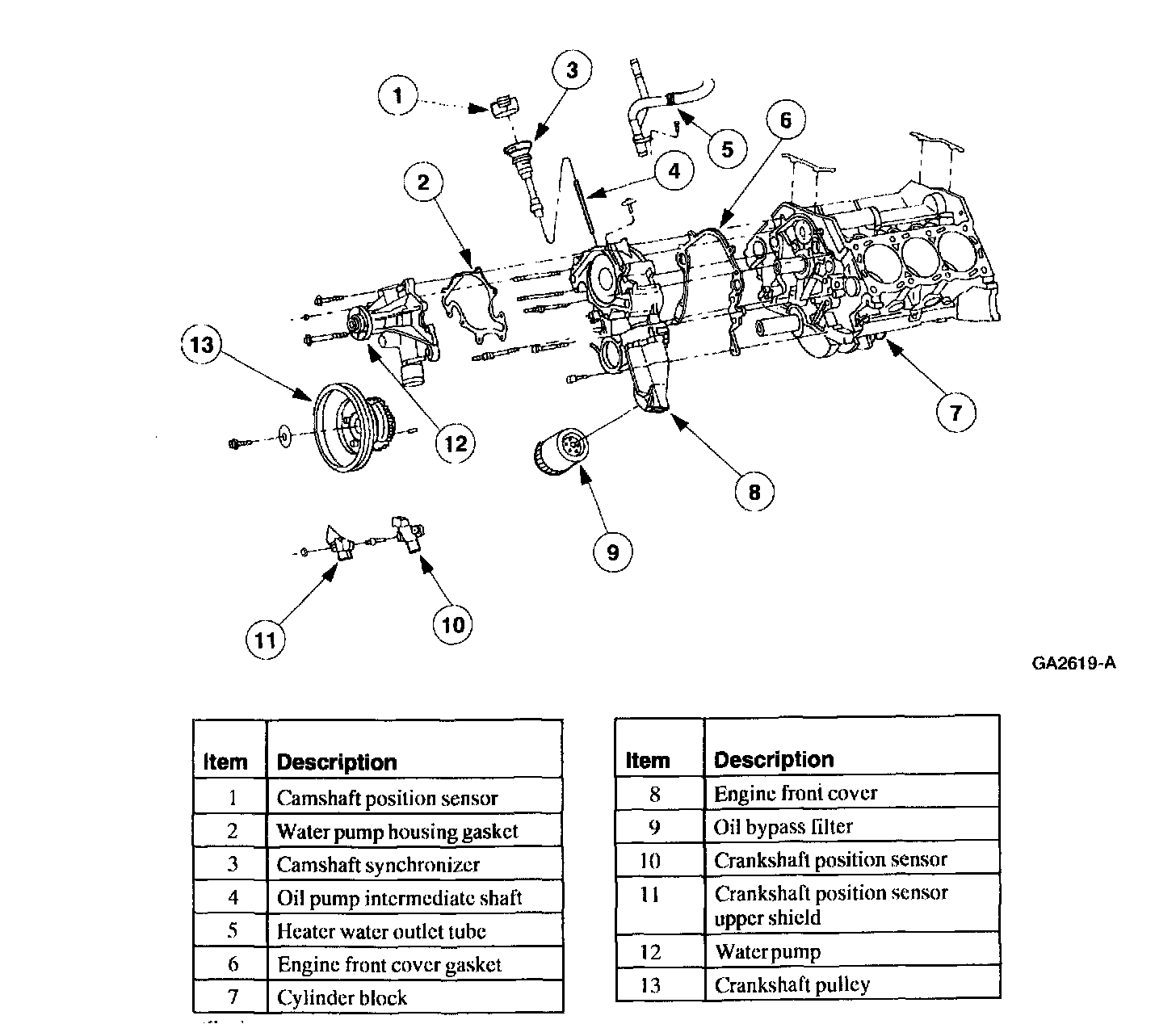

Engine Front Cover Components
